Reinforced PVC Water 3/4" Hose Pipe for Beverage and Water Systems

Inner Diameter(I.D)Outer Diameter(O.D)Working PressureBurst PressureWeightLengthVolume inchmmmmbarbarkg/rollm/rollm³/roll 5/16814515131000.04 3/81016412171000.05  1/21218412201000.06   5/81623412261000.08 3/4192541212500.06 1253141218500.08  1-1/4324141230500.12  1-1/2385041250500.2

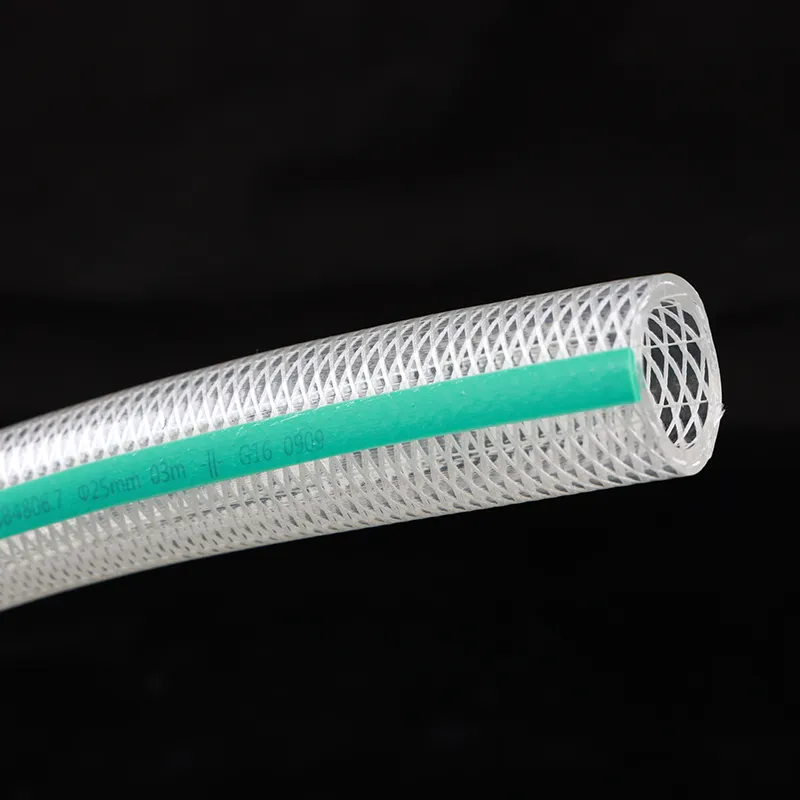

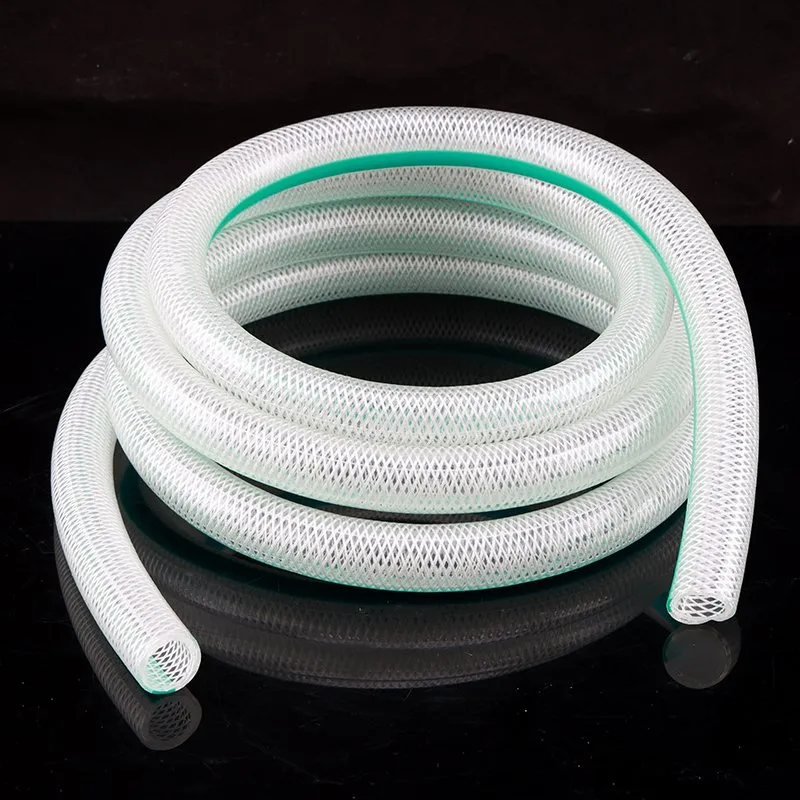

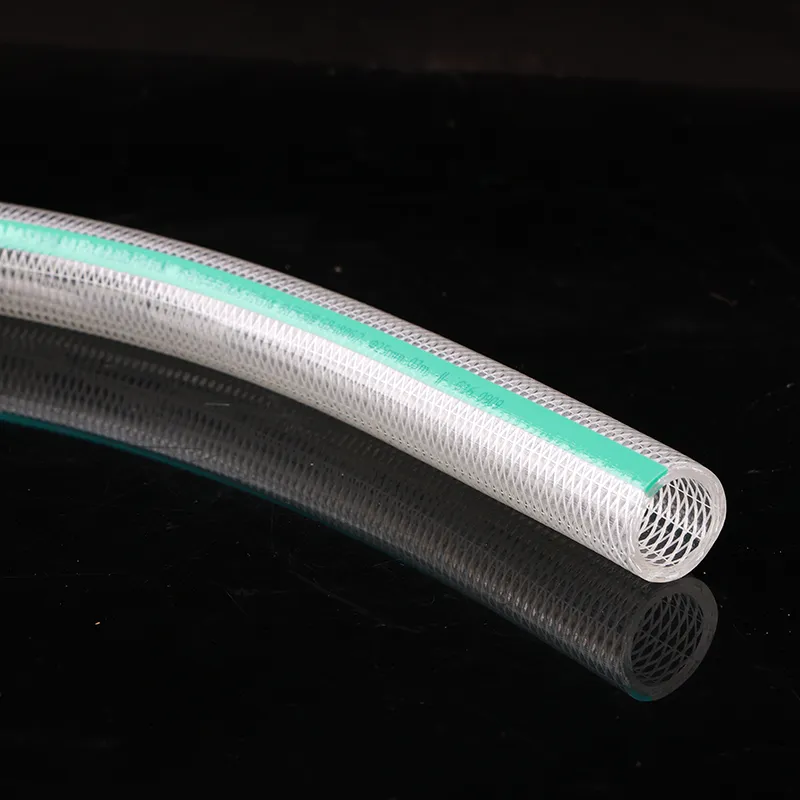

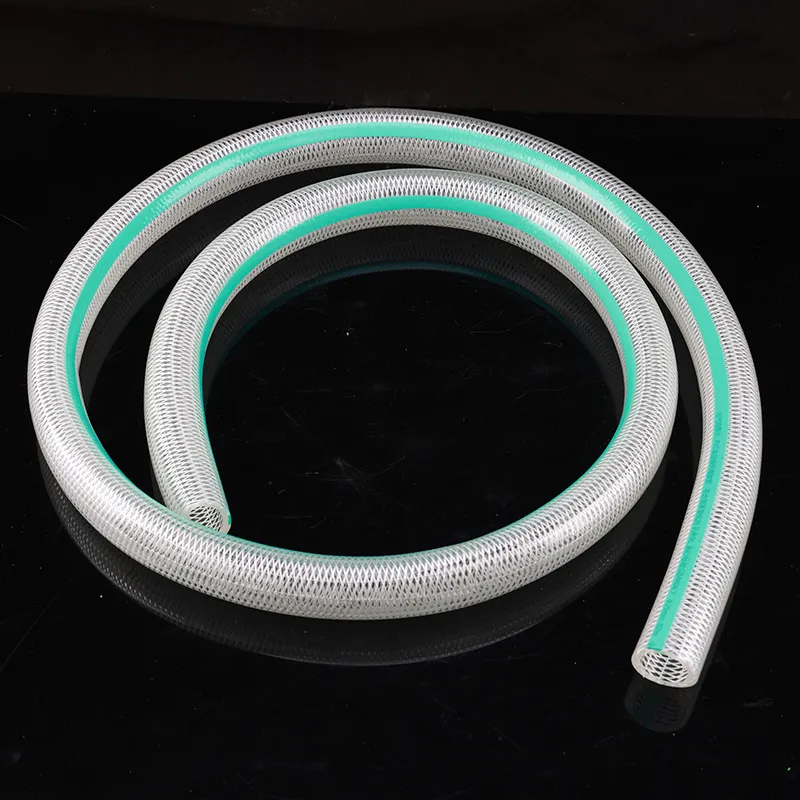

PVC food-grade fibre reinforced hose is a flexible conveying hose made of food-grade polyvinyl chloride (PVC) as the basic material, embedded with high-strength fibre braid reinforced layer composite. The product is non-toxic, odourless, hygienic and environmentally friendly, and can be used in direct contact with food, beverage and other media without the risk of precipitation of harmful substances. At the same time, combined with the fibre reinforced structure, the hose has both excellent flexibility as well as excellent compressive and tear resistance, and is able to transport materials stably in complex environments, and is widely used in food processing, pharmaceutical production and other industries with stringent requirements for health and safety.


Structure
-Inner layer:

Made of high quality food-grade PVC raw materials, the inner wall is smooth and flat, with low coefficient of friction, ensuring smooth material conveying, not easy to residue, and facilitate cleaning and disinfection; meanwhile, it has good chemical stability, and is resistant to corrosion by acid, alkali, oil and grease, and other common food media.

-Reinforcement layer:

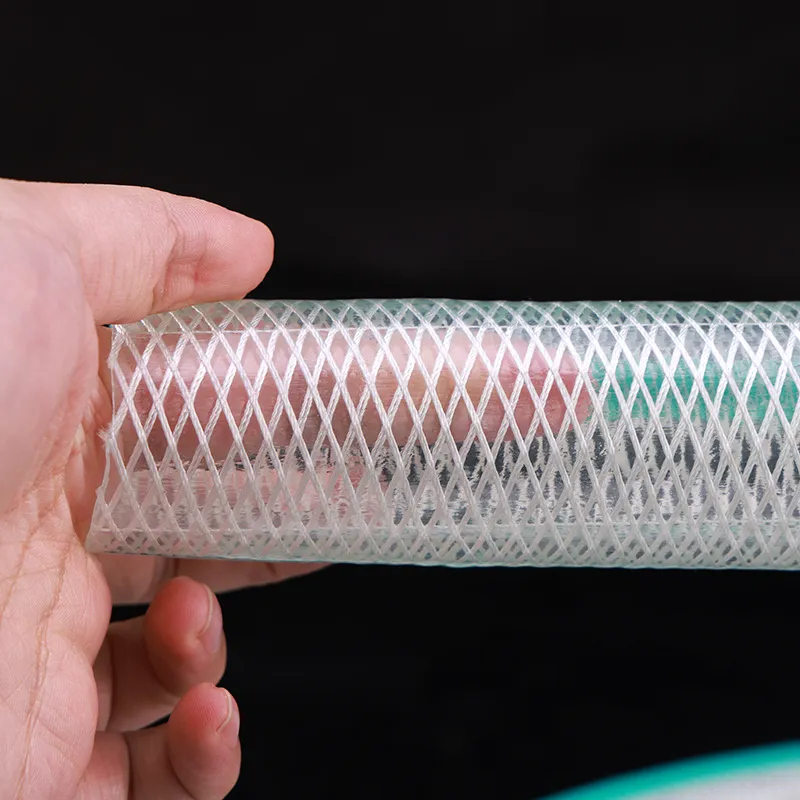

The middle layer is a high-strength polyester fibre braid, tightly wound in the middle of the inner and outer layers, which significantly improves the hose's compression resistance, tensile resistance and anti-twisting properties, effectively preventing bursting and deformation, and guaranteeing the safety and stability of the conveying process.

-Outer layer:

Also made of food-grade PVC, with wear-resistant, weather-resistant and anti-aging properties, it can resist cuts, friction and ultraviolet rays erosion in daily use, prolonging the service life of the hose, and at the same time, it provides good flexibility, which is convenient for bending, coiling and installation operations.

Application

1. Food processing industry:

It is suitable for filling, conveying and transferring liquid food such as fruit juice, dairy products, wine, edible oil, sauces, etc.

2. Beverage production industry:

Commonly used in beverage production line for the transfer of syrup, concentrate, finished beverage, as well as the cycle of cleaning liquid, disinfection liquid conveying.

3. Pharmaceutical production industry:

Meet the needs of pharmaceutical preparations, medicinal liquids, biological products and other conveying needs.

4. Catering and baking industry:

Central kitchen ingredients pre-treatment, sauce blending, transfer of liquid raw materials, as well as conveying of baking equipment (such as cream machine, and pasta machine) material .

1. Safe and hygienic:

Production strictly follows the standards for food contact materials, in line with hygiene requirements for food production, can be used for food-grade material handling.

2. Flexible and convenient:

Soft texture of the hose, small bending radius, easy to install and arrange in a small space; with the standard quick connect, snap and other fittings, easy to disassemble and assemble, greatly improving the flexibility and efficiency of the material handling system.

3. High strength and durability:

The fibre reinforced structure makes the hose excellent pressure resistance, to adapt to frequent use and high-pressure conveying scenarios, reducing the replacement frequency.

4. Strong weather resistance:

It can adapt to the temperature range of -15ºC to 65ºC, and maintains good flexibility and physical properties in humid, hot and cold environments, and is not easy to become hard and brittle.


5. Easy to clean and maintain:

Smooth inner wall and non-porous structure makes the hose not easy to adhere to the material, can use hot water, detergent or high-pressure water gun for quick rinsing, with high temperature disinfection, in line with the food industry's strict hygiene and cleaning standards.

Main Products
High-end PVC conduit pipes, anti-negative-pressure wire-reinforced hoses, high/low-temperature-resistant hoses, water discharge hoses, triple-layer high-pressure hoses with dual-wire reinforcement, spiral plastic-reinforced hoses, PVC granules, and more.
Backed by advanced production equipment and strong innovative R&D capabilities, the company boasts an annual output of 12,000 tons of various PVC hoses. Key products include:
PVC reinforced hoses (multiple specifications)
Wire-reinforced hoses
High-pressure gas hoses
PVC layflat hoses
Anti-static composite wire hoses
Nano antibacterial hoses

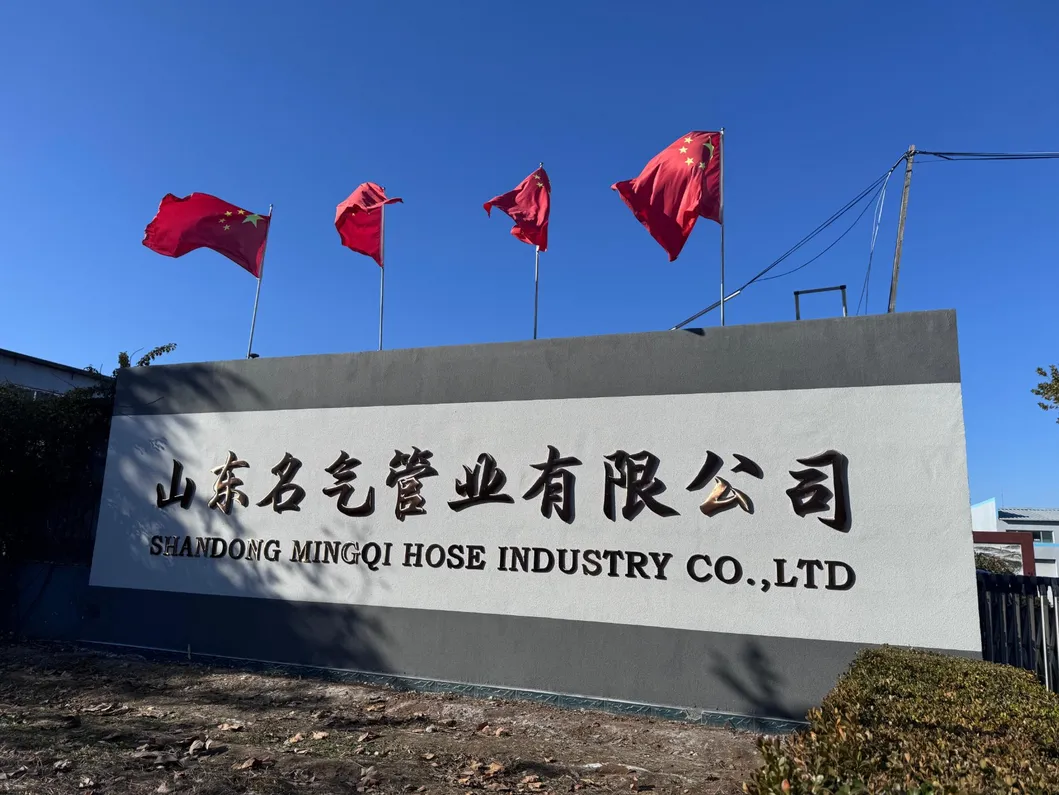

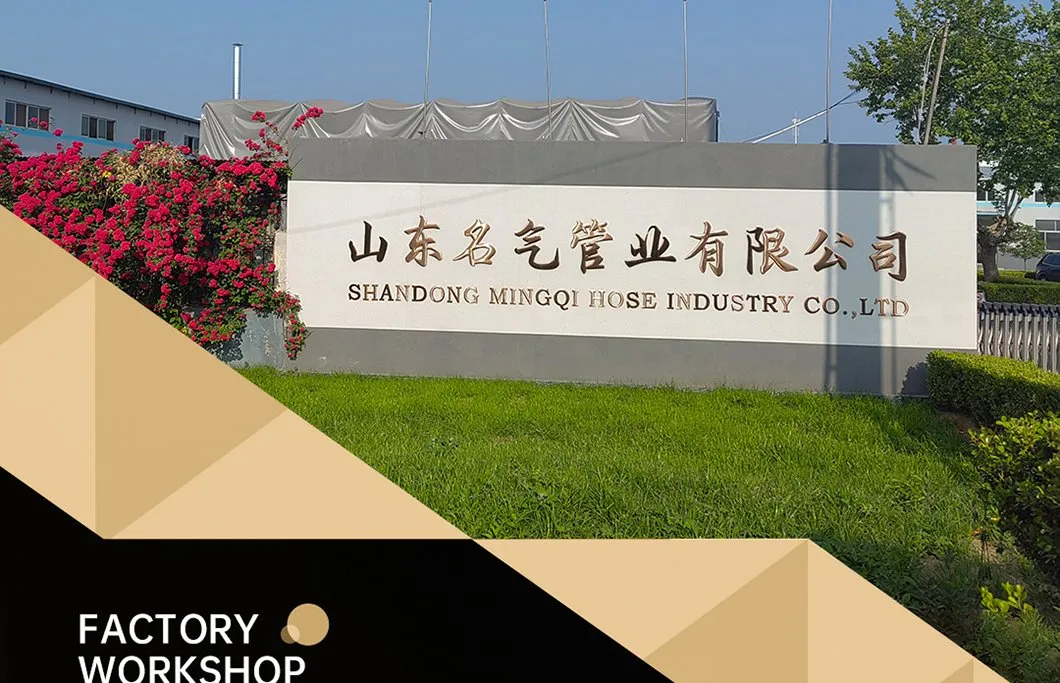

Shandong Mingqi Hose Industry Co., Ltd. is a company specializing in PVC-based plastic hoses and modified plastic granules, with strong technical expertise and R&D capabilities. With offices in Linyi and Weifang for research, sales, and operations, the company employs around 100 people and is in a phase of rapid growth.

Our products are sold nationwide and have earned widespread customer trust and recognition. We warmly welcome domestic and international clients to visit us for business discussions and mutual development.
