Triangular Thread End Food Grade PVC Casing Pipe for Plant

Model NO.	EKK2083
Type	Thermosetting Plastic Pipe
Color	Black, White or Blue
Hollow	Hollow
Shape	Round
Usage	Drainpipe, Water Supply Pipe, Threading Pipe, Agricultural Irrigation Pipe
Pressure	Pn5, Pn6, Pn8, Pn10, Pn12.5, Pn16, Pn20, Pn25
Certificate	Ce, ISO
Specifications	Od20 to 315
Standard	GB/T10002.1-2006
MOQ	500m or Negotiation
Sample	Free Sample
Feature	Self-Extinguishing, Acid Resistance, Moisture Resi
Connection	Thread
Life Time	More Than 50 Years
Strength	High Strength
Surface	Smooth Surface
OEM	OEM Orders Accepted
Features	Eco-Friendly
Transport Package	Pallet
Specification	5.8m, 12m or as Required
Trademark	Erikeke
Origin	Xiamen, China
HS Code	3917230000
Production Capacity	20000m Per Month

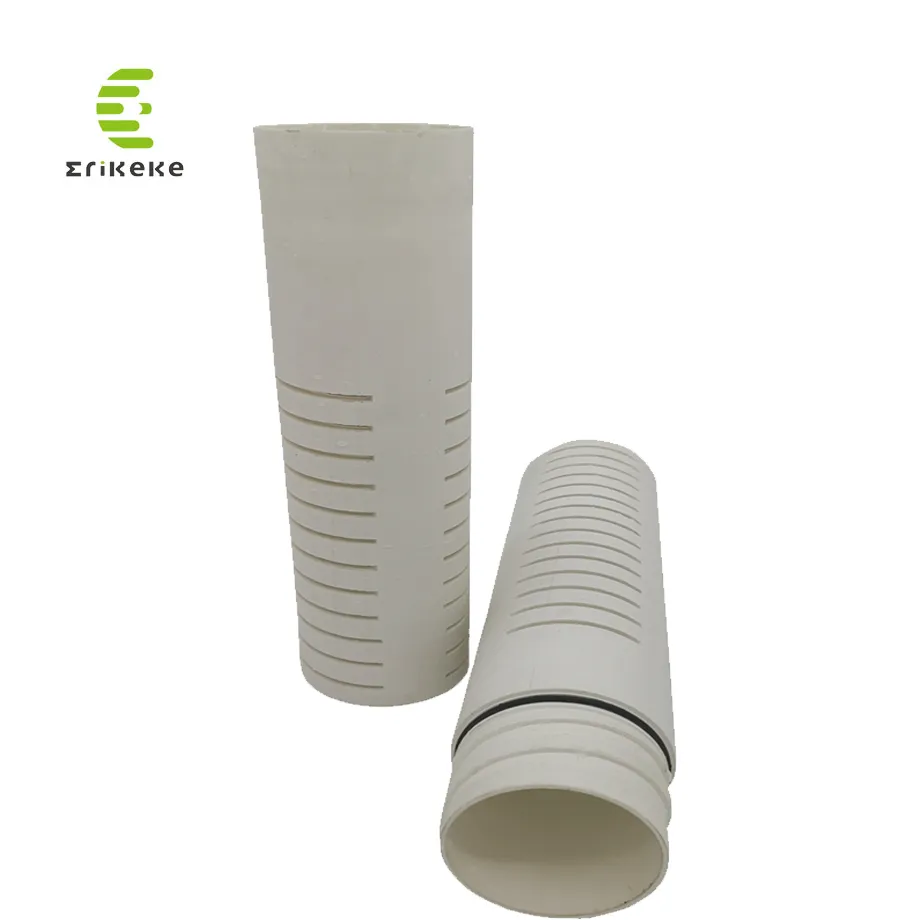

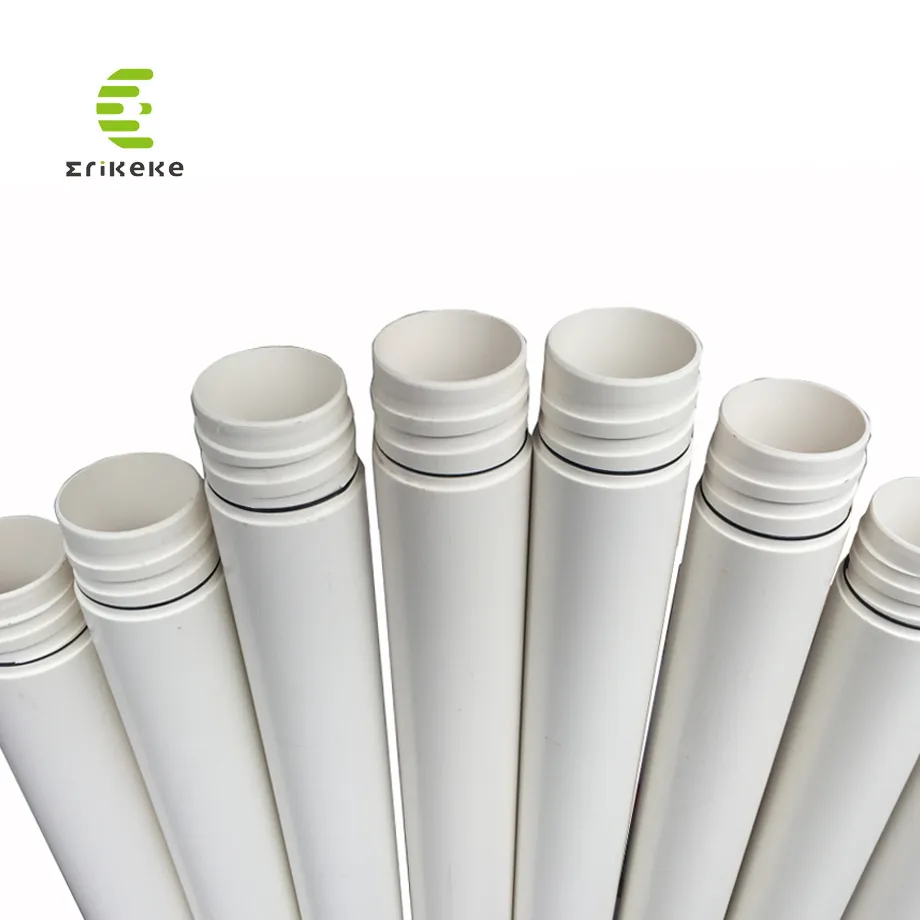

   Triangular Thread End Food Grade PVC Casing Pipe for Plant


Specifications:

Erikeke uPVC Well Casing Pipe and Screen Pipes are an ideal prodcut for protection of domestic, irrigation, industrial & mining bore wells, keeping out the gravel pack and foreign particals providing clean and clear water from the bore wells.

Common Size and working pressure as table below:


DN(INCH)OD(MM)Working PressureWall ThicknessWorking PressureWall ThicknessWorking PressureWall Thickness mpammmpammmpamm 1/2"20    2.02.0 3/4"25    1.62.0 1"32  1.252.01.62.4 1-1/4"401.02.01.252.41.63.0 1-1/2"501.02.41.253.01.63.7 2"631.03.01.253.81.64.7 3"901.04.31.255.41.66.7 4"1101.04.21.255.31.66.6 4-1/2"1251.04.81.256.01.67.4 5"1401.05.41.256.71.68.3 6"1601.06.21.257.71.69.5 7"1801.06.91.258.61.610.7 8"2001.07.71.259.61.611.9 9"2251.08.61.2510.81.613.4 10"2501.09.61.2511.91.614.8 12"2801.010.71.2513.41.616.6 13"3151.012.11.25151.618.7

Physical and mechanicla properties of pvc pipe for well

ItemIndicatorsUnit Density1350~1460kg/m3 Vicat softening temperature≥80ºC Longitudinal retraction rate≤5% Ring stiffnessSN≥12.5kN/ m2 Tensile yield stress≥40Mpa Drop hammer impact strength≤5(0ºC)TIR/%

Features

1. Resistant erode

PVC pipe has stable chemical property, which can resistant most of acid and alkali.


2. Service life long

Traditional pipe service life is 20-30 years. PVC pipe service life is at least 50 years at a set temperature and pressure.


3. Excellent sanitary performance

PVC pipe is produced by used Tin or Ca/Zn stabilizer, its sanitary performance is full according to GB/T17219 standard and Ministry of Health of the People's Republic of China related water criterion.

4. PVC pipe has better slotted (bored) rate, strong resistant pressure, larger cross flowing, and is the best choice replace steel and concrete slotted (bored) pipe in many fields.

5. Easy installing

PVC slotted (bored) pipe joint form: elastic seal ring joint, cement joint, also crew joint and flange joint. In additional, PVC-M pipe is density low, weight light, lower requirements for worker and construction equipment, construction cost also is lower compared concrete pipe, steel pipe.


6. Inside wall smooth, no furring, flowing easier, no block(n=0.008---0.009),excellent resistant bacteria. It can effectively guarantee pipes long time  straightway. For turning over swash field, PVC-M pipes also easily wash clear.

Assemblage



Production Process


Applications

• Well casing
• Well liners
• Pressure systems
• Irrigation
• Submersible pumps
• Jet pumps
