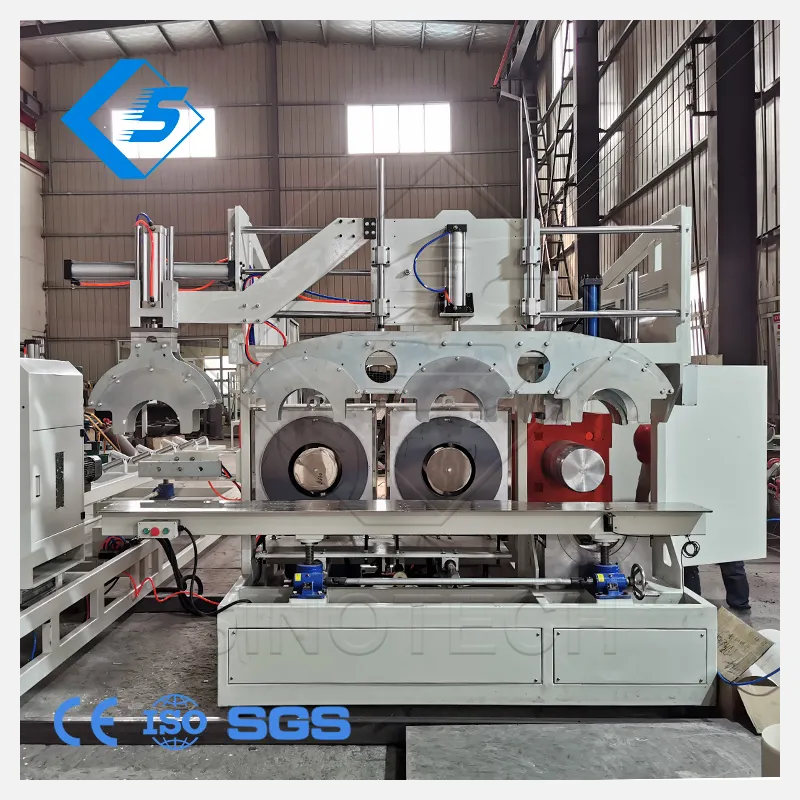

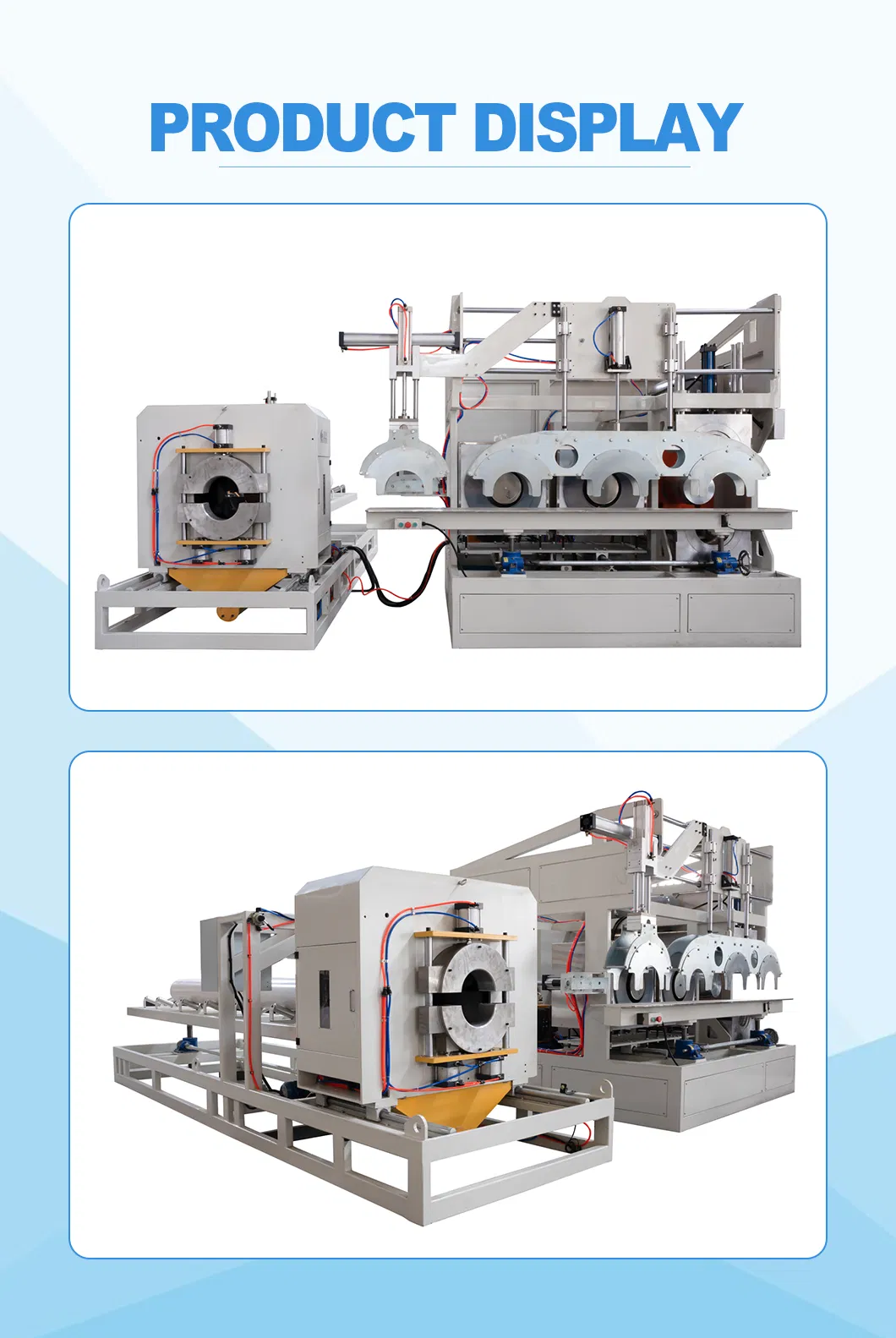

Sino-Tech Automatic Double Oven Water& Electric Plastic PVC Pipe Making Socketing Belling with Automatic Cutting System

Sinotech large diameter PVC pipe cutting and belling machine specifically designed for large size PVC pipes from 250mm to 400mm, to meet the requirements of different customers. The specially designed cutting box can cut relatively short pipes, and the minimum length can reach 300mm.The double-station heating system adopts advanced temperature control technology to realize high-precision and stable temperature control.It has features of fast heating, excellent energy saving and high efficiency. You can adjust the size and angle of the die to suit different sizes and thicknesses of pipes.

Belling Scope:Φ250mm-Φ400mm
Use Voltage:AC 380V; 50Hz (Or according to customer's request)
Central Height:According to customer's request

Advantages of Full Auto PVC Pipe Large diameter Pipe Cutting and Belling Machine
1) It is specifically designed for large size PVC pipes from 250mm to 400mm, to meet the requirements of different customers.

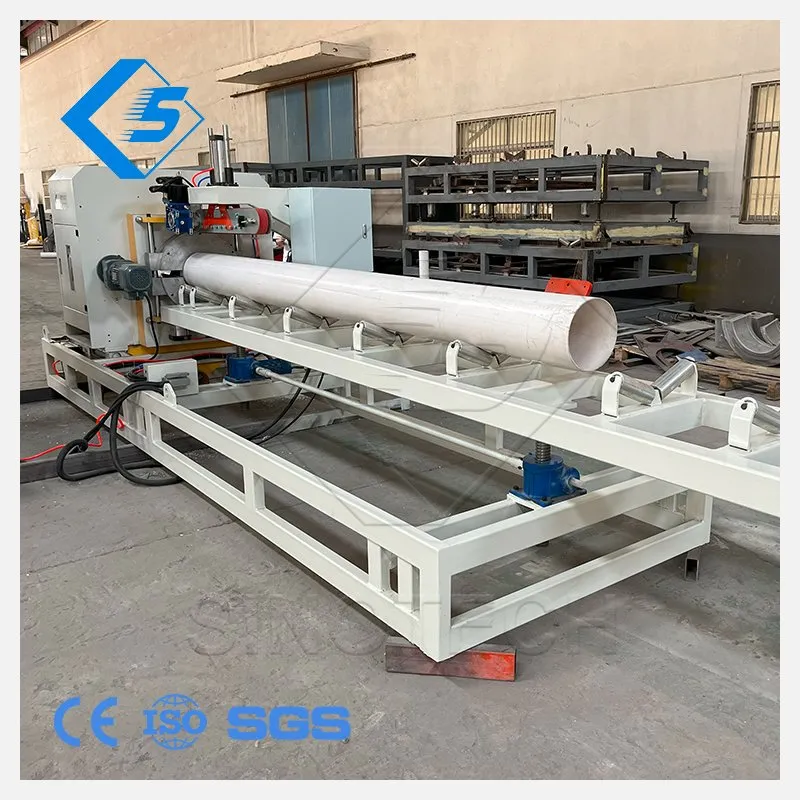

2) It can not only used in line with the pipe production line but also can be used alone.
3) The characteristics of this machine is full automatic, stable and reliable, easy to operate.
4) It adopts vacuum calibration inside the mould and force air/water cooling outside.

Main Technical Parameters

pipe expand range(out diameter)

Φ280-400mm

Belling type

R type

Voltage

380V/50HZ

Quantity of heater

2

Heating power

1.8kw*13+0.5kw=23.9kw

Heating method

Heating pipe (13 pcs)

highest temperature in heater

280ºC

Air bag

3 pcs

Air pressure

0.4~0.6Mpa

Cooling method

Water cooling

Cooling water pressure

0.2~0.3Mpa

R type forming method

Vacuum pump system

Material of R mold

Higher Block: 3Gr13
Slider: 40Gr Nitriding
Other part: 45# Steel, then electroplating

Material of U mold

45# Steel, then electroplating

Total power/Capacity

58kw

Pipe length

3-6m

Center height

1150mm±50mm

Machine set weight

5.2T

Dimension of machine

8050x3750x2150mm

R type U type F Type

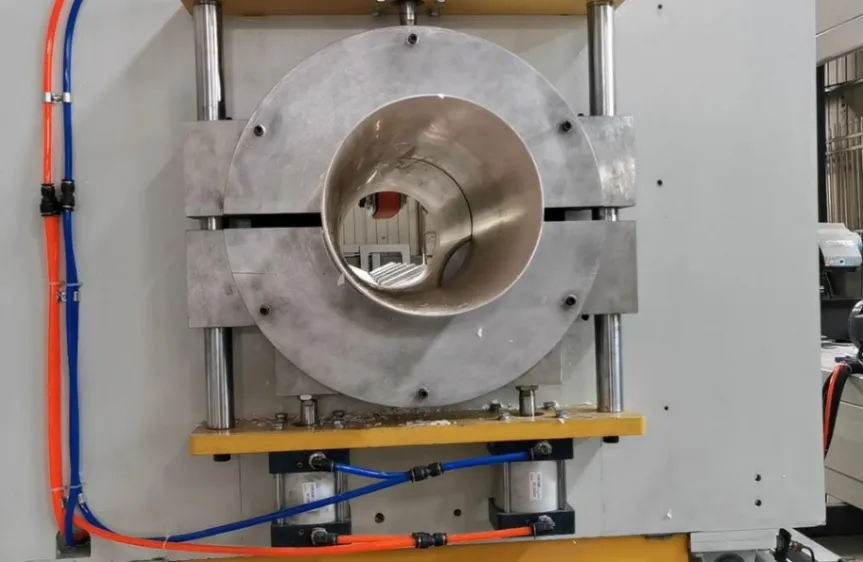

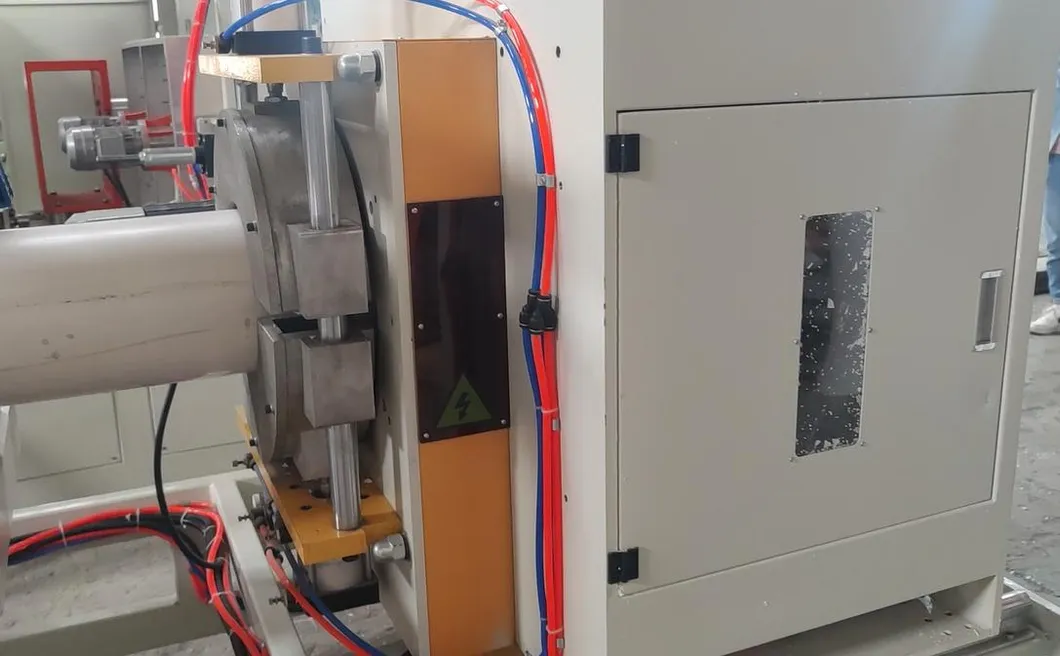

    01  The Specially Designed Cutting Box Can Cut Relatively Short Pipes, and the Minimum Length Can Reach 300mm.

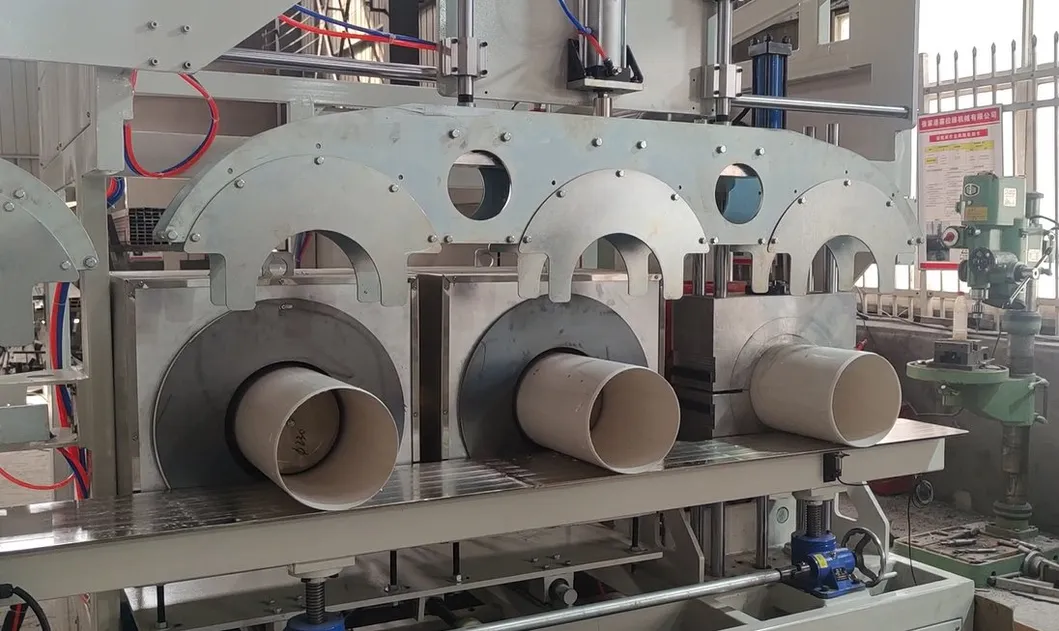

02  The double-station heating system adopts advanced temperature control technology to realize high-precision and stable temperature control.It has features of fast heating, excellent energy saving and high efficiency.

03  Equipment operators and the expanding circle of all movements by PLC controller to achieve automatic control, which is convenient and easy to operate.

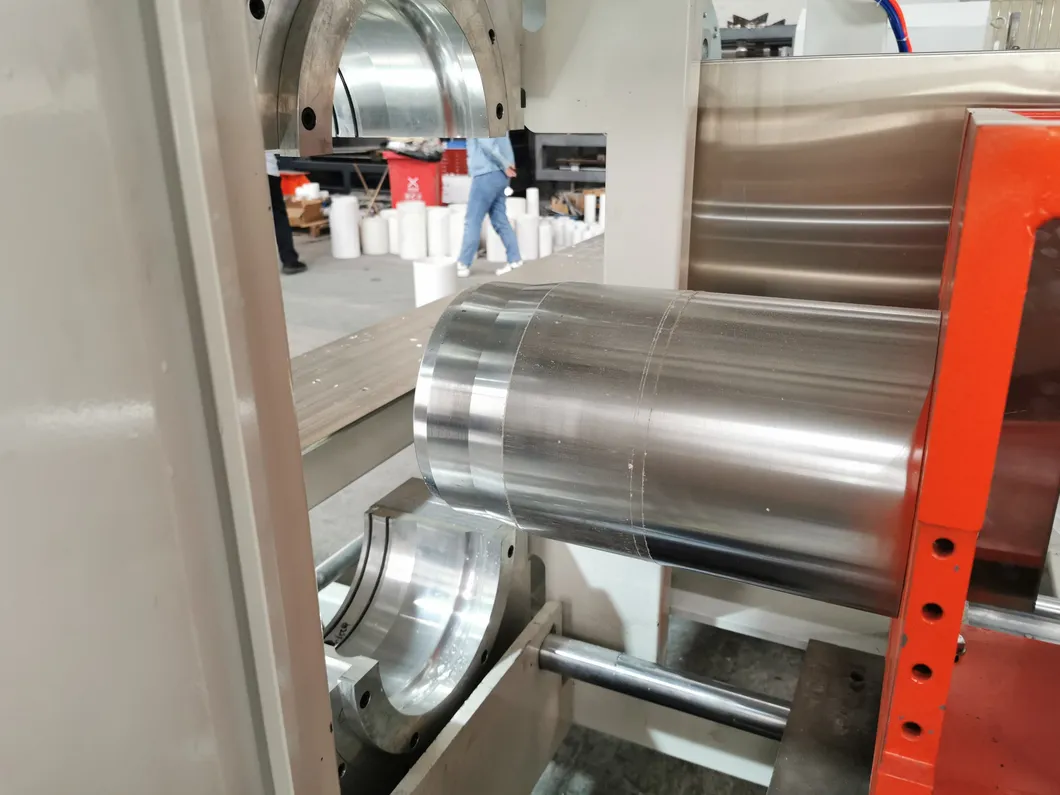

04  After shaping, both vacuum calibration technology inside the mould and force air/water cooling outside of pipe are adopted to ensure precise belling size.

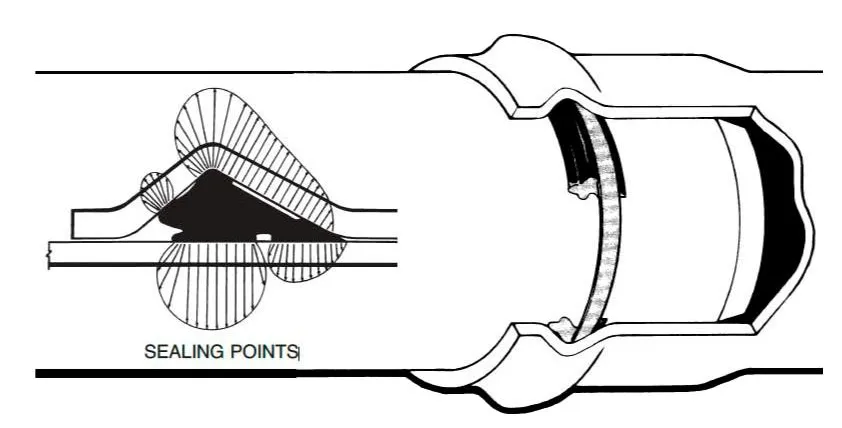

     Connection of R-Type Pipe Belling
