200mm 3 Layer PP Silent Drainage Pipe Extrusion Line / PP Soundproof Pipe Production Line

Model NO.	KDPP
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
Produced Pipe	PP Soundproof Pipe
Pipe Diameter	50-200mm
Pipe Structure	3 Layer, a-B-a or a-B-C Type
Control System	PLC Controlled with Remote Control Function
Trademark	KAIDEMAC
Origin	Weifang, China
HS Code	8477209000
Production Capacity	200 Sets/ Year

PP soundproof drainage pipe making machine

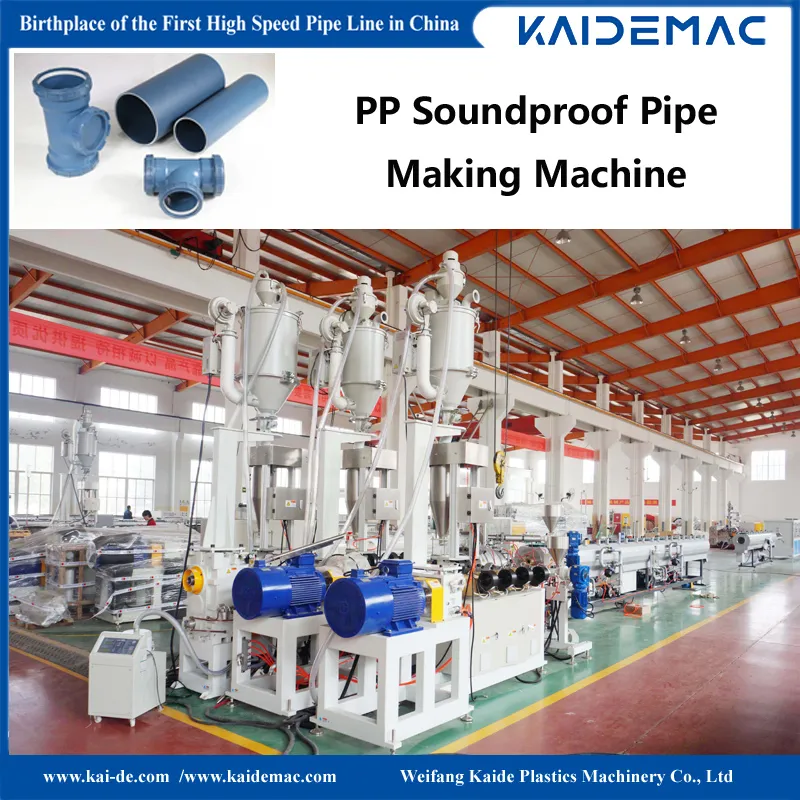

PP Soundproof pipes are produced by two extruders or three extruders, with three layer co-extrusion technology. The pipes are three layer structures with a sound-absorbing layer in the middel.

The popular soundproof pipe diameter is from 50-200mm. The pipe is made by co-extrusion technology with at least two extruders. The inner and outer layer is a thin PP layer, and middle layer is a special modified sound absorbing material. The Pipe structure is 3 layer, with thickness ratio is 10%:80%:10%. Technical Data of Pipe Production Line:

Line Model Screw Diameter L/D Producton Scope Output Nominal Power KDJY-65 65/50mm 33/33:1 50-110mm 150kgs/h 110kw KDJY-80 80/65mm 33/33:1 50-200mm 300kgs/h 165KW

Pipe Size:

No. Pipe Outer diameter Pipe Thickness 1 50 3.2 2 75 3.8 3 110 4.5 4 160 5.0 5 200 6.5

Super silent drainage products has advantages of light weight, non-toxic, flame retarcant, corrosion resistance, aging resistance and high resistance performance.
Excellent soundproof performance; by adding special soundproof material to absorb sound waves and prevent sound spread, noise reduction is much better than case iron & upvc drainage pipe.
Super anti-corrosion: inner tube can resist acid up PH2, resist alkali up to PH12.
High temperature resistance: can bare 95ºC hot water.



1. high efficiency extruder special for sound-absorption PP material is equipped, which ensures the high extrusion capacity and improves the lifespan of extruder.

2. Adjustable composite co-extrusion die head is initially created by KAIDE, which can realize rapidly even composition of three layers and get the optimal layer thickness without adjusting the extruder rotation speed.

3. Special designed cutting machine, to ensure smotth cutting surface and also pipe roundness.

4. PLC control system with sync control  to ensure easy and reliable operation of the line; and remote control to help customer to diagnosis machine problem if any and solve it.
