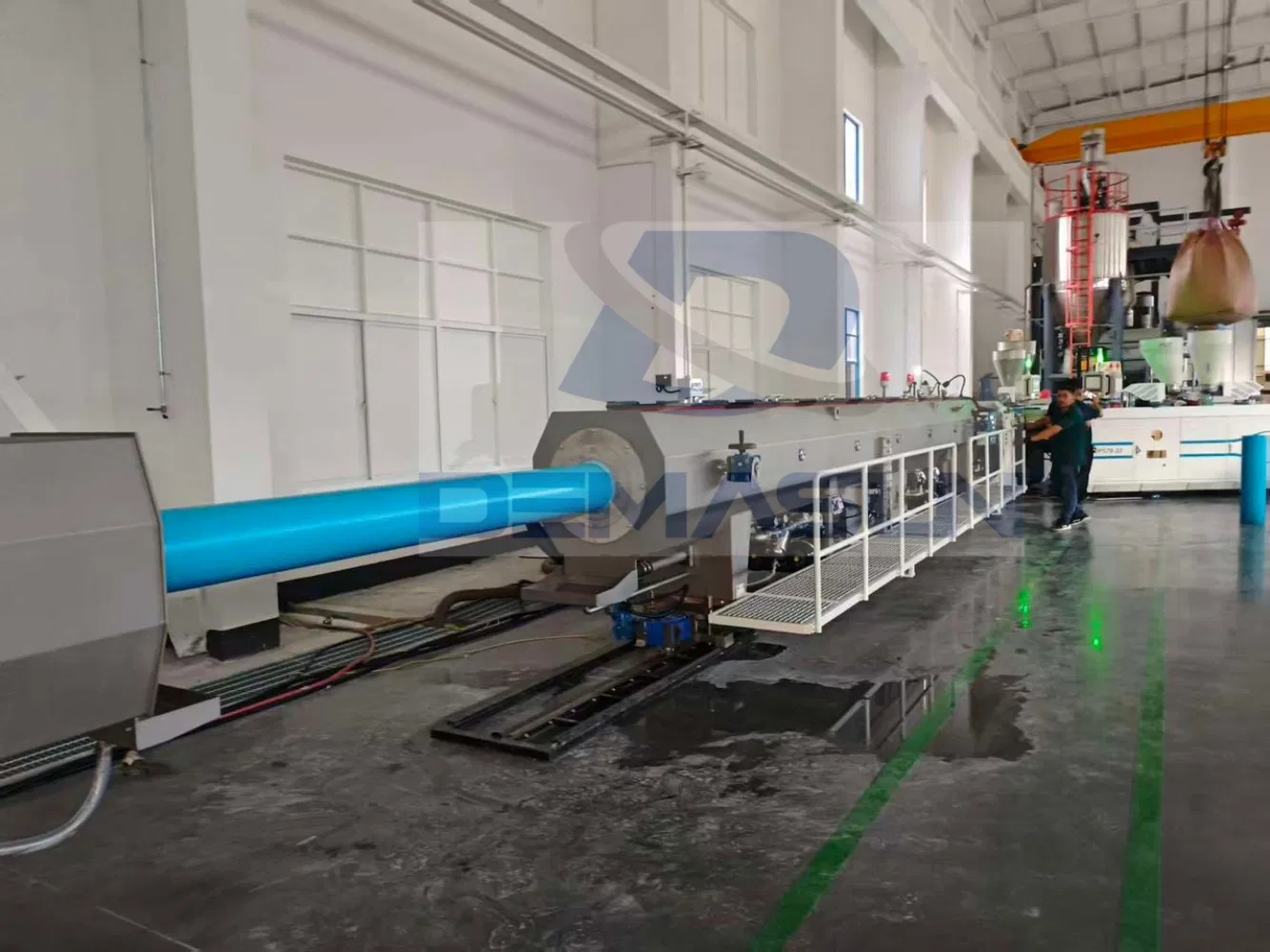

UPVC Foam 3-Layer Pipe Machine PVC Pipe Extrusion Line Plastic Machine Silent Pipe Production Line

Keep on going for new technology for plastic pipe extrusion is our target. Welcome contact us!

PVC 3-layer foam pipe extrusion line
Suitable for U-PVC drainage pipe or silent pipe extrusion.
It can saved the raw materail for middle layer.

The keypoints of this PVC foam 3-layer pipe extrusion, is the extruder and the die head design, which shall be make sure on the each extruded pipe layer uniform.
Pipe weight is mainly depends on the layer ratio and the density of foam layer.
For details, welcome you to contact us and talk for more information.

Work condition

Dimension of production line About length 36m*width 6m*height 6m Temperature & Humidity ≤40ºC, ≤85% Power supply & Installation power 3-phase, 380V, 50Hz Compressor Supply compressed air Automation & Operators 1~2 operators

Outer diameter(mm) Maximum Output(Kg/h) Ø110 500 Ø160 550 Ø200 600 Ø250 700 Ø315 750

No. Goods Description QTY(set) 1 DMS93 Twin-screw extruder 1set 2 DMS78 Twin-screw extruder 3 Plastic Pipe Extrusion die head---for 3-layer PVC foam pipe 4 Dual-chamber vacuum tank 5 Cooling tank 6 Four-claw haul-off machine 7 Plastic Pipe cutter

1. High intellegence with computer control, High efficiency, Steady running, and low power consumption

1. Intelligent & centralized control
2. Multiple-language
3. Intelligent alarm system

1. Siemens, ABB, Omron, Schnieder, etc.

1. Special flow channel design to make sure the Foam multi-layer extrusion with good melt.
2. Optimized temperature control and flow channel design, precise melt temperature control.
3. Excellent material and reasonable design to make sure its long service life.
4. Rich experience on extrusion die design and manufacturing.

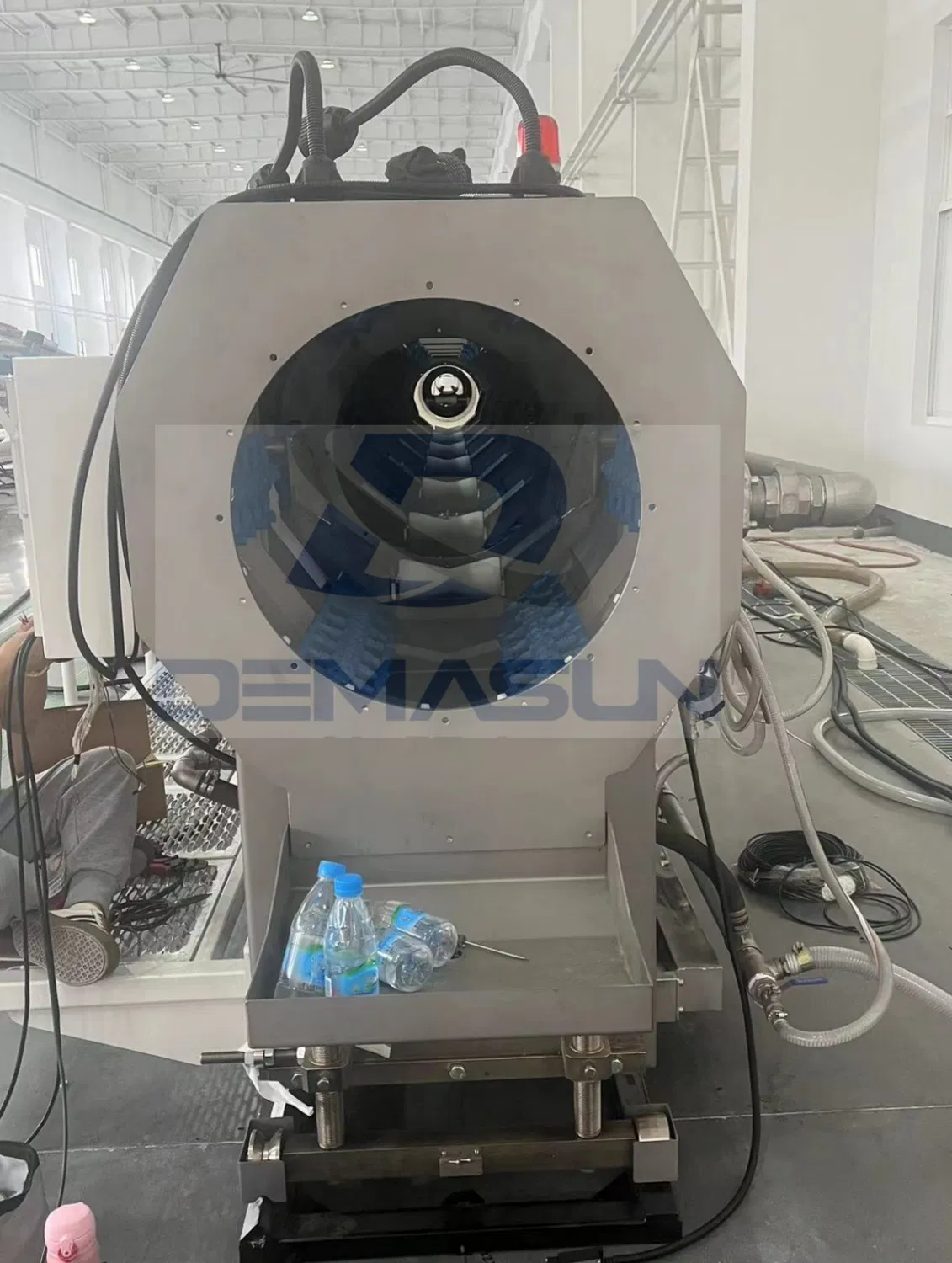

1. Thick stainless steel as raw material for vacuum tank, it will make sure long service life.
2. Advanced pipe line layout design and adjustable spray angle for better cooling effect, and fast cooling.

1. For the different pipe size and different speed requirement, we have developed kinds of haul-off unit accordingly.
2. The haul-off unit equipped with single motor drive for every claw with separate motor drive, there is the belt type haul-off unit, stable hauling.

1. Reasonable cutting design, endurable, dust-collecting efficiently and stable for cutting.
2. Dust-collection design different from normal PVC pipe cutter, to reduce more chips during pipe cutting process
