HDPE PE Inner Rib Enhanced Spiral Winding Plastic Corrugated Pipe Extrusion Line

Model NO.	200-4000mm
Plastic Processed	PE
Product Type	Profile Extrusion Molding Machine
Feeding Mode	One Feed
Assembly Structure	Separate Type Extruder
Screw	Single-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Don't Exhaust
Automation	Automatic
Computerized	Computerized
HDPE Pipe Types	Profiled Winding, Large Diameter, Structured Wall
Delivery Conditions	Fob CIF CIP
HDPE Pipe Line Processing Period	40-90 Working Days
Delivery Period	30days
Electrical Appliances	ABB, Siemese, Omron,
Output	300-1500kg/H
Prepayments	30%+70%
PE Spiral Winding Pipe Extrusion Line 1	Single Screw Extruder, Double-Screws Extruders
PE Spiral Winding Pipe Extrusion Line 2	Profile Extrusion Mould, Vacuumcalibration Tank
PE Spiral Winding Pipe Extrusion Line 3	Spiral Winding Machine with Glue Welding Extruders
Double-Wall Spiral Corrugated Pipe 1	HDPE Spiral Wastewater Sewage Drainage Pipes Lines
Double-Wall Spiral Corrugated Pipe 2	PE/PP Chemical Storage/Water Tanks Production Line
Double-Wall Spiral Corrugated Pipe 3	Storm Water Treatment Pipe Machine Plants
Spiral Winding Pipe Machines	Sewage Pumping Station Pipe Extrusion Machine Line
Sewage Treatment Plants Machines	Manholes Inspection Chambers Extrusion Lines
Transport Package	Stretch Film and Wooden Pallet, Wooden Packing
Specification	200-800, 300-1200/1500, 800-2400, 1600-3000/4000mm
Trademark	Sincere Machinery
Origin	Qingdao, China
HS Code	8477209000
Production Capacity	50 SetsYear

HDPE large diameter hollow wall spiral pipe extrusion line.
HDPE Structural wall winding pipe extrusion line.
PP-H Solid Wall Spiral winding corrugated pipe extrusion production lines.

1.Feature:
*Double-walled corrugated pipes, with "H" structure.
*DN200-DN4000mm
*Ring Stiffness:SN2, SN4,SN8,SN12.5, SN16
2. HDPE large diameter hollow wall winding pipe machine .
**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm.
**Our machine is featured with comfortable operation and high performance/price ratio.
**Due to our special design, it is very convenient in transportation and installment.
**We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
**By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.

3.Technical parameter

Model SMSG-800 SMSG-1200 SMSG-1600 SMSG-2200/2400 SMSG-3000/4000 Extruders SJ65+SJ55 SJ90+SJ65 SJ100+SJ65 SJ120+SJ90 SJ150+SJ100 Output capacity(kg/h) 250-300 350-400 500-600 750-850 1000-1500 Pipe diameter(mm) 200-800 400-1200 800-1600 1200-2200
800-2400 2000-3000
2000-4000 Production speed(m/h) 2-16 2-12 1-6 0.5-5 0.3-3 Installed power(kw) 180 250 300 400 500

4.Detailed Image

Single Screw Extruder with Feeder ,Drying hopper and  Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality extrusion.
(1) Motor brand: Siemens
(2) Inverter brand: Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Material of screw and barrel: 38CrMoAlA.
(6) Heating method: Ceramic or cast aluminum heating



Profile Extusion Mould

The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.

Vacuum Calibration Tank
Vacuum Pump 2 sets
Water Pump
304 Stainless Steel with 4mm thinkness

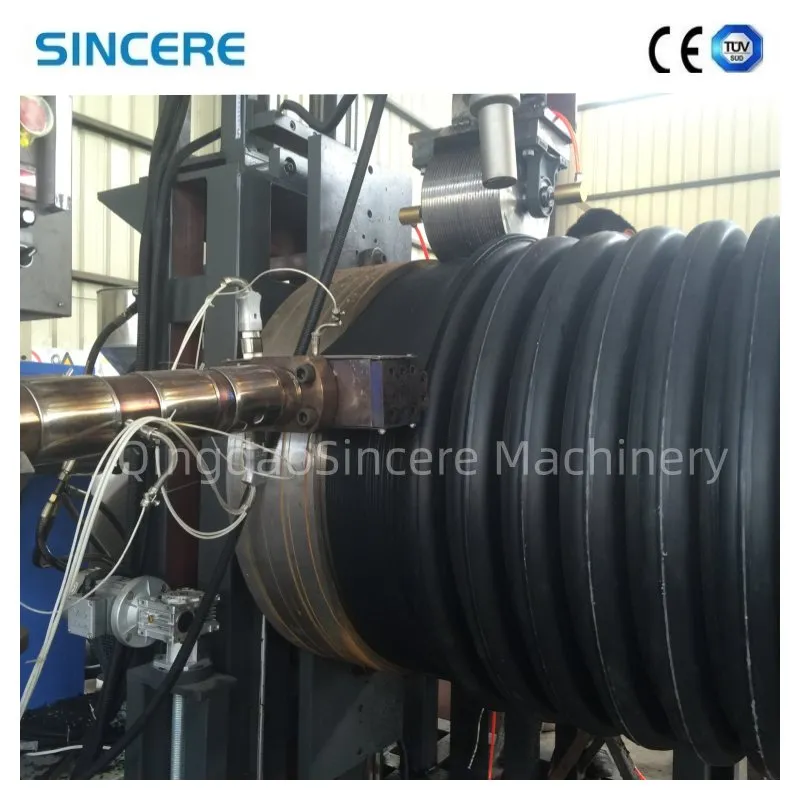

Spiral Forming Machine

It is stainless steel materials.
The spiral winding machine, which ar produced by Qingdao Sicere Plastic mahcinery,efficient and energy-saving, stable operation, easy to install and disassemble



Pipe Stacker

Pneumatic control
With cutting machine

*What can the machine produce?
It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.
5.Final Products Show & Application:
PP waste gas purification tower,
PP spray tower,
waste gas spray tower,
PP acid mist spray tower,
PP washing tower
PPH storage tank
PPH winding tank
vertical storage tank
PPH vertical storage tank
PPH horizontal storage tank
PPH storage tank
PPH vertical storage tank
PPH winding pipe for chemical industry



HDPE Large diameter spiral pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.

6.Recommed Other Machine:
*Solid wall spiral winding pipe extrusion line.
*Spiral winding insulation jacket pipe production machine.
*Plastic Sinking well jacking pipe machinery.

6.Our service

*We can provide customers with perfect installation and use services.
*We can provide customers with satisfactory products according to their needs.
*When problems arise during the use of products, we can provide appropriate solutions.
*The warranty period is one year, except man-damage.
*Welcome to visit our factory and looking forward to win-win cooperation.
