HDPE Hollow Wall Spiral Winding Structured Wall Pipe Extruding Machinery

Model NO.	200, 300, 600, 800, 1000, 1200, 1500, 1600, 1800
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008, TUV
Customized	Customized
Condition	New, Under The Order
After-sales Service	Can Provide Installation and Commissioning Service
HDPE Pipe Types	Profiled Winding, Large Diameter, Structured Wall
Delivery Conditions	Fob CIF CIP
HDPE Pipe Line Processing Period	40-90 Working Days
Delivery Period	30days
Electrical Appliances	ABB, Siemese, Omron,
Output	300-1500kg/H
Prepayments	30%+70%
PE Spiral Winding Pipe Extrusion Line 1	Single Screw Extruder, Double-Screws Extruders
PE Spiral Winding Pipe Extrusion Line 2	Profile Extrusion Mould, Vacuumcalibration Tank
PE Spiral Winding Pipe Extrusion Line 3	Spiral Winding Machine with Glue Welding Extruders
Double-Wall Spiral Corrugated Pipe 1	HDPE Spiral Wastewater Sewage Drainage Pipes Lines
Double-Wall Spiral Corrugated Pipe 2	PE/PP Chemical Storage/Water Tanks Production Line
Double-Wall Spiral Corrugated Pipe 3	Storm Water Treatment Pipe Machine Plants
Spiral Winding Pipe Machines	Sewage Pumping Station Pipe Extrusion Machine Line
Sewage Treatment Plants Machines	Manholes Inspection Chambers Extrusion Lines
Transport Package	Stretch Film and Wooden Pallet, Wooden Packing
Specification	200-800, 300-1200/1500, 800-2400, 1600-3000/4000mm
Trademark	Sincere Machinery
Origin	Qingdao, China
HS Code	8477209000
Production Capacity	50 SetsYear

HDPE Hollow Wall Spiral Winding Structured Wall Pipe Extruding Machinery
HDPE Large Diameter Hollow Wall Winding Pipe Production Line/Winding Pipe Extrusion Line/Winding Pipe Making Machine
PEHD Large Caliber Profiled Wall Coiled Pipe Production Machine.
Ribbed reinforced spiral winding corrugated pipe making machine.
Solid wall spiral winding pipe extrusion line.

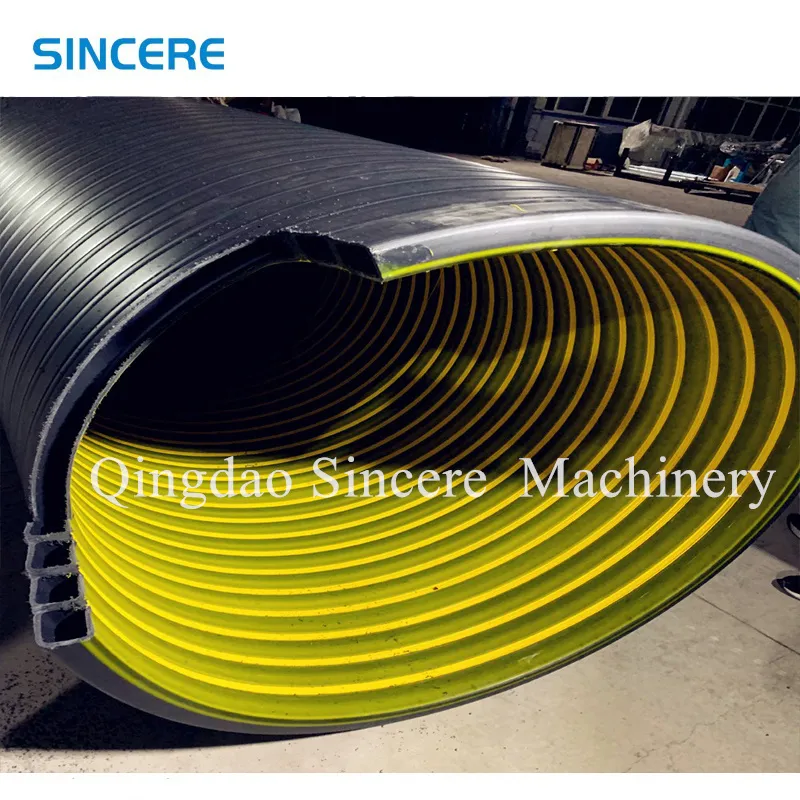

*Double-walled corrugated pipes, with "H" structure.
*DN200-DN4000mm
*SN2, SN4,SN8,SN12.5, SN16

  HDPE extrusion spiral winding sewer pipes Application:
  - Sewage and drainage pipes
    - Storm water drainage pipes
    - Rain water sewage plastic pipes
    - Cable protection pipes
    - Civil construction sewage pipes
    -Chemical storage tank
    - Liquid storage tank

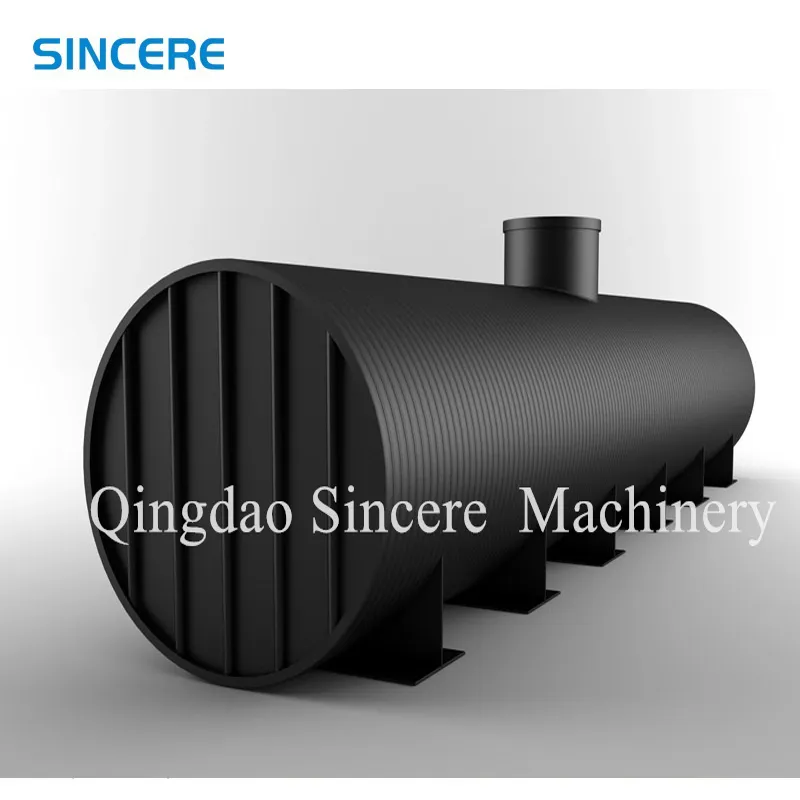

    - Manhole wellbore



1. HDPE Large diameter spiral pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.

2. HDPE large diameter hollow wall winding pipe machine .
**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm.
**Our machine is featured with comfortable operation and high performance/price ratio.
**Due to our special design, it is very convenient in transportation and installment.
**We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
**By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.

3.Technical parameter

Model SMSG-800 SMSG-1200 SMSG-1600 SMSG-2200/2400 SMSG-3000/4000 Extruders SJ65+SJ55 SJ90+SJ65 SJ100+SJ65 SJ120+SJ90 SJ150+SJ100 Output capacity(kg/h) 250-300 350-400 500-600 750-850 1000-1500 Pipe diameter(mm) 200-800 400-1200 800-1600 1200-2200
800-2400 2000-3000
2000-4000 Production speed(m/h) 2-16 2-12 1-6 0.5-5 0.3-3 Installed power(kw) 180 250 300 400 500

4.Plastic Pipe Production Machine Pictures


HDPE Plastic pipe making machine Feeder ,Drying hopper and  Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality extrusion.
(1) Motor brand: Siemens
(2) Inverter brand: Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Material of screw and barrel: 38CrMoAlA.
(6) Heating method: Ceramic or cast aluminum heating



HDPE Plastic Coiled Pipe Extusion Die head

The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.





Vacuum calibration water tank and Water cooling tank

It is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.

(1) Vacuum pump power : 4 kw

(2) Water pump power: 2.2 kw*2
(3) Spray cooling: ABS nozzle; Stainless steel pipe
(4) Stainless steel material: 1Cr18NiTi
(5) Diameter of tank : Customized
(6) Length of tank: 6 m



HDPE Plastic Pipe Haul-off machine

The main function of the tractor is to clamp the pipe after cooling and forming, and transport the pipe forward smoothly and evenly by providing a certain traction speed and traction force.

HDPE Plastic pipe cutting machine
The special cutting machine for PVC pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device.

(1) Cutting motor power: 1.5 kw

(2) Cutting scope: Customized

(3) Control means: Pneumatic control



 HDPE Plstic Pipe Glue welding extruder

It has the function of easy operation and maintenance

Ribbed reinforced spiral winding corrugated pipe making machine.

Solid wall spiral winding pipe extrusion line.

5. What can the machine produce?
It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.




6.Our service
*We can provide customers with perfect installation and use services.
*We can provide customers with satisfactory products according to their needs.
*When problems arise during the use of products, we can provide appropriate solutions.
*The warranty period is one year, except man-damage.
*Welcome to visit our factory and looking forward to win-win cooperation.

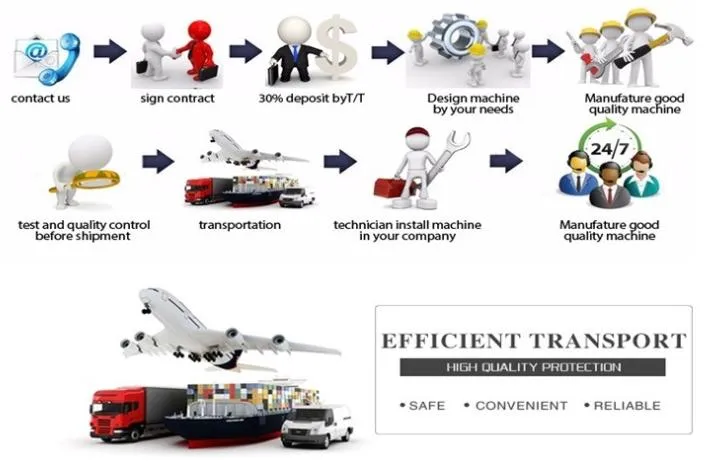

7.Our cooperation process:

8. Contact:
Fly Wang
