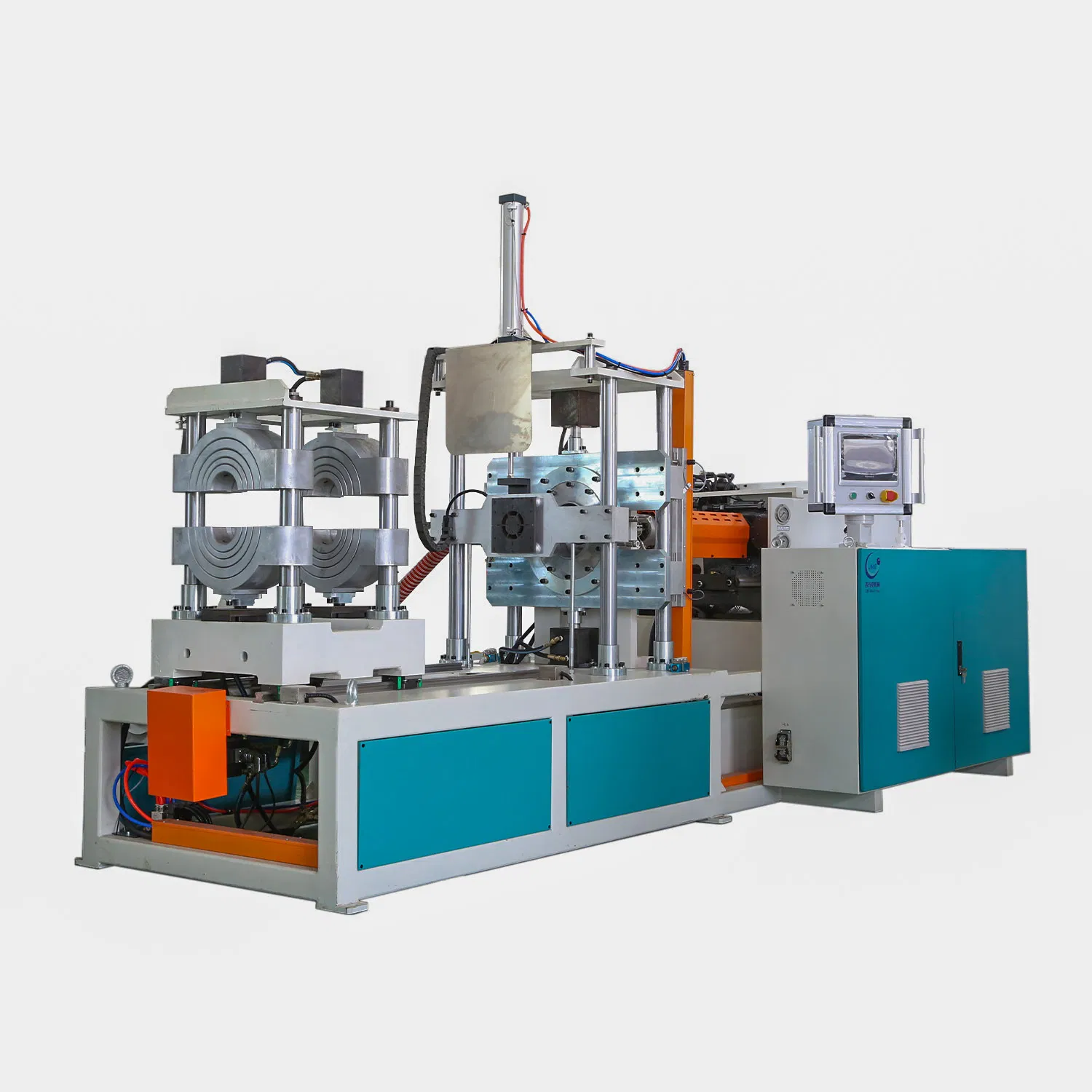

Corrugated Electrical Conduit Pipe Extrusion Machine for PP, PE, PVC

Device use: glass fiber tape winding reinforced pipe, aramid belt winding reinforced pipe, polyester tape winding reinforced pipe, steel tape winding reinforced pipe, etc.

Glass fiber tape RTP pipe production line

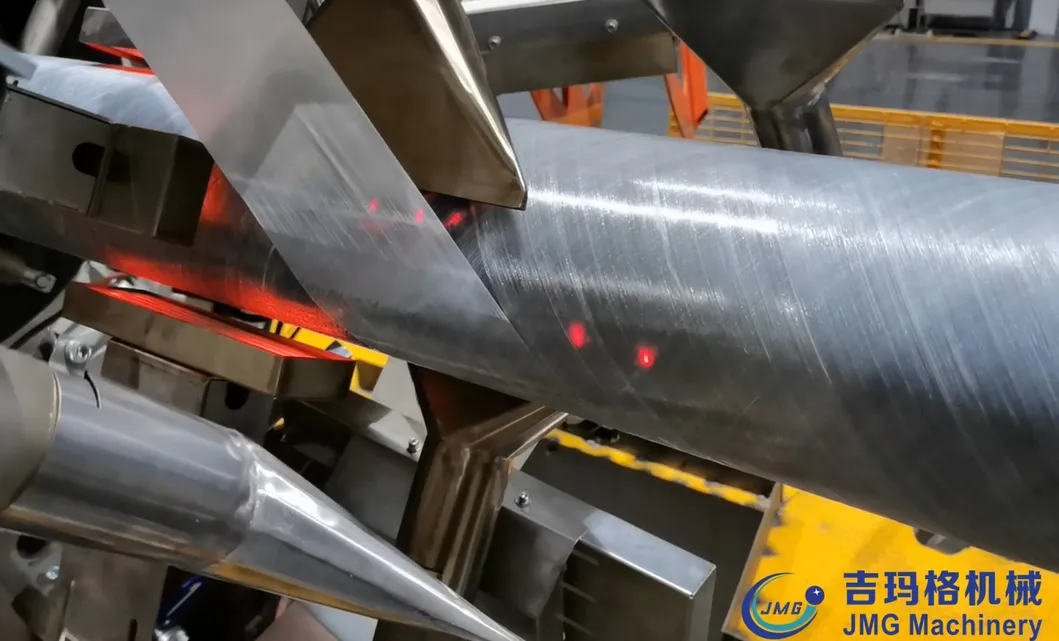

Our JMG-RTP pipe production line is suitable for the production of fiberglass, aramid, polyester and other tape winding reinforced pipes, the structure of this type of pipe is generally divided into three layers, the inner layer of polyethylene or polypropylene, the middle of the winding reinforced layer, and the outer coating of polyethylene or polypropylene.

Inner pipe extrusion equipment numberEquipmentquantities 1Automatic feeding and drying system1 set 2meter weight system1unit 3JMG60/38 Extruder (for inner pipe)1unit 4Dies (with port, mandrel, sizing sleeve, heater)1set 5Vacuum tank (according to customer's demand, take 9m as an example)1unit 6Spray box (according to customer demand, take 8m as an example)2 units 7Three-six jaw traction machine1unit 8PLC programmable computer control system1

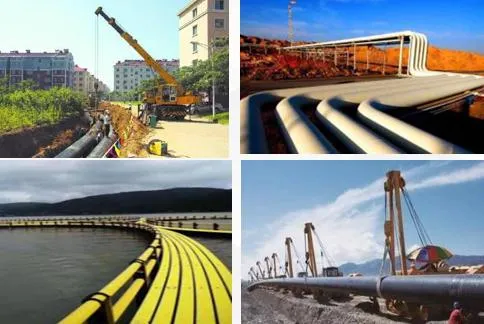

Pipe applications:Mainly used in hot spring water transportation, central heating secondary pipe network, deep geothermal, oilfield oil gathering and gas transportation, etc.

Technical data TypeJMGDZ150 Speed2-4m/min Pipe diameterID 50-150mmWarranty period1  1 year FactorySuZhou ChinaOperateAutomated Control Weight2-3tProduction capacityDN(4Mpa)100mm:480KM/year Delivery time45-60dayDN(4Mpa)150mm:370KM/year

Customized according to customer needs

Kunshan JMG Machinery Manufacturing Co., Ltd. focuses on providing customers with new materials composite pipe equipment research and development, intellectual property and integrated, personalized solutions, covering plastic pipe extrusion, reinforced composite, outer coating, finished product rewinding to the production of pipe joints, buckling and pipeline connections, etc.; according to the customer's different needs for differentiated exclusive customization.
The company's main products are: strip (glass fiber tape, aramid tape, polyester tape, steel tape, polyester tape, steel cord tape, etc.) winding reinforced composite pipe production equipment; non-metallic filaments (polyester wire, aramid wire, glass fiber wire, basalt wire, and twisted, bundled, rope, etc.) winding reinforced composite pipe production equipment; metal wires (steel wire mesh skeleton, etc.) winding reinforced composite pipe production equipment; high-efficiency plastic extrusion production equipment; composite pipe production equipment; ancillary equipment, etc. Equipments, etc.
   Strip winding reinforced pipe winding equipment (RTP pipe equipment) is one of our main products, also the company's patented products Patent No.: ZL201721360511.X
