PVC Pipes Extrusion Line/ PVC Tube Production Line/Pipe Making Machine/Extruder/Machine

Equipment Purpose:

is mainly used for high-speed extrusion of HDPE, PP, PVC and other olefin pipes.

Pipeline applications:

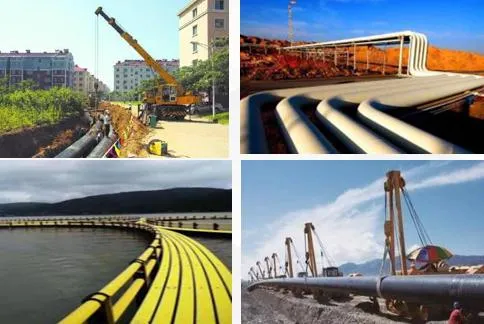

The pipeline is mainly used in the field of water and gas transmission.

RTP pipe production equipment with winding

Glass fiber tape RTP pipe production line

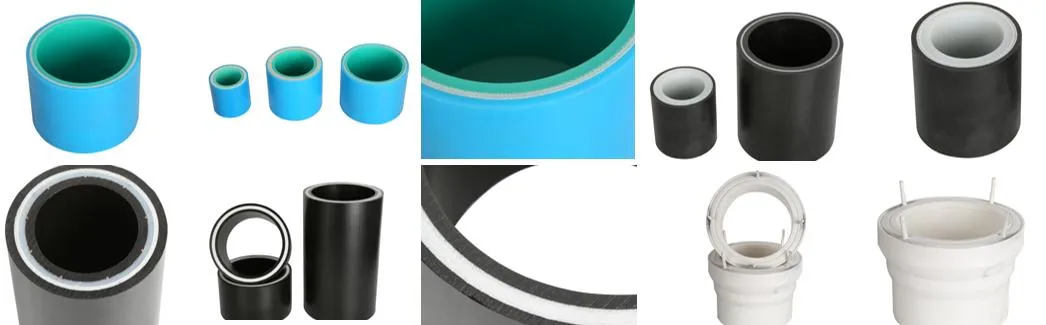

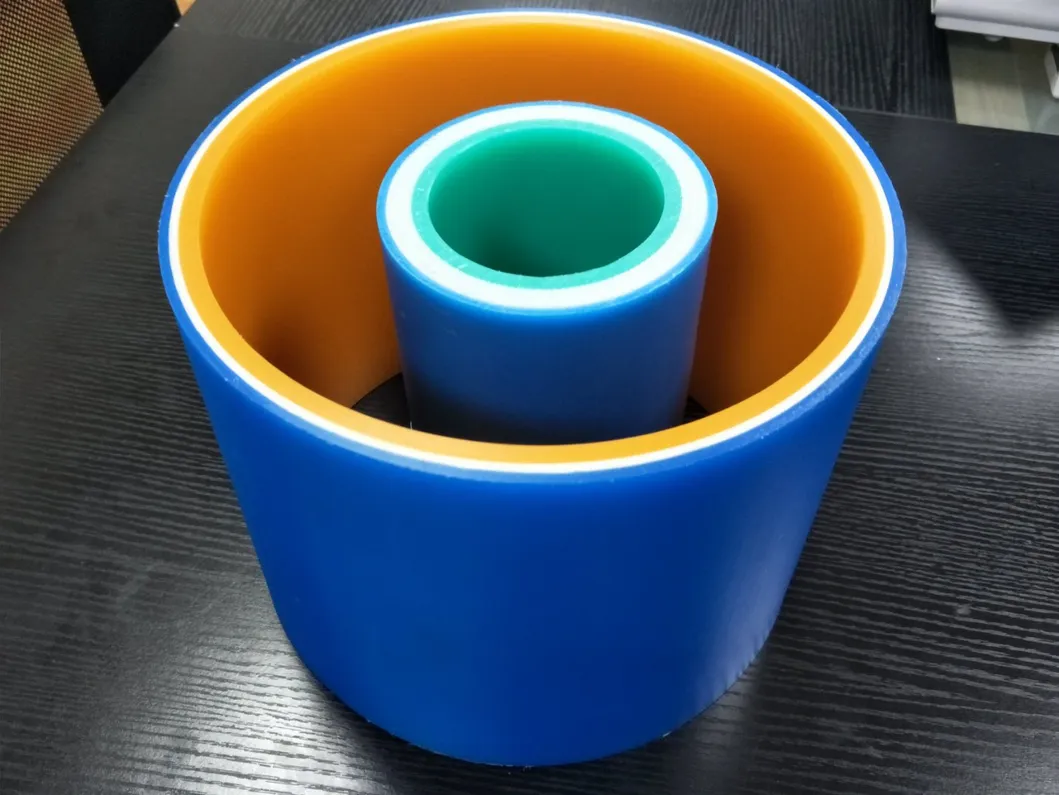

Our JMG-RTP pipe production line is suitable for the production of fiberglass, aramid, polyester and other tape winding reinforced pipes, the structure of this type of pipe is generally divided into three layers, the inner layer of polyethylene or polypropylene, the middle of the winding reinforced layer, and the outer coating of polyethylene or polypropylene.
ID40-150mm equipment main parameters:
1, can produce pipe diameter range: inner diameter φ40mm ~ φ150mm
2,Producible pipeline working pressure: 1~25MPa (according to different pipe diameters)
3,Quantity of winding machine: 4 sets (adjusted according to different market direction and pressure demand)
4,Number of winding layers: 8 layers (according to 4 sets of winding machines)
5,Production line speed: 1-3 meters per minute.
6,Total equipment length x total width: 110m x 10m (equipment layout can be adjusted according to the actual workshop)
7,Total power of the equipment: 500KW 8,Other requirements: cooling water: 20m³/h, compressed air: 0.5m³/min

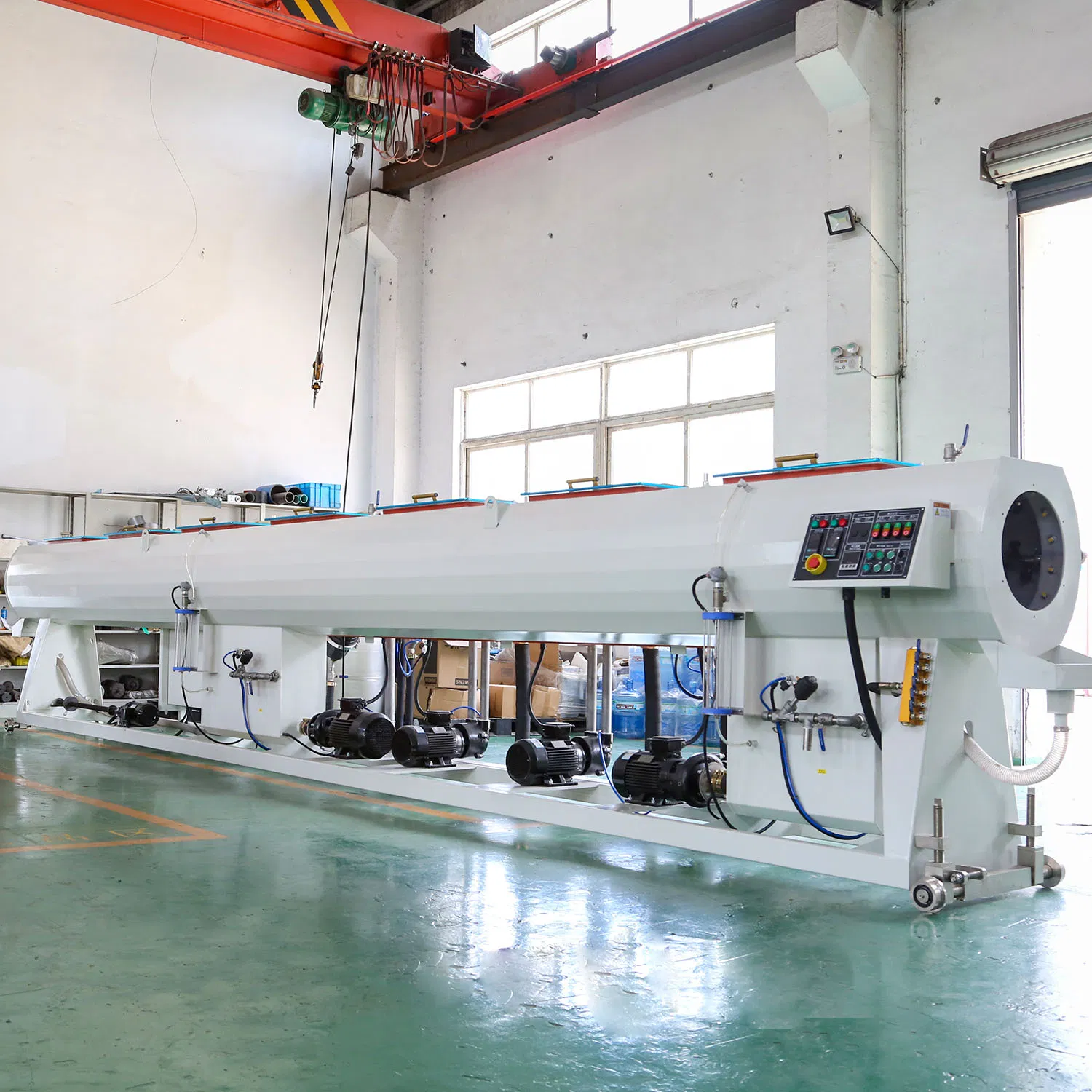

Inner pipe extrusion equipment numberEquipmentquantities 1Automatic feeding and drying system1 set 2meter weight system1unit 3JMG60/38 Extruder (for inner pipe)1unit 4Dies (with port, mandrel, sizing sleeve, heater)1set 5Vacuum tank (according to customer's demand, take 9m as an example)1unit 6Spray box (according to customer demand, take 8m as an example)2 units 7Three-six jaw traction machine1unit 8PLC programmable computer control system1

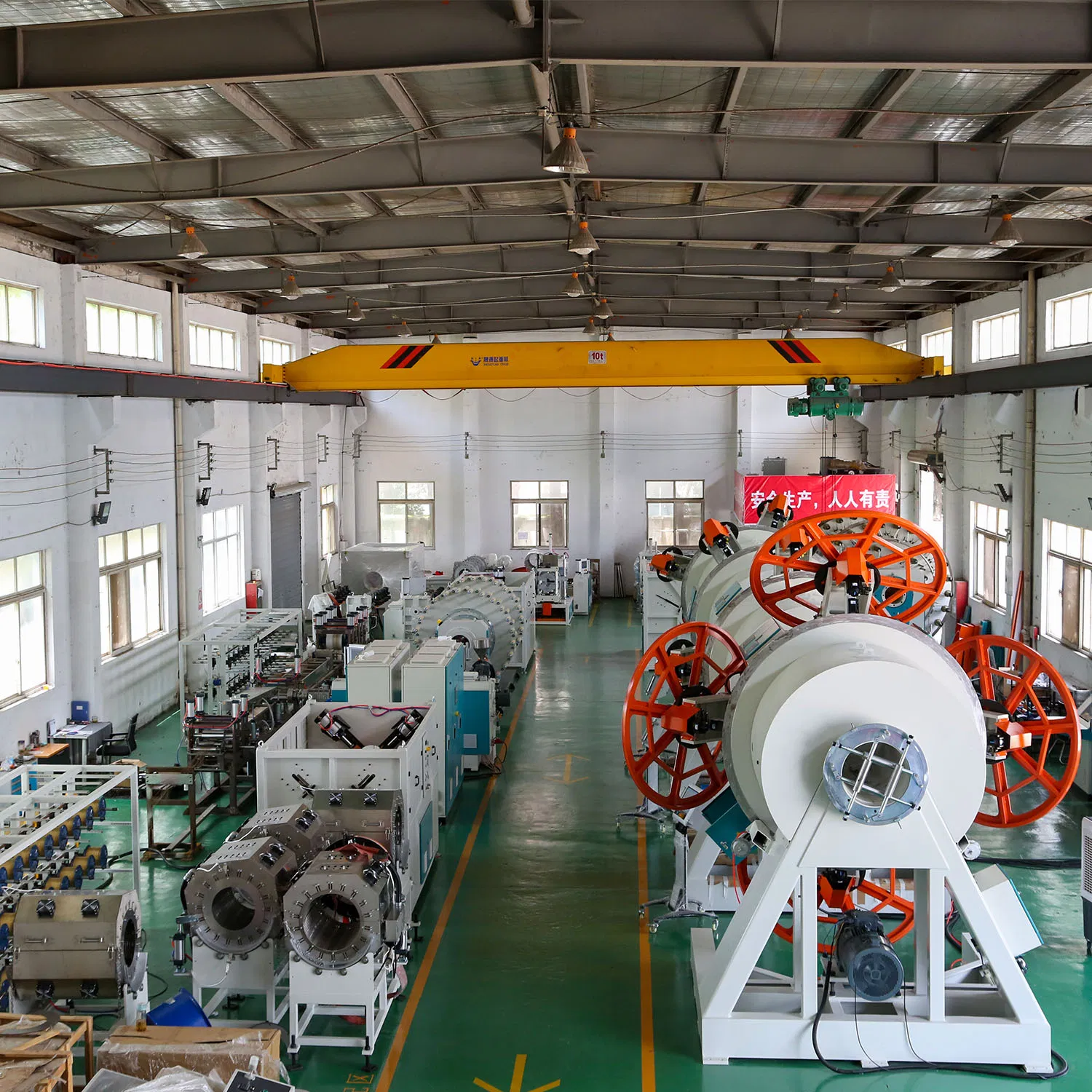

Kunshan JMG Machinery Manufacturing Co., Ltd. focuses on providing customers with new materials composite pipe equipment research and development, intellectual property and integrated, personalized solutions, covering plastic pipe extrusion, reinforced composite, outer coating, finished product rewinding to the production of pipe joints, buckling and pipeline connections, etc.; according to the customer's different needs for differentiated exclusive customization.
The company's main products are: strip (glass fiber tape, aramid tape, polyester tape, steel tape, polyester tape, steel cord tape, etc.) winding reinforced composite pipe production equipment; non-metallic filaments (polyester wire, aramid wire, glass fiber wire, basalt wire, and twisted, bundled, rope, etc.) winding reinforced composite pipe production equipment; metal wires (steel wire mesh skeleton, etc.) winding reinforced composite pipe production equipment; high-efficiency plastic extrusion production equipment; composite pipe production equipment; ancillary equipment, etc. Equipments, etc.
   Strip winding reinforced pipe winding equipment (RTP pipe equipment) is one of our main products, also the company's patented products Patent No.: ZL201721360511.X
