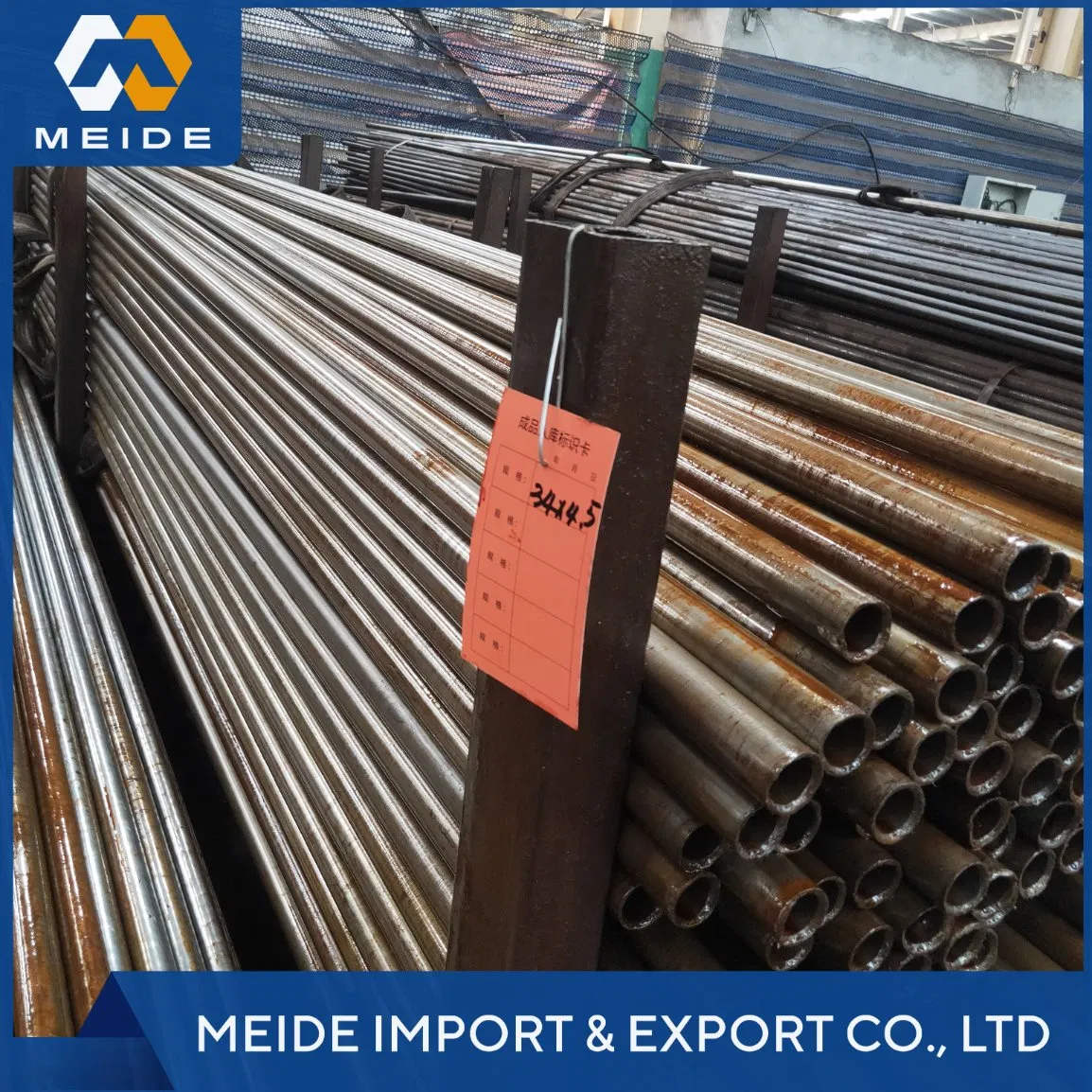

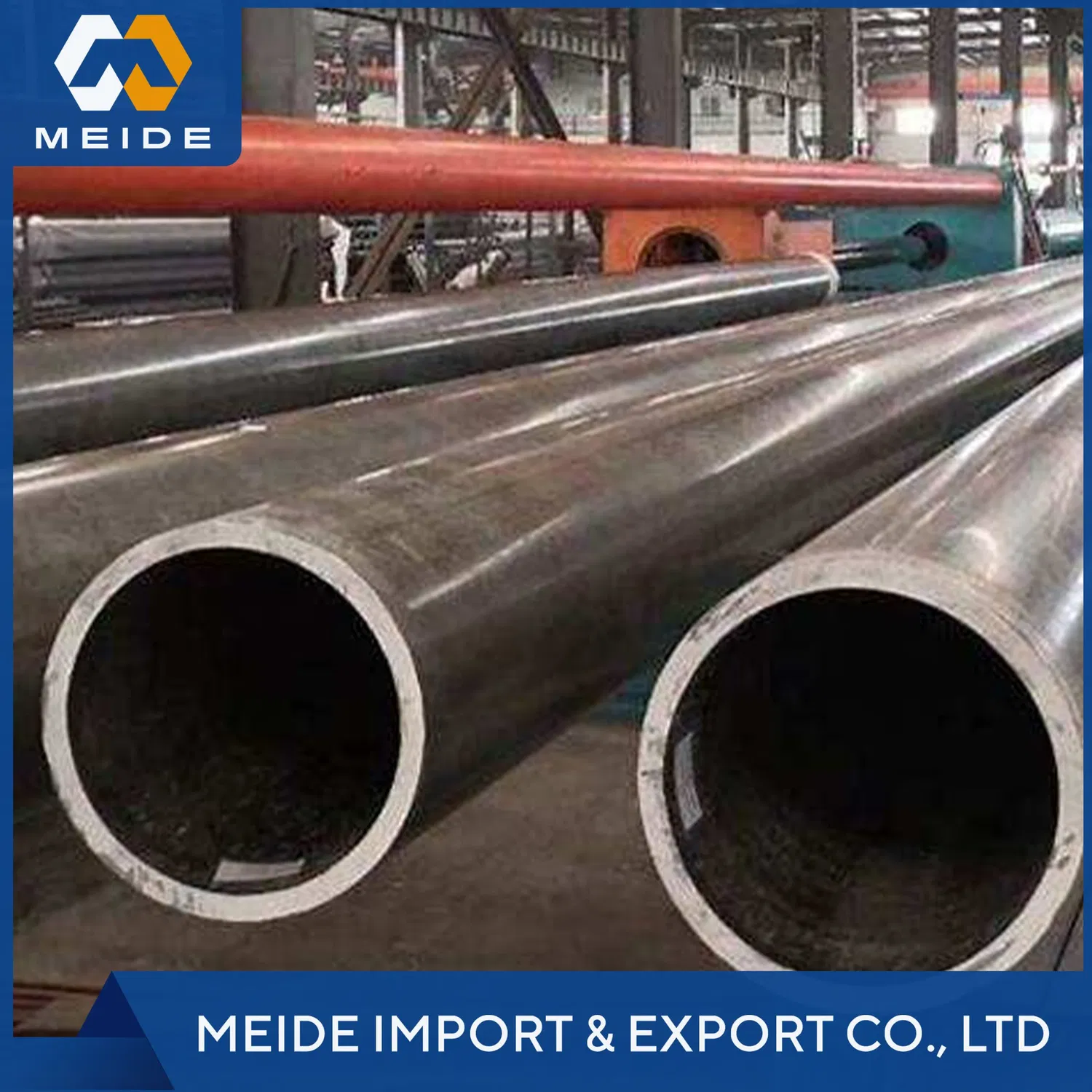

Factory Customized Ck22 Fuel Iniection Carbon Steel Pipe

Molding Technics	Pressure Casting
Application	Agricultural Machinery Parts
Material	Carbon Steel Stainless Steel Copper Aluminum Titan
Heat Treatment	Tempering
Surface Treatment	Passivation
Forging Tolerance	+/-0.5mm
Standard	ASME
Certification	CE, RoHS, ISO 9001:2000, ISO 9001:2008
MOQ	10 Piece
Keyword	OEM Hot Forging Parts
Process	Forging+Machining(If Need)+Surface Treatment
Transport Package	Standard Export Packing
Specification	customizable
Trademark	Meide
Origin	China Shandong
HS Code	7606910000
Production Capacity	1000ton/Month

Materials

Carbon steel,Alloy steel

Roughness

Ra0.08-0.2

Melting process

EF+LF+VD

Production process

Forging+heat treatment+rough machining+QT+finish machining

Forging

Open die forging (product range: Max length 16000mm; Max weight 35 Mt)

Treatment

Carburizing and phosphating

Heat Treatment

Normalizing, Tempering, Annealing, Q + T (Quenching and Tempering)

Machining

Pre-machining, Finish machining

Surface Finishing

Sand blasting, Coating, Painting

Forging ratio

≥3.5

Applicalbe standard

ASTM,ASME,DIN,JIS,ISO,BS,API,EN

Executive standard

JB/GB/EN/DIN/JIS/ASME/ASTM/ISO

Certification authorities

ISO9001:2008,ISO14001,TÜV(BV),(LR),ABS,RINA,(GL),(KR),(DNV),(NK),PED.

Delivery terms

Rough machining(N+T);finish machining(Q+T),nitriding quenching

Delivery

Samples are sent by express
Large quantity products delivered to customer by sea
or according to your request

Produce Equipment

Friction Screw Press Series, CNC Lathe, Machining Center
(Vertical Spindles), CNC Milling Machine, Bench Drilling
Machine, Heat Treatment Equipments and so on.

Forging equipment

6000T open die hydropress

Surface treatment

Heat treatment, Polishing, shot blasting,
Painting, Electro-plating, Chemical Plating,

Test machine

spectrograph,ut device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,trilinear coordinatre
measuring machine,hardness test machine,metallurgical analysis, tensile strength tester, hardness
tester, altimeter, scale micrometer, pressure tester, etc.

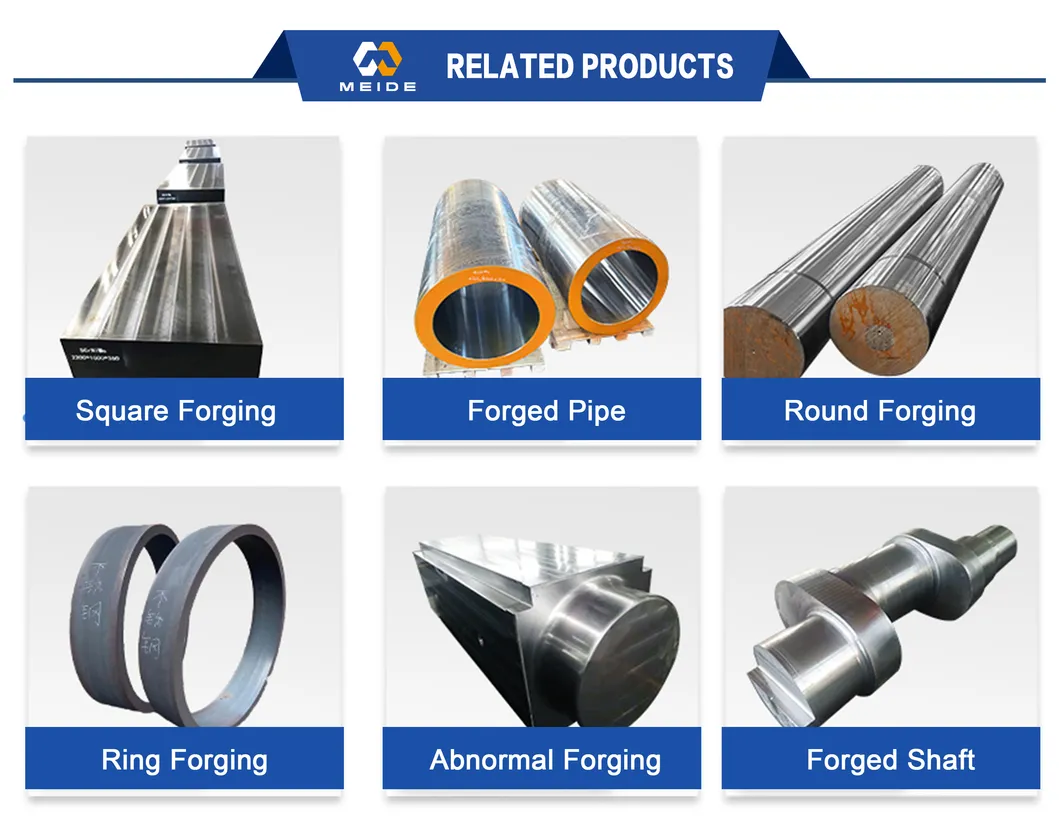

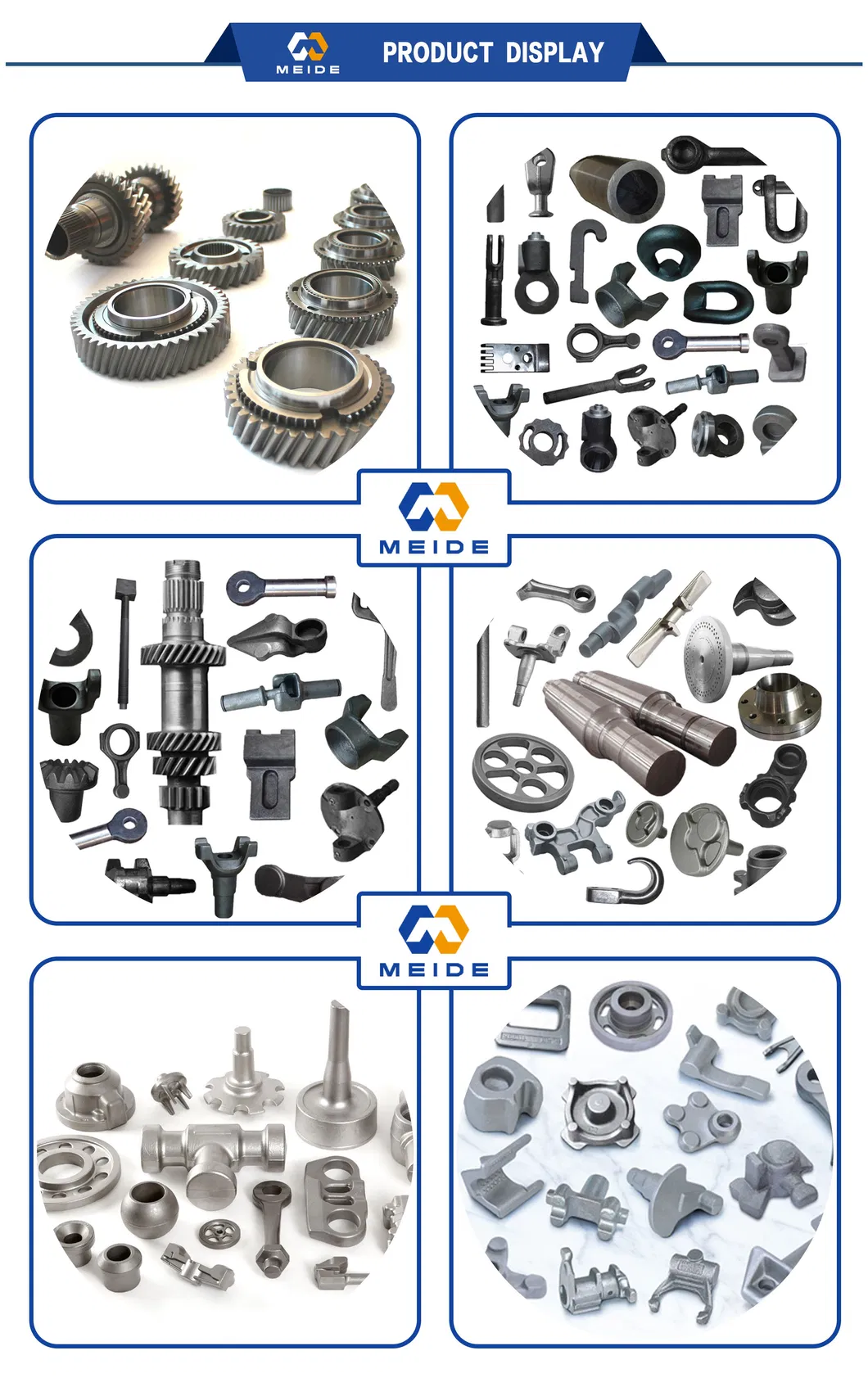

Our company's forging series products include:

Industrial forgings for civil industries such as machine tool manufacturing, agricultural machinery, farm implement manufacturing and bearing industry;
Shaft segments such as main shaft and intermediate shaft for hydro-generators, forgings for thermal power plants such as rotors, impellers, and retaining ring main shafts;
Forgings for metallurgical machinery such as rolls and gear shafts; forgings for kettle ring, cylinder, cylinder, and axle forging machinery;

Flange series products include pressure vessel flanges, heat exchanger flanges, flat welding flanges, butt welding flanges, non-standard flanges, stainless steel flanges, etc.Widely used in chemical, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and other basic projects.

Application series

Representative steel type

Description

Petroleum machinery series

AISI4150,AISI4140,AISI4130, 30CrMo,4145H

Valve body, valve block, drill pipe, drill collar

Tool mold series

1.2714,5CrMnMo,5CrNiMoV, 1.2738,1.2311,1.2312

Die casting mold, forging mold,

plastic mold

Bearing series

52100,GCr15,SUJ2

Bearing ring, rolling bearing, piston rod

Marine series

4140,42CrMo,SCM440, 709M40

Marine accessories

Car series

SAE8620,20CrNiMo, SNCM220

Crankshaft,gear

Heavy-
duty transmission series

40CrNiMo,SNCM439, SAE4340,EN24

Port transmission parts,
helicopter rotor shaft, turbine shaft

Mining machinery series

655M13,826M40,
25CrMo

Mining bit, carburizing and crushing machinery

Wind power gear series

18CrNiMo7-6,17CrNiMo6, 1.6582,1.6587,SAE8620

Meet the design life of more than 20 years

Wind power spindle series

34CrNiMo6,817M40

Meet the design life of more than 20 years

Nitriding series

20MnCr5,38CrMoAl, 31CrMoV9

Gear, injection molding machine screw / barrel,precision components

Pressure vessel series

15CrMo,13CrMo4-4

Boiler, petrochemical hydrogenation vessel accessories

Metallurgical roll series

21CrMoV511,W1.7225,EN19,709M40

Steel rolling roll

MEIDE designs, develops, produces and delivers based on your drawings, samples or just an idea!
* Provide technical process analysis, development and manufacturing integration of resources according to customer requirements, to provide different processes of OEM castings and forgings and CNC machining parts.
* We supply both machined and non-machined castings and forgings to various industries, starting with OEM suppliers.
* We are both a manufacturer and a trading company, breaking the limits of a single factory
* We have 100 strategic partners for production of different technologies
* Professional team including translators, engineers, inspectors and customer service * has developed more than 10,000 products to date
* The OEM division is the most promising member of MEIDE and will receive the strongest support from the whole group * Any OEM inquiry will be set up as a project and will be considered a focus within the Group
* 20 years of independent development and design capabilities
* 20 senior engineers
*Auto CAD/Pro Engineer /Solid Works
* Our forging processes are open die forging, precision forging, die forging
* Dual control of standard and OEM products
* Our factory has a variety of equipment, such as lathes, CNC, drilling machine, milling machine, boring machine, planer.
* Delivery time and packaging can be completely controlled according to customer requirements.

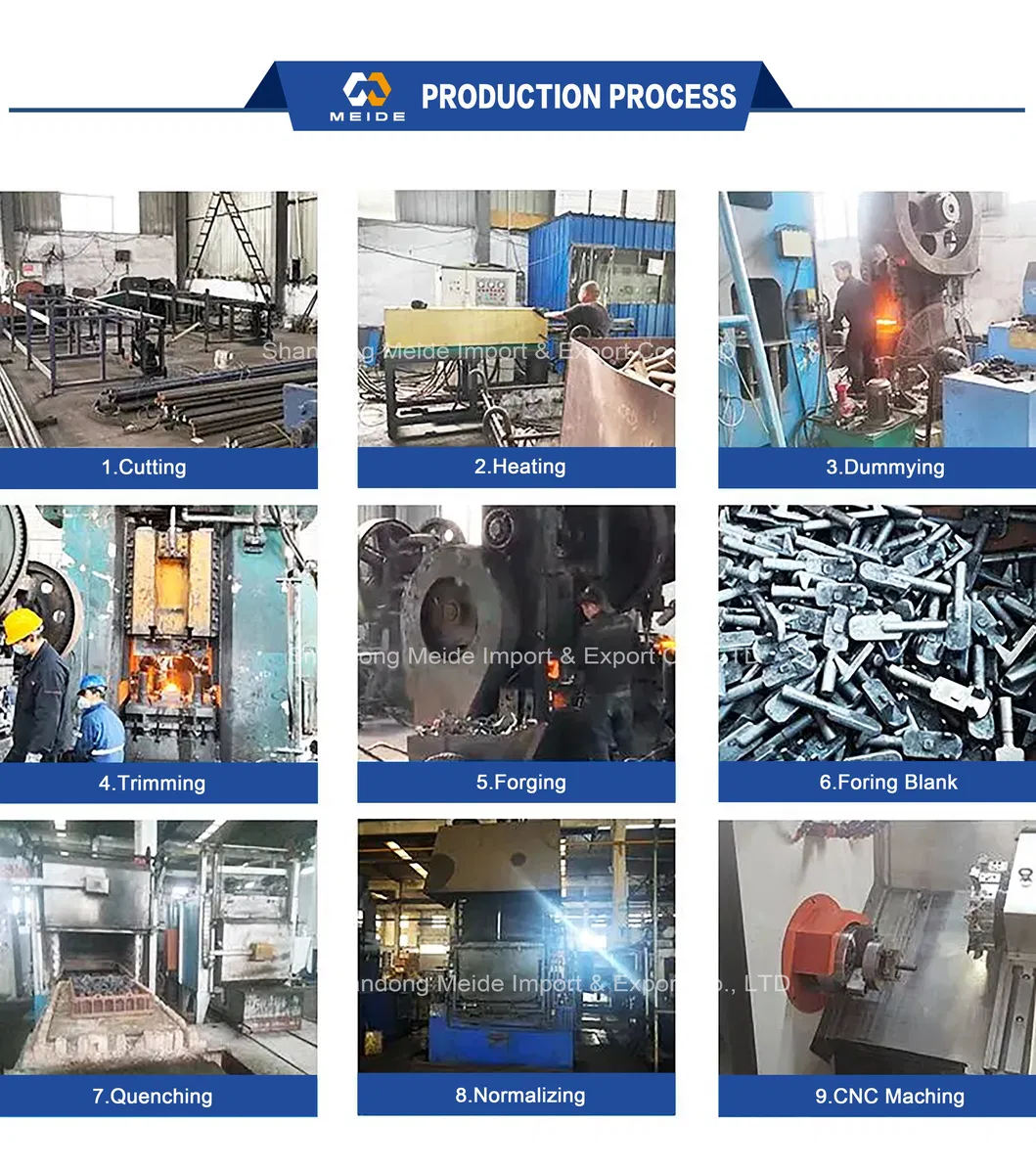

Forging Production Flow

1. Enquiry With Drawing In Details
2. Confirm Steel Material, Chemical Compositions, Mechanical Properties, Tolerances
3. Confirm Payment Terms, Order Materials or Check Material in Stock
4. Check Material Chemical Compositions, Material Weight, Dimensions
5. Cut Materials, Record Weight, Pre-Heating For Forging
6. Forging Ratios, Heat Treatment After Forging, Dimension Check
7. Rough Machining, UT Test, Heat Treatment
8. Fine Machining, UT & PT Test, Dimensions Inspection, Mechanical Properties Test
9. Customer Inspection at Site, Packing, Delivery Arrangement
10. Balance Payment Confirmation, Dispatch Forgings or Casting
11. Bill of Loading Confirmation, MTC Dispatch, Customs Clearances
12. Order Accomplished

Shipment Terms

1) 0-100kg: express & air freight priority

2) >100kg: sea freight priority

3) As per customized specifications

All parts are custom made according to customer's drawings or samples, no stock.
