S355jr Heat Exchangers and Condensers ASTM SA179 S400 Black Coating Alloy Seamless Steel Pipe Wholes
Detailed specification for S355jr Heat Exchangers and Condensers ASTM SA179 S400 Black Coating Alloy Seamless Steel Pipe Wholes
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | S355JR, 20 Q345B SA179 S400 |
| Type | Seamless |
| Technique | Cold Drawn |
| Material | Carbon Steel |
| Surface Treatment | Black |
| Usage | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration |
| Section Shape | Round |
| Standard | ASTM AISI GB JIS En DIN CE Bis |
| Alloy | Alloy |
| Thickness | 0.5-300mm or as Customized |
| Length | 10-12000mm |
| Processing Service | Bending Cutting Welding Punching |
| Grade | X65 SA106 45# 16mn 40cr 15CrMo 4130 42CrMo |
| Tolerance | 1% |
| Certificate | ISO Bis CE CCS ABS Dnv |
| Special Usage | Oil and Gas Pipeline Fluid Pipe, Hydraulic Pipe |
| Surface | Black Oil or Black Painting |
| Transport Package | Standard Seaworthy Packaging |
| Specification | DN20 DN50 DN65 DN100 DN200 DN300 DN500 DN50 |
| Trademark | Baosteel, Wusteel |
| Origin | Wuxi, China (Mainland) |
| HS Code | 7304112000 |
| Production Capacity | 1000tons/Month |
Product Description
ASTM A179/A179M-90a (Reapproved 2001)Cold drawn seamless low-carbon steel heat exchanger and condenser steel pipes
Scope of application: 1. This standard is applicable to the thinnest seamless steel pipes used in tubular heat exchangers, condensers, and similar heat transfer devices;
2. This standard is applicable to steel pipes ranging from 3.2 to 76.2mm.
General requirements: Unless otherwise specified in this standard, it shall also comply with the applicable clauses of ASTM A450/A450M.
Surface quality: No oxide scale, other surface quality shall comply with ASTM A450/A450M regulations.
Brand and chemical composition (%) C Mn P S
0.06-0.18 0.27-0.63 ≤ 0.035 ≤ 0.035
Note: It is not allowed to provide alloy grades that specifically require the addition of elements other than those mentioned above.
Heat treatment: After the final cold drawing, perform heat treatment at a temperature not lower than 650 ºC.
Hardness test: HRB ≤ 72, sampling requirement is to take any two steel pipes from each batch for Rockwell hardness test. The so-called batch refers to all steel pipes with the same nominal diameter and wall thickness produced from the same furnace without cutting. If it is a batch furnace, the batch only refers to steel pipes with the same furnace number, size, and heat treatment in the same furnace;
Product name
Seamless Steel Pipe / Seamless Steel Tube
Standard
AiSi ASTM GB JIS DIN
Grade
A106 GR.B A53 Gr.B AP175-79,ASTM A500,ASTM A179/A192/A213/A210 /370 WP91, WP11,WP22 X42-X65 X80
T11 T91 P91,DIN2I5L,DIN17440, DIN2448,JIS G3452-54,20G 12Cr1movg 15Crmo 42Crmo,20#,45# Q345R S235JR S275JR
S355JR,Q195,Q235A-B,Q345A-E, 20#, 10#,16Mn,SS400,St37,St52,S355TRH 160Mn,27SiMn,40Cr,Cr5Mo,12Cr1MoV,12Cr1MovG,15CrMo,15CrMoG,15CrMoV,
13CrMo44,T91,27SiMn,25CrMo,30CrMo,35CrMo,35CrMoV,
40CrMo,45CrMo,Cr9Mo,10CrMo910,15Mo3,A335P11,P22,P91,T91,102,ST45.8-111,A106B
Length
5.8m 6m Fixed, 12m Fixed, 2-12m Random
Place of Origin
China
Brand Name
BAO STEEL AN STEEL TPCO TISCO etc.
Outside Diameter
1/4'--50'
6mm-1500mm
Technique
1/2'--6': hot piercing processing technique
6'--24' : hot extrusion processing technique
Usage /Application
Oil pipe line, Drill pipe, Hydraulic pipe, Gas pipe, Fluid pipe,
Boiler pipe,Conduit pipe, Scaffolding pipe pharmaceutical and ship building etc.
Tolerance
±1%
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Alloy Or Not
Is Alloy
Delivery Time
8-14 days
Material
Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80,
ASTM A53Gr.A&B,ASTM A106 Gr.A&B, ASTM A135,
ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2,
KS4602, GB/T911.1/2,SY/T5037, SY/T5040
STP410,STP42
End
Bevel end(>2"), Plain (≤2"),with plastic cap, with screwed and socket
Surface
Black Painted, Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation
Packing
Standard Sea-worthy Packing
Delivery Term
CFR CIF FOB
C
Si
Mn
Mo
Cr
V
12Cr1MoVG
0.08~0.15
0.17~0.37
0.40~0.70
0.25~0.35
0.90~1.20
0.15~0.30

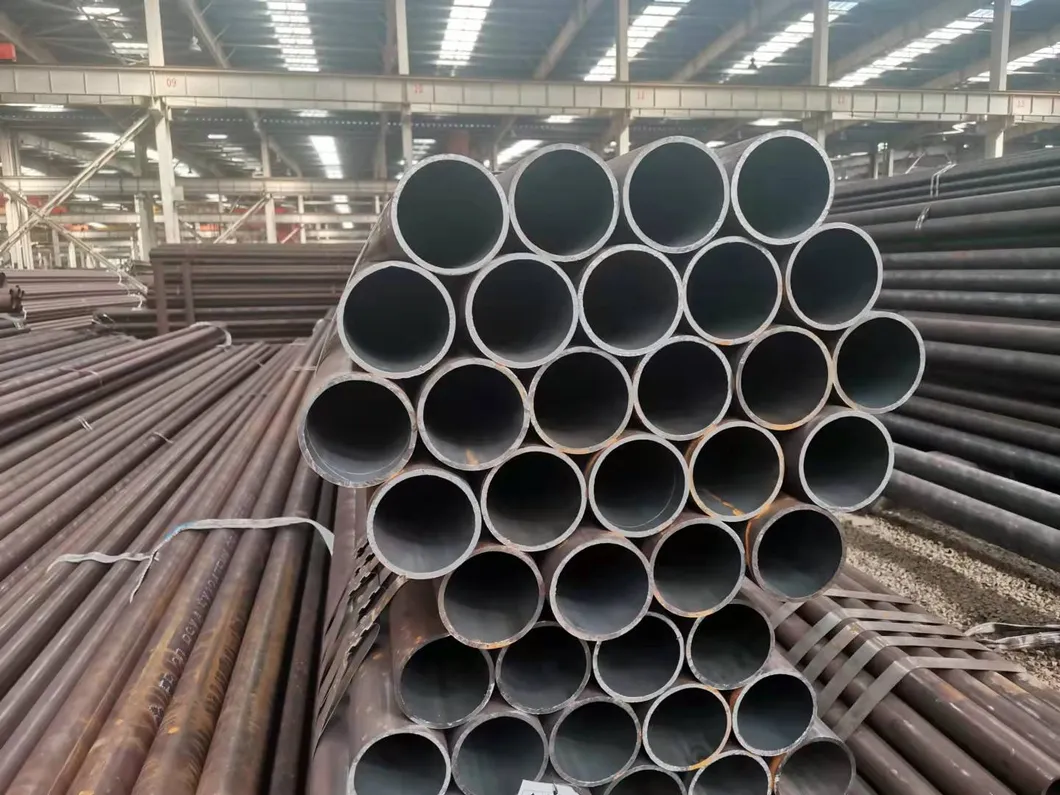

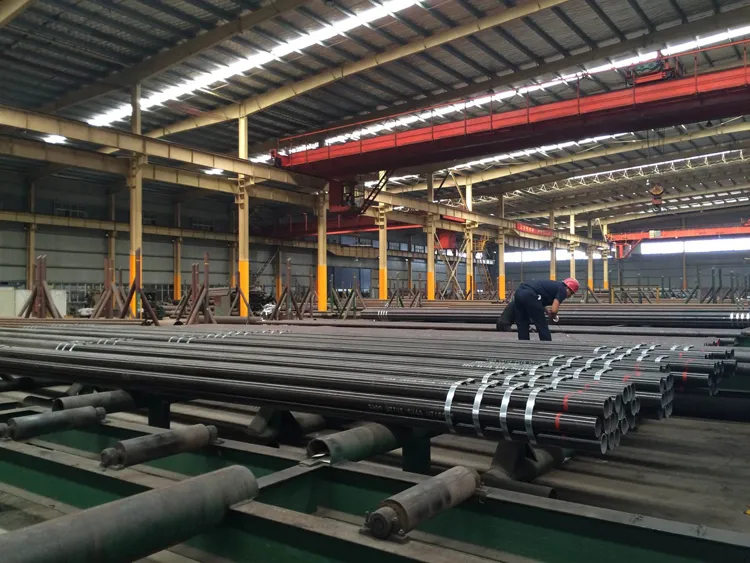

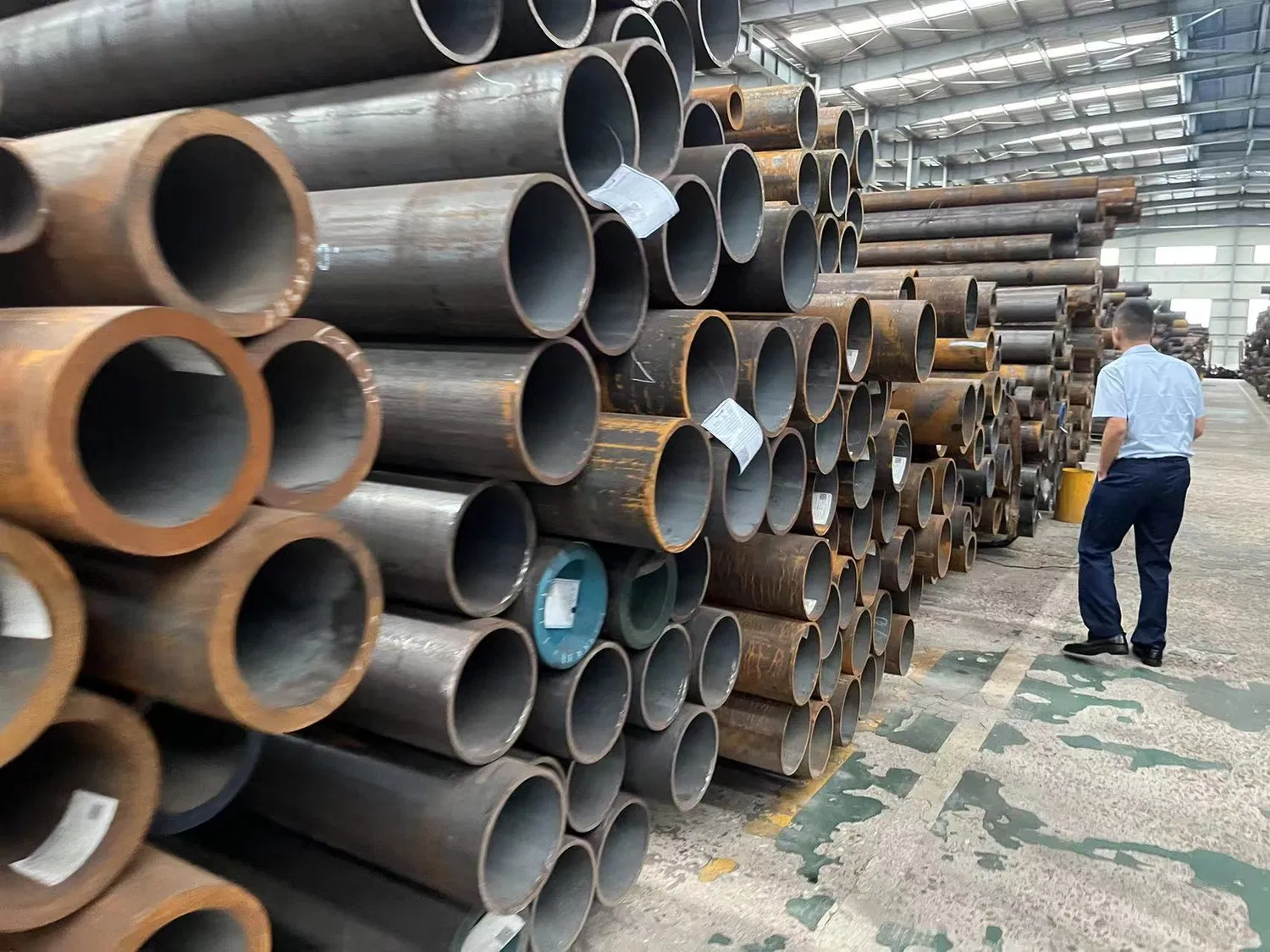

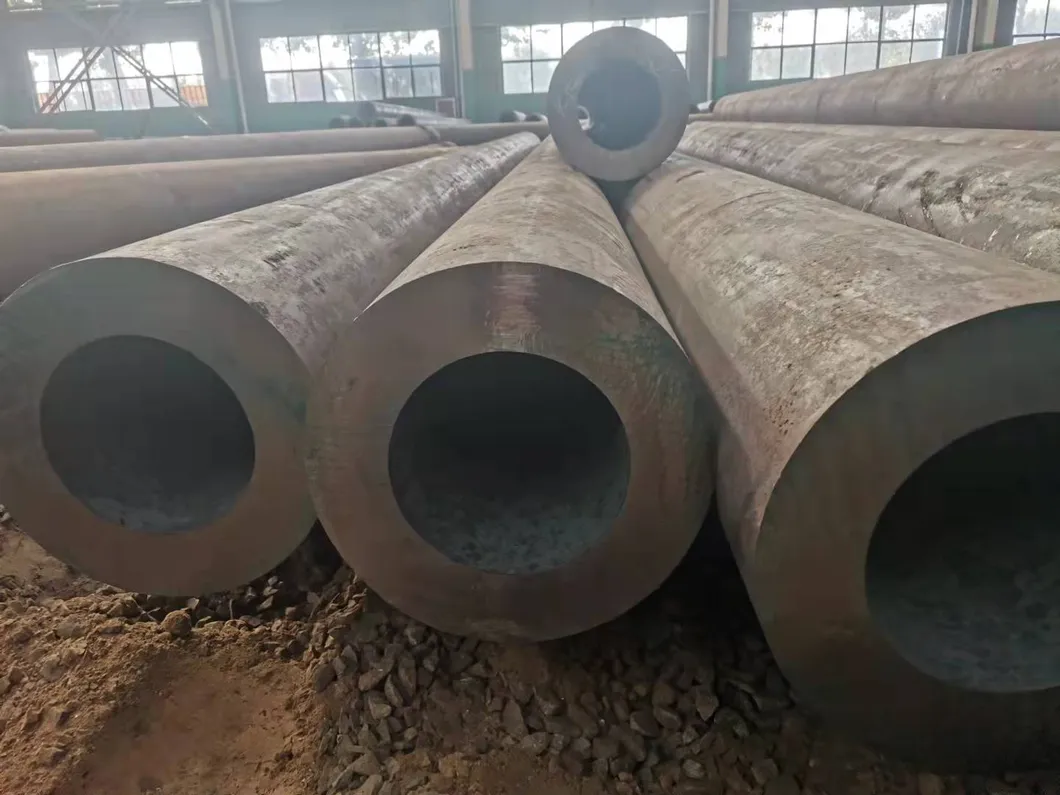

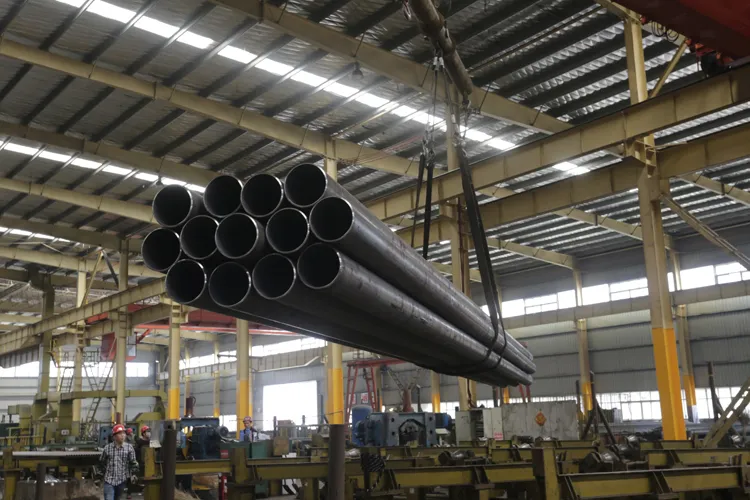

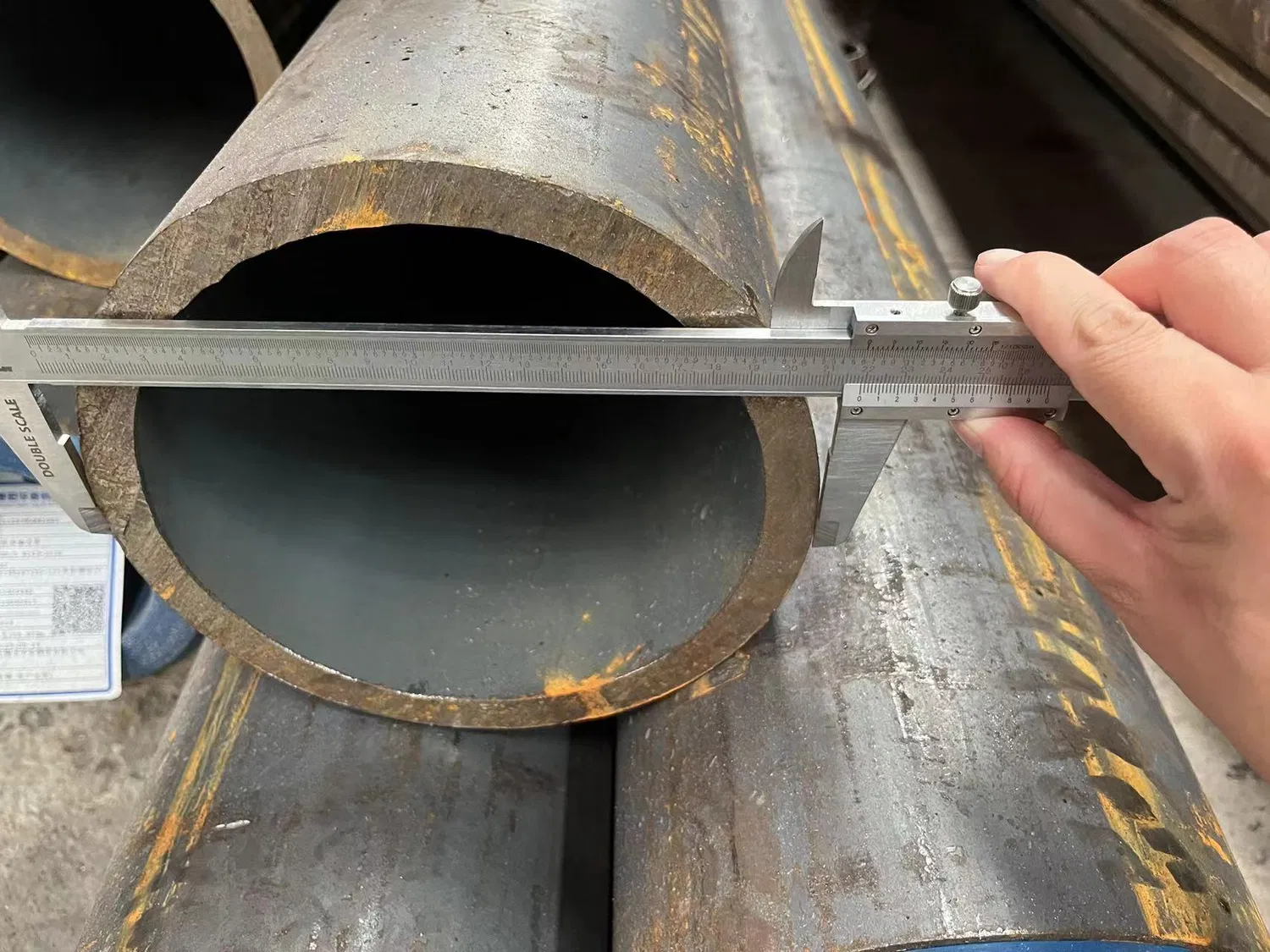

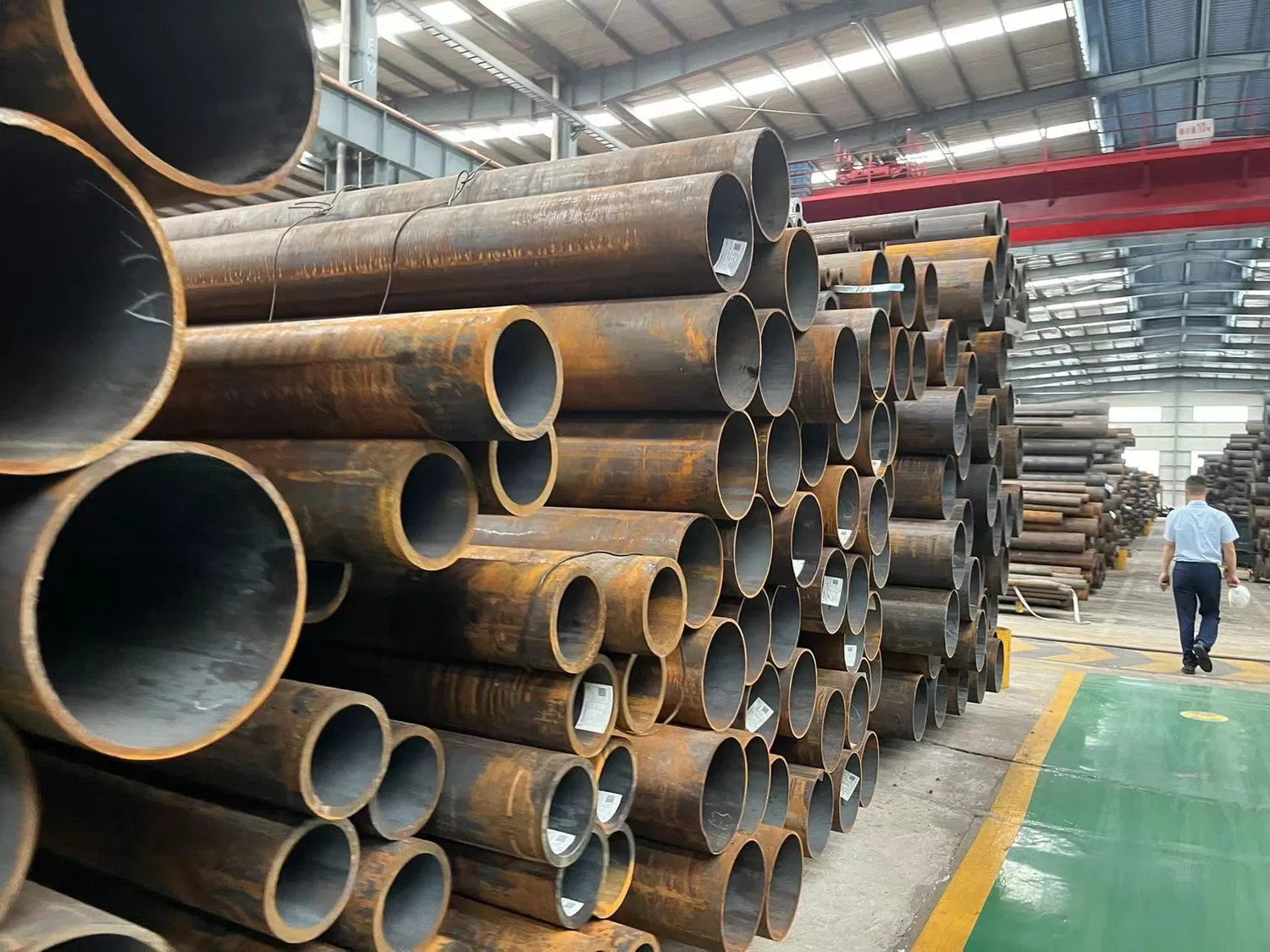

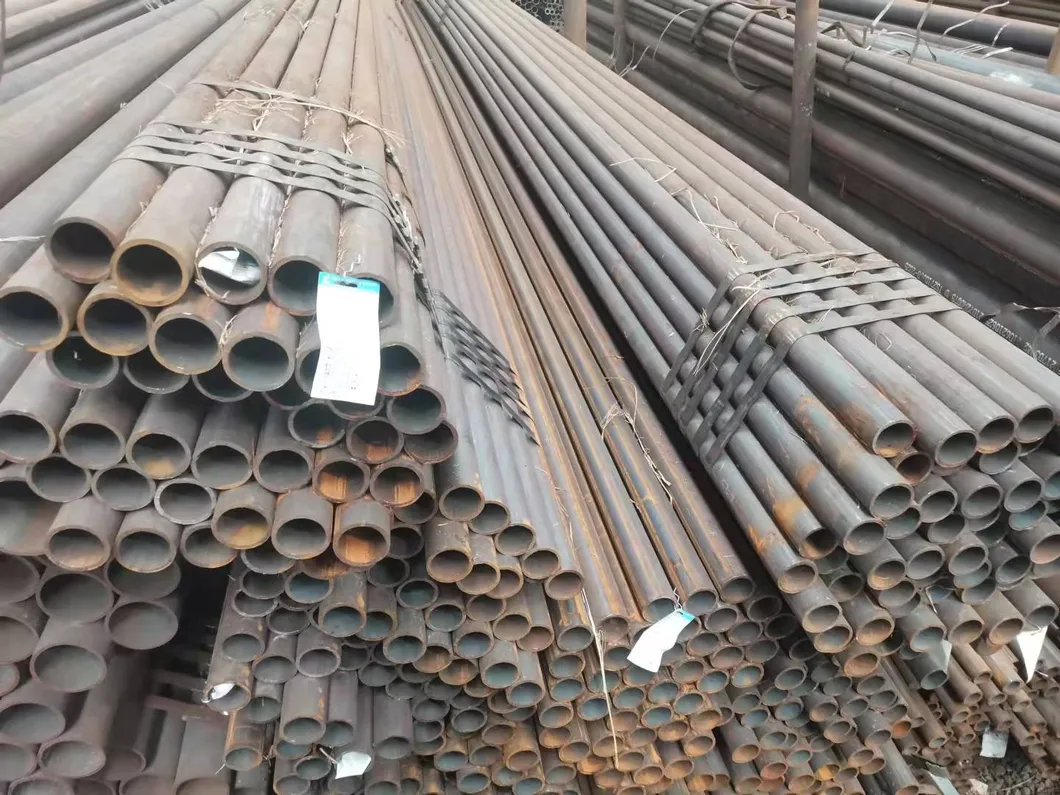

Detailed Photos
Certifications

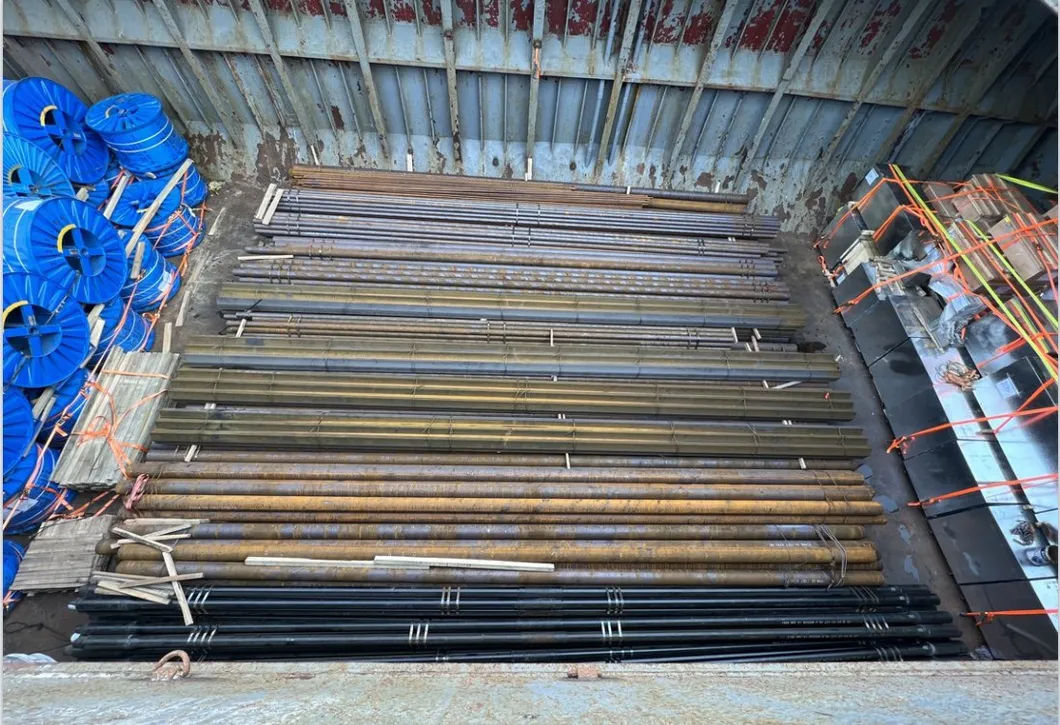

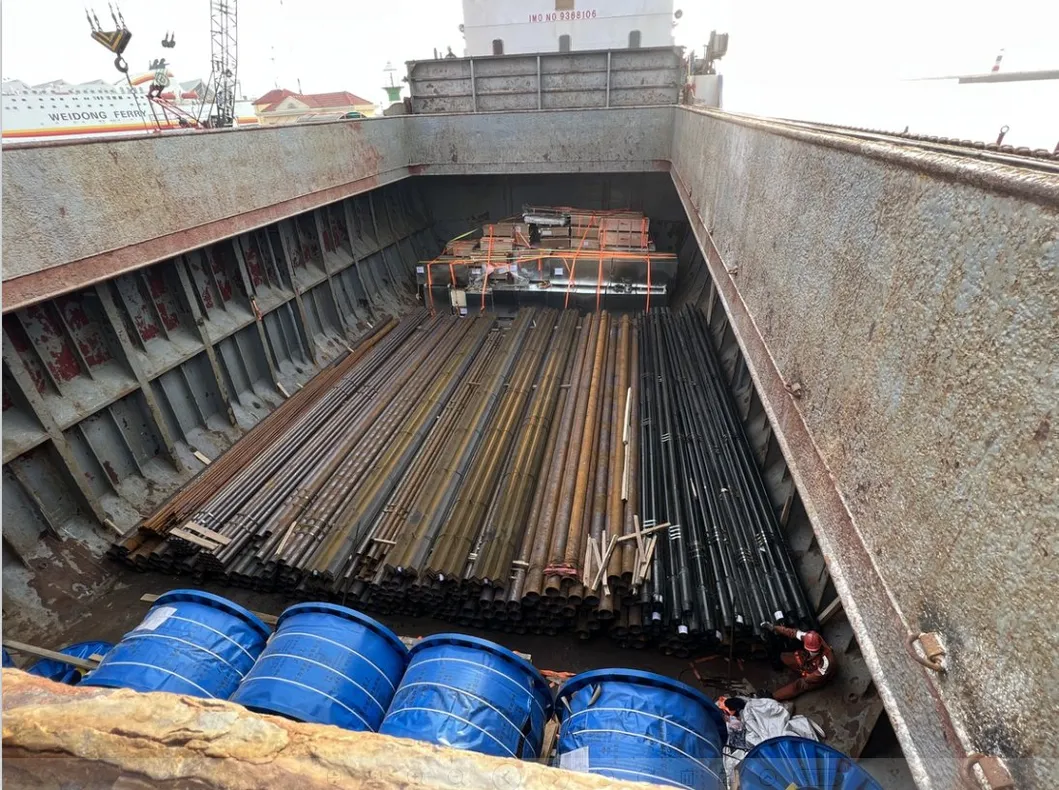

Packaging & Shipping
Production Application
