Model NO.	16mm
Place of Origin	Zhejiang, China (Mainland)
Brand Name	Smallboss
Item No	PVC 16 20
Transport Package	100PCS/CTN
Specification	good UV-Resistance &Oil-Resistance
Trademark	smallboss
Origin	Tongxiang Zhejiang
HS Code	3925900000

Flexible Electric Wire Cover PVC Conduit Corrugated Tube Pipe

PVC corrugated pipe, PVC electrical corrugated pipe, PVC corrugated flexible pipes,
PVC conduit corrugated pipe

Description
Corrugated pipe ideal for embedded pipes in walls, ceilings, false ceilings, floors, etc. Inside the tube the electrical cables are passed, which are protected and isolated. Manufactured under UNE-EN 61386-22 standard.

Specifications
PVC corrugated pipe with M-16 guide.
Length: 100 m
Color: Gray or customization
Material: PVC with built-in guide.

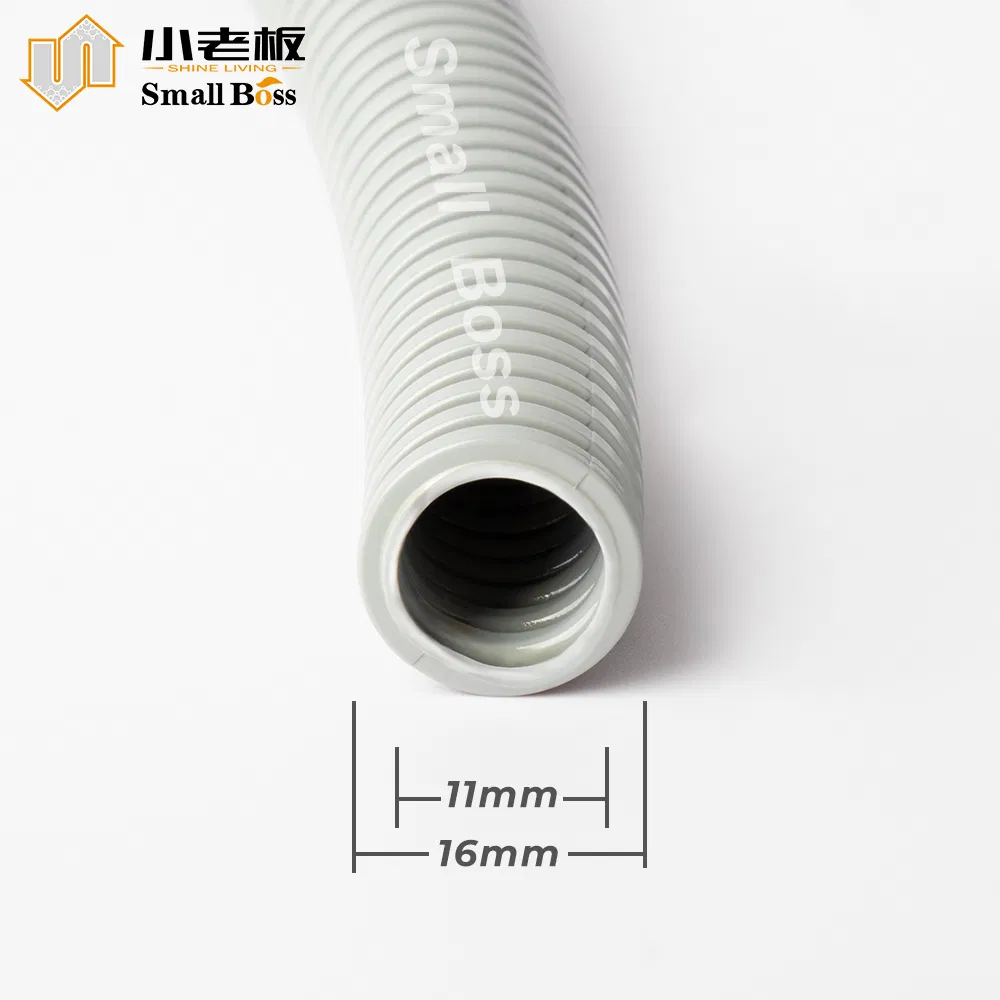

∅ exterior: 16 mm. ∅ interior: 11 mm.
∅ exterior: 20 mm. ∅ interior: 14 mm.
Compressive strength: 750 N.
Impact resistance: 2 J.
Temperature range: -20 ° C + 60 ° C.
Curvable.
No propagator of the flame.

Measurements and weights
Gross Weight: 4.45 kg
Product size (width x depth x height): 10000.0 x 1.6 x 1.6 cm
Number of packages: 1
Packages size: 52.0 x 52.0 x 19.0 cm
Master-pack: 1

Application:
Corrugated PVC pipe - a flexible pipe for wiring indoor wall cavities , Grooves , drywall constructions. Corrugated pipe enables to lay wire harness, providing them with additional insulation and some protection from the elements . Does not replace the corrugated metal pipe as intended - protection against mechanical damage. Such a system allows the gasket , if necessary, broach ( replacement ) of additional wires without damaging the structure itself. Corrugated tube made of PVC with special additives ( flame retardant ), which ensures their flammability . Broach , steel - string wire, stretched at the factory of the pipe and is used to ensure easy installation ( pulling ) of cable and wires in the pipe.
