PP PA PE Flexible Corrugated Pipe for Wire Harness

Model NO.	SB-STCP
Flexibility	Flexible
Material	PP, PA, PE
Maximum Voltage	<10KV
Thermal Rating	A 105
Materials	PE, PA, PP
Types	Seal Type and Open Type
Type	Insulation Sleeve & Tube
Chemistry	Hybrid Insulation
Classification	Hybrid Insulation Materials
Certification	ISO9001, IATF 16949
Brand	Sunbow
Transport Package	Carton Package or Pallet Package
Specification	could be customized
Trademark	SUNBOW
Origin	Shenzhen, China
HS Code	3917310000
Production Capacity	1000000m/Month

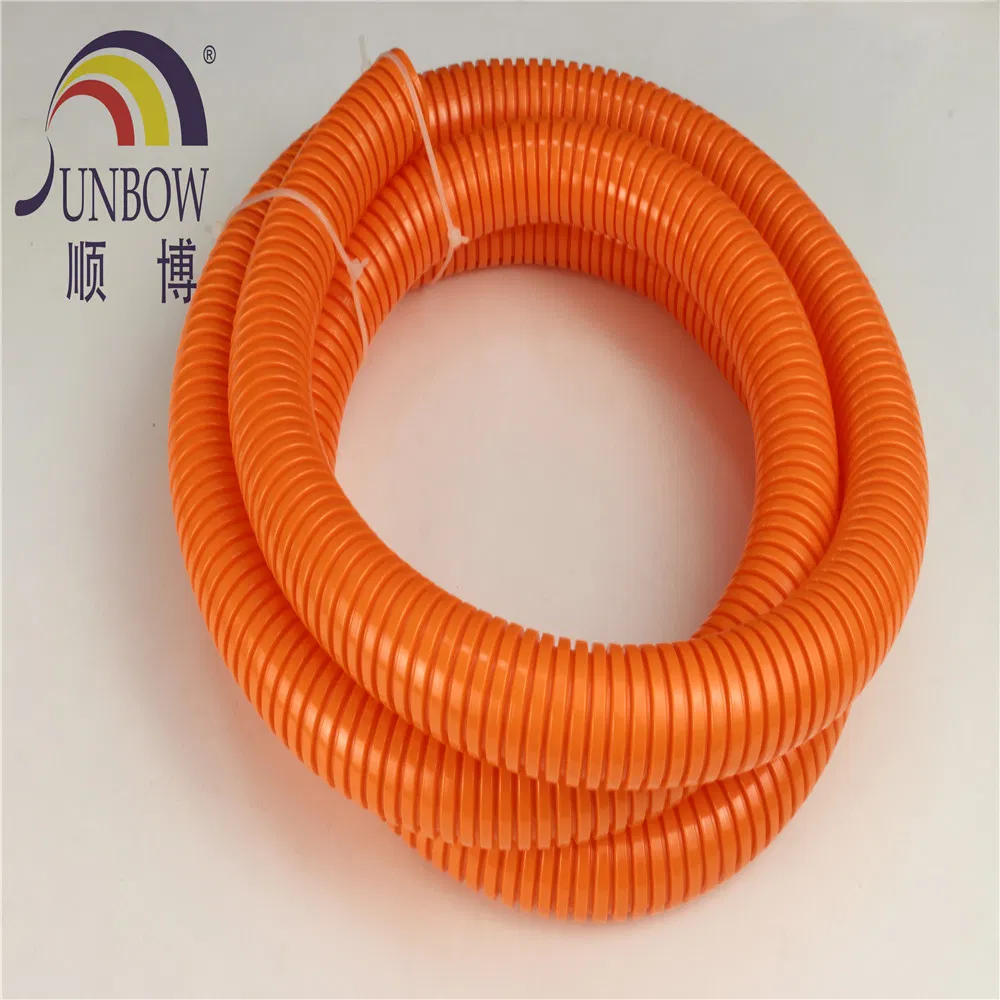

PP PA PE Flexible Corrugated Pipe for Wire Harness

Model Number: SB-STCP

Material: PE, PP, PA
Working temperature: -30ºC ~ +100ºC (PE material)
                    -40ºC ~ +110ºC (PP material)
                    -40ºC ~ +125ºC (PA material)
Structure: wavy shape both interior and exterior.

Performance
Good flexibility, abrasion resistance, acid resistance, fire resistance, etc.

Usage

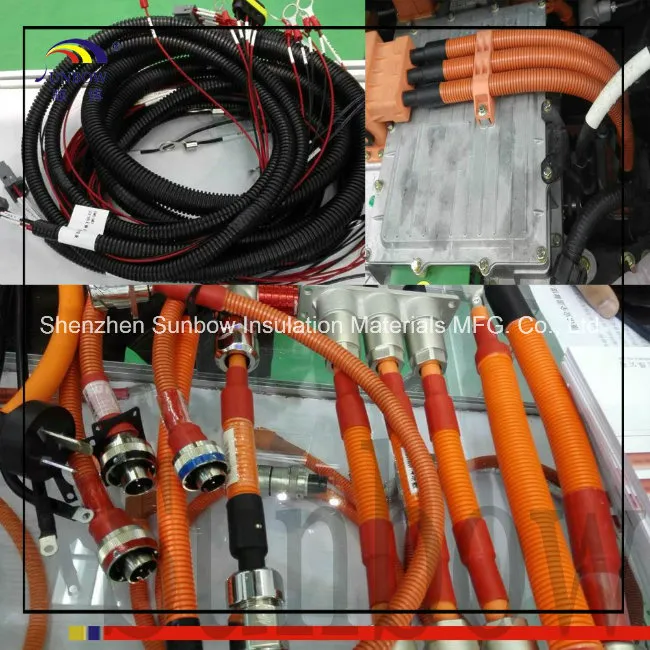

It can be used in machinery, electrical equipment, foodstuff machinery, automatic meters and gauges and motors as abrasion and insulation protection for cables.

Dimension

MaterialItem No.Size (mm)Packing
(meters/roll)Rm±10% Inner DiameterOuter Diameter PE, PP, PA Seal Type Corrugated PipeAD7.55.57.520010 AD107.010.010015 AD1310.013.010020 AD15.812.015.810025 AD18.514.318.510030 AD21.217.021.210035 AD2520.025.010040 AD28.523.028.510045 AD34.529.034.55055 AD42.536.042.52565 AD54.548.054.52585

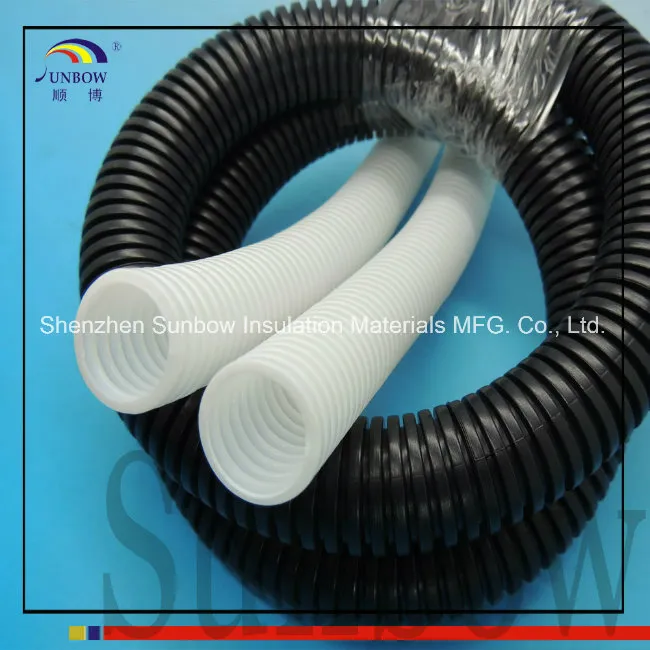

Color: Standard color is black (other color available upon request).
