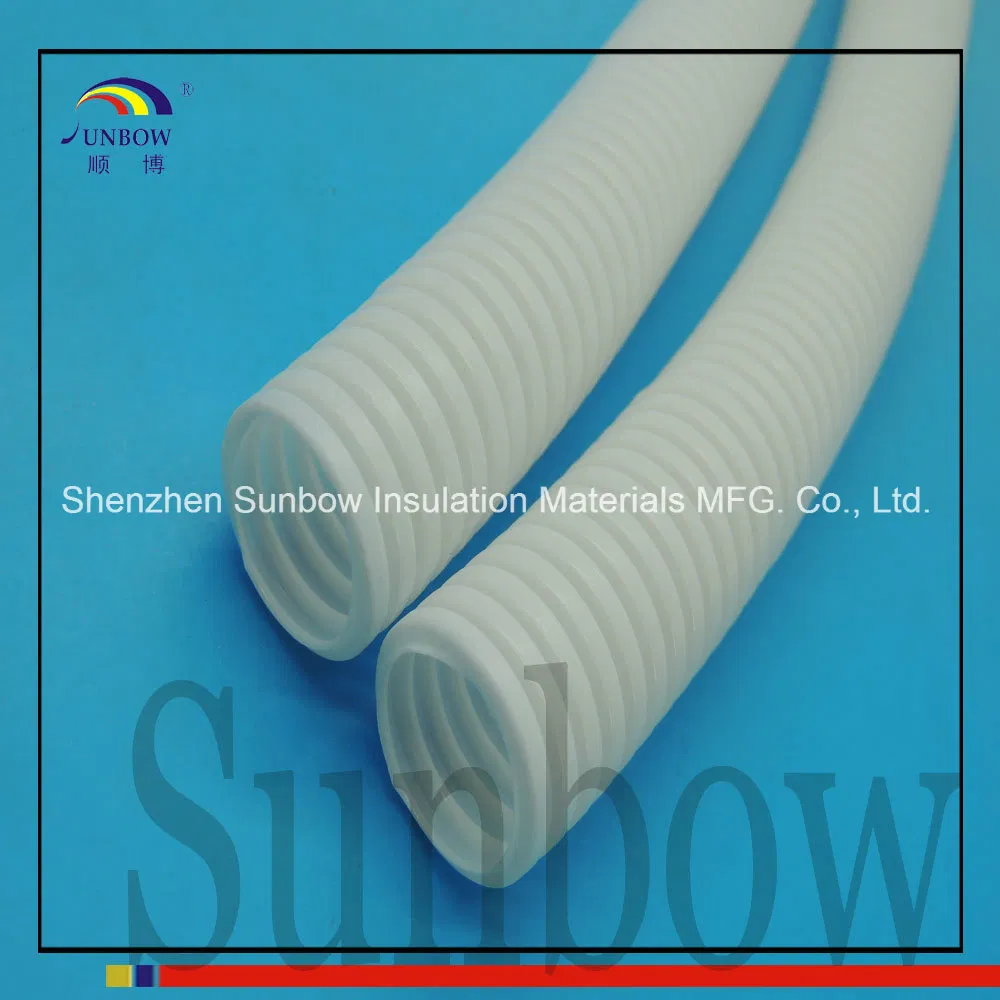

PP Flexible Corrugated Conduit Pipe

Model NO.	SB-OTCP
Material	Polyester
Maximum Voltage	<10KV
Thermal Rating	125c or 110c or 100c
Materials	PE, PA, PP
Types	Seal Type and Open Type
Type	Insulation Sleeve & Tube
Chemistry	Organic Insulation
Classification	Organic Insulating Material
Certification	ISO9001, Ts16949
Brand	Sunbow
Transport Package	Carton Package or Pallet Package
Specification	could be customized
Trademark	SUNBOW
Origin	Shenzhen, China
HS Code	3917310000

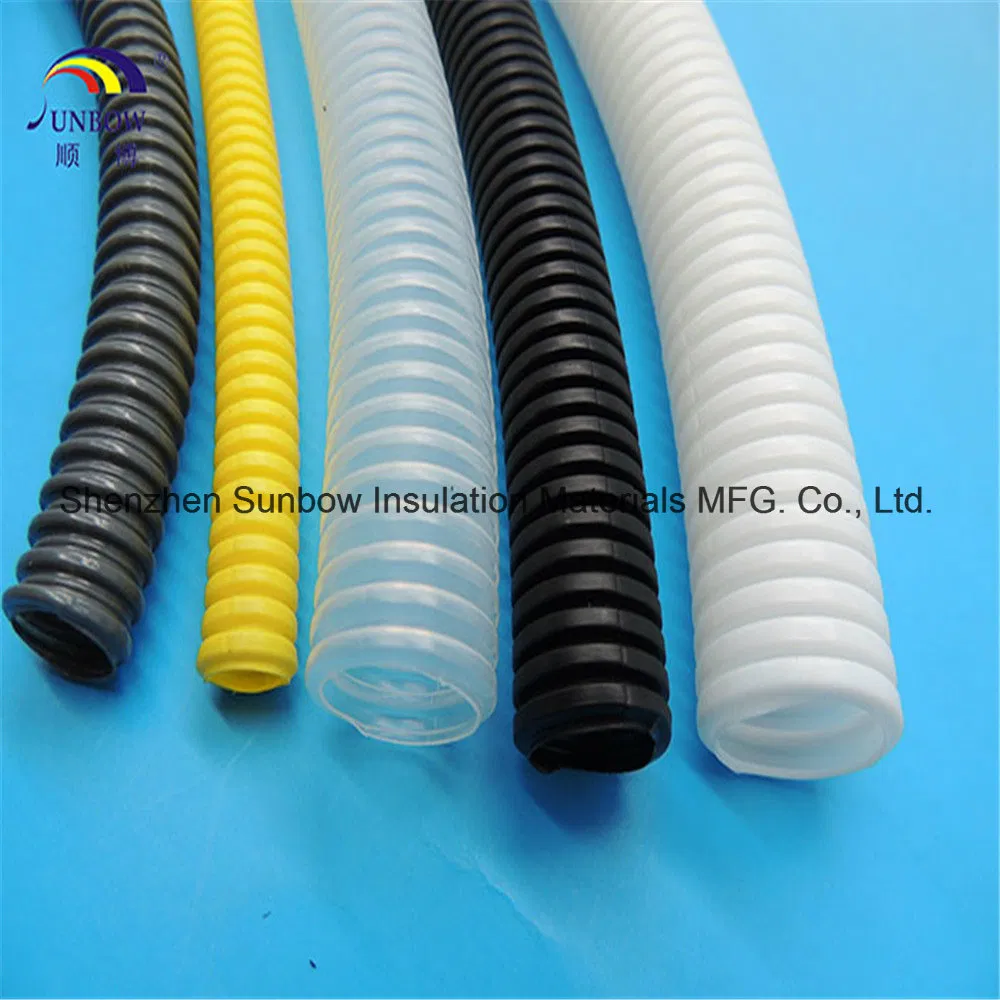

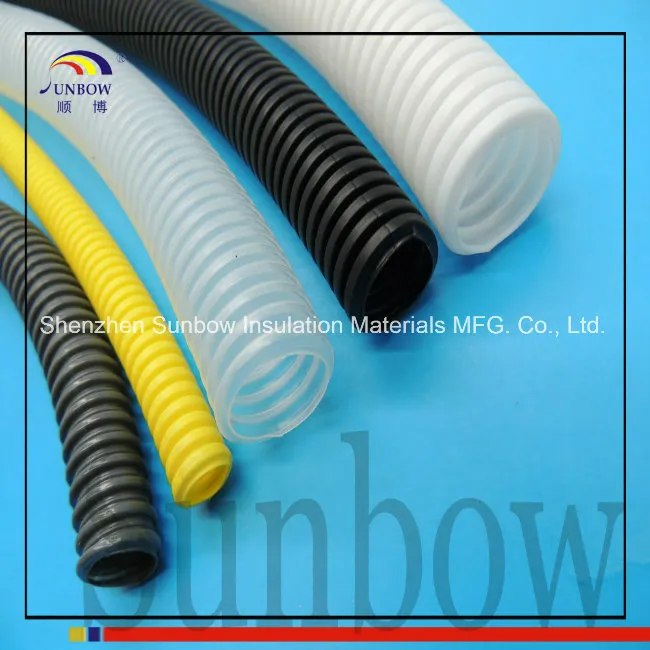

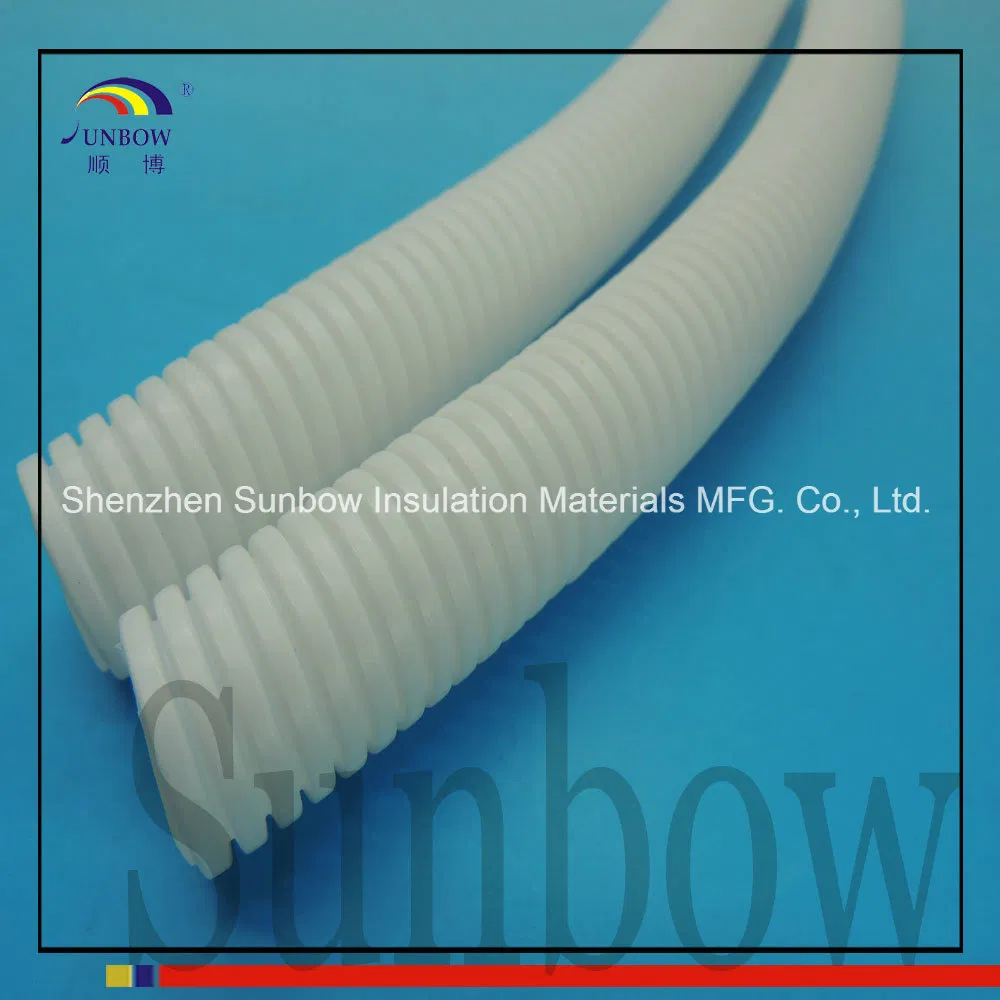

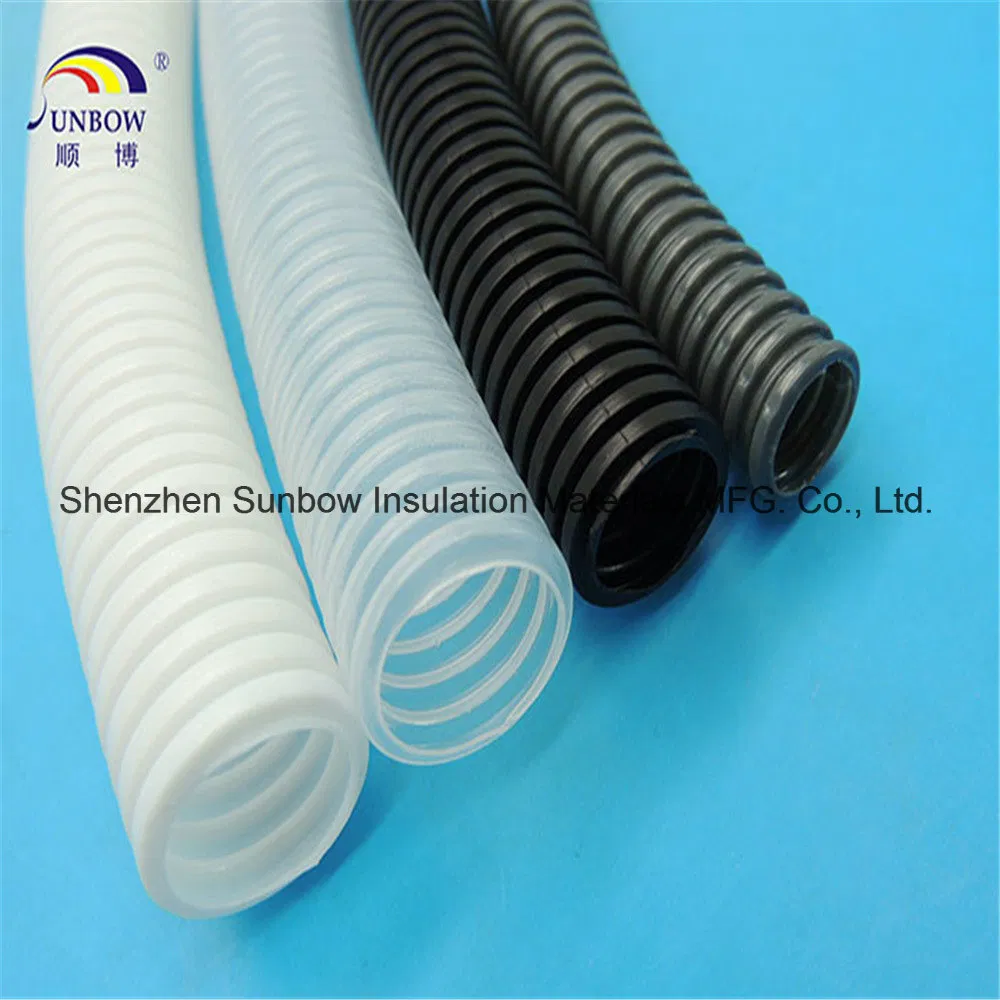

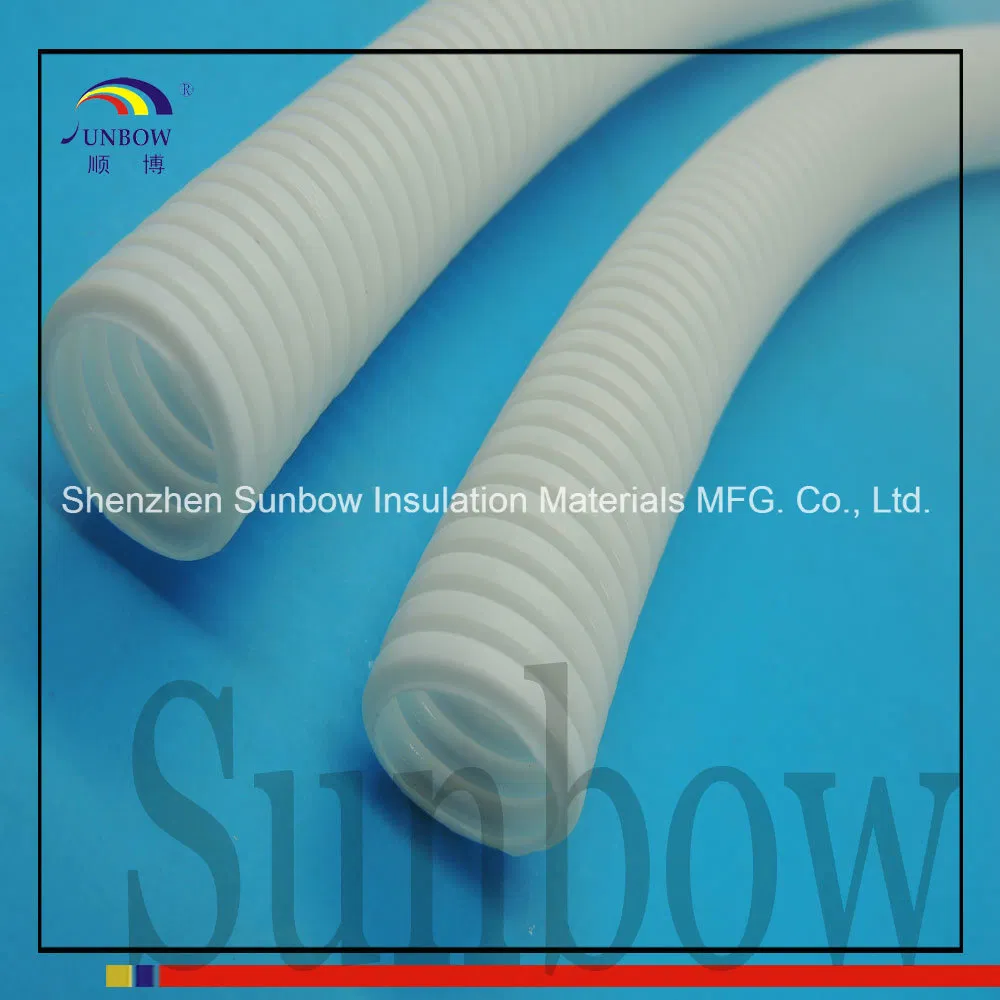

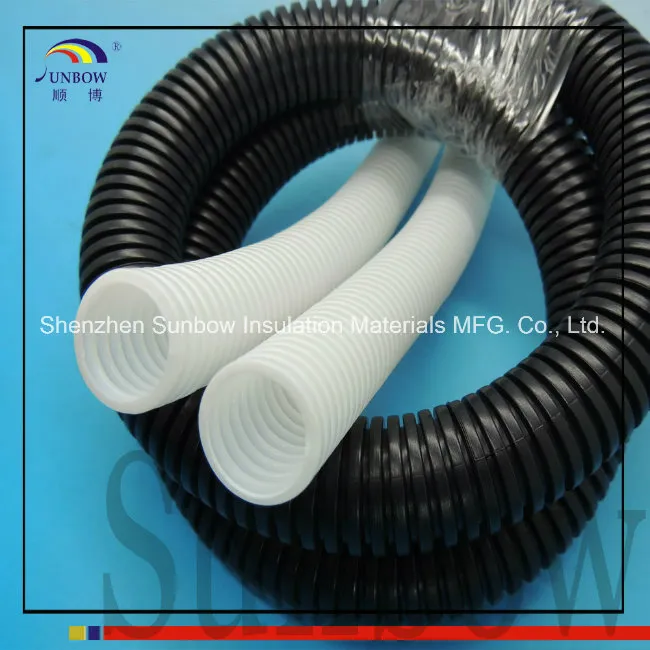

PP Flexible Corrugated Conduit Pipe
Model Number: SB-OTCP
Material: PE, PP, PA
Working temperature: -30ºC ~ +100ºC (PE material)
                    -40ºC ~ +110ºC (PP material)
                    -40ºC ~ +125ºC (PA material)
Structure: wavy shape both interior and exterior.



Performance
Good flexibility, abrasion resistance, acid resistance, fire resistance, etc.

Usage

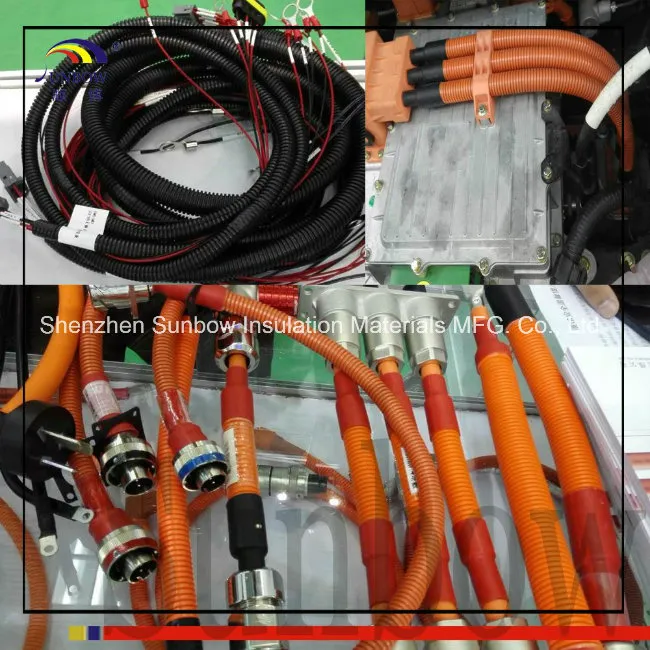

It can be used in machinery, electrical equipment, foodstuff machinery, automatic meters and gauges and motors as abrasion and insulation protection for cables.

Dimension

MaterialItem No.Size (mm)Packing
(meters/roll)Rm±10% Inner DiameterOuter Diameter PE, PP, PA Open Type Corrugated PipeAD7.55.57.520010 AD107.010.010015 AD1310.013.010020 AD15.812.015.810025 AD18.514.318.510030 AD21.217.021.210035 AD2520.025.010040 AD28.523.028.510045 AD34.529.034.55055 AD42.536.042.52565 AD54.548.054.52585

Color: Standard color is black (other color available upon request).
