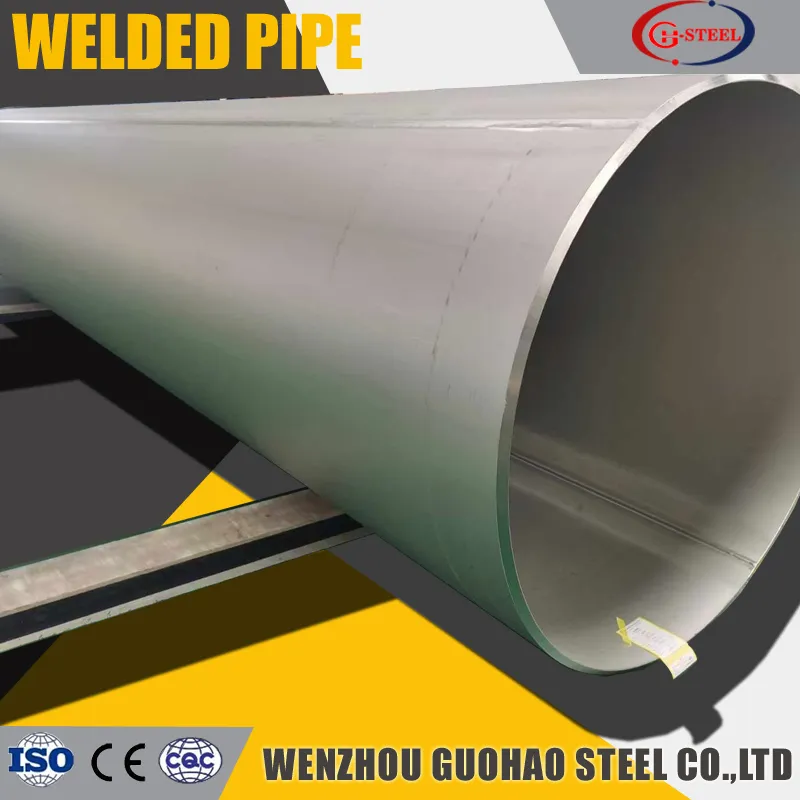

ASTM B862 /ASME SB862 Grade 2 Titanium Alloy Welded Pipes

Model NO.	SB862 Grade 2 welded pipe
Type	Welded
Technique	ERW
Material	Alloy Steel
Surface Treatment	Polished
Usage	Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
Section Shape	Round
Test	RT/HT
Delivery Time	Stock 7 Days; MTO 30 Days
Trade Terms	EXW, FOB, CFR, CIF etc.
Markings	According to A999/A999m
Transport Package	Packed in Bundles or Plywooden Box
Specification	Grade 2
Trademark	GH-STEEL
Origin	China
HS Code	8108904090
Production Capacity	1000ton Per Month

SpecificationASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862 GradesGrade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al TypeHot Rolled / Cold Drawn / Welded / ERW Outer Diameter SizeSeamless - 1/4"NB to 12"NB (Nominal Bore Size)
Welded / ERW- 1"NB to 16"NB (Nominal Bore Size) Wall ThicknessSchedule 10 to Schedule 160 Length5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. Pipe EndsPlain Ends / Beveled Ends Delivery ConditionsAs Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered CoatingElectropolish, Mechanical Polish, Satin Finish, Passivated Other Testingardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc. DimensionAll Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME Value Added ServicesDraw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment PackagingLoose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector Shipment & TransportationBy Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes Material Test CertificateManufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Titanium Pipe and Tube is increasingly being used in a myriad of applications due to the inefficiency of stainless steel and other materials in many instances. A common titanium mill product is titanium tubes, which are employed in a variety of products owing to its superior corrosion resistance and strength-to-weight ratio. The development of many different alloys has extended the application of titanium in industries ranging from industrial and chemical processing to power generation.
The American Society of Mechanical Engineers has approved most titanium grades, meaning that more options are available for various projects. Although grades such as 1, 2, 3, 7, 9, 11 and others are usable, grade 2 is suitable for most instances. The ready availability of grade 2 makes it a preferable material for quick production runs and larger orders.
Determining how a grade will exactly be used is essential prior to selecting any grade. Grades 7, 12, 16, or 26 can be used to fabricate titanium pipes for use in areas demanding greater corrosion resistance. Grades 3 and 12 may be a preferable material for pipes requiring more strength.

What is ASTM B862 / ASME SB862?


This Standard Specification for Titanium and Titanium Alloy Welded Pipe
This specification covers the requirements for 33 grades of titanium and titanium alloy welded pipe intended for general corrosion resisting and elevated temperature service. Welded pipe shall be made from annealed flat-rolled products by a welding process. Welded pipe may be further reduced by cold working or hot working. Grades 1, 2, 2 H, 7, 7H, 11,13, 14, 16, 16H, 17, 26H, 33, and 37 shall be furnished as welded or annealed. Grades 3, 12, 15, and 34 shall be furnished as annealed. Grade 5, 23, 24, 25, 35 shall be furnished as annealed, or aged. Grade 9, 18, 38 shall be furnished as annealed. Grade 19, 20, 21 shall be furnished as solution treated, or solution treated and aged. The materials shall conform to the required chemical composition for nitrogen, carbon, hydrogen, iron, oxygen, aluminum, vanadium, tin, ruthenium, palladium, cobalt, molybdenum, chromium, nickel, niobium, zirconium, silicon, and titanium. They shall also conform to the required mechanical propetries such as tensile strength, yield strength, and elongation. Chemical Composition Of Titanium Alloy  Pipe & Tube

ElementChemical Composition % Grade 1Grade 2Grade 3Grade 5Grade 7Grade 9Grade 11Grade 12Grade 23 Nitrogen, max0.030.030.050.050.030.030.030.030.03 Carbon, max0.080.080.080.080.080.080.080.080.08 Hydrogen, max0.0150.0150.0150.0150.0150.0150.0150.0150.0125 Iron, max0.200.300.300.400.300.250.200.300.25 Oxygen, max0.180.250.350.200.250.150.180.250.13 Aluminum………5.5-6.75…2.5-3.5……5.5-6.5 Vanadium………3.5-4.5…2.0-3.0……3.5-4.5 Tin……………………… Ruthenium……………………… Palladium…………0.12-0.25…0.12-0.25…… Molybdenum…………………0.2-0.4… Chromium……………………… Nickel…………………0.6-0.9… Niobium……………………… Ziconium……………………… Silicon……………………… Residuals, max each0.10.10.10.10.10.10.10.10.1 Residuals, max total0.40.40.40.40.40.40.40.40.4 Titaniumbalancebalancebalancebalancebalancebalancebalancebalancebalance

Mechanical Properties Of Titanium Alloy  Pipe & Tube

GradeTensile Strength, minYield Strength (0.2% Offset)Elongation 2 in. or 50 mm  minmax Ksi(Mpa)Ksi(Mpa)Ksi(Mpa)gage length min % Grade 135(240)25(170)45(310)24 Grade 250(345)40(275)65(450)20 Grade 365(450)55(380)80(550)18 Grade 5130(895)120(828)……10 Grade 750(345)40(275)65(450)20 Grade 990(620)70(483)45…15 Grade 1135(240)25(170)…(310)24 Grade 1270(483)50(345)……18 Grade 23120(828)110(759)……10

ASTM B862 Titanium Alloy Pipe Tolerances

Outside Diameter(mm) Outside Diameter,
Tolerance(mm) Wall thickness,
Tolerance (%) 3.2≤OD≤38+0.397/-0.794±12.5 38<OD≤102+0.794/-0.794±12.5 102<OD≤203+1.588/-0.794±12.5 203<OD≤432+2.382/-0.794±12.5

1. All of our pipe & tubes are packaged as per international standard to prevent any possible damage or loss. By default, we will use thick woven plastic bag to bundle the finished pipes together in batches.
2. For some special pipes & tubes that are vulnerable to dirt, scratches, stress or rough handling, we will suggest wooden case for protection. Kindly note, wooden case can incur extra cost, not only its own cost, but also the increased freight cost, which is especially true for air transportation.
3. For enhanced customer experience, we also provide dedicated package as per your special requirements.
