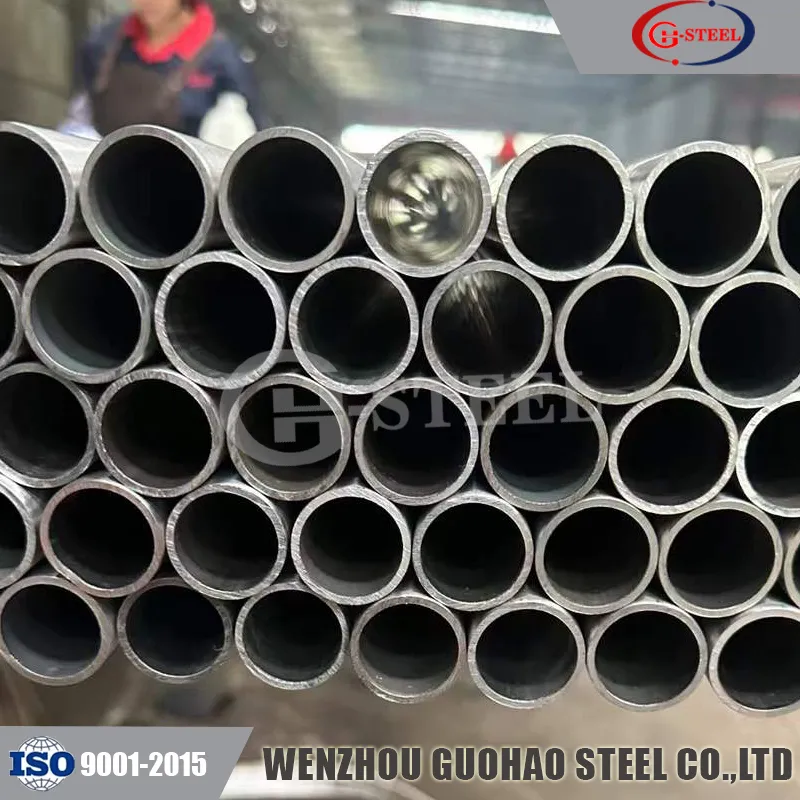

ASTM B861 Grade 2 / UNS R50400 / 3.7034 Titanium and Titanium Alloy Seamless Pipe

SpecificationASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862 GradesGrade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al TypeHot Rolled / Cold Drawn / Welded / ERW Outer Diameter SizeSeamless - 1/4"NB to 12"NB (Nominal Bore Size)
Welded / ERW- 1"NB to 16"NB (Nominal Bore Size) Wall ThicknessSchedule 10 to Schedule 160 Length5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. Pipe EndsPlain Ends / Beveled Ends Delivery ConditionsAs Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered CoatingElectropolish, Mechanical Polish, Satin Finish, Passivated Other Testingardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc. DimensionAll Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME Value Added ServicesDraw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment PackagingLoose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector Shipment & TransportationBy Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes Material Test CertificateManufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Chemical Composition Of Titanium Alloy Gr7 Pipe & Tube

ElementChemical Composition % Grade 1Grade 2Grade 3Grade 5Grade 7Grade 9Grade 11Grade 12Grade 23 Nitrogen, max0.030.030.050.050.030.030.030.030.03 Carbon, max0.080.080.080.080.080.080.080.080.08 Hydrogen, max0.0150.0150.0150.0150.0150.0150.0150.0150.0125 Iron, max0.200.300.300.400.300.250.200.300.25 Oxygen, max0.180.250.350.200.250.150.180.250.13 Aluminum………5.5-6.75…2.5-3.5……5.5-6.5 Vanadium………3.5-4.5…2.0-3.0……3.5-4.5 Tin……………………… Ruthenium……………………… Palladium…………0.12-0.25…0.12-0.25…… Molybdenum…………………0.2-0.4… Chromium……………………… Nickel…………………0.6-0.9… Niobium……………………… Ziconium……………………… Silicon……………………… Residuals, max each0.10.10.10.10.10.10.10.10.1 Residuals, max total0.40.40.40.40.40.40.40.40.4 Titaniumbalancebalancebalancebalancebalancebalancebalancebalancebalance

Mechanical Properties Of Titanium Alloy Gr5 Pipe & Tube

GradeTensile Strength, minYield Strength (0.2% Offset)Elongation 2 in. or 50 mm minminmax Ksi(Mpa)Ksi(Mpa)Ksi(Mpa)gage length min % Grade 135(240)25(170)45(310)24 Grade 250(345)40(275)65(450)20 Grade 365(450)55(380)80(550)18 Grade 5130(895)120(828)……10 Grade 750(345)40(275)65(450)20 Grade 990(620)70(483)45…15 Grade 1135(240)25(170)…(310)24 Grade 1270(483)50(345)……18 Grade 23120(828)110(759)……10

1. All of seamless pipe & tubes are packaged as per international standard to prevent any possible damage or loss. By default, we will use thick woven plastic bag to bundle the finished pipes together in batches.
2. For some special pipes & tubes that are vulnerable to dirt, scratches, stress or rough handling, we will suggest wooden case for protection. Kindly note, wooden case can incur extra cost, not only its own cost, but also the increased freight cost, which is especially true for air transportation.
3. For enhanced customer experience, we also provide dedicated package as per your special requirements.

Our company welcomes inspections conducted by customers directly or through their designated third-party inspection agencies, such as SGS, BV, TUV, DNV, and other industry-recognized organizations.

We provide Manufacturer TC (Test Certificate) in accordance with EN 10204/3.1, Raw Materials Certificate, HT/DNT Test Reports, and Third-Party Inspection Reports.

Material Testing: All materials undergo rigorous quality testing procedures prior to shipment to ensure compliance with required standards and customer specifications.
1. Mechanical Testing
2. Hardness Test
3. Chemical Analysis - Spectro Analysis
4. Positive Material Identification - PMI Testing
5. Flattening Test
6. Flaring Test
7.Intergranular Corrosion (IGC) Test

• The Titanium Alloy Tubes is used in the following applications:-
• Chlorination systems
• Flue gas scrubbers
• Outlet ducting and stack liners for power plants, pulp and paper bleach plants, sulfur dioxide scrubbers, and weld overlay of less corrosion resistant metals
• Acid production and pickling systems
• Pharmaceutical industries use alloy fittings and tubing to avoid contamination caused by corrosion related failures
• Cellophane manufacturing
• Chlorination systems
• Pesticide production
• Incineration scrubber systems
• Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing
• Waste water processing
• Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
• Flue gas desulfurization systems
• Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
• Sour gas wells
• Pulp and paper production
• Waste treatment
• Pharmaceutical and food processing equipment
