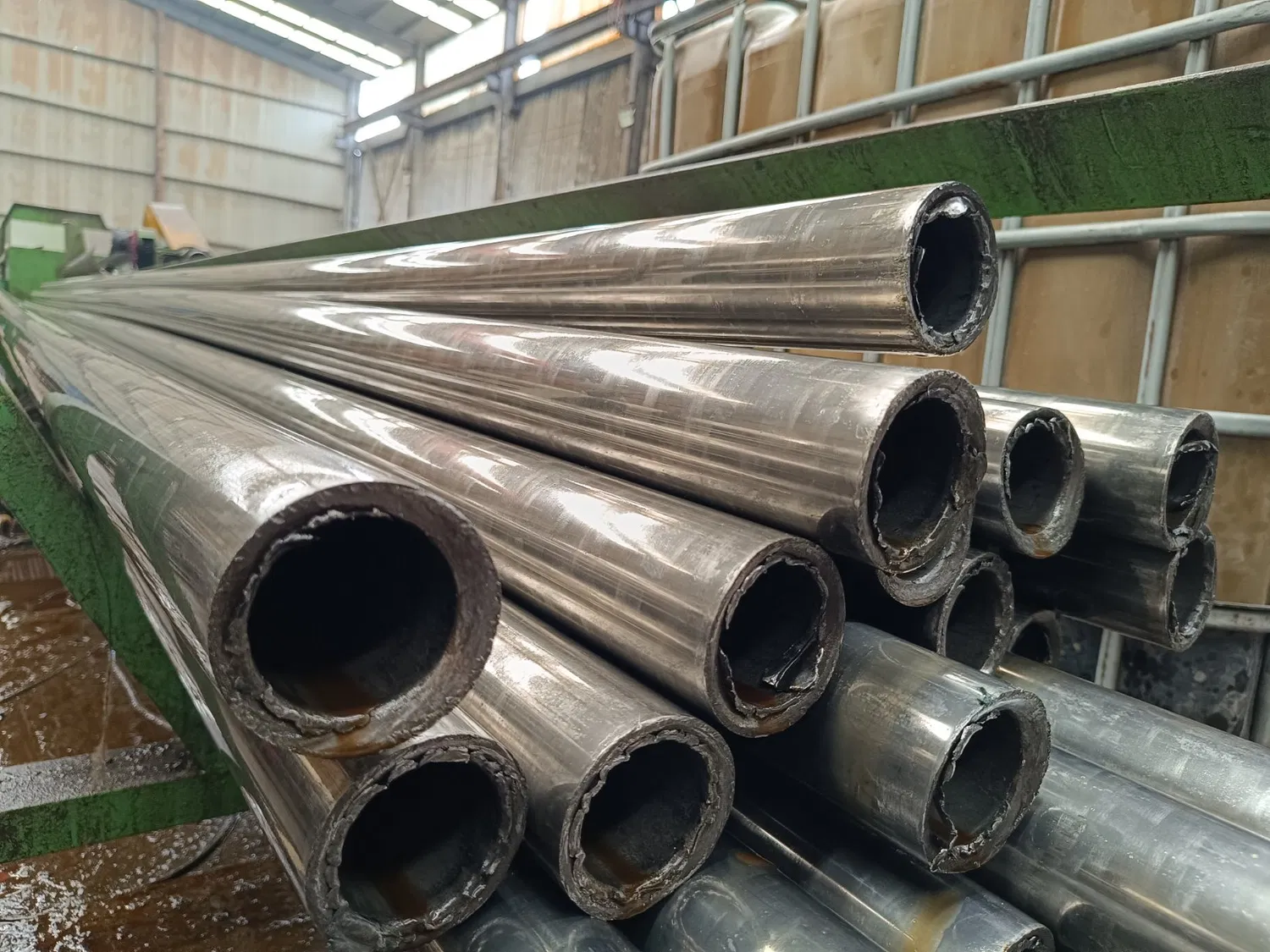

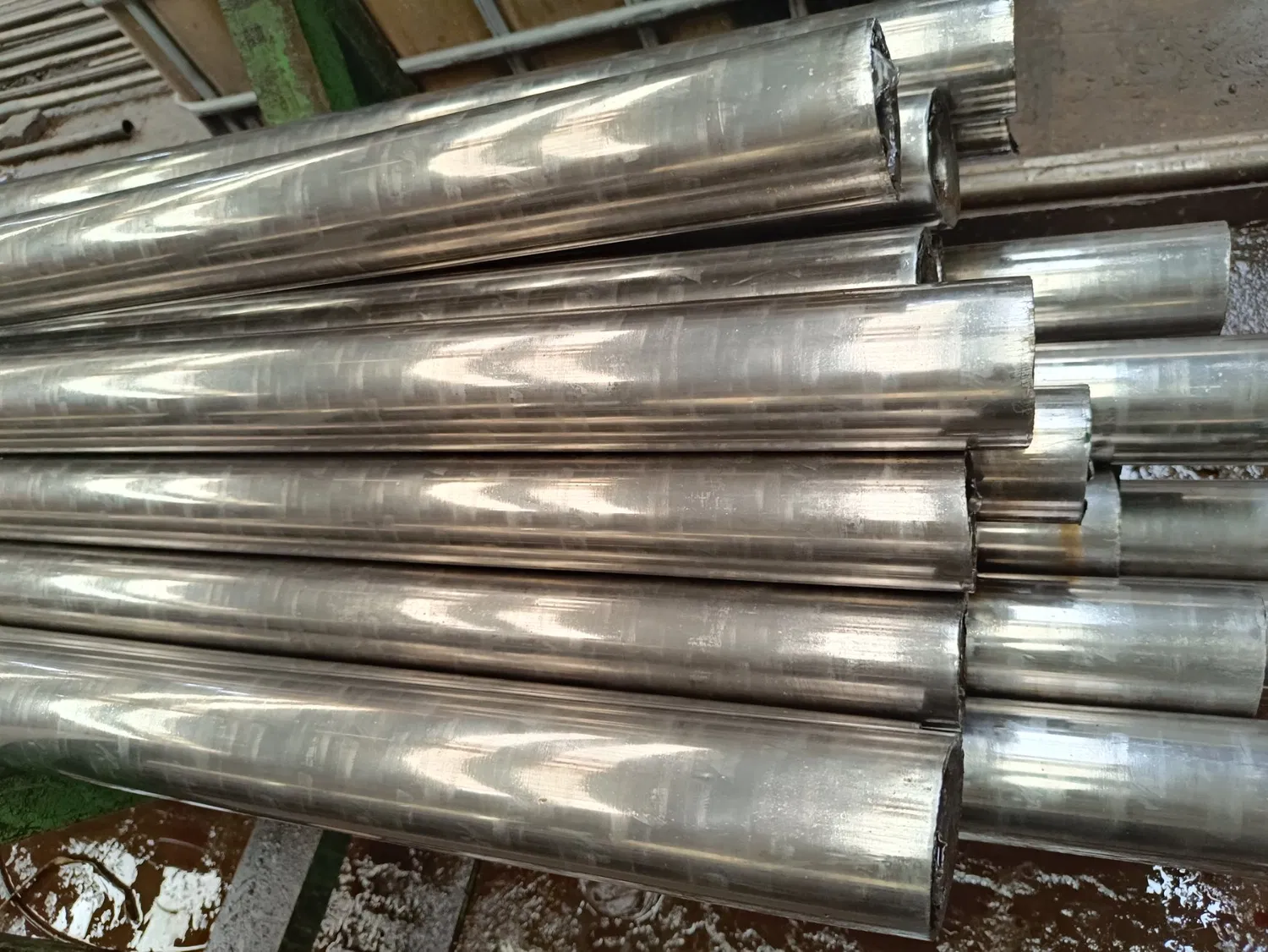

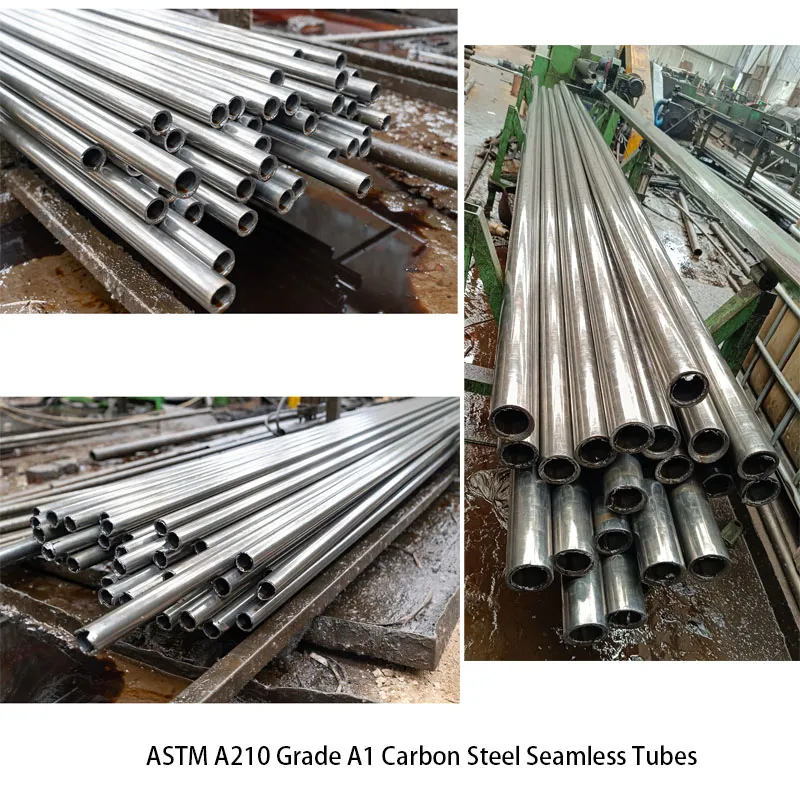

ASTM A210 Grade A1 Seamless Medium Carbon Steel Pipe for Boiler

ASTM A210 Grade A1 seamless medium carbon steel tube for boiler &superhearter

SA210A1 is a Seamless medium carbon steel Boiler Tube used in super heater, heat exchangers, condensers, marine application, refineries, paper pulping, petrochemical applications, pressure vessels, and general engineering applications.

It is also used in coal, thermal and oil power generation plants.

SA210A1 steel can be purchased HF (hot finished) or CD (cold drawn) and shall be killed. SA213T2 has a maximum hardness of 85 HRB (Rockwell B) and is a P1 Material.

Tensile Requirements for ASTM A210 Grade A1 Seamless Tubes

GradeTensile Strength(Mpa)Yield Strength(Mpa)Elongation (%) A1≥ 415≥ 255≥ 30 C≥ 485≥ 275≥ 30

ASME SA-210ODWTWT Tolerance <=38.1/+20%,-0% >38.1/+20%,-0%

GradeC(Max)MnSi(Min)P(Max)S(Max) A10.27Max.0.930.10.0350.035 C0.350.29~1.060.10.0350.035

 ASTM A210 GR A1 Seamless Carbon Steel Tube Supplier

A210 Grade A1 Seamless Tubes SpecificationASTM A210 / ASME SA210 A210 Grade A1 Seamless Tubes GradesASTM A210 Grade A1 / ASME SA210 Grade A1 /ASTM A210 Grade C / ASME SA210 Grade C A210 Grade A1 Seamless Tubes TypeSeamless - Hot Rolled / Cold Drawn A210 Grade A1 Seamless Tubes Outer Diameter Size1/4" NB to 2" NB (Nominal Bore Size) A210 Grade A1 Seamless Tubes Wall Thickness1 mm Thickness to 8 mm Thickness A210 Grade A1 Seamless Tubes Length5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on. Max length: 27000mm, also U bending can be offered. A210 Grade A1 Seamless Tubes EndsPlain Ends / Beveled Ends / Coupling A210 Grade A1 Seamless Tubes Delivery ConditionsAs Rolled, Cold Drawn, Normalizing Rolled A210 Grade A1 Seamless Tubes CoatingEpoxy Coating / Colour Paint Coating / 3LPE Coating. A210 Grade A1 Seamless Tubes Other TestingNACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. A210 Grade A1 Seamless Tubes DimensionAll Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME A210 Grade A1 Seamless Tubes Value Added ServicesDraw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment A210 Grade A1 Seamless Tubes PackagingLoose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector A210 Grade A1 Seamless Tubes Shipment & TransportationBy Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes A210 Grade A1 Seamless Tubes Material Test CertificateManufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Since 2014, Shanshui Special Steel has been a major manufacturer and exporter of seamless pipes and anchor bolts. There are currently four factories (Jiujiu and Bailian) and three production workshops (hot-rolled carbon steel pipes, cold-rolled precision pipes, and anchor bolts).
1. Hydraulic pipes
2. Geological drilling pipes
3. Boiler tubes
4. Pipes for petroleum machinery
5. Anchor bolt
6. Pipes for mining machinery
7. Pipe for coupling
8.Pipes for automotive accessories

1.The product group distance is basically 25-630.
2.The materials mainly include 20#, 45#, Q355B, Cr series, SiMn system, CrMo system, CrMnTi system, etc.
3.Our factory can provide customers with ultrasonic and magnetic flux leakage testing, through testing to provide a basis for the scientific use of pipeline equipment, save money for customers, and provide high-end seamless steel pipes for the petroleum industry.

Shanshui Special Steel, we carry a full inventory of A210 Grade A1 Tube products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. A210 Grade A1 Carbon Steel Seamless Tube Carbon Steel Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.

We Supply A210 Grade A1 Carbon Steel Seamless Tubes in ASTM A106 Grade B, ASTM A106 Grade C, ASTM A53 Grade B, ASTM A333 Grade 3, ASTM A333 Grade 6, ASTM A334 Grade 1, ASTM A334 Grade 6, ASTM A179, ASTM A192, ASTM A210 A1, ASTM A210 C.The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
