Laboratory PVC Pipe Vacuum Sizing Water Cooling Test Chamber

Screw No.	Double-screw
Automation	Automatic
Computerized	Computerized
Certification	CE
Customized	Non-Customized
Condition	New
After-sales Service	a Lifetime
Sizing Way	Vacuum Sizing
Cooling	Water
Pipe Size	Inner 10mm, Outer 12.5mm
Mode of Traction	Belt Traction
Power Supply Voltage	1-Phase 220V
Transport Package	Plywood
Trademark	Hapro
Origin	China
HS Code	9024800000
Production Capacity	100/Year

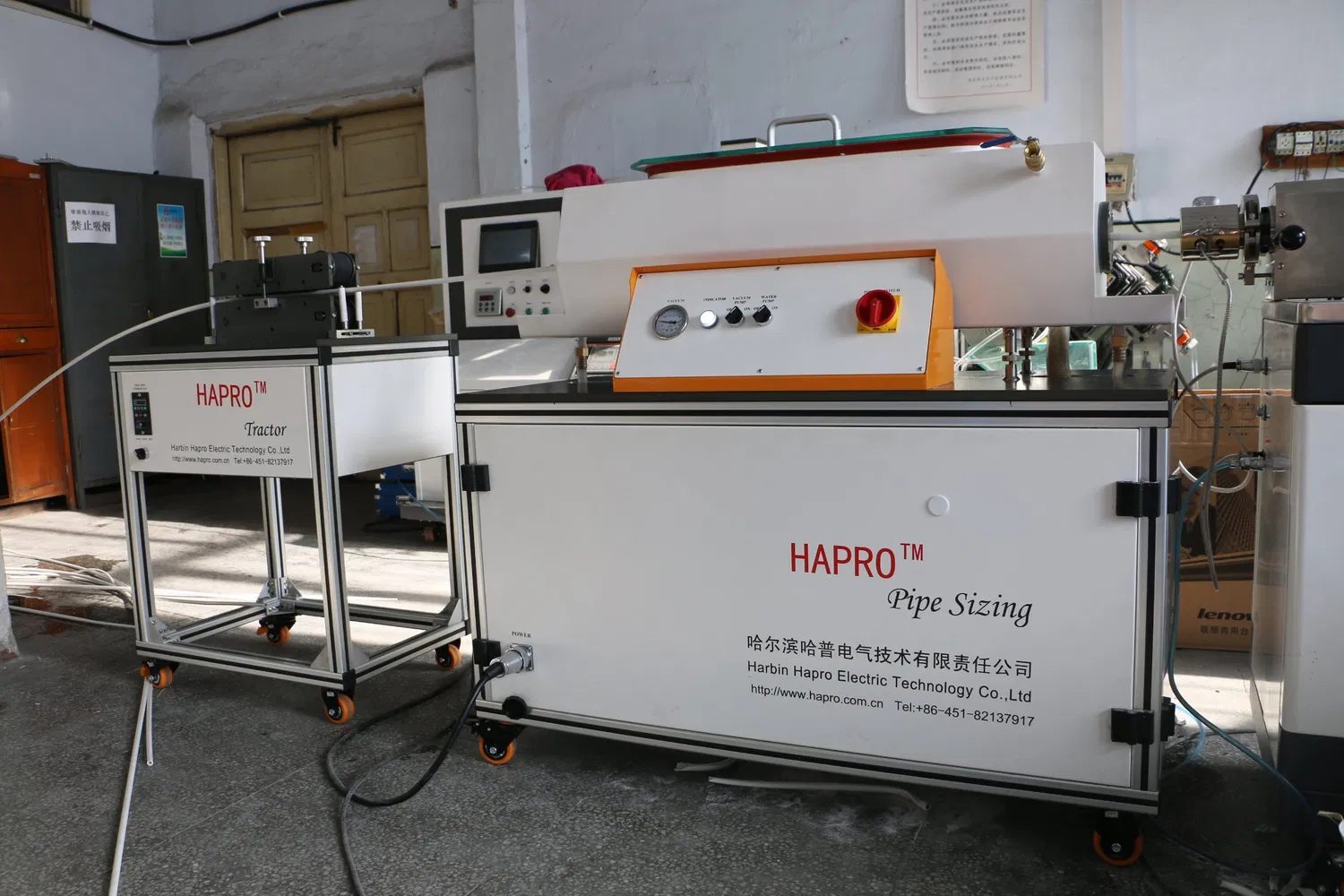

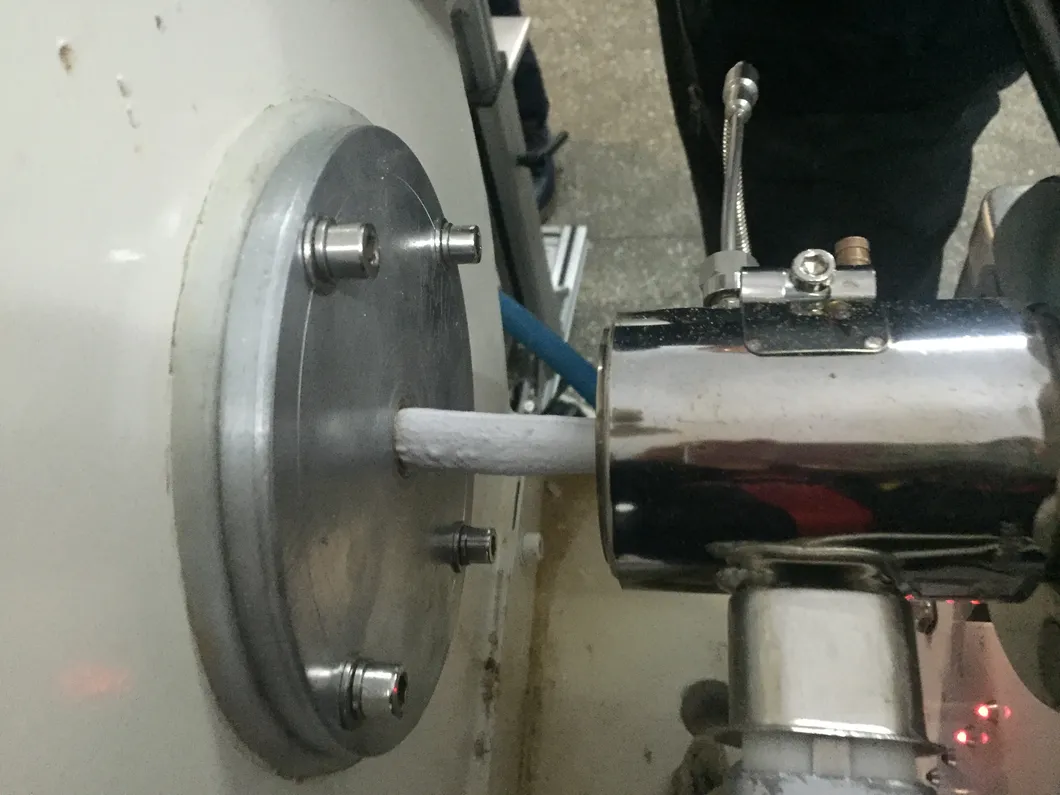

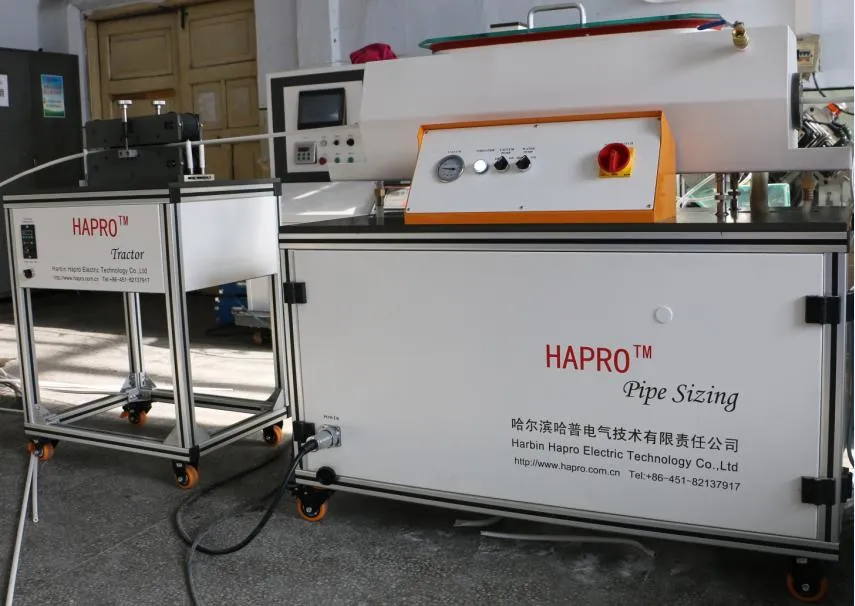

When material comes through Pipe die ,Pipe extrusion can be directly into the vacuum sizing tank ,After cooling and vacuuming, the pipe is formed and fed into the tractor.

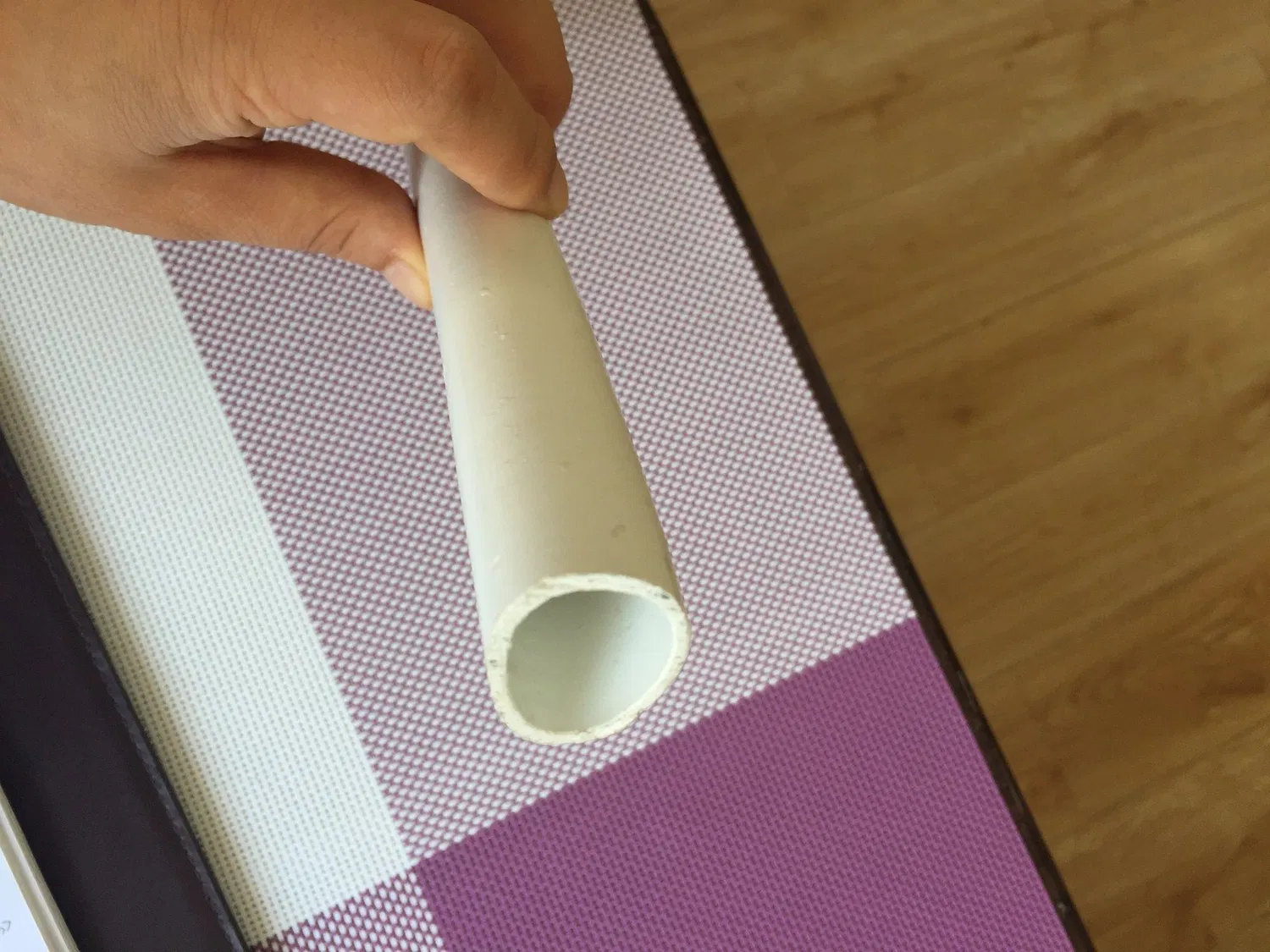

After vacuum pumping and water cooling, PVC or PE and other thermoplastic polymer material pipe forming, customers can reduce after further physical testing, such as tensile test

Pipe sizing
Inner Pipe diameter
Ф10 mm
Outer Pipe diameter
Ф12.5 mm
Power supply
AC,220V
Total power
1.7 kW
Sizing         Vacuumize
Cooling
water Dimension
(L×W×H)
1200×600×1000 mm
Weight
200 kg

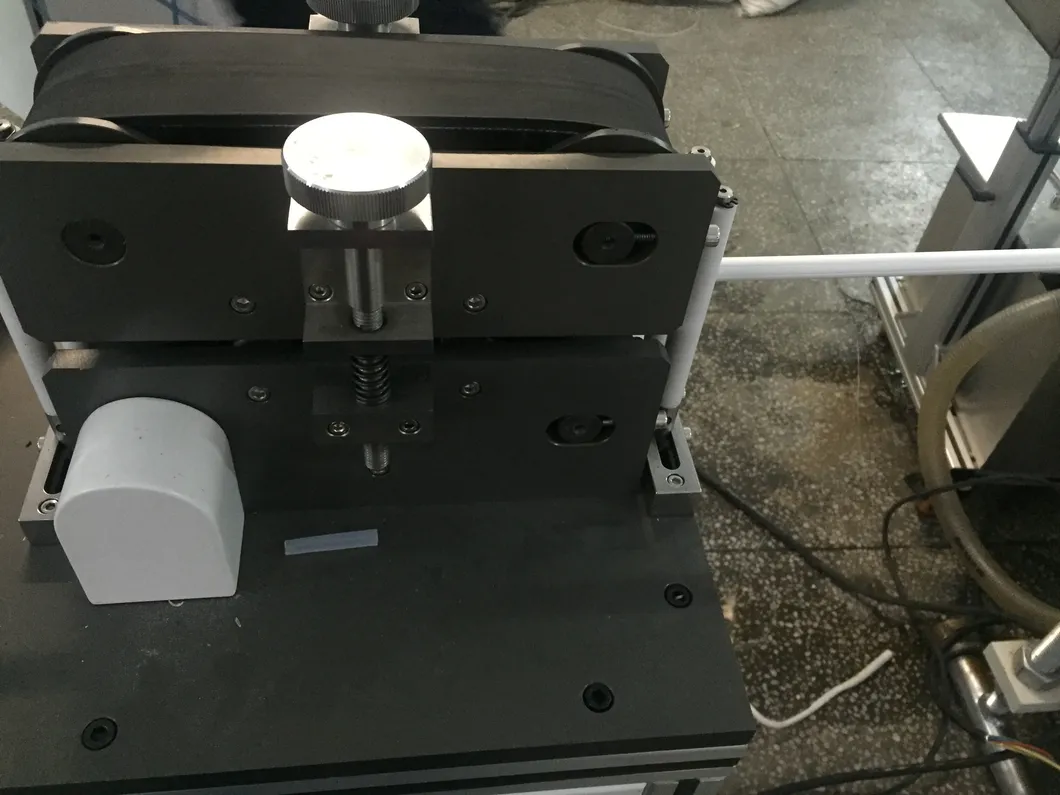

The pipe tractor is pulled by belt friction, and then the pipe is cut into the size required by the customer by the pipe cutting pliers for subsequent physical experiments, such as tensile test, etc

Pipe Tractor
Traction speed0.24~2.5 m/min,Manual adjustment
Mode of traction
Belt traction
Power supply
AC,220V
Total power
1.7 kW
Weight
100 kg
Dimension (L×W×H)
1200×600×1000 mm





•
