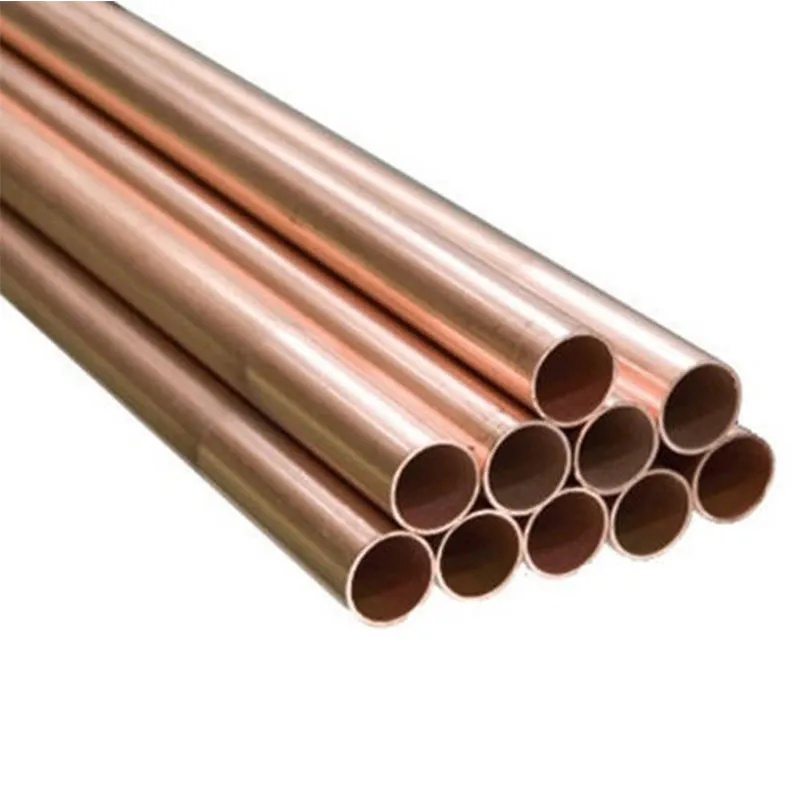

Premium Straight Copper Pipe for Reliable Plumbing and HVAC Use

Model NO.	C10200 C11000 C10100 C10200 C12000
Material	Red Copper
Shape	Coil
Alloy	Non-alloy
Color	Red
Standard	ASTM
Thickness	0.3mm~100mm
Length	3m, 6m or Be Required
Width	50mm~2500mm or as Required
Processing Service	Bending, Welding, Decoiling, Cutting, Punching
Ultimate Strength (≥ MPa)	220--400
Elongation >=	35%
Payment Term	30%Tt in Advance + 70% Balance
Price Term	CIF CFR Fob Ex-Work
Sample	Avaliable
Transport Package	Standard Export Packages
Specification	Customized
Trademark	Hai Yi Da
Origin	China
Production Capacity	5000tons/Month

Red copper belt, high purity, fine structure, extremely low oxygen content. No pores, trachoma, looseness, excellent conductivity, high precision of the surface of the electro-eroded mold, after the heat treatment process, the electrode has no directionality, suitable for fine punching, fine punching, and has good thermal conductivity, processability, ductility, Corrosion resistance and weather resistance, etc. It has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and can be welded and brazed.



MaterialCopper Nickel Cu/Ni 90/10,Cu/Ni 70/30 Pipe LengthSingle Random, Double Random & Required Length Size6.35 mm OD upto 254 mm OD Wall thickness0.6 TO 20 mm thickness. StandardStandards - ASTM B165 , ASTM B163 , ASTM B829 , ASTM B775 ,ASTM B725 ,ASTM B730 , ASTM B751 Applications1.Fluid pipe
2. Power Plant
3. Structure pipe
4. High and low pressure Boiler tube
5. Seamless steel tubes for petroleum cracking
6. Conduit pipe
7. Scaffolding pipe pharmaceutical and ship building etc CertificateISO/PED/TUV/LR/BV GradeUNS NO. C 70600 (CU -NI- 90/10) / C 71500 (CU -NI- 70/30) / C 71640 ( CU-NI-66/30/2/2)

Alloychemical composition QBGB/JIS/UNSCuPbZnFeSnTotal Impurity C2501JIS C350160.0-64.00.7-1.7REM<=0.2Fe+Sn<=0.4- C3601JIS C360159.0-63.01.8-3.7REM<=0.3Fe+Sn<=0.5- C3602JIS C360259.0-63.01.8-3.7REM<=0.5Fe+Sn<=1.2- C3603JIS C360357.0-61.01.8-3.7REM<=0.35Fe+Sn<=0.6- C3604JIS C360457.0-61.01.8-3.7REM<=0.5Fe+Sn<=1.2- C3605JIS C360556.0-60.01.8-3.7REM<=0.5Fe+Sn<=1.2- C3771JIS C377157.0-61.01.8-3.7REMFe+Sn<=1.0- 360ASTM C3600060.0-63.02.5-3.7REM<=0.35others H62H62/JIS C280060.5-63.5<=0.08REM<=0.15-<=0.5 H65H65/JIS C268063.5-68.0<=0.03REM<=0.1-<=0.3 H68H68/JIS C260067.0-70.0<=0.03REM<=0.1-<=0.3 H63H6362.0-65.0<=0.08REM<=0.15-<=0.5 H90H9088.0-91.0<=0.03REM<=0.1-<=0.2 H96H9695.0-97.0<=0.03REM<=0.1-<=0.2 H62FH62F60.0-63.00.5-1.2REM<=0.2-<=0.75 HPb59-1HPb59-157.0-60.00.8-1.9REM<=0.5-<=1.0 HPb58-2-57.0-59.01.5-2.5REM<=0.5-<=1.0



Alloy GradeMaterial CharacteristicsApplication C11000
Cu≥99.90It has good electrical conductivity, heat conduction, corrosion resistance and processing properties. It can be welded and brazed.
The impurities and trace amount of oxygen only have very few effect on electrical and thermal conductivity. But the trace oxygen is easy to cause "hydrogen disease", so it can't be processed and used in high temperature (such as > 370ºC).Widely used for electric, heat conduction, corrosion resistance equipment. Such as: wire, cable, conductive screw, blasting
detonator, chemical evaporator, storage device and a variety of pipes etc. C10200
Cu≥99.97

C10300
Cu≥99.95High purity, excellent electrical and thermal conductivity, barely no "hydrogen disease", good processing, welding, corrosion
resistance and cold resistance performance.Mainly used for electrical vacuum instruments, all kinds of hardware products, lamps, pipe fittings, zippers, plaques, nails, springs, sedimentation filters etc. C12000,C12200
Cu≥99.90Good welding and cold bending performance. It can be processed and used in reducing atmosphere, but not in oxidizing atmosphere.
C12000 has less residual phosphorus than C12200, so its thermal conductivity are higher than C12200.Mainly used for pipe applications, such as gasoline or gas conveying pipe, drain pipe, condensate pipe, mine pipe, condenser, evaporator, heat exchanger, train parts. It also can be processed to plate, strip, tape and rod.

Feature

1)Light weight, good thermal conductivity, high strength at low temperature.
It is often used in the manufacture of heat exchange equipment (such as condenser, etc.). It is also used in the assembly ofcryogenic pipelines in oxygen production equipment. Small diameter copper pipe is often used for conveying pressurized liquid(such as lubrication system, oil pressure system, etc.) and as a gauge tube.

2)Copper pipe has strong, corrosion-resistant characteristics.
So cooper tube become the modern contractor in all residential commercial housing plumbing, heating and cooling pipeline installation first choice.

3)Copper pipe has high strength, easy to bend, easy to twist, not easy crack, not easy to break.
So copper tube has a certain anti-frost bilge and anti-impact ability, so the copper water pipe in the water supply system in the building once installed, use up safe and reliable, even without maintenance and maintenance.
