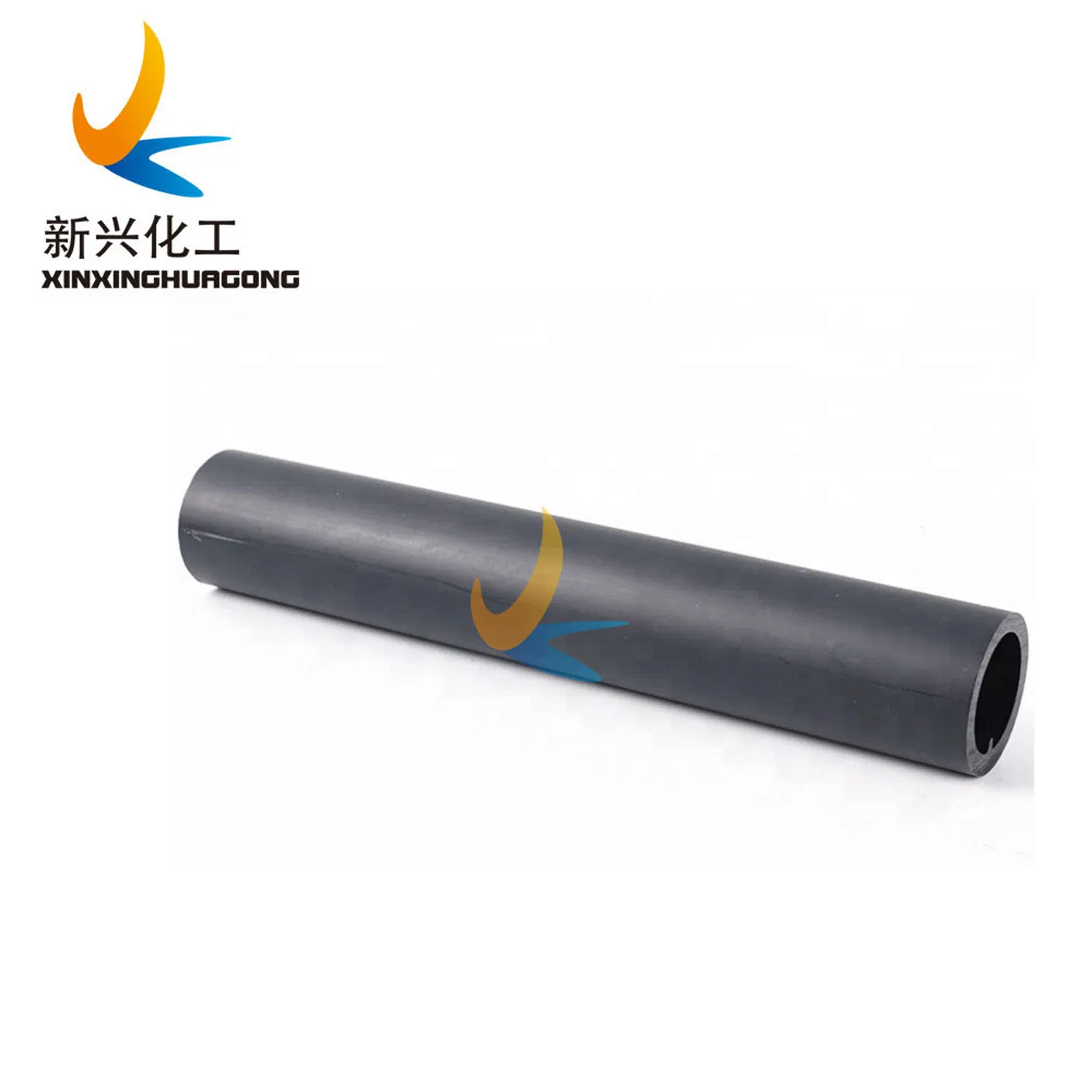

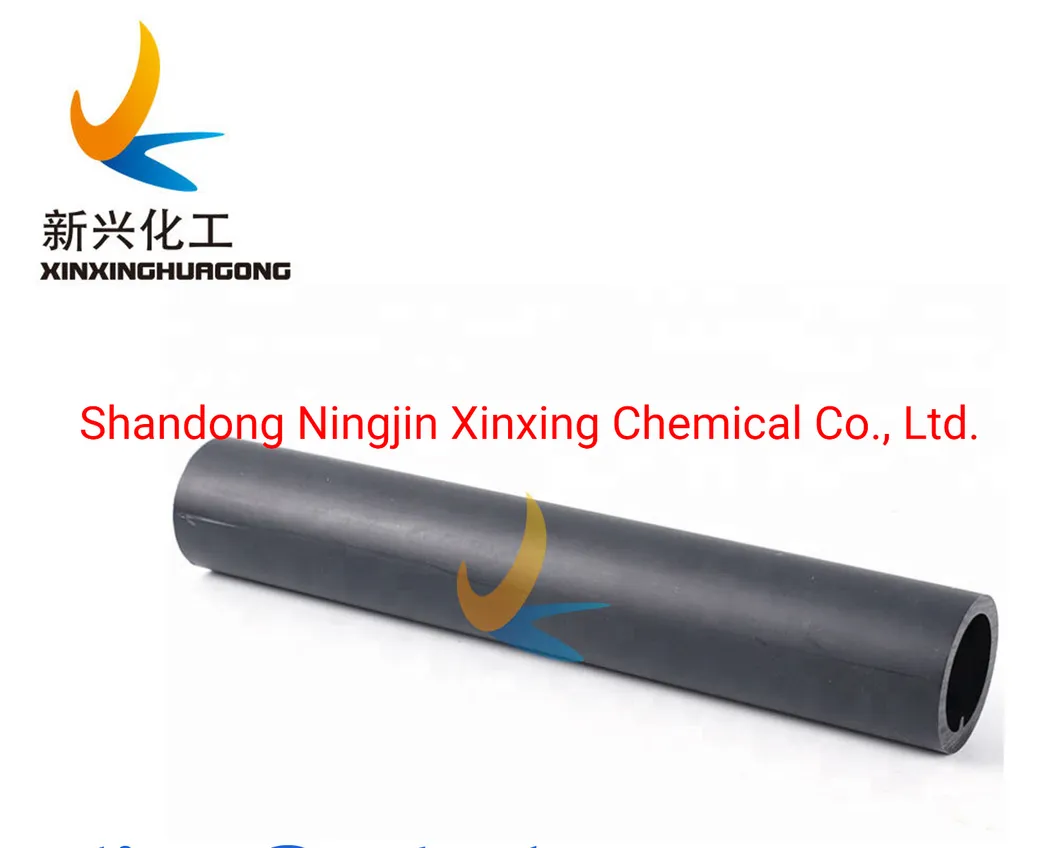

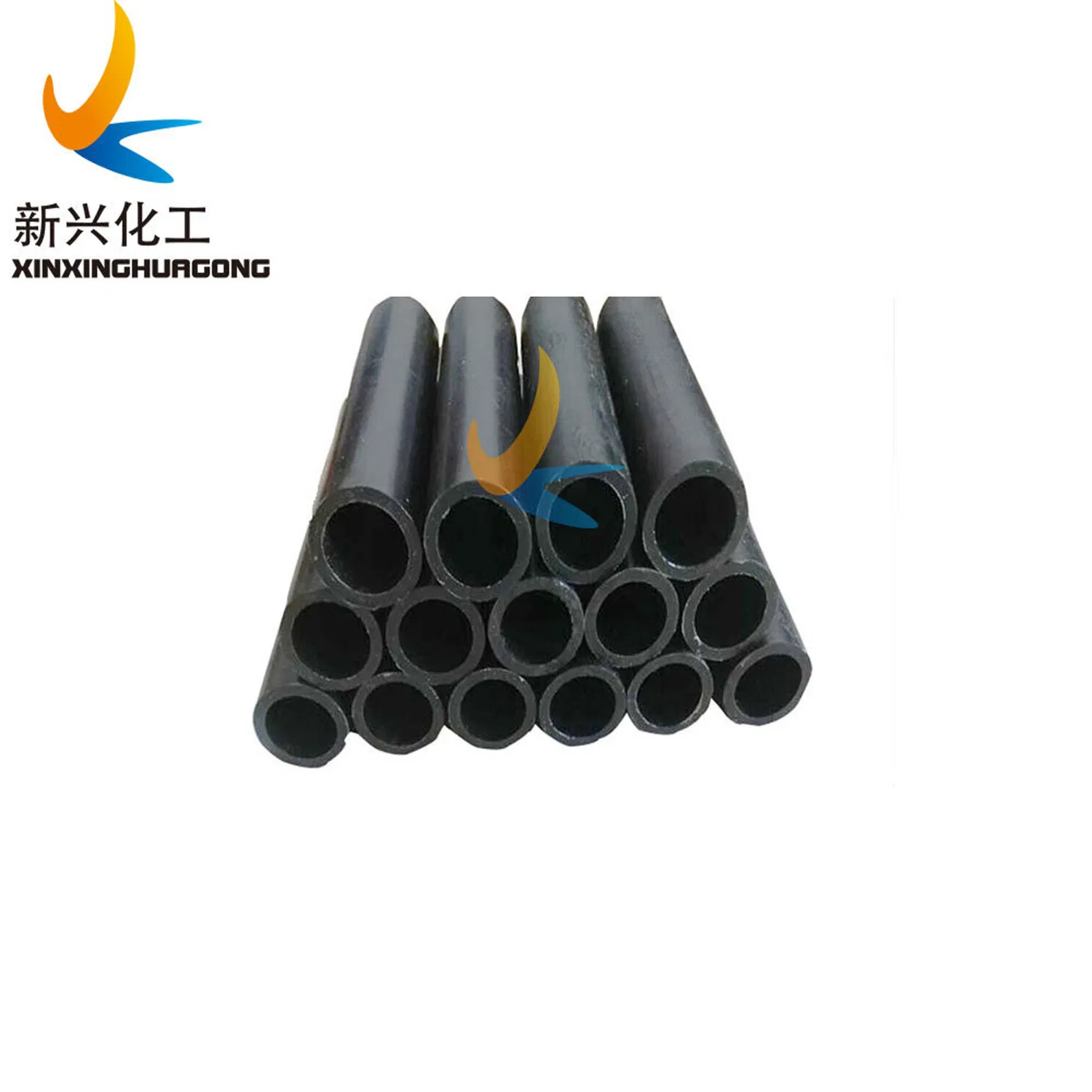

Perforated High Density Polyethylene PP Plastic Pile Pipe

Model NO.	PP7004
Water Absorption	＜0.01%
Contraction Percentage	1.0%~2.5%
Tensile Strength	23-26
Material Type	High Density Polyethylene PP
Type	Pile Pipe
Size	Customized
Certification	ISO9001:2008
Molecular Weight	2-9 Million
Hardness	Shore D 66
Coefficient of Friction	0.12-0.15
Elongation at Break	300%-500%
Connection	Flange Joint
Shape	Roll Pipe, Regular Round, Double Wall Pipe
Grade	PE100, Stainless Steel
Service	Free Sample, Fast Delivery, Customized Service
Usage	Sand Dredging, Sea Water, Gas, Chemical, Oil
Thickness	7-38mm
Working Pressure	Pn6, Pn8, Pn10, Pn12, Pn16, Pn20, MPa 1.6
Transport Package	40
Specification	different sizes according to customer requirements
Trademark	Xinxing
Origin	China
HS Code	3901200001

Perforated High density Polyethylene PP Plastic Pile Pipe

UHMW-PE pipe is a thermoplastic engineering plastic. It combines the  advantages of all plastics, wear resistance, chemical corrosion, self-lubrication, resistance to low temperature, safe, non-toxic and odorless, etc .It is the highest number of existing plastic values. With the development of plastic processing technology, the application field of UHMWPE will become wider and wider.


 Product name
  UHMWPE water supply pipe  Working pressure
  0.6MPa ~ 1.6MPa  Size
  DN20mm-1200mm  Features
  Convenient transportation. easy to install  Material
  PE, Polyethylene  Executive standard
  ISO14001, ISO9001

Ultra-high molecular weight polyethylene pipes have light weight, impact resistance, corrosion resistance, UV resistance, aging resistance, low friction coefficient, no toxicity, no pollution, no adhesion to foreign matter, absorption of shock and noise, and excellent performance. It is the best material to replace metal materials such as steel, copper and aluminum. It can effectively prevent the impact of hull and anti-shock plate, rubber fender and dock due to ultra-violet radiation and hull impact. Its impact strength is 20 times that of polyvinyl chloride, 10 times that of nylon 66, and 8 times that of polytetrafluoroethylene. It has wide applicability and can also be used as a ship anti-collision device. The reaction force is low, the surface pressure is small, and the energy absorption is reasonable; the constant shaking and pitching of the ship when berthing is strong; the installation and maintenance are convenient.

 UHMWPE properties

Property:

Test Method (Standard)

Ticona GUI4152

Ticona GUI4150,4120

Unit

Molecular weight

1.5million-4million

1.5million-8million

Density

ISO 1183-1:2012/DIN53479

0.92-0.98

0.93-0.98

g/cm³

Compression strength

ISO 604:2002

≥30

≥32

Mpa

Tensile strength

ISO527-2:2012

≥20

≥22

Mpa

Elongation at break

ISO527-2:2012

≥280

≥300

%

Dynamic Friction coefficient

ASTM D 1894/GB10006-88

≤0.20

≤0.18

Notched impact strength (Charpy)

ISO179-1:2010/GB/T 1043.1-2008

≥100

≥100

kJ/m2

Abrasion wear index

ES-X60210-2008

≤30

≤30

mg

Vicat softing point

ISO306:2004

≥80

≥80

°C

Hardness shore-D

ISO 868:2003

60-65

61-66

D

Specification



Diameter(mm)



0.6Mpa

0.8Mpa

1.0Mpa

1.25Mpa

1.6Mpa

2.0Mpa

Wall Thickness(mm)

65

7

8

89

7

9

96

8

9

108

8

10

110

8

10

130

8

10

12

140

8

11

15

150

9

12

15

159

8

10

12

15

168

8

10

13

16

180

8

10

13

16

18

185

8

10

13

16

20

200

9

10

13

16

20

205

8

10

13

16

20

219

9

11

13

16

20

236

10

12

14

18

22

250

10

12

15

19

23

273

9

11

13

16

21

25

280

9

11

14

17

21

26

300

10

12

15

18

23

27

315

10

12

15

19

24

29

325

10

13

16

19

24

30

350

11

14

17

21

26

32

377

12

15

18

22

28

35

400

12

16

19

24

30

36

415

13

16

20

25

31

426

13

17

20

25

32

536

16

21

26

32

560

16

22

27

33

630

19

25

30

37

652

20

26

32

38

710

21

27

34

800

23

31

38



UHMWPE Pipe Advantages:

1. High Wear Resistant--4-6 times longer service life

Compare with existing plastic pipes,UHMWPE pipe has the most excellent wear resistance which is 4 to 7 times that of Q235 steel pipe and 2.7 times that of wear-resistant steel 16Mn. Therefore it increases pipe flow rate and improves the transmission efficiency of more than 20%. The working life of UHMWPE pipes is more than 3 times that of wear-resistant steel pipe. UHMWPE pipe has great advantages to replace traditional metal pipes in delivering abrasive media.

2. Impact Resistant

UHMWPE pipe is greatly impact resistant which is 5 times that of HDPE pipe, 2 times that of PC pipe and 10 times that of PTFE pipes.With extraordinary impact resistance,UHMWPE pipe can withstand great water hammer impact when starting up pump station.

3. Low Energy Consumption--20% fuel saving

Wear resistant UHMWPE pipe is self-lubrication and non-adhesive. Its coefficient of friction resistance is 0.009 while that of steel pipe is 0.013. With the same diameter, flow rate of UHMWPE pipe is larger than steel pipe, and with the same flow rate, UHMWPE pipe can save 25% energy.

4. Non-scaling

With roughness of 0.00022 and smooth pipe inner wall, it can efficiently avoid scaling without acid cleaning, which save a lot of maintenance cost.

5. High Flexibility

With high toughness and elongation of no less than 350%, the UHMWPE pipe and the connection site will not crack when crust settling which maximally ensure to supply water normally.

Product application:

1.  Mine & Metallurgy industry: Coal/Ore/Nonferrous metal mine tailings, slurry and rock delivery
2.  Food industry: grain & flour transport
3.  Dredge: slurry & sand dredging
4.  Chemical industry: mud and corrosive medium with slag
5.  Water Disposal
6.  Coal industry: pulverized coal waste and coal-water slurry
7.  Sea & River engineering: sea water desalinization, dredging
8.  Oil & Gas, petroleum transport
9.  Gas,coal gas pipeline
10.Food, Chemical Industry Area
11.Argillaceous Silt, Mud Transportation
12.Replace the Cement Pipes, Cast Iron Pipes and Steel Pipes
13.Garden Green Pipe Network
14.Town,Water Supply
