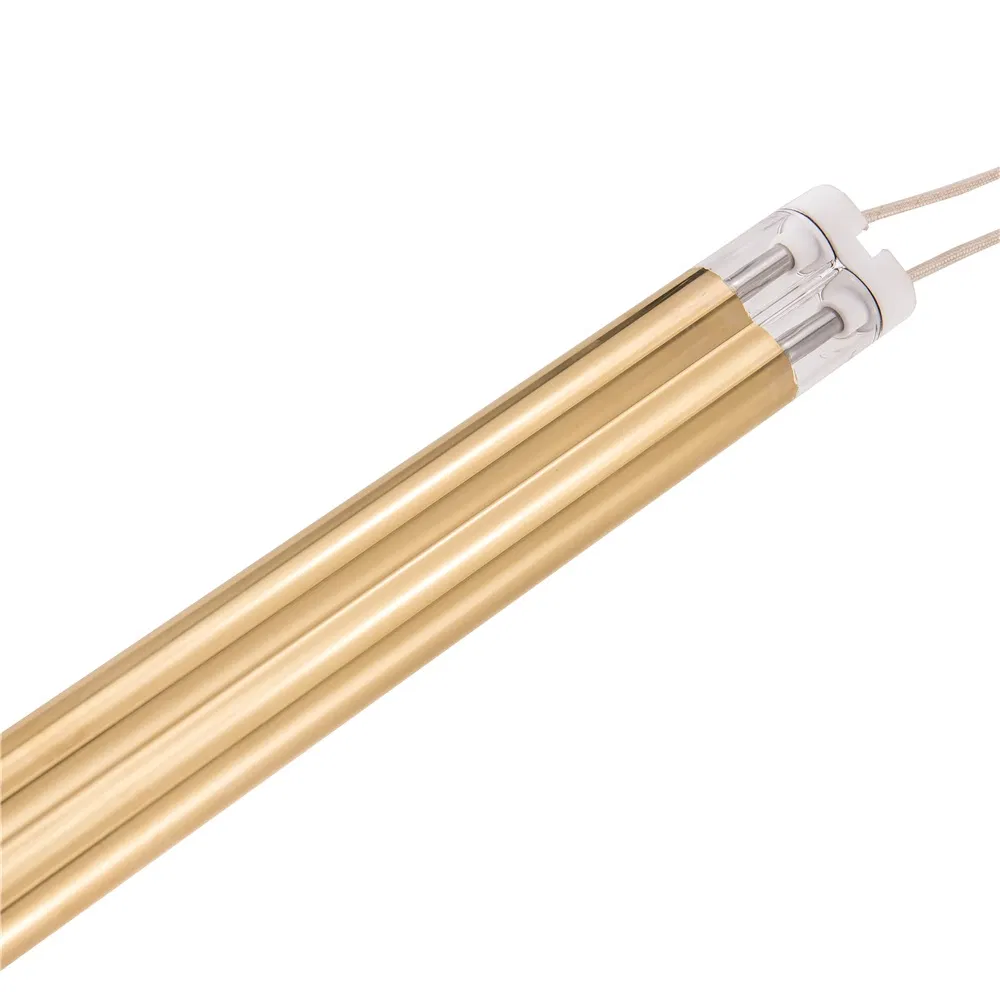

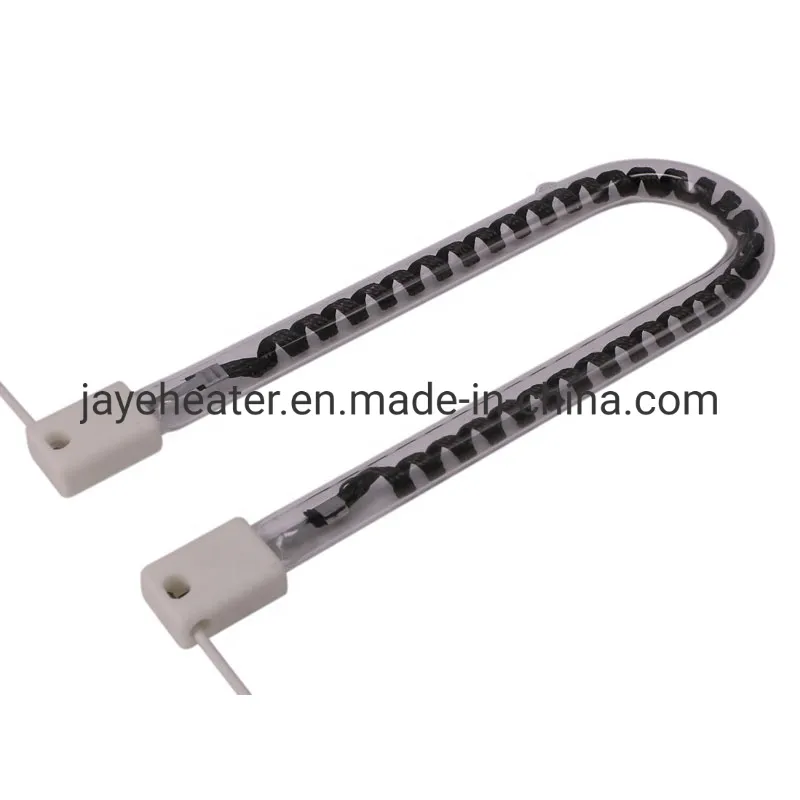

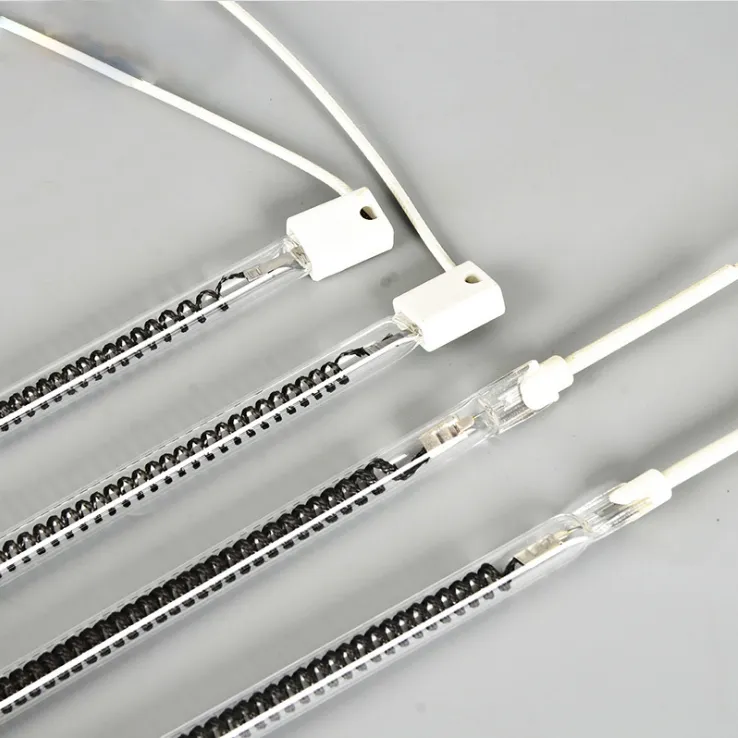

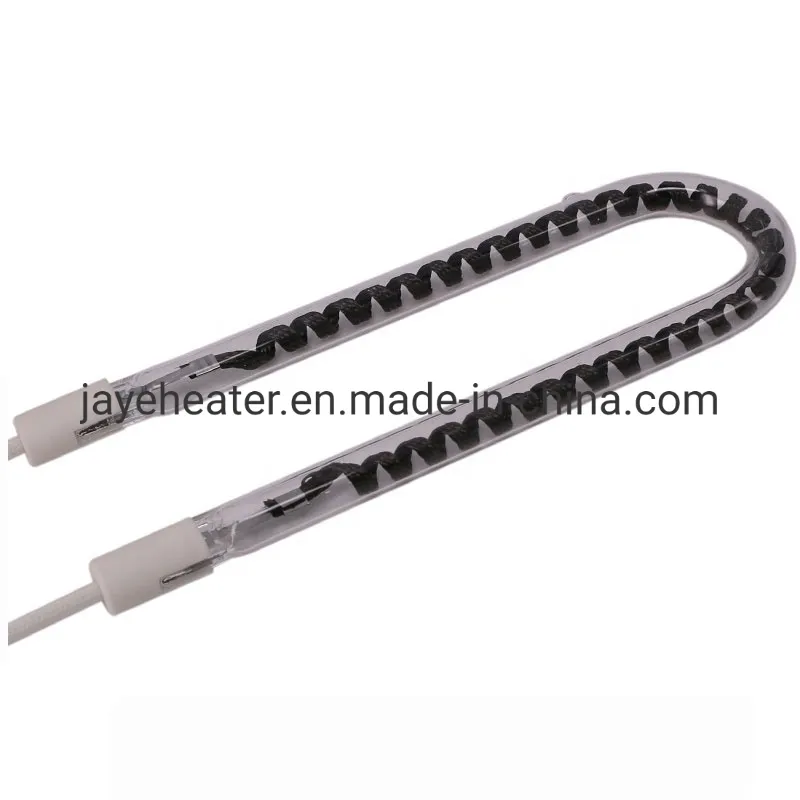

Premium Infrared Heating Tubes for Effective Physiotherapy Sessions

Model NO.	JY-QH0088
Material	Carbon Fiber
Form	Carbon Fiber Heating
Shape	Tubular
Voltage	100, 110, 120, 220, 230, 240V
Watt	300-2000W
Infrared Normal Direction Radiant Ratio	Above 94%
Operating Temperature	Less Than 1800 Celsius Degree
Size	Size
Electricity Saving Ratio	Above 30%
Life Time	Above 6, 000 Hours of Serving Life
Surface Temperature	500-900 Celsius Degree
Continuous Servicing Hour	5,000-8,000h
Application	Heating, Drying, Cooking
Transport Package	Standard Export Packing
Specification	Customized
Trademark	JAYE
Origin	China
HS Code	851680000

Premium Infrared Heating Tubes for Effective Physiotherapy Sessions

Jaye Heater Technology (Huizhou) Co., Ltd. is a globally recognized leader in the manufacturing of top-tier infrared heating tubes. These products are celebrated for their exceptional efficiency, remarkable durability, and a broad spectrum of versatile applications. Carefully engineered to provide immediate, radiant warmth, they are perfect for a myriad of industrial and commercial settings, ensuring optimal energy use and performance.


Key Features

• High-Quality Materials: At Jaye Heater, we utilize premium-grade quartz and state-of-the-art heating elements, guaranteeing superior performance and extended longevity.
• Innovative Design: Our heaters feature cutting-edge designs that ensure rapid heat-up times and maximize heat transfer efficiency.
• Custom Solutions: Jaye Heater provides tailor-made options to precisely meet the unique heating needs of different industries, ensuring flexibility and customer satisfaction.



1. Advantage of the quartz heater:

- Incorporates FIR therapeutic function for enhanced well-being
- Outstanding energy efficiency with an electricity-to-heat transformation rate of an impressive 98%
- Eco-friendly and safe, featuring dim light and zero UV radiation
- Delivers an exceptional service life of over 6,000 hours

Product details:

LW Carbon straight pipe Model Power
(w) Voltage
(v) Color temperature
(K) The peak wavelength
(um) Life
(H) Diameter
(MM) Size
(MM) LW-1 300 100-240 750 4-9.5 6500 8-10 250-600 LW-1 500 100-240 980 3.0-9.3 6500 10-11.5 250-600 LW-1 600 100-240 1000 2.8-8 6000 10-11.5 250-600 LW-1 800 100-240 1050 2.7-7.6 6000 10-11.5 350-800 LW-1 900 100-240 1100 2.6-5.5 5000 10-11.5 350-800 LW-1 1000 100-240 1200 2.5-5 5000 10-11.5 350-800 LW-1 1200 100-240 1250 2.3-4.8 5000 10-11.5 550-1000 LW-1 1500 100-240 1300 2.3-4.5 5000 10-11.5 550-1000



2. Technical Parameters:

- VOLT: 100, 110, 120, 220, 230, 240V, adaptable to your power supply needs
- WATT: 300-2000W, providing powerful heat output options
- Frequency (HZ): 50-60, compatible with various systems
- Energy-saving ratio: Achieves a remarkable 30% reduction in electricity usage
- Infrared normal direction radiant ratio: ≥94%, ensuring high directional efficiency
- Electric heat transformation ratio: ≥98%, maximizing energy conversion
- Operating temperature: ≤1800°C, suitable for demanding environments
- Highest heat endurance temperature: 1100°C, handling intense heat conditions
- Color temperature: Ranges from 700-1500°C, for versatile applications
- Surface temperature: Maintains 500-900°C, ideal for consistent heating
- Continuous operation service life: 5,000-8,000 hours, ensuring reliability

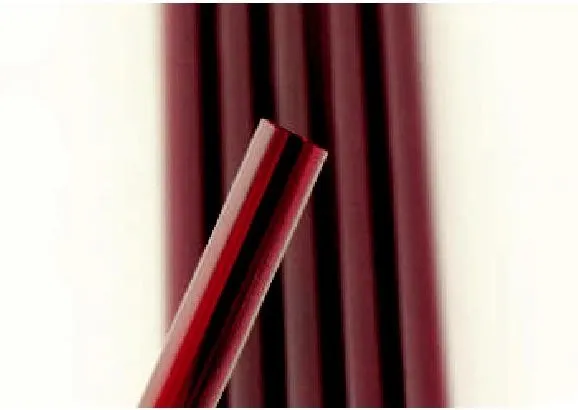

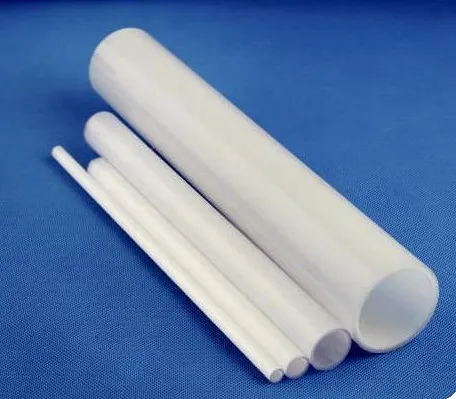

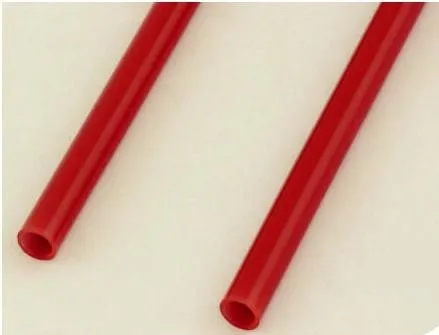

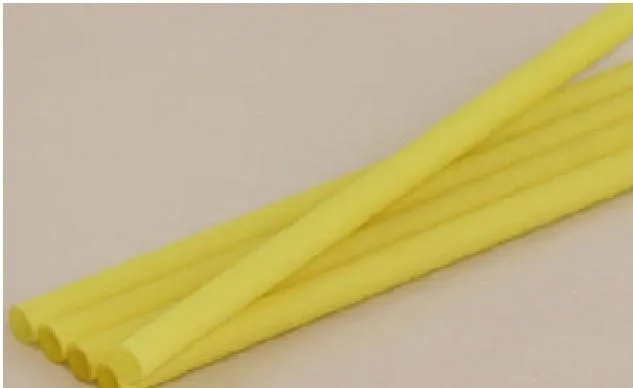

Color of Optional Quartz Tubes:





3. Application Area:

- Ideal for health care & heating apparatus, promoting comfort and healing
- Perfect for drying equipment, enhancing productivity
- Efficient in cooking devices, ensuring even heating
- Suitable for medical equipment, providing precise temperature control
- Excellent for fry & baking equipment, delivering consistent results
- Utilized in brewage & fermentation installations, optimizing processes
- Effective in sterilizing devices, ensuring hygienic conditions
We also offer the flexibility to produce customized solutions tailored to customer requirements.
