Expandable Luxury Prefab Steel Modular Building for Vacation House

China Prefab Steel Manufacturer | Light Steel Residential | Prefab Steel Workshop | Warehouse Steel Structure

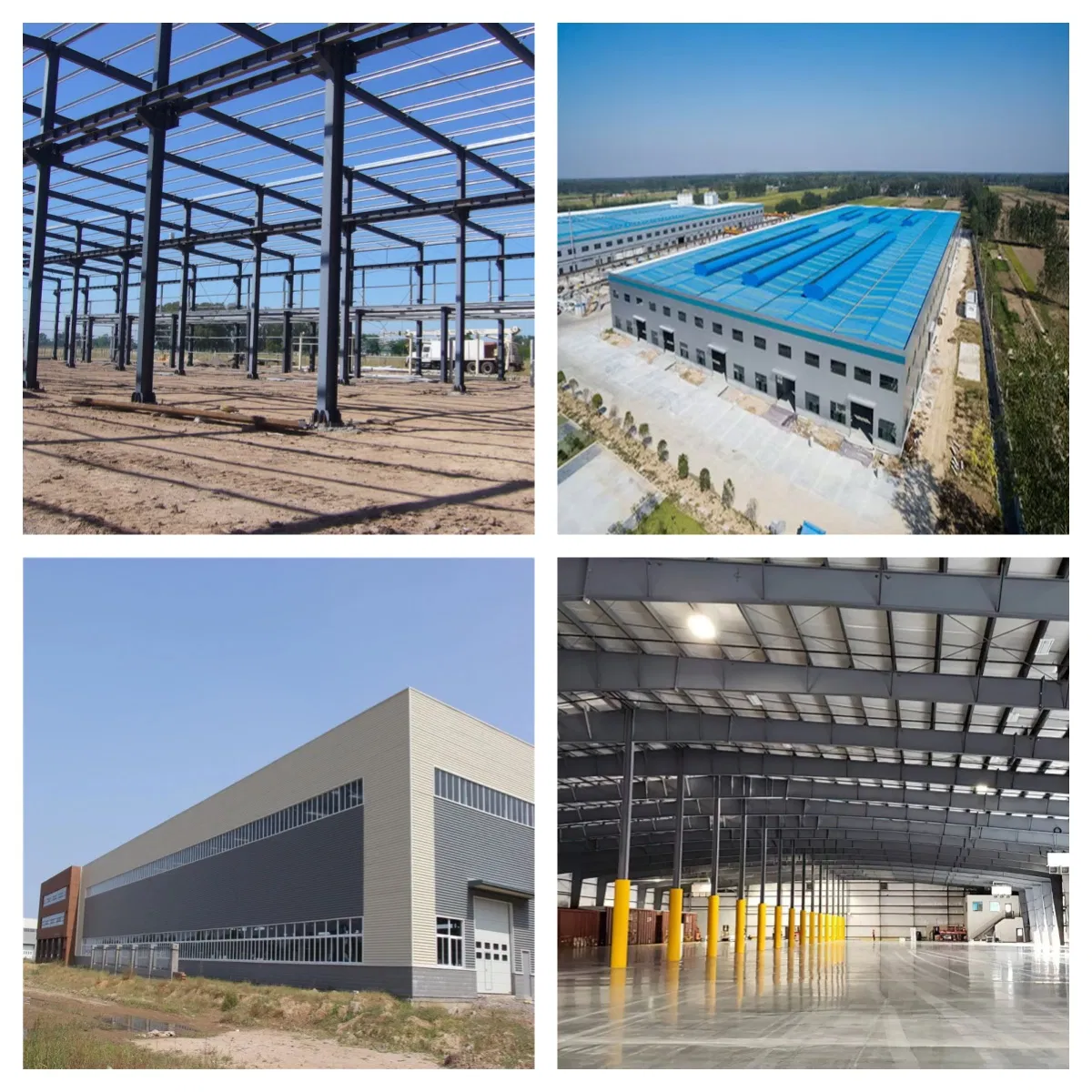

Steel structure  building is formed by the main framework through linking up the H beam, C purline, Z purline steel components. Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.

Specification

main steel frame

H section steel beam and columns, painted or galvanized, galvanized C section or steel pipe

Secondary frame

hot dip galvanized C purlin , steel bracing , tie bar , knee brace , edge cover etc.

Roof panel

EPS sandwich panel,glass fiber sandwich panel,rock wool sandwich panel,and PU sandwich panel or steel sheet

Wall panel

Sandwich Panel or Corrugated Steel Sheet

Tie Rod

Circular Steel Tube

Brace

Round Bar

Knee Brace

Angle Steel

Roof Gutter

Color Steel Sheet

Drawings & Quotation:

(1) Customized design is welcomed.

(2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly (7*24 hours service).

Advantages

1. Light weight, high strength, 50years durable use, no construction waste.

2. Quality certification ISO: 9001: 2008

3. Cost considering: Time saved, cost saved;

4. Easy move, materials can be recycled used, environmentally;

5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;

6. Structural durabilities, easy maintenance.

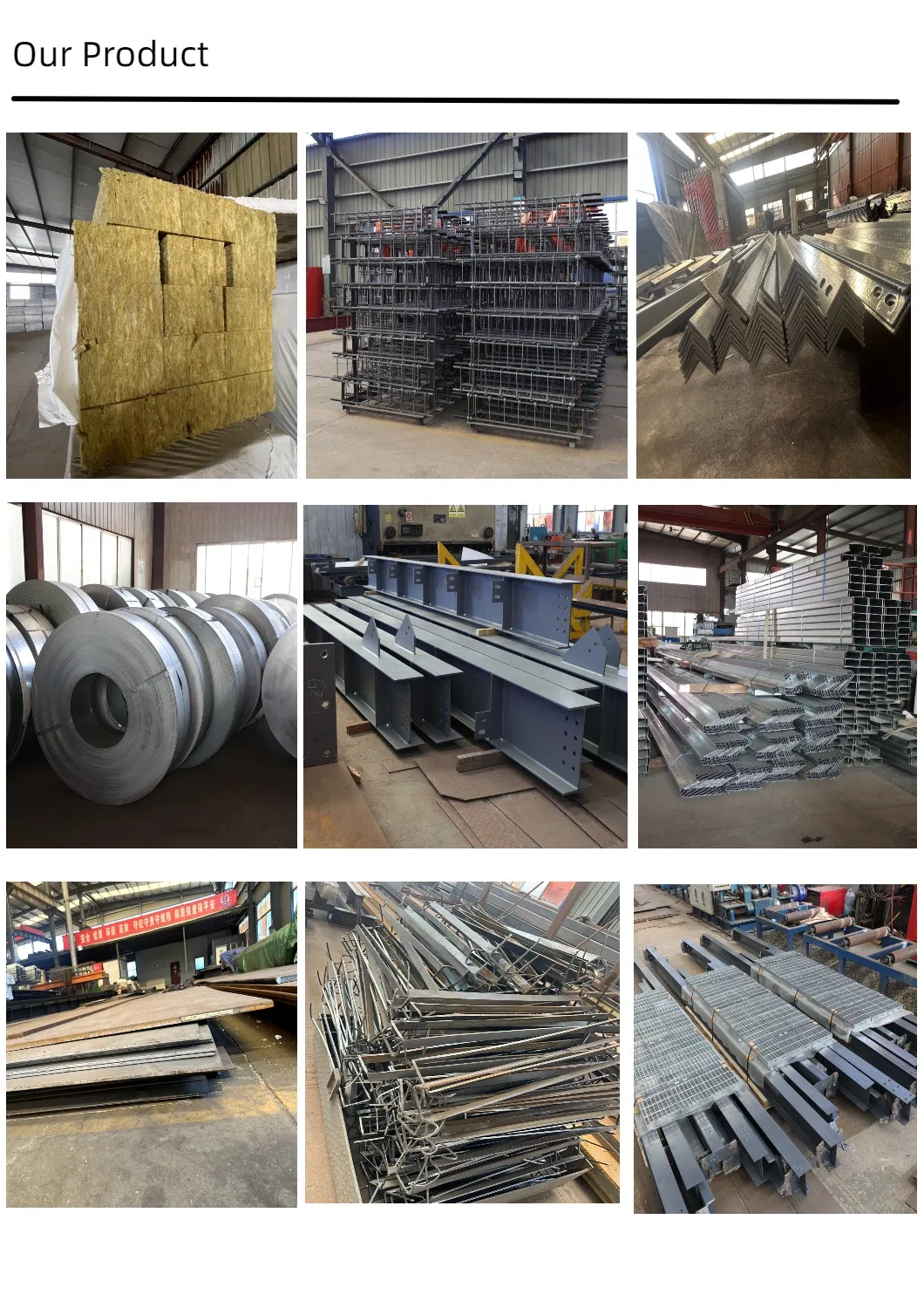

Components Show

Steel Structure Building Component System

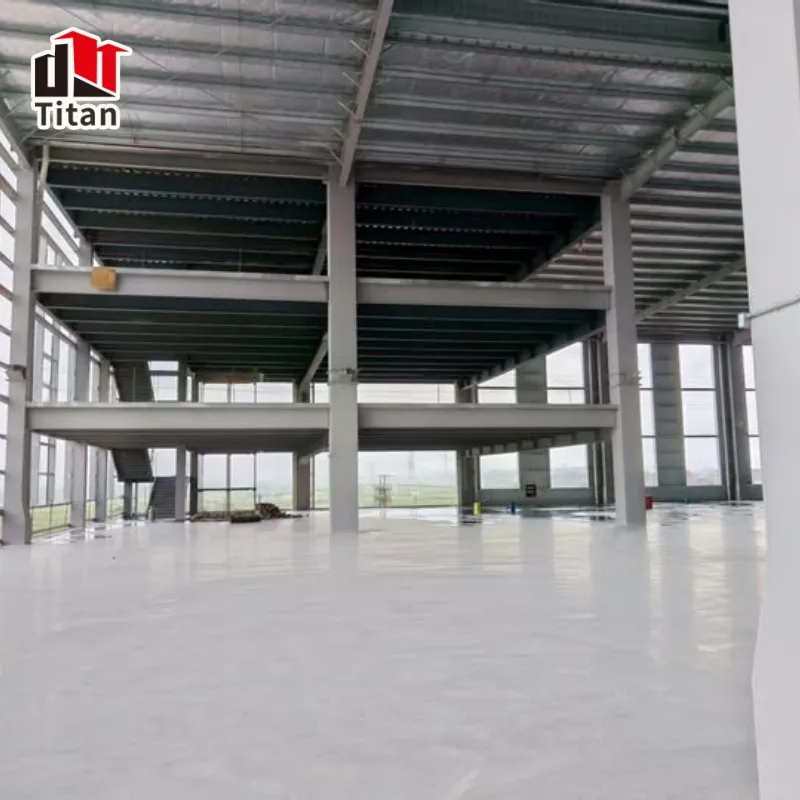

Steel structure building componet system:primary members H steel , secondary members, roof and wall sheeting (or sandwich panel)connected to each other and various other building components. These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, canopy, bridge crane if need, insulation etc., based on the customer's requirements. All the steel buildings are custom designed to be lighter in weight and high in strength. Thus steel building designs have become more flexible, durable and adaptable over the last four decades which has made steel one of the preferred materials for building construction.

Related Products

Business Scope

Our project scope covers prefabricated steel structure workshops, warehouses, garages, logistics parks, high-rise residential buildings, exhibition centers, stadiums and gymnasiums, airports, railway stations, bridges, etc.

Customer Visit

Certifications

Packing & Delivery

Customized design is welcome, it would be better if you could provide the following information:

1. Location (where will be built? ) _____country, area

2. Size: Length*width*height _____mm*_____mm*_____mm

3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s

4. Snow load (max. Snow height) _____kn/m2, _____mm

5. Anti-earthquake _____level

6. Brickwall needed or not If yes, 1.2m high or 1.5m high

7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.

8. Door quantity & size _____units, _____(width)mm*_____(height)mm

9. Window quanity & size _____units, _____(width)mm*_____(height)mm

10. Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
