En 10083-3 1.7035 Seamless Carbon Steel Pipe
Detailed specification for En 10083-3 1.7035 Seamless Carbon Steel Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Material | Carbon Steel |
| Surface Treatment | Black Paint |
| Usage | Mining |
| Section Shape | Round |
| Carbon Steel Pipe | Seamless, Welded |
| Size | 1/2"~48" |
| Wt | Sch5s~Xxs |
| Prodduct Name | 09crcusb Steel Pipes |
| Keyword | Seamless Carbon Steel Pipe |
| Transport Package | Wooden Box, in Bundles or as Customer's Request |
| Specification | 1/2"~48" |
| Trademark | Kingmertal |
| Origin | China |
| HS Code | 73060000 |
| Production Capacity | 50000tons/Year |

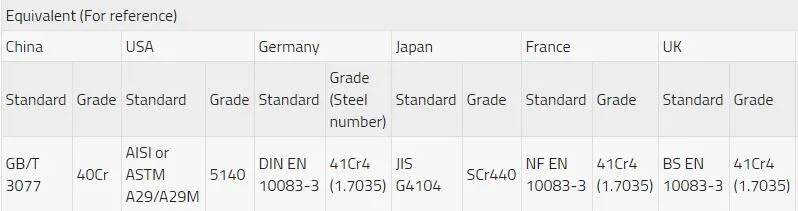

Equivalent Grades of 1.7035 Material seamelss tube
5140 steel equivalent to US ASTM AISI, European Germany DIN EN, British BS EN, France NF EN, Japanese JIS and ISO standard.
1.7035 Steel Pipes manufacturer ,1.7035 Steel Pipes exporter & 1.7035 Steel Pipes supplier in China.
Product description : 1.7305 steel pipes ,1.7305 carbon steel pipes ,alloy Steel Pipe Material 1.7305
1.7035 Alloy Steel
1.7035 steel is a kind of Chinese GB standard alloy steel for engineering and machinery purpose, and one of the most widely used steel grades. For 40Cr material hardness, specifications and equivalent, please see the table below.
After quenching and tempering treatment, 1.7035 steel has good comprehensive mechanical properties, low temperature impact toughness, low notch sensitivity, good hardenability, and high fatigue strength in cold oil. When water cooling, the complicated shape of the parts is prone to cracks, the cold bending plasticity is medium, and the cutting workability after normalizing is good, but the weldability is poor, should be preheated before welding, and is generally used in the state of quenching and tempering.
1.7035 Steel Pipes Datasheet & Specification
The tables below list 40Cr alloy steel datasheet and specification including chemical composition, properties and heat treatment, etc.
1.7035 Steel Chemical Composition
Mechanical Properties of 1.7035 Alloy Steel
- Tensile strength: ≥810 N/mm2 (When actual hardness 25 HRC)
- Yield strength: ≥785 N/mm2
- Elongation after break: ≥9%
- Rate of reduction in area: ≥45%
- Impact absorbing energy: ≥47 J
- Material Brinell hardness: ≤207 (annealing or high temperature tempering state)
- Sample size: 25mm
Heat treatment specification of 1.7035 seamless Steel Pipe
- First quenching heating temperature: 850 °C (Cooling: oil)
- Tempering heating temperature: 520 °C
Applications of 1.7035 material
After 1.7035 alloy steel quenching and tempering treatment, it is used to manufacture medium-speed, medium-load parts such as machine gears, shafts, worms, spline shafts, thimble sleeves, etc.
After quenching and tempering and high-frequency surface quenching, it is used to manufacture high-hardness, wear-resistant parts such as gears, shafts, spindles, crankshafts, sleeves, pins, connecting rods, screws, nuts, intake valves, etc.
After quenching and medium temperature tempering, it is used to manufacture heavy-duty, medium-speed impact parts such as oil pump rotors, sliders, gears, spindles, collars, etc.
After quenching and low temperature tempering, it is used to manufacture heavy-duty, low-impact, wear-resistant parts such as worms, spindles, shafts and collars.
After carbonitriding treatment, it is used to manufacture transmission parts with large size and high low temperature impact toughness, such as shafts and gears.
More standard and material steel pipes besides 40cr seamless steel pipe we can supply is as following :
15CrMo (T12 P12 STFA22 STPA22 STBA22)
1.25Cr0.5Mo (T11 P11 STFA23 STPA23 STBA23)
Cr9Mo (T9 P9 STFA26 STPA26 STBA26)
12Cr2Mo (T22 P22 10CrMo910)
10Cr9Mo1VNb (T91 P91)
12Cr1MoV
12Cr2MoWVTiB (R102)
2. Casing Tube
3. Boiler Pipe
4. Petroleum and natural gas industry
5. Chemistry industry
6. Electric industry
2. steel casing
3. tubing
4. hot-rolled steel pipe
steel pipe steel pipes steel pipe steel pipes steel pipe steel pipes steel pipe steel pipes steel pipe steel pipes steel pipe steel pipes steel pipe steel pipes steel pipe steel pipe
WHAT WE DO besides 40cr seamless Steel Pipes ?
KINGMETAL STEEL INDUSTRY CO.,LTD ,is a professional company in manufacturing and saling steel pipes and pipe fittings ( tee, elbow ,reducer ,flanges). we are an old company in this area ,we start from 1989 and have rich exporting experience
Cooperating with us you will feel easy and safe !
