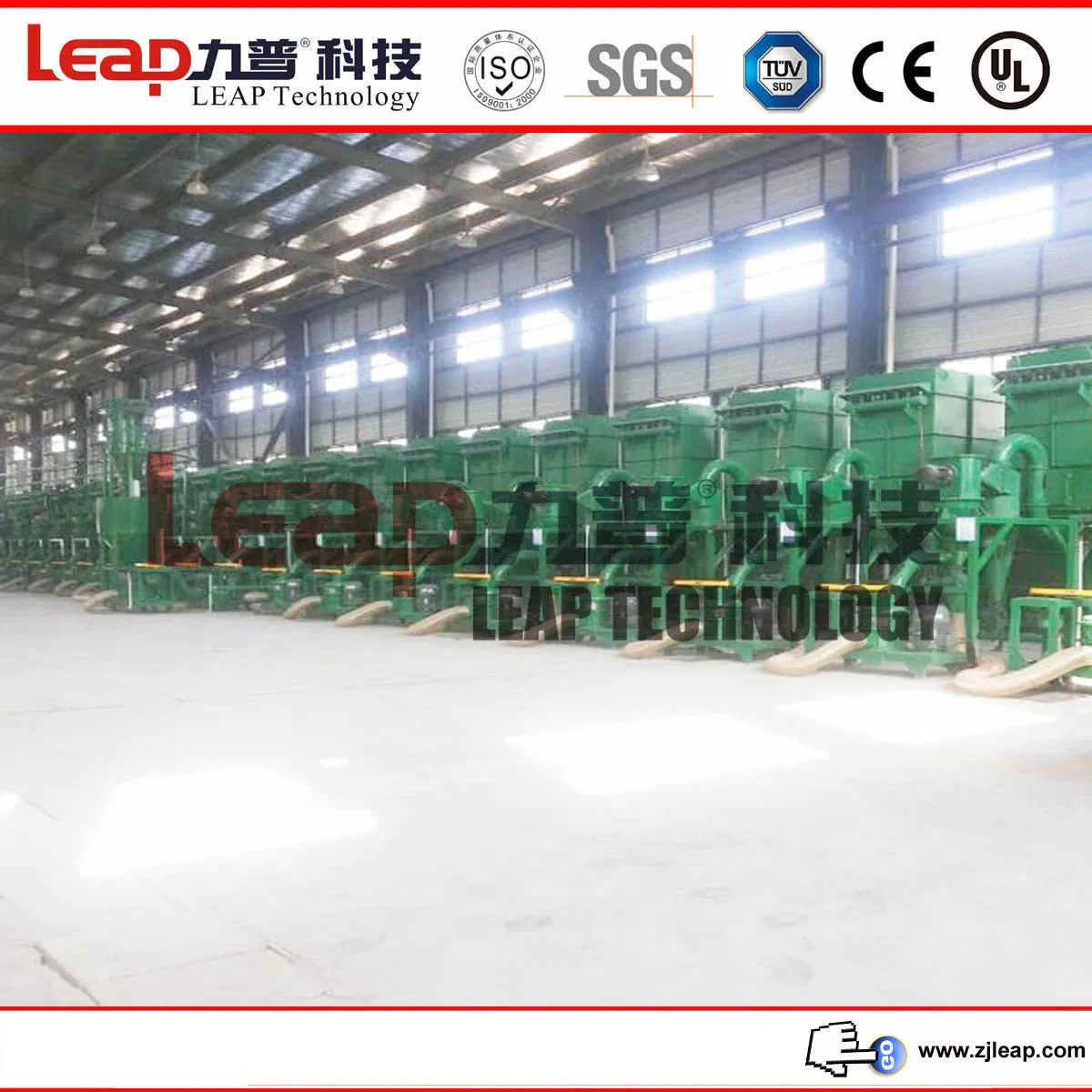

High Quality Air Classifier Mill Spherical Graphite Pilot Plant

Our Main Products

Working Principle
Air classifier mill material would be conveyed by feeding system evenly to milling chamber, and would be
impacted by highspeed rotating beater, and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers, the material would be milled into fine powder. The milled powder would go with air flow up to the classifying chamber. With the help of adjustable classifier wheel,coarsepowder and fine powder would be separated. Qualified fine powder would go through the wheel vane then into
the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to themilling chamber to be milled again.

Technical Parameter

MODELACM-5ACM-15ACM-30ACM-50ACM-60ACM-100ACM-120 Parameter Matched Powder(kw)Grinding Plate41122304590110 Classifying wheel0.7545.57.51115 Feeder0.350.370.551.1 Air Flow(m3/h)250-5001200-20002200-36003500-55004000-75007500-150009000-18000 Rotation Speed (r/min)Grinding plate9000560046004200290021001800 Classifying wheel900-3500750-2800700-2800650-2600600-2400500-2000400-1800 Pulverizatin Fineness(μm)5-300 Dimension(l×w×h)mm690×690×7701300×650×7501640×960×10302000×1200×13002000×1200×13002400×1500×16002400×2200×2600 N.W(kg)30060010001600200030003500

Work Included

Design and supply of a Complete Air Classification Milling system for the production of Spherical Graphite. This includes design and supply of all ancillary items necessary for proper operation of the offered equipment including, but not limited to:

• Feed Bin (10m3 minimum capacity) and Feed Screw
  Pulverizing Mills Classifiers and Cyclones, both primary and secondary as required -Bag filters/Air blowers/Rotary valves/Pipe both within each classifier unit and interconnecting ducting between stages/Two product collection systems (for 16um and 23um products), inclusive of appropriately sized bag filters, rotary valves and blowers/One fines collection system, inclusive of appropriately sized bag filters, rotary valves and blower/Electrical Cabinet
