Pneumatic Air PU Tube Polyurethane PU Tubing High Pressure and Temperature Resistance Wear Resistanc
Detailed specification for Pneumatic Air PU Tube Polyurethane PU Tubing High Pressure and Temperature Resistance Wear Resistanc
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | KNS-A-PU10*6.5 |
| Color | Black, Blue, Gray, Green, Orange, Red, White, other Colors can be Customized |
| Diameter | 10mm |
| Length | 100M |
| Material | PU |
| Certs | REACH,RoHS, ISO13485,FDA |
| OD | 10mm |
| ID | 6.5mm |
| Compatible with | Air/Water/Weak Acid/Alkali |
| Bend Radius | 30mm |
| Working Pressure | 8-10kgf/sq cm |
| Transport Package | Roll |
| Specification | 100MTR/ROLL |
| Trademark | KNS |
| Origin | China |
| Production Capacity | 200000mtrs/Day |
General-Purpose Tube
Features:
Typical Parameter:
Applications:
Material: Polyurethane
Hardness:95-98A
Fluid Available:Air
Working Temperature: -20~+70 ℃
Soft, Smooth and Flexiable, High pressure-resistant,wear resistance,weather resistant, bending resistance
Wear Resistance: 30mg
Utimate Elongation rate: 390%-480%
Burst Pressure: 20-30kgf/cm²
Working Vacuum: -25"hg60c-15kgf/cm²
Tensile Strength: 300kgf/cm²
Ratio of Safe factor of burst pressure and long service time: 3:1
Suitable for assembling pneumatic tools, pneumatic automation machinery, air compressors and connecting various pneumatic components, etc.
All size can be customized.
Technical Specifications:
(Special Requirements can be customzide, pls contact with our sales)
Item No
OD(MM)
ID(MM)
L(M)
Min bend radius at 20℃(MM)
Working Pressure(kgf/sq. cm)
PU-0425
4
2.5
200
10
0~10
PU-0640
6
4
200
15
0~10
PU-0855
8
5.5
100
20
0~10
PU-0850
8
5
100
20
0~10
PU-1065
10
6.5
100
30
0~10
PU-1280
12
8
100
35
0~10
Certification

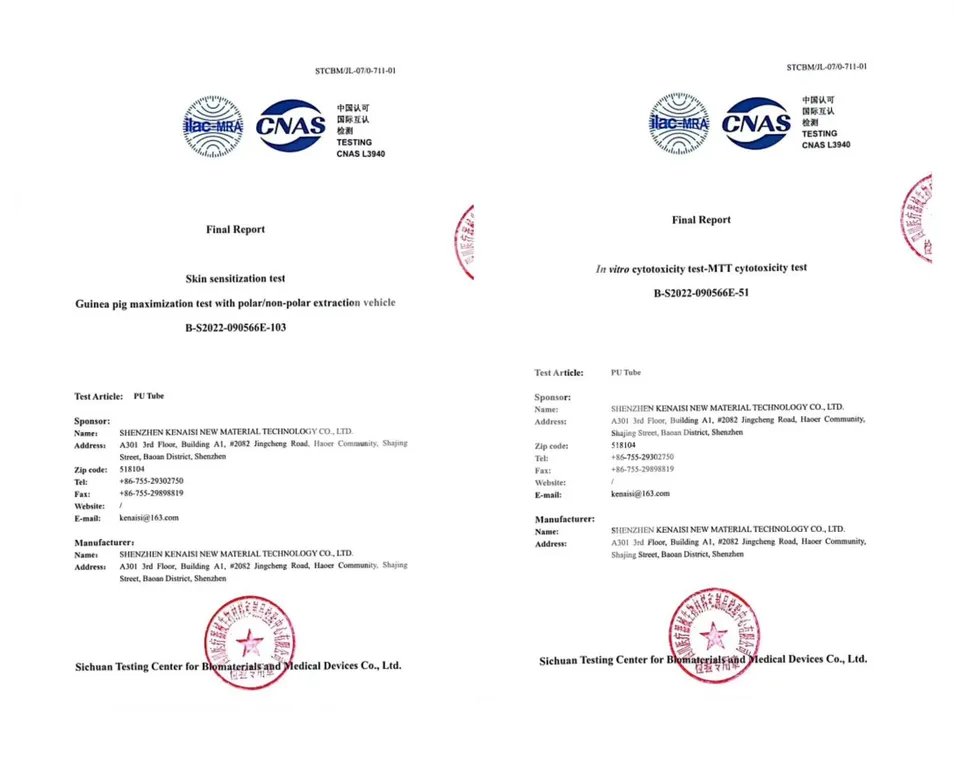

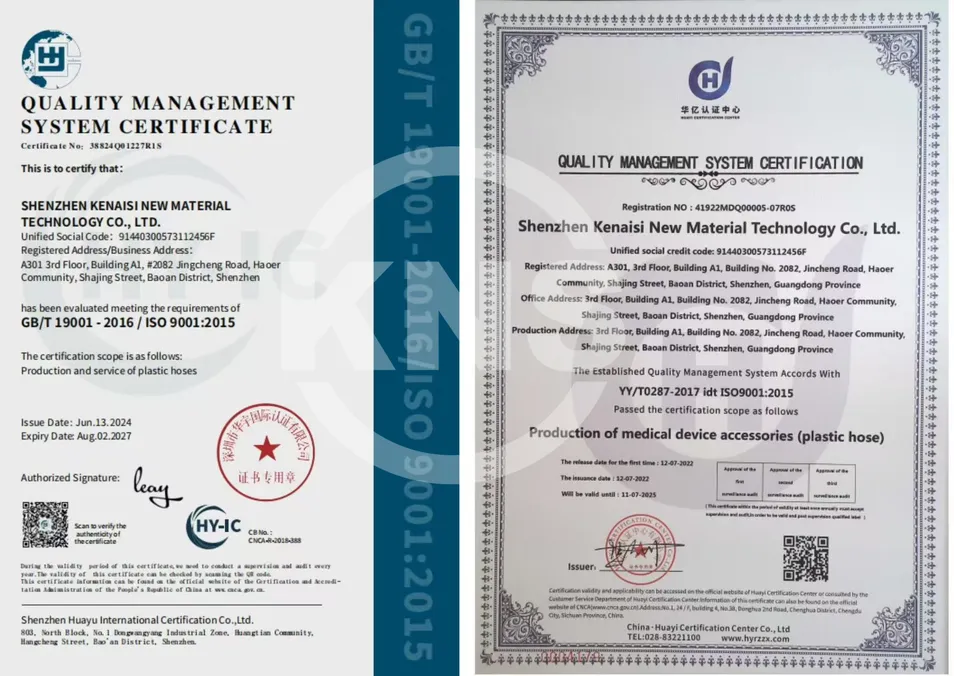

As a professional PU hose manufacturer, we are committed to delivering the highest standards of quality and safety. Our company holds multiple international certifications, including ISO 9001 (Quality Management), ISO 13485,FDA (Medical Devices),Biological Compatibility Certification, IATF 16949 (Automotive), REACH, RoHS, and realated flame resistance testing and so on, ensuring full compliance with global industry requirements. With certified excellence at every stage—from raw materials to finished products—we provide high-performance, reliable PU hoses for diverse industrial applications.
