PU Tubing Hose Standard and Customizde Size and Color Support OEM&ODM
Detailed specification for PU Tubing Hose Standard and Customizde Size and Color Support OEM&ODM
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | KNS-P-4*2.5 |
| Diameter | 4mm |
| Length | 200m |
| Material | PU |
| Od | 4mm |
| ID | 2.5mm |
| Certs | Reach,RoHS, ISO 9001 |
| Features | Soft,Flexible,Wear Resistance, High Tensile |
| Transport Package | Roll |
| Specification | 200MTR/ROLL |
| Trademark | KNS |
| Origin | China |
| Production Capacity | 200000mtrs/Day |
Features:
Typical Parameter:
Applications:
Material: Polyurethane
Hardness:90-95A
Fluid Available:Air,Water, Parts
Working Temperature: -20~+60 ℃
Anti grade can be six power of 10 to ten power of 10, can dissipate static electricity, good pressure resistance, weather resistance
Wear Resistance: 30mg
Utimate Elongation rate: 390%-480%
Burst Pressure: 20-30kgf/cm²
Working Vacuum: -25"hg60c-15kgf/cm²
Tensile Strength: 300kgf/cm²
Ratio of Safe factor of burst pressure and long service time: 3:1
Auto industry pneumatic tools, for assembly plants, vehical maintenance and metal products. For convey air, and components of the products.
All size can be customized.
Technical Specifications:
(Special Requirements can be customzide, pls contact with our sales)
Item NO.
OD(MM)
ID(MM)
L(M)
Min. bend Radius(MM)
Min. Working Pressure(kgf/cm sq)
KNS-PU-0320
3
2
200
10
0~10
KNS-PU-0425
4
2.5
200
10
KNS-PU-0640
6
4
200
15
KNS-PU-0855
8
5.5
100
20
KNS-PU-0850
8
5
100
20
KNS-PU-1065
10
6.5
100
30
KNS-PU-1280
12
8
100
35
KNS-PU-1410
14
10
100
55
KNS-PU-1612
16
12
100
65
KNS-PU-1/4
6.35
4.57
100
15
KNS-PU-3/8
9.52
6.35
100
30
KNS-PU-1/2
12.7
8.46
100
35
Certification

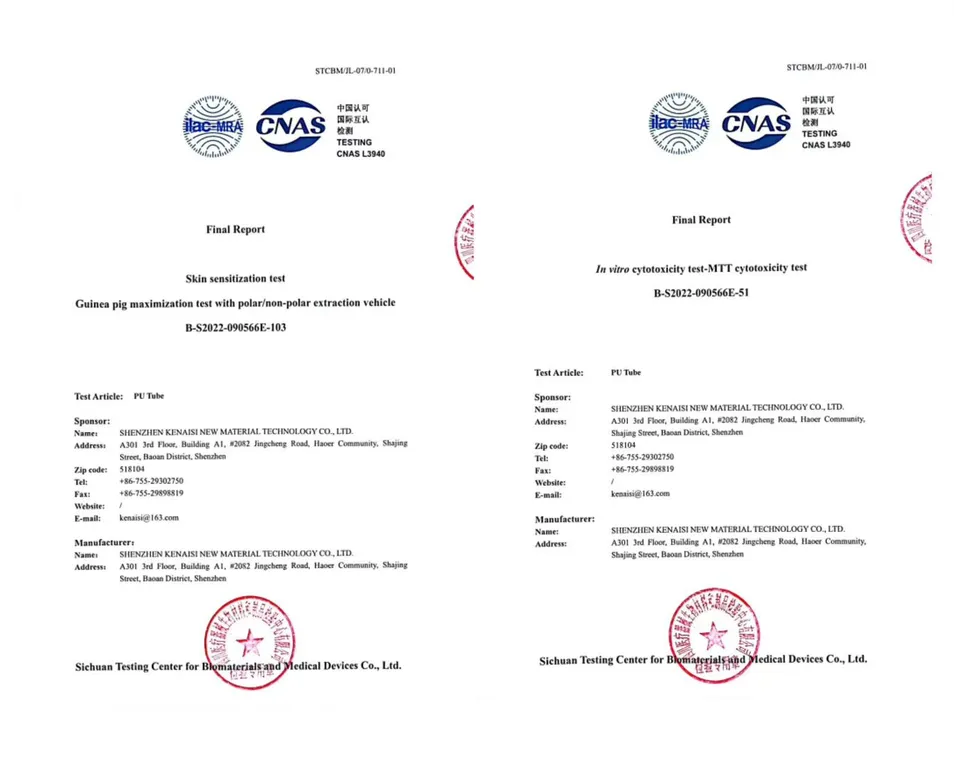

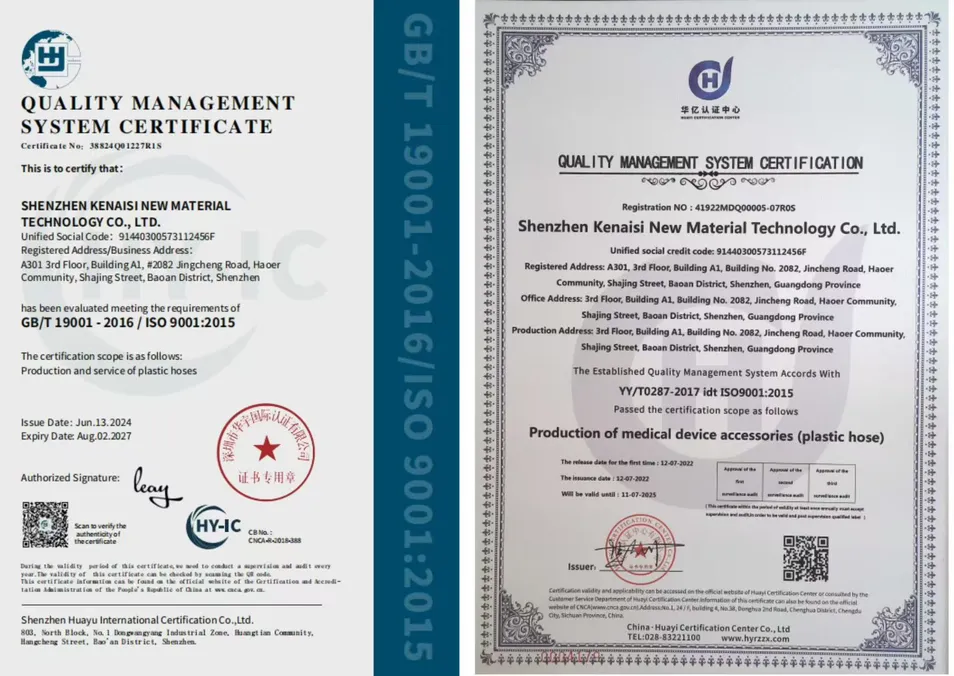

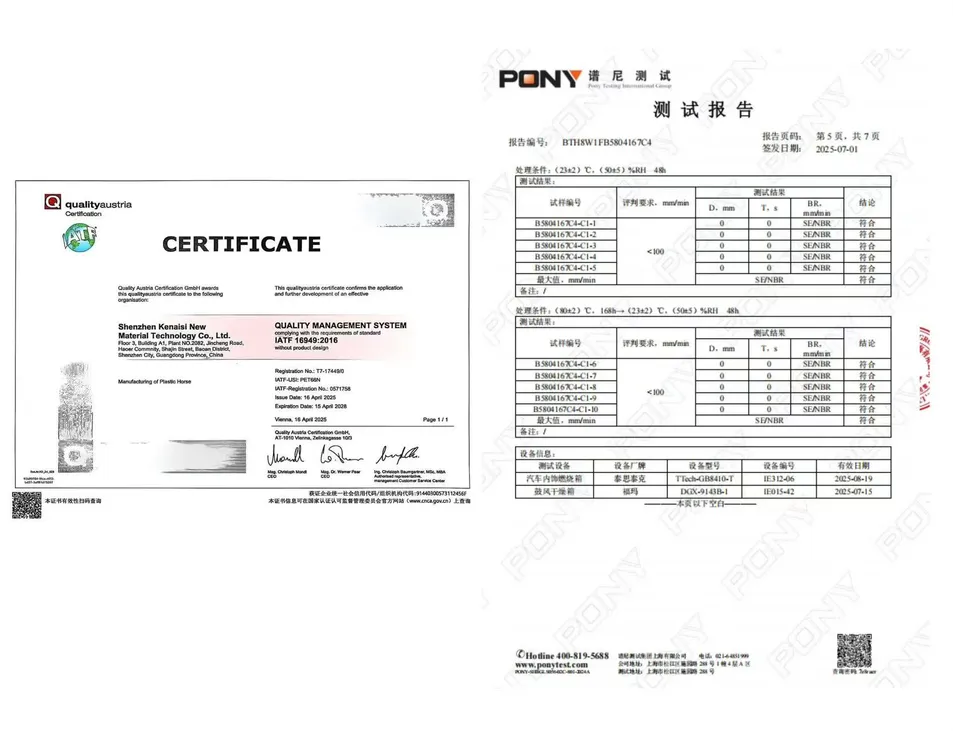

As a professional PU hose manufacturer, we are committed to delivering the highest standards of quality and safety. Our company holds multiple international certifications, including ISO 9001 (Quality Management), ISO 13485,FDA (Medical Devices),Biological Compatibility Certification, IATF 16949 (Automotive), REACH, RoHS, and realated flame resistance testing and so on, ensuring full compliance with global industry requirements. With certified excellence at every stage—from raw materials to finished products—we provide high-performance, reliable PU hoses for diverse industrial applications.
