High-Burst-Pressure PA6 Tubing, Tested to 3X Working Pressure, Safe for Compressed Air, Quality Assu
Detailed specification for High-Burst-Pressure PA6 Tubing, Tested to 3X Working Pressure, Safe for Compressed Air, Quality Assu
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | Nylon-YD |
| Kind | Nylon Tube |
| Water Absorption | 0.1%~0.3% |
| Tensile Strength | 51~80MPa |
| Inner Diameter (ID) | 1 mm - 50 mm |
| Outer Diameter (Od) | 2 mm - 60 mm |
| Wall Thickness | 0.5 mm - 5 mm |
| Tolerance (Od) | ±0.05 mm to ±0.2 mm |
| Quality System | ISO 9001 Certified |
| Specification | 1000mm |
| Trademark | Youda |
| Origin | Liaoning, China |
Product Introduction
Industrial-Grade PA6 and PA66 Nylon Tubing for Demanding Applications
Our precision-extruded nylon tubes are available in PA6 (Nylon 6) and PA66 (Nylon 66) grades, offering high mechanical strength, excellent abrasion resistance, and reliable performance from -30°C to +150°C. PA66 provides superior heat resistance and rigidity for high-stress environments like automotive engine compartments, while PA6 delivers outstanding toughness and cost efficiency for general pneumatic and fluid systems. Both materials feature smooth inner bores, good chemical resistance to oils and greases, and compatibility with standard push-to-connect fittings. Available in multiple colors (black, blue, natural, transparent) and customizable dimensions. Manufactured under ISO 9001 quality system for consistent global B2B supply.
Product Specifications
Parameter
Specification
Material Options
PA6 (Nylon 6), PA66 (Nylon 66) – please specify when ordering
Color
Black (standard), Blue, Red, Natural, Transparent
Form
Seamless Extruded Tubing (Straight or Coiled)
Type
Flexible (PA6) / Semi-Rigid to Rigid (PA66)
Inner Diameter (ID)
1 mm – 50 mm
Outer Diameter (OD)
2 mm – 60 mm
Wall Thickness
0.5 mm – 5 mm
Tolerance (ID/OD)
±0.05 mm to ±0.2 mm
Operating Temperature
PA6: -30°C to +120°C
PA66: -30°C to +150°C
Water Absorption
PA6: ~1.5%
PA66: ~1.0% (24h saturation, ASTM D570)
Tensile Strength
PA6: 70–85 MPa
PA66: 80–95 MPa (ASTM D638, 23°C)
Elongation at Break
PA6: 200–300%
PA66: 60–150%
Melting Point
PA6: ~220°C
PA66: ~260°C
Key Properties
High strength, abrasion resistant, oil/grease resistant, electrically insulating, good fatigue life

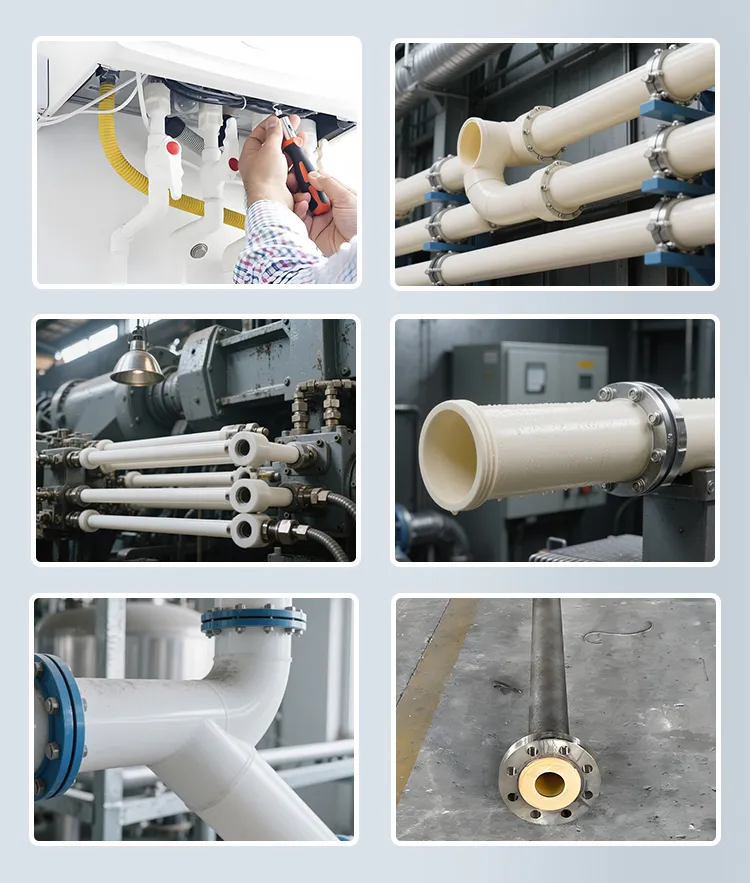

Typical Applications
Pneumatic controls, automotive cooling/air lines, industrial machinery, cable protection, food dispensing (non-certified)

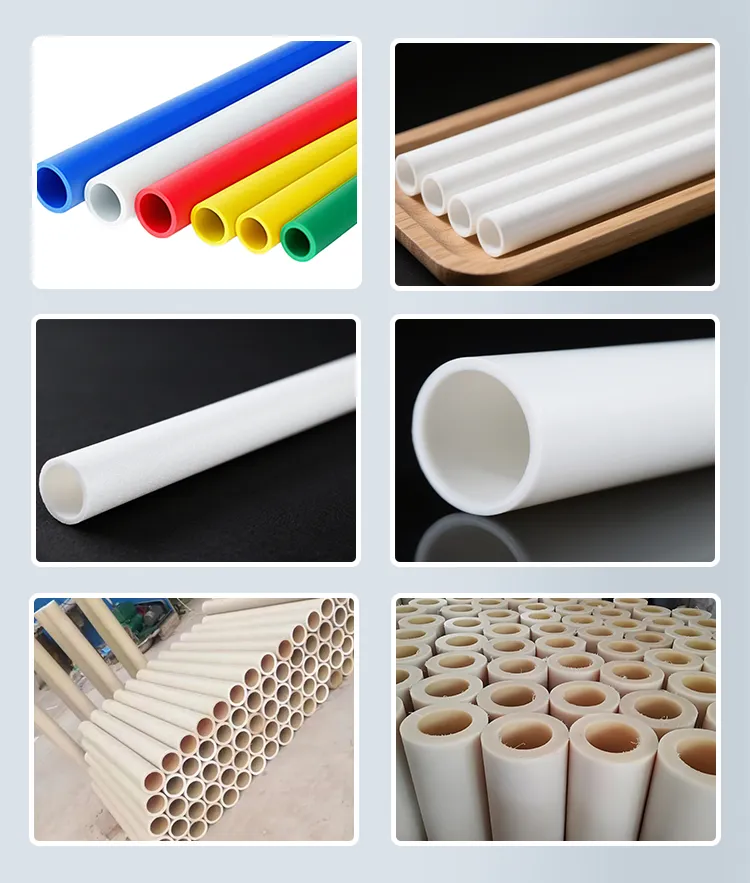

Product Showcase
Product Components
Product Applications
