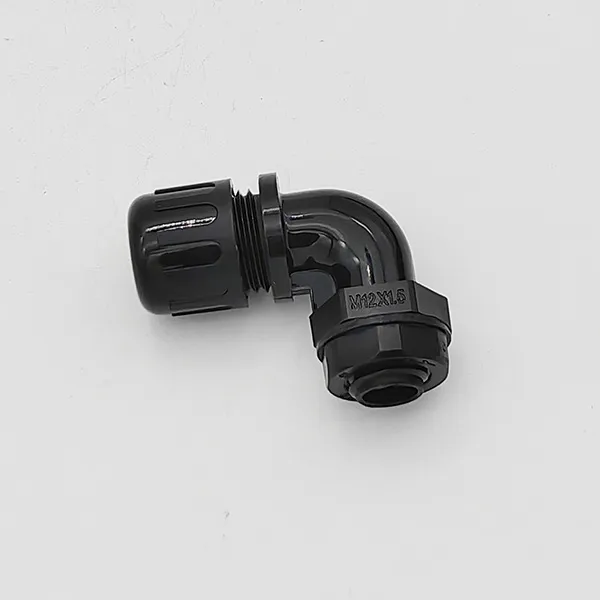

IP68 Elbow Waterproof Connector for Plastic Corrugated Pipe Nylon PA66 M12-Ad10

Model NO.	M12-AD10
Color	Black or Grey
IP Rating	IP68
Material	Nylon
Type	Elbow
Thread	M12X1.5
Thread Length	9mm
Accommodated Pipe	Ad10
Packing	50PCS/Bag
Transport Package	Plastic Bag with Standard Cartons
Specification	YSC-E-WMG12-AD10
Origin	China
Production Capacity	2000PCS/Day

Product details:
Type: Watertight Corrugated tubing fitting
Thread: Metric, PG, G(PF), NPT
Materials: UL approved and halogen-free nylon PA66(Flammability UL94V-2) for A.C.F parts. EPDM rubber for B. D parts.
         (Accept to order super rubber: high temperature resistance, strong acid/alkali, etc)
Wording temperature:-40ºC-100ºC
Protection Degree: IP68-10
Features:This products has the best power for the water compression force from any angle which can keep 100% waterproof and airtight function.
Colors:Black, gray, and other colors available upon request.
Product Introduction
Liquid Tight 90 Degree Connector adopts nylon structure, which can resist salt water, weak acid, gasoline, alcohol, oil, grease and many common solvents. It consists of five parts: nut, main body, gasket, clamping ring, and compression nut. It allows to terminate and seal liquid-tight flexible metal conduits and B-type non-metallic conduits to metal outlet boxes or enclosures at a 90° angle. Liquid-tight connectors equipped with lock nuts and sealing rings can be used for taper-threaded internal threaded inlets or unthreaded knock-out holes.
Product Specifications

Accommodated PipesThreadItem NO.Thread Diameter AG(mm)Thread Length GL(mm) AD13M16X1.5YSC-E-WMG16-131610 AD15.8M16X1.5YSC-E-WMG16-15.81610 M20X1.5YSC-E-WMG20-15.82010 AD18.5M16X1.5YSC-E-WMG16-18.51610 M20X1.5YSC-E-WMG20-18.52010 AD21.2M20X1.5YSC-E-WMG20-21.22010 AD25M25X1.5YSC-E-WMG25-252510 AD28.5M25X1.5YSC-E-WMG25-28.52510 AD34.5M32X1.5YSC-E-WMG32-34.53215 AD42.5M40X1.5YSC-E-WMG40-42.54020 M50X1.5YSC-E-WMG50-42.54020 AD48M50X1.5YSC-E-WMG50-485020
