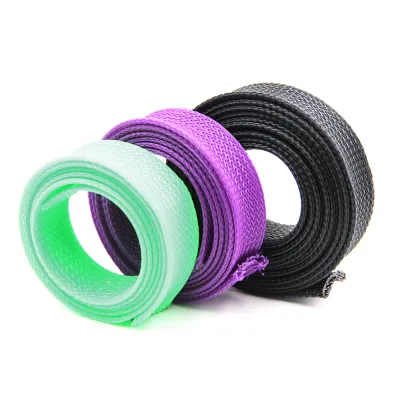

Expandable Braided Polyester Cable Sleeve Wire Management for Office and Home Wires Protection

Model NO.	QX-BS-PET010
IP Rating	IP50
Usage	Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable, Cable Management
Material	PE
Type	Spiral Wrapping
Application	Insulators, Electrical Winding Insulation,
Chemistry	Organic Insulation
Operating Range	-50℃ ±150℃
Melt Point	240℃±10℃
Flammability	VW-1
Standard Colour	Black and Grey
Certificate	UL, CSA, RoHS, Pfos, Reach, Halogen Free
Cutting Tool	Hot Knife
Application1	Automobile Wires Protection
Application2	Structured Cabling System
Application3	a/V Cables & HDMI Cables
Application4	Industrial Hoses & Tubes Protection
Size	10mm
Transport Package	35m/Roll
Specification	3mm-76mm Flat Width
Trademark	EKO
Origin	Fujian, China
HS Code	4602900000
Production Capacity	3000000 M/Month

Product descroption

BS-PET polyester expanable sleeving is flame-retardant and halogen-free.It offers durable abrsion resistance in a wide range of industrial applications.
The open weave construction sallows an easy installation on a bundle of hoses and cables,even if some with bulky or large connectors. Totally expanded the sleeving can reach at least one point five times than initial dimension.

Data sheet


Part No Size Expanded Range(mm) Packing (L)   Flat width(mm) Min(I) Max.(O) M/spool  BS-PET003 3 1 6 1000  BS-PET006 6 3 9 500  BS-PET008 8 516 350  BS-PET010 10 719 350  BS-PET012 12 824 300  BS-PET016 151027 250  BS-PET019 201430 200  BS-PET025 251835 200  BS-PET032 302050 150  BS-PET038 403060 100  BS-PET045 453575 100  BS-PET050 504080 100  BS-PET064 6445105 100  BS-PET076 7664120 100

Product feacture

1. Light weight & Flexible & Insulation & UV Resistant & Decoration  & Flame-retardant & Durable abrasion resistance & Resistant
    to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm PET monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.

Details show:



Application

Its mainly used to cover cables,wire harnesses,tubes,industrial hoses where is required an good.
