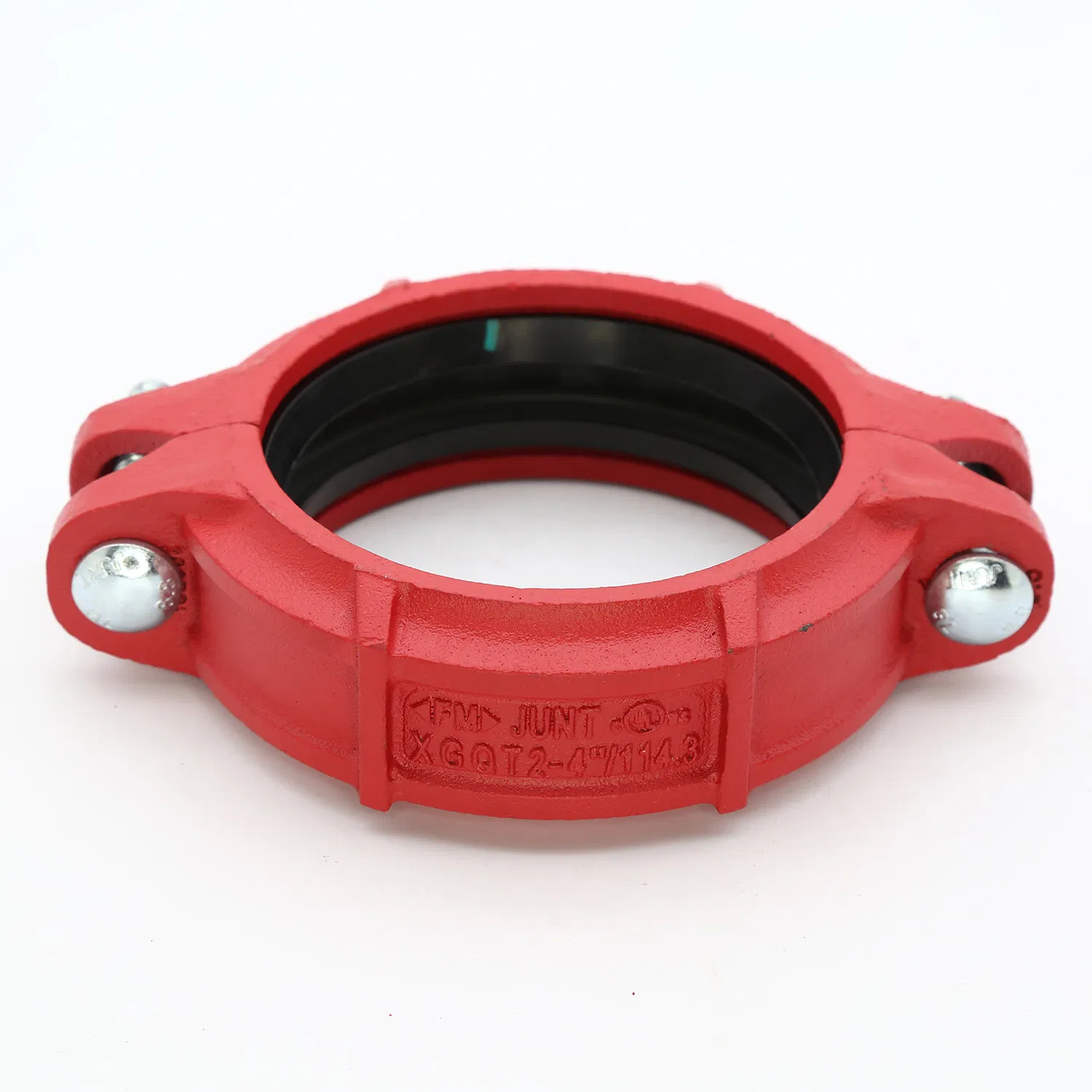

Ductile Cast Iron Grooved Fittings with FM UL Certificates

Model NO.	1''-12''
Material	Iron
Standard	Standard
Surface Treatment	Painted
Gasket	EPDM
Certificate	FM UL Ce ISO
Name	Grooved Pipe Fittings and Couplings
Transport Package	Pallets
Specification	1''-12''
Trademark	JUNT
Origin	China
HS Code	7307110000
Production Capacity	80000tongs

SPECIFICATIONS FOR GROOVED COUPLINGS AND FITTINGS MATERIALDuctile iron QT450-12 ,Ductile Iron to ASTM A536 CERTIFICATEFM UL CE CUL ISO PRESSURE300PSI   2.5MPA THREAD TYPEBSPT   NPT SURFACE TREATMENTPAINT, EPOXY, GALVANIZED, DACROMET DELIVERY TIMENormally within 15-30 days  PAYMENT TERMST/T, LC



 Main Features1) Ductile iron ASTM A536 GRADE 65-45-12
2) FM,UL ,CE,IOS,CUL CERTIFICATES
3) EPDM RUBBER GASKET
4) PAINT RAL-3000,ORANGE,GALVANIZED
5) 300PSI ,500PSI ,2.5MPA
Certifications




Detailed Images
 Main FeaturesName:  Grooved Couplings and Fittings
Brand: JUNT
Original:CHINA
1) Ductile iron ASTM A536 GRADE 65-45-12
2) FM,UL ,CE,IOS,CUL CERTIFICATES
3) EPDM RUBBER GASKET
4) PAINT RAL-3000,ORANGE,GALVANIZED
5) 300PSI ,500PSI ,2.5MPA
 Housing FeaturesName: Coupling Housing
Brand:  JUNT
Original: CHINA
Ductile Iron: Standard coupling housings and fittings are made of ductile Iron conforming to ASTM A536 Gr.65-45-12. The properties of Grade 65-45-12 ductile iron are as follows;65,000 psi (448 MPa) tensile strength, 45,000 psi (310 MPa) yield strength and 12% elongation.

 Machine PartsName: BULTS AND NUTS
Brand: JUNT
Original: CHINA
Domestic famous materials, Oval Neck bolts and heavy hoxagon nuts at ASTM A183/ISO 898,GRADE 8.8,HOT GALVANIZED.
JUNT products utilize oval neck track bolts and heavy duty hex nuts,available either in UNC threaded or ISO metric threaded*. The oval neck track bolts mate into the oval holes in the housing segments to allow for easy tightening using only a single wrench/spannerMain Parts

Name: Rubber Gaskets
Brand: JUNT
Original: CHINA
EPDM,SILICON RUBBER,PRE-LUBRICANT
During assembly the gasket is first stretched over the pipe ends which forms the initial seal. As the housing segments are installed and secured the pressure responsive gasket is slightly compressed to form a leak-tight joint. The strength of the seal is further enhanced by internal line pressure that creates downward pressure on the lips of the gasket.

Our Service


 Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Attend exhibition
Packing & Delivery


Pallets Packaging Size110 (L) * 110 (W) * 12 (H) Weight0.6-1.2 T


Packaging DetailsThe normal package is pallet with  carton box (Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Carton Box SizeS and L  Type Weight12-50KG


Packaging DetailsTwo Sizes Type:
1. Small One(S)
353 (L) * 353 (W) * 155 (H)
2. Large One (L)
353 (L) * 353 (W) * 310 (H)
