Factory Price Factory ISO2531 En545 En598 Di Elbow Tee Corss Fitting Ductile Iron Cast Iron Flanged
Detailed specification for Factory Price Factory ISO2531 En545 En598 Di Elbow Tee Corss Fitting Ductile Iron Cast Iron Flanged
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | Flanged Pipe Fittings |
| Connection | Welding |
| Head Code | Round |
| Material | Iron |
| Technics | Casting |
| Certification | DIN |
| Color | Blue |
| Transport Package | Standard Export Package or as Per Your Requirement |
| Specification | ISO2531/EN545/EN598 |
| Trademark | SYI |
| Origin | China |
| Production Capacity | 15000tons Per Month |
Ductile Iron Flanged Pipe Fittings ISO 2531 EN 545 EN598 AWWA C110 For Water Or Sewerage Pipeline Projects
Description
SYI can supply Flanged Pipe Fittings PN10, PN16, PN25 or PN40 drilling in accordance with ISO 7005-2/EN1092-2, from DN80 to DN2000, with the coating of Zinc and Black Bitumen coating, Red/Blue Epoxy coating, or PU (polyurethane) coating.
Material:Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083.
Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.
Fluid Temperature:0°C-50°C, excluding frost
Coating
External coatings
Internal coatings
zinc + bitumen painting
liquid epoxy resin painting
epoxy applied by FBE
according to customers' requirements
cement mortar lining
liquid epoxy resin painting
epoxy applied by FBE
according to customers' requirements
Reference Rules:Dimensions and testing in accordance with ISO 2531 / EN 545
Accessiories: Gaskets, bolts & nuts can be suppllied according to customer's requirements.
Special fittings are available.
Ductile iron pipe fitting is a kind of fitting casted from spherical graphite cast iron. The greater
performance of ductile iron makes it possible to improve the design of fittings and to reduce their dimensions. This makes it easier to lay mains in congested urban areas of large towns, and results in a reduction in the size of valve chambers, the dimensions of which depend mainly on the space occupied by the fittings. It usually is used for jointing the pipelines for water, other liquids, or gas, with or without pressure, installed below or above ground, it allows pipeline deviation, change of direction or bore.

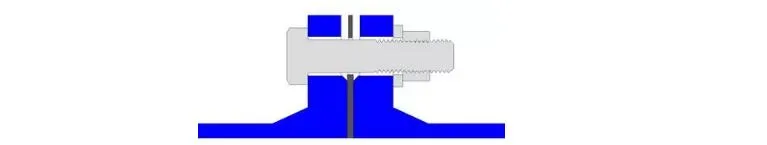

Flanged Pipe Fittings are jointed by the bolts, nuts and sealed by the gaskets.
Note:The gaskets, bolts & nuts are supplied separately with the fittings usually.

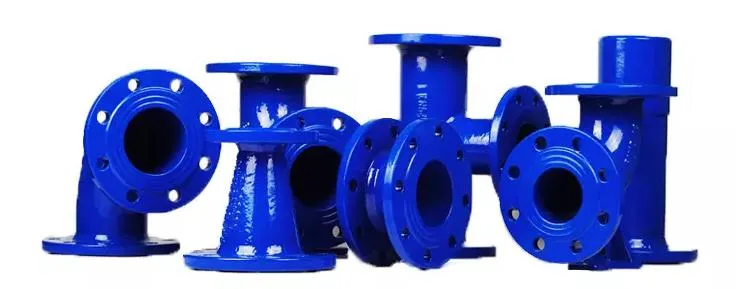

SYI manufactures a full range of Ductile Iron Pipe Fittings according to ISO 2531, EN545, EN598, ANSI/AWWA C110, C153 and other major standards.
-Flanged pipe fittings,
-Loosing flanged pipe fittings,
-Push-in socket pipe fittings (Tyton),
-Mechanical Joint socket pipe fittings (MJ),
-Express socket pipe fittings (EX),
-Fittings for uPVC pipes,
-Fittings for PE pipes,
-Other Pipeline Accessories.

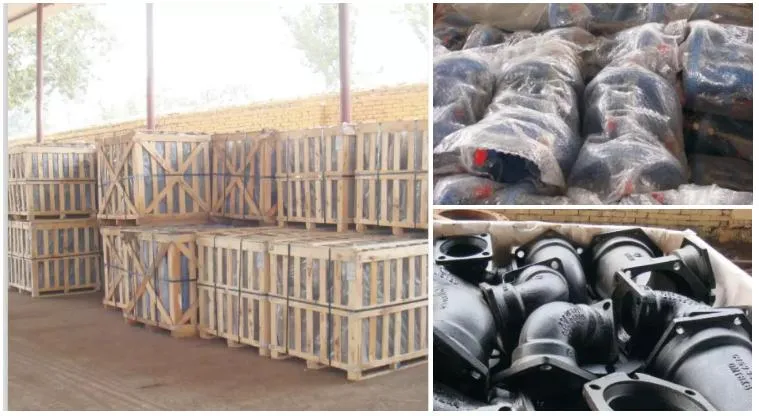

Product Package
Packing: Different package upon your request,like wood cases&pallets,ply-wood crates&pallets,steel crates&pallets and etc.

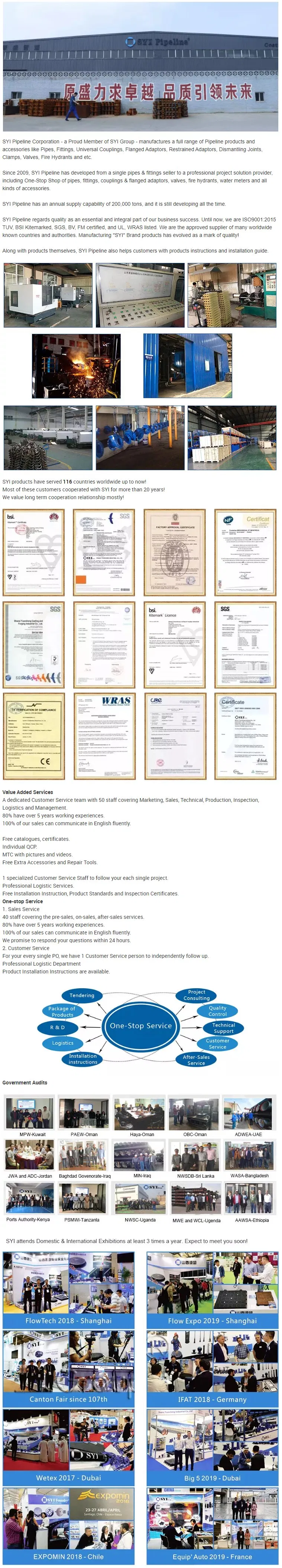

Company Profile
