Product Overview
Detailed specification for Nai-Lok DIN477 BS341 Cga 350 320 580 590 Gas Cylinder Adapter BS341 13 14 Air Cylinder System Fittin
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | Tube fittings |
| Material | Stainless Steel |
| Connection | Female |
| Pressure | 3000 Psi |
| Size | 1/8"-2" |
| OEM | Customized |
| Application | Gas Industrial |
| Delivery | Fast Delivery |
| Transport Package | Standard Case |
| Specification | 1/4" FNPT |
| Trademark | NAI LOK |
| Origin | China |
| HS Code | 7307290000 |
Product Description
DIN/BS/CGA Stainless Steel Cylinder Connecto
The DIN/BS/CGA Stainless Steel Cylinder Connector is designed for high-pressure gas systems, constructed from premium stainless steel for superior corrosion resistance, durability, and long service life. Compliant with international CGA/DIN/BS standards, it ensures secure connections between compressed gas cylinders, regulators, or transfer lines. Ideal for industrial, medical, laboratory, and energy applications.
Key Features
Standardized Connection: CGA (Compressed Gas Association) compliant for global compatibility.
High-Pressure Rated: Maximum working pressure 3000 psig (207 bar).
Robust Material: Stainless steel construction resists corrosion and wear.
Leak-Proof Seal: 1/4" NPT male thread ensures a tight, secure fit.
Wide Compatibility: Suitable for inert and reactive gases (O2, N2, Ar, etc.).
Product Parameters
Technical Specifications
| Parameter | Specification |
| Standard | CGA / DIN / BS |
| Connection Type | 1/4" NPT Male Thread |
| Material | Stainless Steel 316 (SS316) |
| Max. Working Pressure | 3000 psig (207 bar) |
| Applications | Cylinder valves, regulators, gas transfer lines |
| Germany(and most European countries)-DIN 477 |
Connector
Type | Connector
Thread | Gas or
Gas Mixture | Remarks |
| DIN477 No.1 | w 21.8x1/14"LH | Hydrogen.Propane | Flammable |
| DIN477 No.2 | w21.8°x1/14"LH | Propane | Flammable |
| DIN477 No.3 | Yoke | Acetylene | Flammable |
| DIN477 No.3.1 | M24×2"LH | Acetylene | Flammable |
| DIN477 No.5 | w1x1/8LH | Carbon Monoxide | Toxic |
| DIN477 No.6 | W 21.8x1/14" | Argon.Helium,Carbon Dioxide | Various |
| DIN477 No.7 | G 5/8" | Sulphur Dioxide | Toxic |
| DIN477 No.8 | w1x1/8" | Boron Trichloride | Toxic |
| DIN477 No.9 | G 3/4" | Oxygen | Oxygen |
| DIN477 No.10 | W24.32×1/14"RH | Nitrogen | Inerts |
| DIN477 No.11 | G 3/8" | Nitrous Oxide(>31 size) | Oxidizer |
| DIN477 No.12 | G 3/4"1NT | Nitrous Oxide(<3I size) | Oxidizer |
| DIN477 No.13 | G 5/8"INT | Air | Non Flammable |
| DIN477 No.14 | M19x1.5LH | Mixtures | Various |
| UK-BS 341 |
Connector
Type | Connector
Thread | Gas or
Gas Mixture | Remarks |
| BS341No.2 | G 5/8"LH | Acetylene | Flammable |
| BS 341No.3 | G5/8"INT | Air,Argon,Neon,Nitrogen | inerts |
| BS 341No.3 | G 5/8"INT | Oxygen | oxidizer |
| BS 341No.4 | G 5/8"LHINT | Acetylene.Hydrogen | Flammable |
| BS 341No.4 | G 5/8"LH INT | Carbon Monoxide,Methane,Natural Gasl | Flammable |
| BS341No.6 | G 5/8" | Chlorine.Hydrogen Chloride | Toxic |
| BS 341No.7 | G5/8"LH | Flammable Refrigerants | Flammable Refrigerants |
| BS 341No.8 | W0.860"x14TPI | Carbon Dioxide | Non Flammable |
| BS 341No.10 | G1/2" | Ammonia | Toxic |
| BS 341No.12 | G1/2" | Sulphur Dioxide | Toxic |
| BS 341No.13 | W11/16°-20 TPl | Nitrous Oxide | oxidizer |
| BS 341No.14 | G 3/8" | Hydrogen Cvanide.Nitric Oxide | Toxic |
| BS 341 No.15 | G 3/8"LH | Carbonyl Sulphide,Hydrogen,Sulphide | Toxic |
| USA&Canada-CGA |
Connector
Type | Connector
Thread | Gas or
Gas Mixture | Remarks |
| CGA110 | G5/8"LH | Acetylene | Flammable |
| CGA170 | G 5/8"INT | Air,Argon,Neon,Nitrogen | Inerts |
| CGA180 | G5/8"INT | Oxygen | oxidizer |
| CGA240 | G 5/8"LH INT | Acetylene,Hydrogen | Flammable |
| CGA296 | G 5/8"LH INT | Carbon Monoxide,Methane,Natural Gas | Flammable |
| CGA 300 | G5/8" | Chlorine,Hydrogen Chloride | Toxic |
| CGA320 | G 5/8"LH | Flammable Refrigerants | Flammable Refrigerants |
| CGA326 | w0.860"x14 TPI | Carbon Dioxide | Non Flammable |
| CGA330 | G1/2" | Ammonia | Toxic |
| CGA346 | G 1/2" | Sulphur Dioxide | Toxic |
| CGA350 | W 11/16"-20 TPI | Nitrous Oxide | oxidizer |
| CGA510 | G3/8" | Hydrogen Cyanide,Nitric Oxide | Toxic |
| CGA540 | G 3/8"LH | Carbonyl Sulphide,Hydrogen,Sulphide | Toxic |
| CGA580 | CGA580 | CGA580 | CGA580 |
| CGA590 | CGA590 | CGA590 | CGA590 |
| CGA660 | CGA 660 | CGA660 | CGA660 |
| CGA679 | CGA679 | CGA679 | CGA679 |

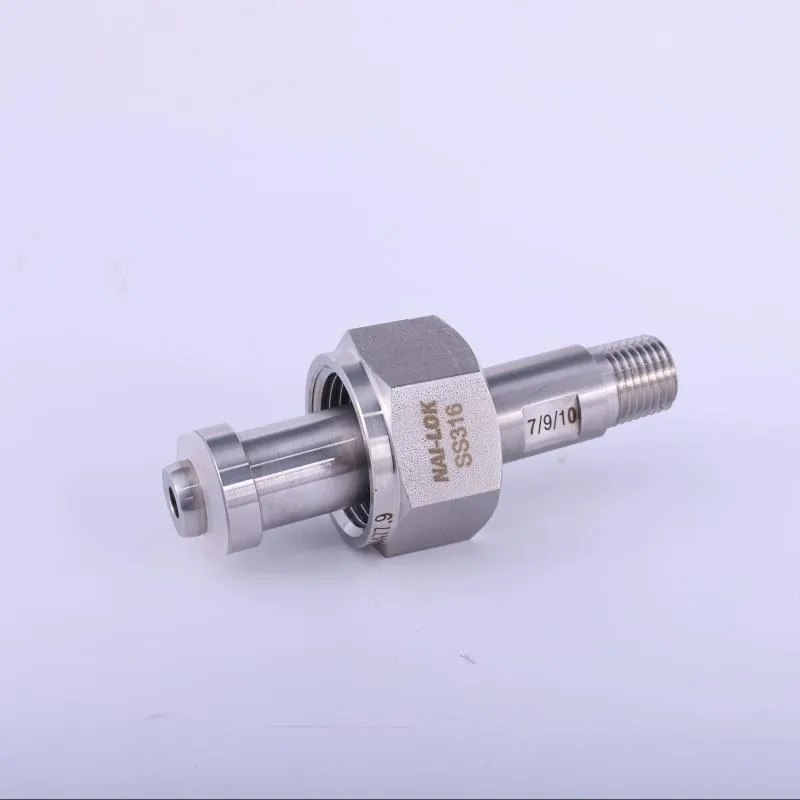

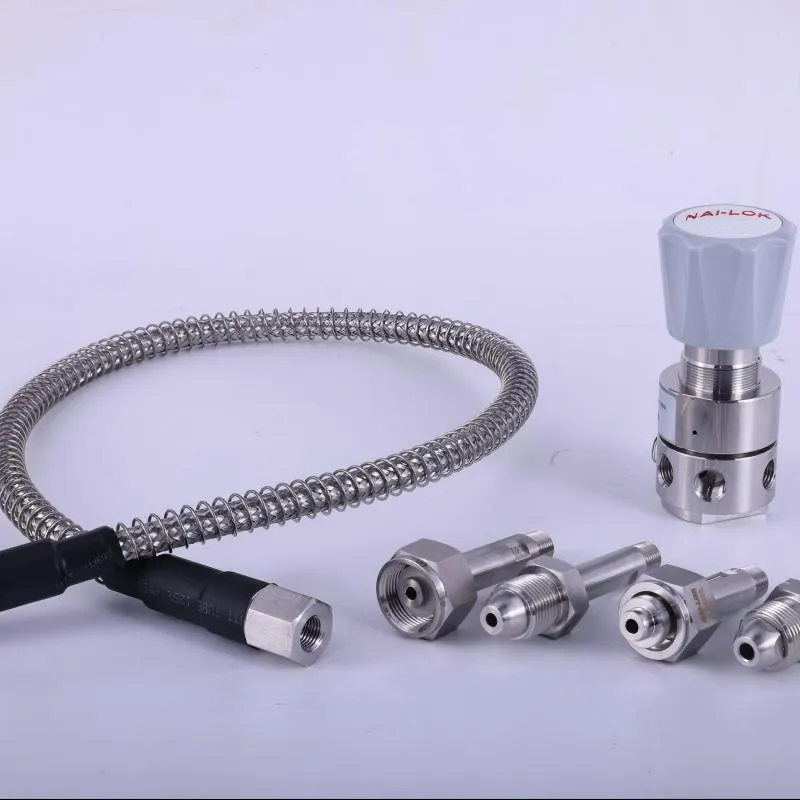

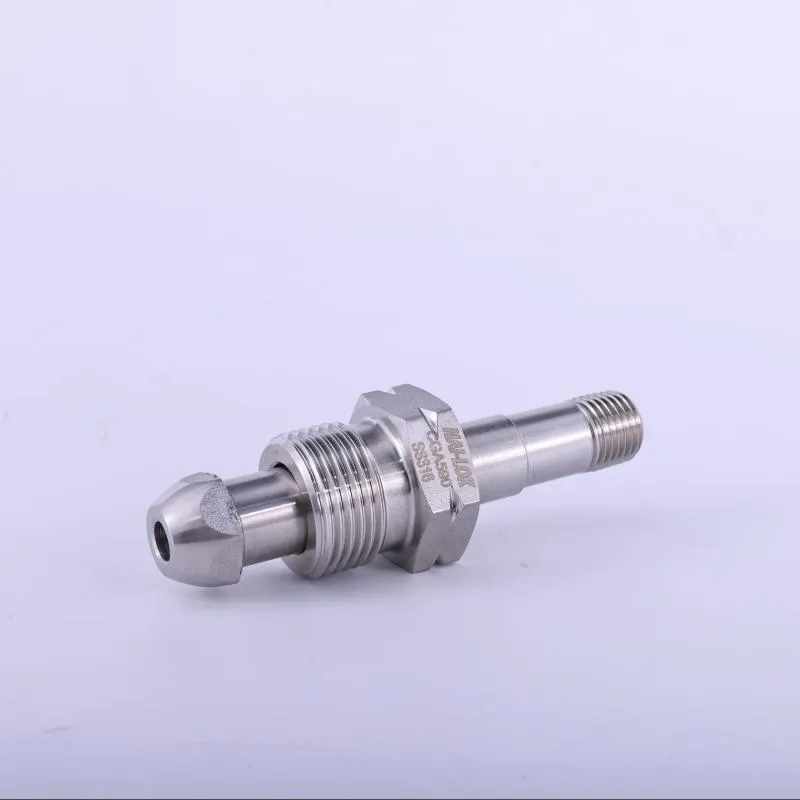

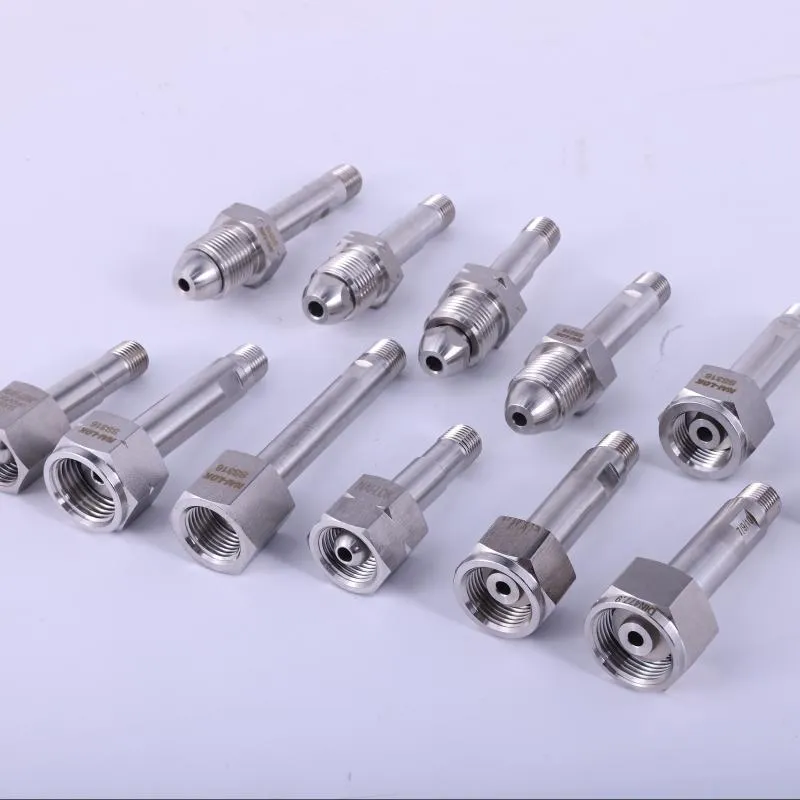

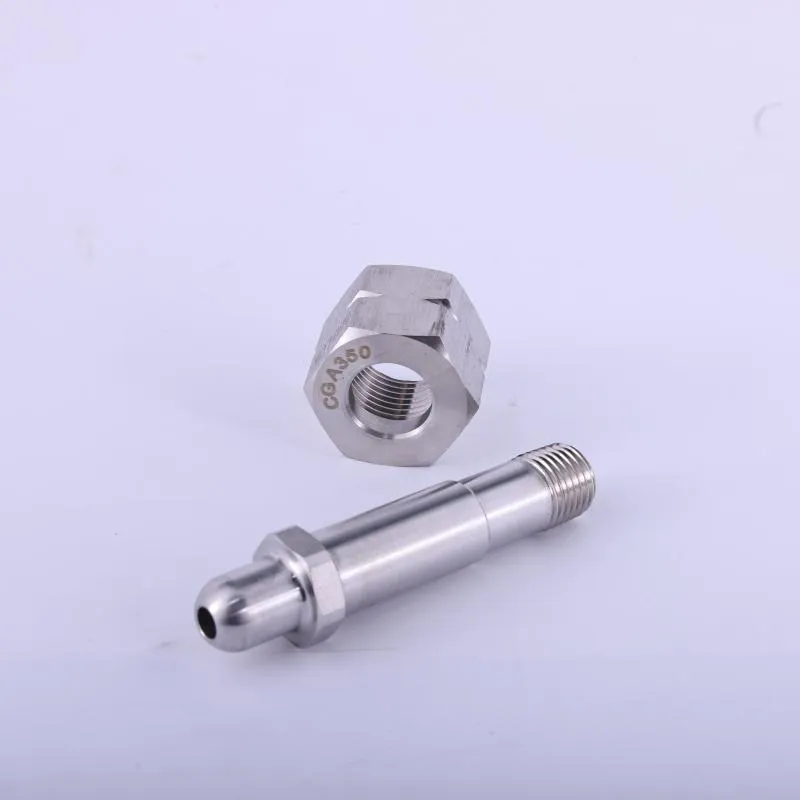

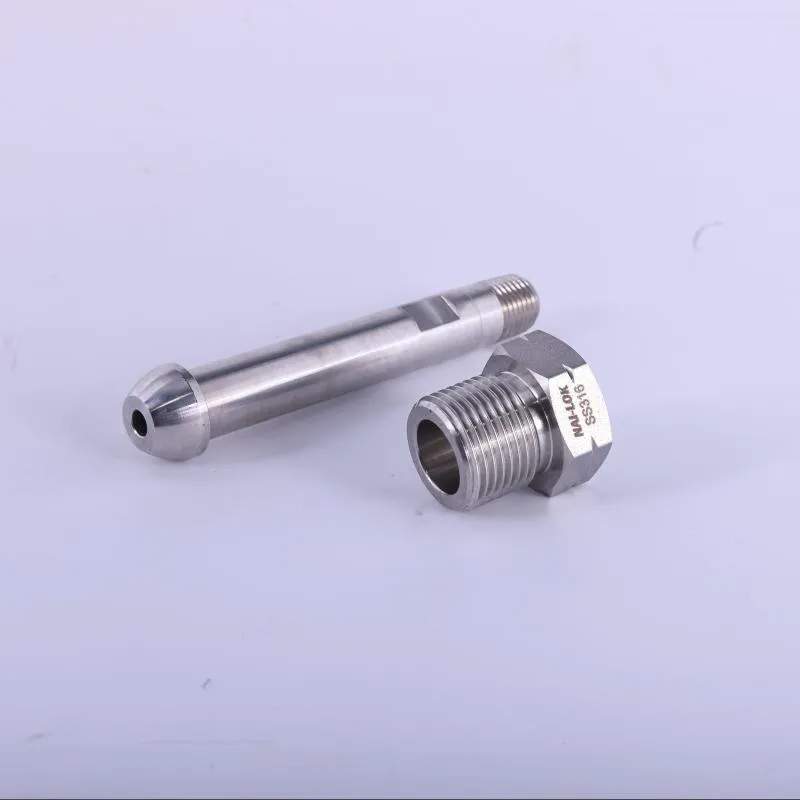

Detailed Photos
Primary ProductNai-Lok DIN477 BS341 Cga 350 320 580 590 Gas Cylinder Adapter BS341 13 14 Air Cylinder System Fittin
Contact PersonMrs.Ada
Minimum Order100 Pieces
PaymentsLC, T/T, PayPal, Western Union
DeliveryContact the supplier about freight and estimated delivery time.
Origin397 Damuqiao Road, Shaxi Town, Taicang City, Suzhou, Jiangsu, China SGS Audit Report No.
PackingCarton Box+Plastic Bag
Inspection
SamplesProvide Samples
