Pipe Tube Fittings Porous Ceramic Tubes Pipe in Mining Industry

Model NO.	chemshun ceramics
Item	Ceramic Pipe in Mining Industry
Alumina Content	92%, 95%
Shape	Straight, Curved, T-Shaped
Application Industry	Industrial Ceramic, Mining, Power Plant
Applied in Industrial Equipment	Hopper, Chute, Hydrocyclone, Pipe Fitting
Usage	as Ceramic Lining, Pipe Lining, Pulley Lagging
Sticking Way	Direct Bond Adhesive, Weld, Vulcanization
OEM	Accept
Material	Alumina Ceramic
Type	Ceramic Tube, Ceramic Tubes
Transport Package	Paper Carton + Pallet.
Specification	150*50*6~25mm; 100*100*6~30mm; 120*80*6~30mm
Trademark	chemshun
Origin	P. R. China
HS Code	69091900
Production Capacity	25000ton/Year

Pipe Tube Fittings Porous Ceramic Tubes Pipe in Mining Industry

Chemshun alumina ceramic lined composite steel pipe not only has  steel pipe characters of high strength, good toughness, impact resistance, good weld-ability, but also has corundum  ceramics  characters of high hardness, high wear resistance, corrosion resistance, heat resistance.  which overcome disadvantages of steel low hardness, poor wear resistance and ceramics poor toughness, therefore, ceramic lined pipes have comprehensive property of excellent wear resistance , hear resistance , corrosion resistance ,mechanical shock and thermal shock etc , it is the ideal pipeline of conveying sand , stone , coal , ash, molten aluminum etc particles and corrosive medium,Chemshun Ceramics offers sophisticated design and engineering capabilities of both standard and custom wear linings, installation and project management, as well as abrasion audits of used wear linings.



>> Chemshun Ceramic pipes includes :
  - alumina ceramic straight pipe
  - ceramic pipe cone

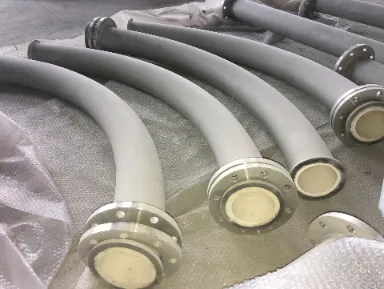

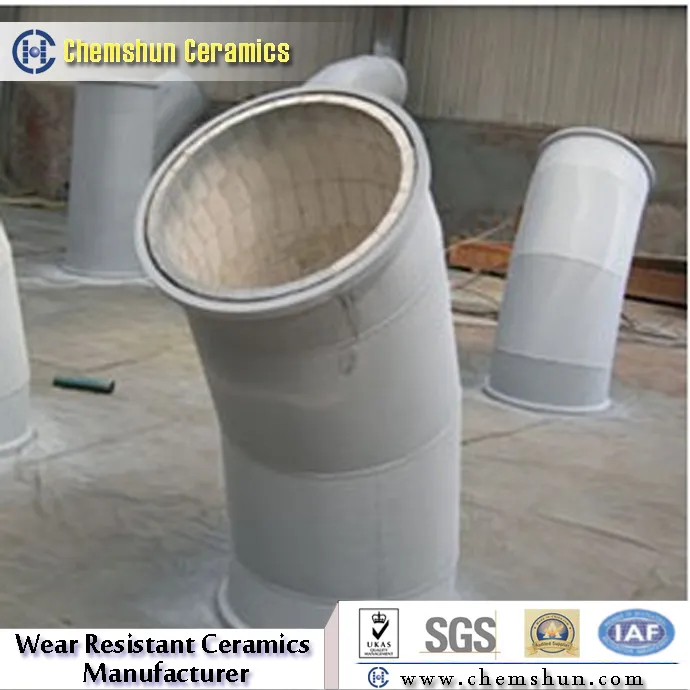

  - ceramic bend elbow pipe liner
  - ceramic Y-shape pipe
  - ceramic T-shape pipe
  - ceramic curved pipe tile liner
  - ceramic arc pipe tile liner

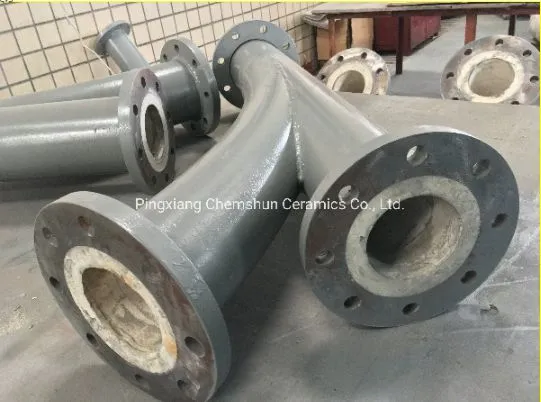

  - ceramic lined steel pipeline
  - custom ceramic pipe

>> Chemshun Ceramic pipe advantages:
High hardness Superior abrasion  Corrosion and chemical resistance Light weight Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.Good fluidity : Smooth surface ensure the free flow of material without  blocking

>>> Chemshun pipe sizes :

ProductID(mm)OD(mm)Thickness(mm)Length(mm)R(mm)Degree Straight Tube7610615150-250// Straight Tube10014020305// Straight Tube15018517.5150-250// Straight Tube15218215150-250// Straight Tube20024020305// Bend7610615/4007.5 Bend10113115/5005 Bend15018517.5/15003 Bend15118115/7507.5 Chemshun Ceramic pipe sizes range : 10~500 mm


>>> Application :

   Industry   Coal fired power plantsFly ash pipeworkPulverized coal pipework  Dust collection pipeworkSeparators     Cement plantsPneumatic conveying pipeworkSlurry pipework     Steel plantsSlurry pipeworkPneumatic conveying pipework  Dust removal pipe at the end of machine  Chemical industryDust removal pipe and elbow

>>> Chemical Composition:

Al2O3SiO2CaOMgONa2O 92~93%3~6%1~1.6%0.2~0.8%0.1%

>>> Physical properties:

Specific gravity (g/cc)>3.60 Apparent porosity (%)0 Flexural Strength (20ºC, Mpa)280 Compressive strength (20ºC, Mpa)850 Rockwell hardness (HRA)80 Vickers hardness (hv)1050 Moh's hardness (scale)≥9 Thermal Expansion (20-800ºC, x10-6/ºC)8 Crystal Size (μm)1.3~3.0
