Custom Environmental Protection Porous Ceramic Automatic Agricultural Flower Drip Irrigation Pipe

Model NO.	HB-CE-I004
Length	Custom
Temperature Resistance	Other
Surface	Smooth
Size	Customized
Color	White/Ivory
Shape	Customized
Feature	Sustainable, Stocked
Certification	RoHS
Drawings	Yes
Keywords	Tensiometer
Key Words1	Porous Ceramic Tube
Material	Alumina Ceramic
Type	Ceramic Tubes
Transport Package	Safe Package
Specification	Customized
Trademark	HIGHBORN
Origin	Jiangsu China
Production Capacity	20000 PCS/Month

 Product description

Custom porous ceramic automatic agricultural flower drip irrigation pipe environmental protection and water saving

At present, there are two main methods of infiltration irrigation for tensiometers in the market. One is a plastic water pipe with micropores and sinks, and the other is a seepage pipe made of waste rubber and polyethylene, neither of which can adjust its aperture according to the water consumption of the crop, but our microporous ceramic permeable irrigation pipe can adjust its aperture and porosity according to the water consumption of the crop.

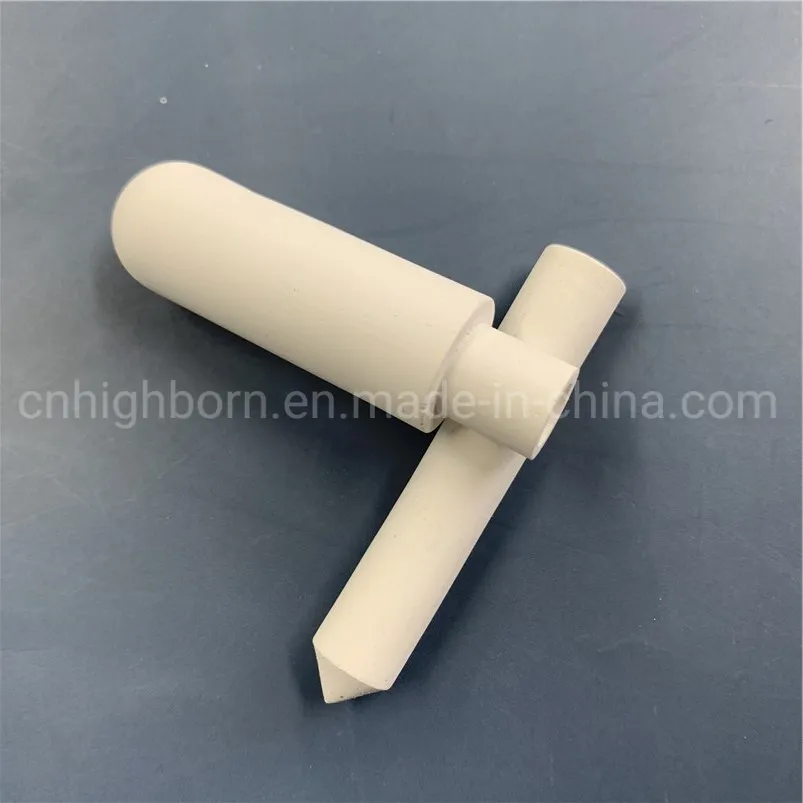

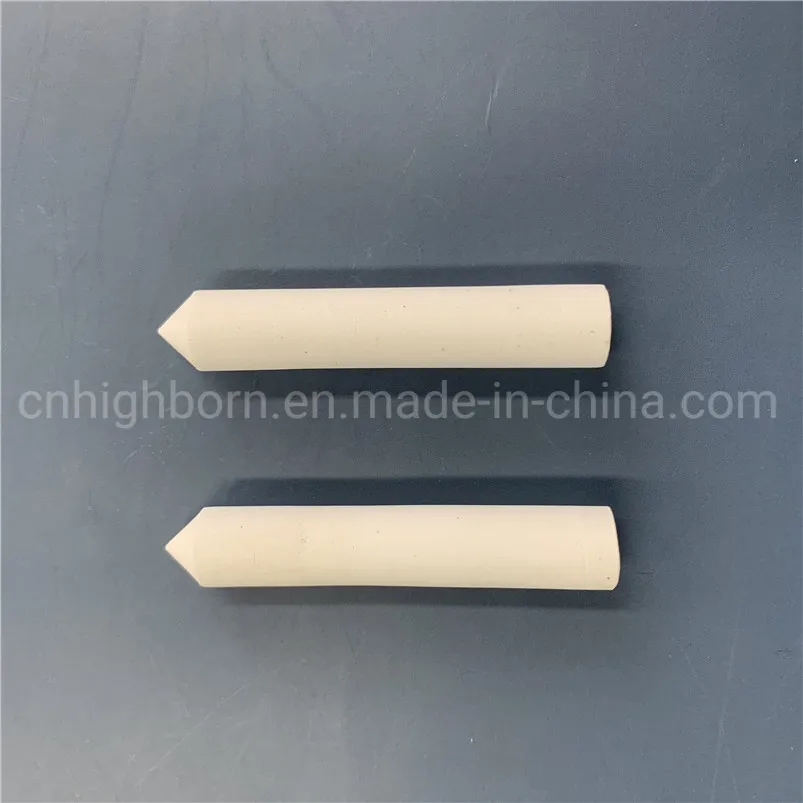

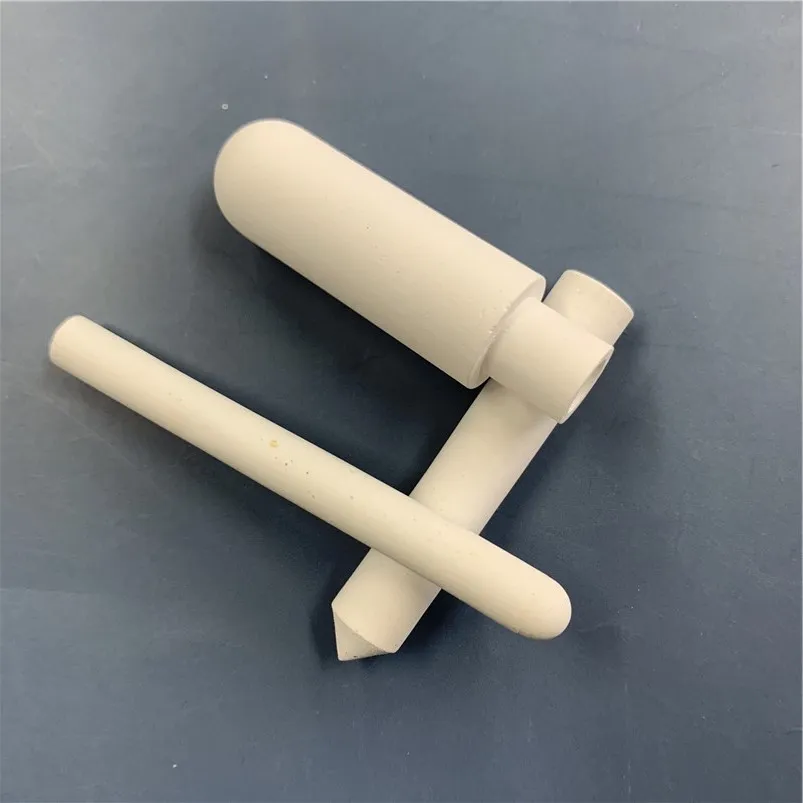

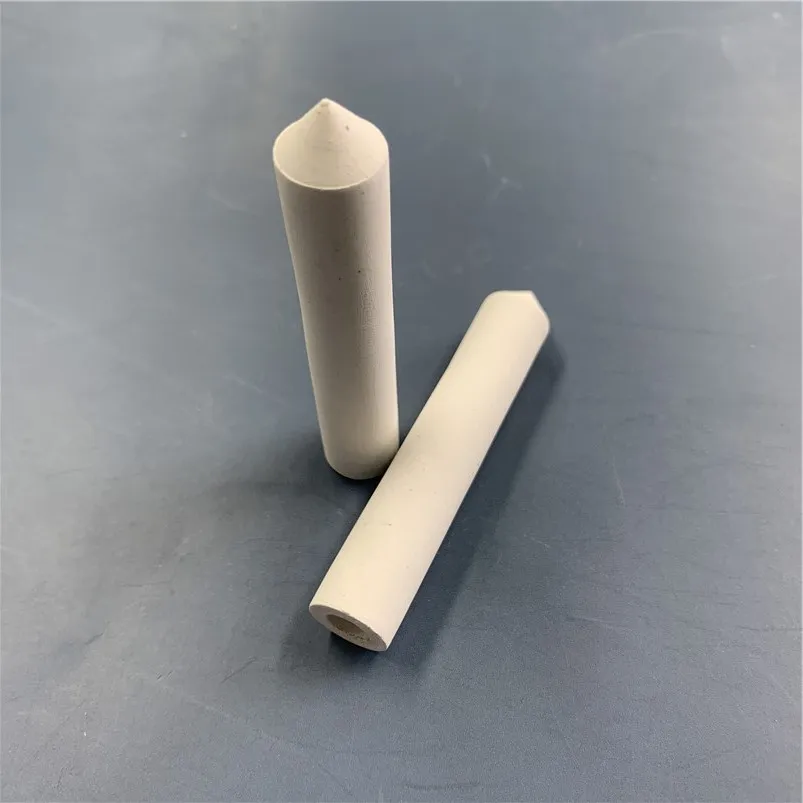

Soil tensimeter/microporous ceramic tube for meter (clay head)

Soil tensiometer is composed of pressure gauge, acrylic tube and ceramic head. When the acrylic tube is filled with water, the ceramic head is moist and prevents external air from entering the ceramic head.

The ceramic head is the sensor part of the instrument, which has many fine pores. After the ceramic head is infiltrated by water, a water film is formed in the pores. When the water-filled and sealed soil hygrometer is inserted into the unsaturated soil, the water film is connected with the soil water, causing negative pressure to be generated in the water inside the instrument. The value of the pressure gauge is the soil water potential of the soil being measured.

Advantage:



1. Porosity and size can be customized

2. Environmental protection, non-toxic, long life

3. The absorption rate of liquid is stable

4. Acid and alkali corrosion resistance, suitable for all kinds of soil environment

5. Plastic accessories can be customized

Technical Data

Item
Infiltration Cup
Plant Water Absorbing Wick
Electrode Wick
Ceramic Wick
Scented Ceramic
White alumina
Silicon Carbide Density(g/cm³)1.6-2.00.8-1.21.8-2.20.8-1.21.6-2.01.7-2.0
Open Porosity Rate(%)30-4050-6020-30   40-60  30-45  35-40
Porosity Rate(%)40-5060-7525-40    60-75   40-50   40-45
Water Absorption(%)25-4040-7010-2840-7025-4025-35
Pore Size(μm)1-51-31-31-31-51-10

Our Company:                                                                                                                                                    based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt and we have been offering our products and services to our clients from more than 109 countries or regions.

Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.

We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients' expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.,
Our Service:
What we can do for you:

1. High-quality products
 2. Optimal price3. Safe transportation
4. Sample service
 5. Customized size   6.Compensate for broken goods
7.Safe package
 8. Transportation safety9.Low procurement risk

Packing & Delivery:

Packing Details
 We will packing by plastic/ polybay and bubble bags first , and then into the foam box,finally into the wooden cases/ carton/pallet or customized package.Every package can be offered with English installation instruction.
Delivery Details
 We can deliver by any courier, eg, TNT, UPS, FedEx, EMS etc.We can also by air, sea etc.We can choose the way according to the requirements of ustomers to ensure the most safe, efficient and convenient transportation.

Our Certificate:

Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
