Microporous Ceramic Agricultural Irrigation Tube Porous Ceramic Drip Pipe

Model NO.	HKCA57
Type	Ceramic Part
Name	Porous Ceramic Probe Pipes
Size	Customized
Appearance	Neat
Surface	Smooth
Property	High Wear Resistance
Advantage	Long Working Life
Certificate	RoHS
MOQ	200
Porosity	Adjustable
Usage	Agriculture/Flower Drip Irrigation
Performance	Stable
Other Material	Porous Ceramic
Length	Customized
Diameter	Customized
Key Word	Porous Ceramic Rods
Transport Package	Safe Package
Specification	custom
Trademark	OEM
Origin	China
Production Capacity	1000piece Per Month

Product Description

Soil tensiometer is composed of pressure gauge, acrylic tube and ceramic head. When the acrylic tube is filled with water, the ceramic head is moist and prevents external air from entering the ceramic head.

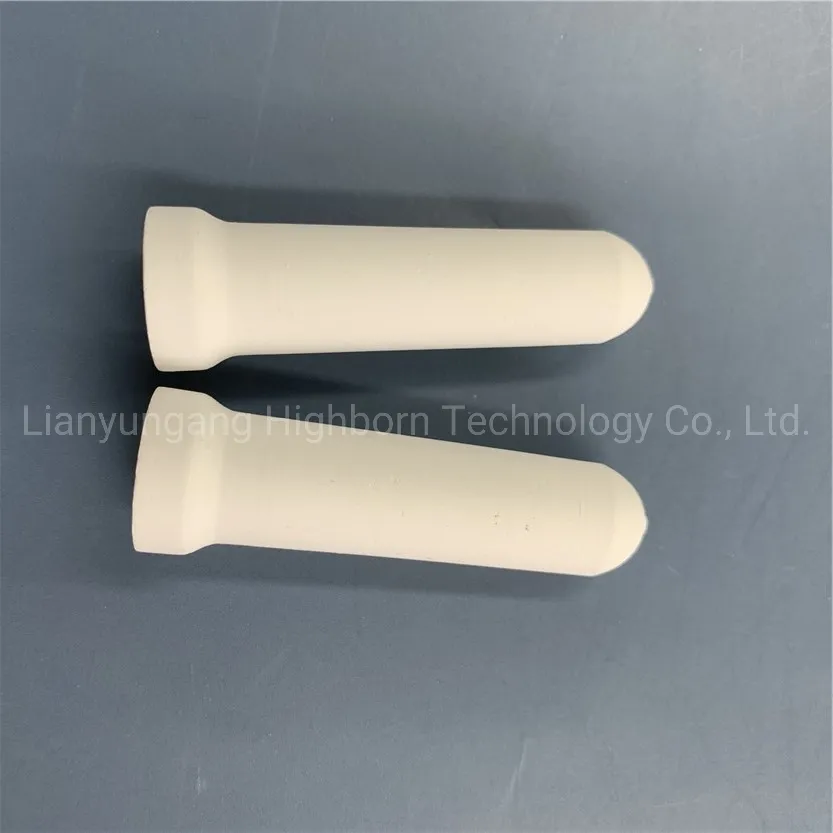

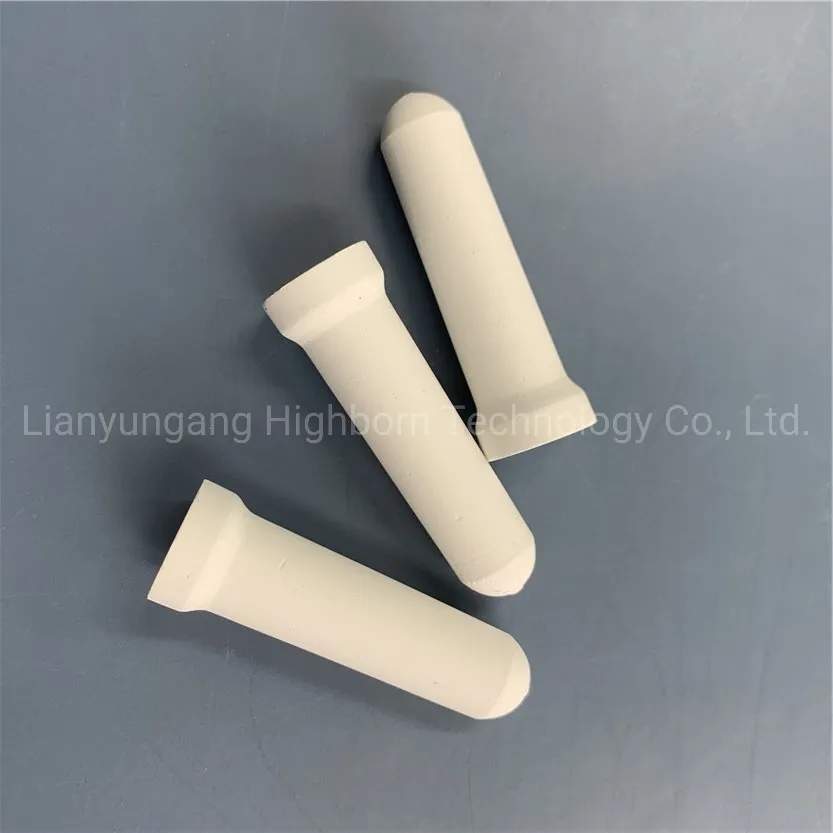

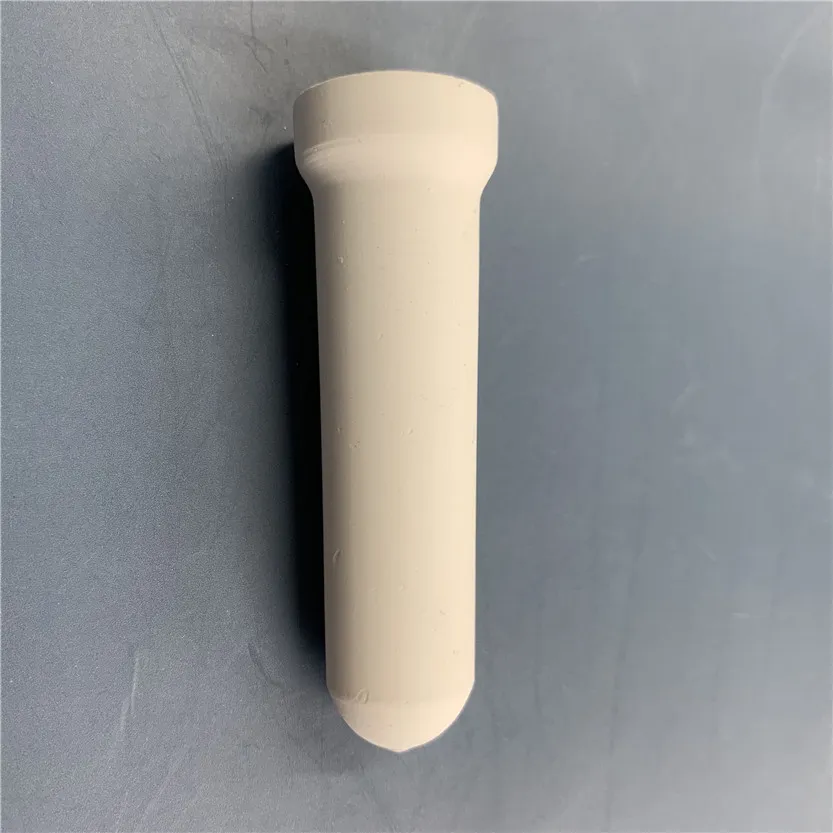

Porous ceramic tubes:
The ceramic head is the sensor part of the instrument, which has many fine pores. After the ceramic head is infiltrated by water, a water film is formed in the pores. When the water-filled and sealed soil hygrometer is inserted into the unsaturated soil, the water film is connected with the soil water, causing negative pressure to be generated in the water inside the instrument. The value of the pressure gauge is the soil water potential of the soil being measured.

Porous ceramic tubes Advantage:



1. Porosity and size can be customized

2. Environmental protection, non-toxic, long life

3. The absorption rate of liquid is stable

4. Acid and alkali corrosion resistance, suitable for all kinds of soil environment

5. Plastic accessories can be customized



Product Parameters

Item Infiltration Cup
Plant Water Absorbing Wick
Electrode Wick
Ceramic Wick
Scented Ceramic
White alumina
Silicon Carbide

(g/cm³)Density

1.6-2.0 0.8-1.2 1.8-2.2 0.8-1.2 1.6-2.0 1.7-2.0 (%)
Open Porosity Rate 30-40 50-60 20-30 40-60 30-45 35-40 (%)
Porosity Rate 40-50 60-75 25-40 60-75 40-50 40-45 (%)
Water Absorption 25-40 40-70 10-28 40-70 25-40 25-35 (μm)
Pore Size 1-5 1-3 1-3 1-3 1-5 1-10
