Fiber Optic Cable 12/24 Single Mode GYXTW Central Loose Tube Aerial

Model NO.	GYXTW
Material Shape	Round Wire
Certification	CE, RoHS
Model	GYXTW
Loose Tube Material	PBT
Outer Sheath Color	Black
Color of Fiber /Loose Tube	Blue, or, Gre, Bro, White, Re, Black, Yel
Installation Style	Duct & Aerial
Armour Material	Corrugated Steel Tape
Stranding Member	Steel Wire or FRP

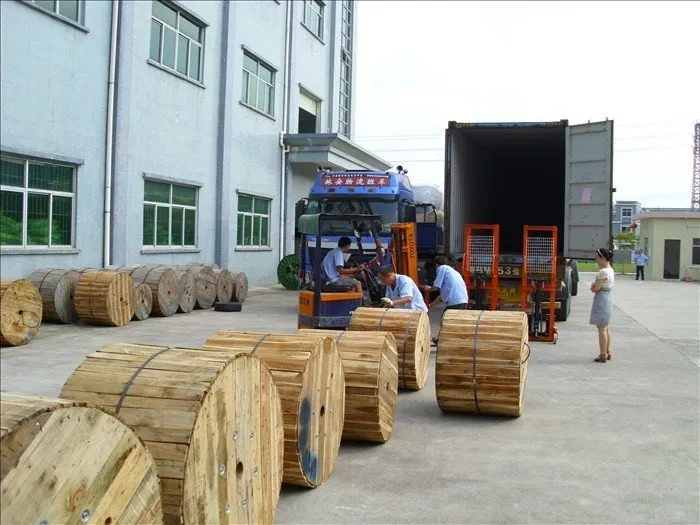

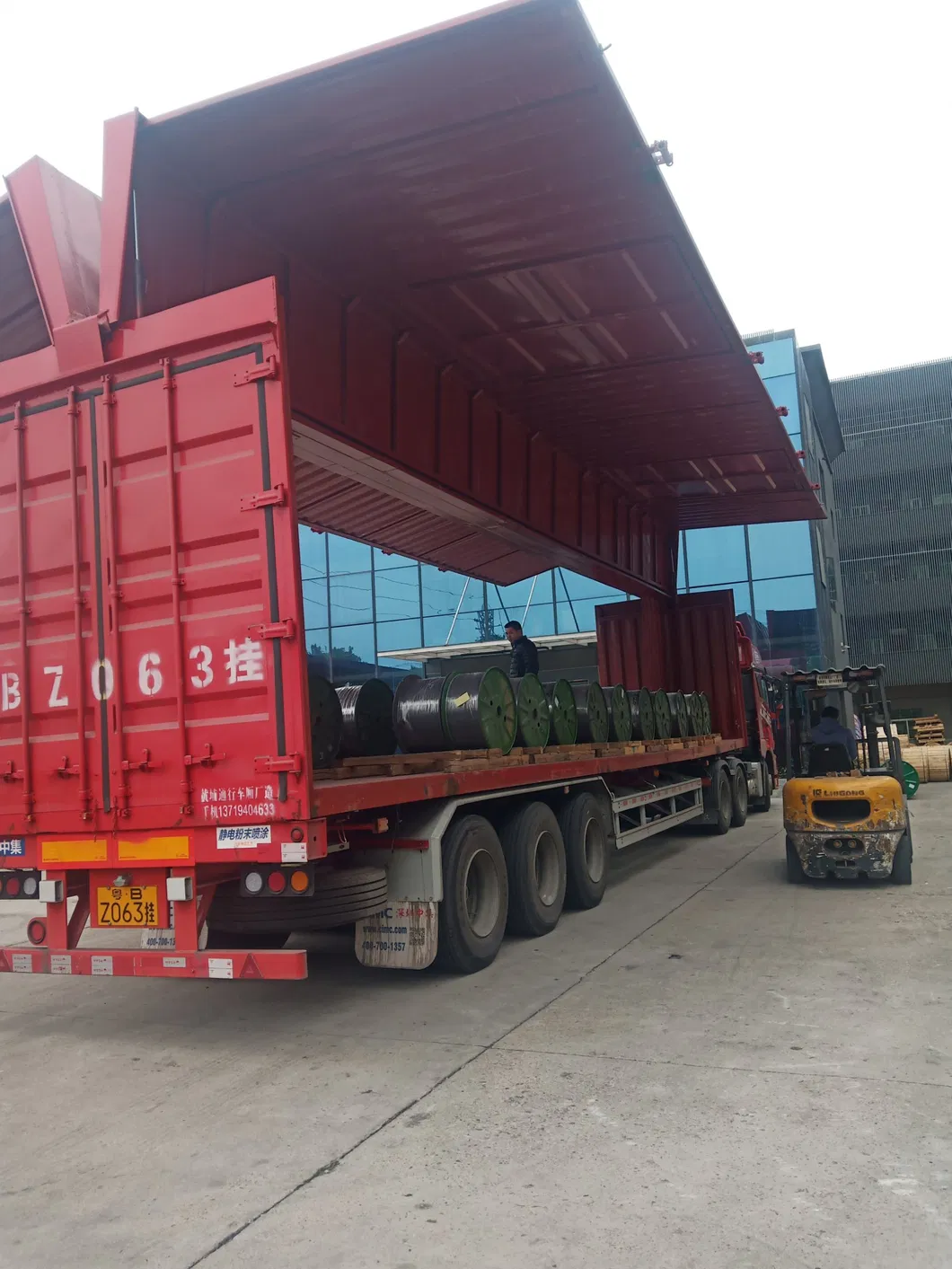

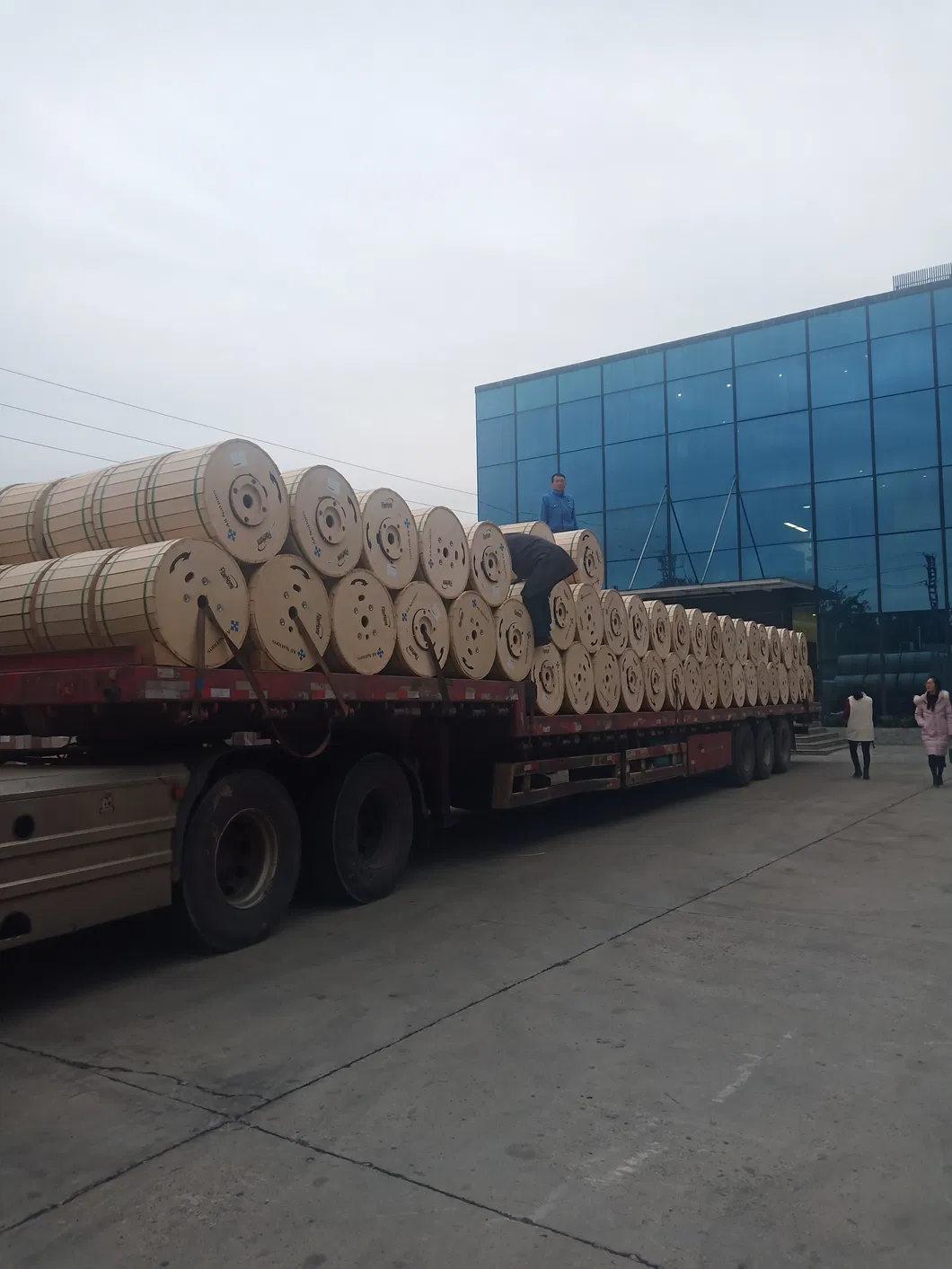

Transport Package	Wooden Drum
Specification	ROHS, CE
Trademark	TW-SCIE or OEM
Origin	Guangdong Dongguan
HS Code	854470000

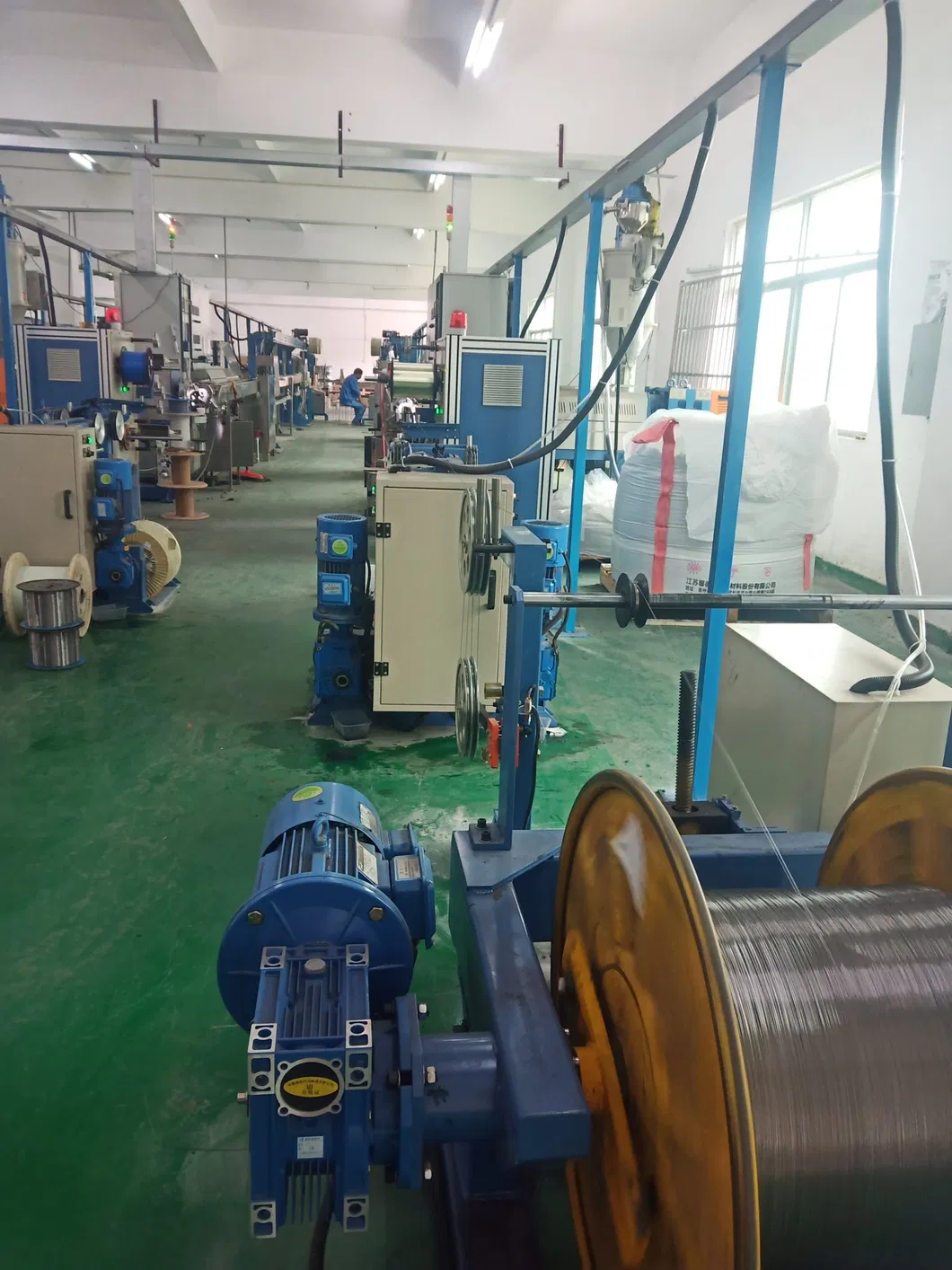

Production Capacity	200km Per Day

 Fiber Optic Cable 12 Single Mode GYXTW Central Loose Tube Aerial


Features:

Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental properties
The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
Operating Temperature : -40~+60 ºC


Fiber styleUnitSM
G652DSM
G657A1SM
G657A2 conditionnm1310/15501310/15501310/1550 attenuationdB/km≤0.36/0.23≤0.35/0.21≤0.35/0.21 Dispersion1310nmPs/(nm*km)≤18≤18≤18 1550nmPs/(nm*km)≤22≤22≤22 Zero dispersion wavelengthnm1312±101312±101300-1324 Zero dispersion slopeps/(nm²×Km)≤0.091≤0.090≤0.092 PMD Maximum Individual Fiber[ps/√km]≤0.2≤0.2≤0.2 PMD Design Link Valueps/(nm²×Km)≤0.08≤0.08≤0.08 Fiber cutoff wavelength λcnm>=1180,≤1330>=1180,≤1330>=1180,≤1330 Cable cutoff wavelength λccnm≤1260.......... MFD1310nmum9.2±0.49.0±0.49.8±0.4 1550nmum10.4±0.810.1±0.59.8±0.5 Step(mean of bidirectional measurement)dB≤0.05≤0.05≤0.05 Irregularities over fiber length and point discontinuitydB≤0.05≤0.05≤0.05 Difference backscatter coefficientdB/km≤0.03≤0.03≤0.03 Attenuation uniformitydB/km≤0.01≤0.01≤0.01 Cladding diameterum125.0±0.1124.8±0.1124.8±0.1 Cladding non-circularity%≤1.0≤0.7≤0.7 Coating diameterum242±7242±7242±7 Coating/chaffinch concentrically errorum≤12.0≤12.0≤12.0 Coating non circularity%≤6.0≤6.0≤6.0 Core/cladding concentricity errorum≤0.6≤0.5≤0.5 Curl(radius)um≥4≥4≥4



Dong Guan Tw-Scie Co., Ltd. is  a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.

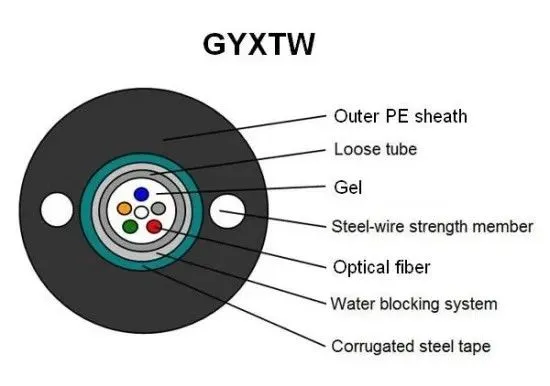

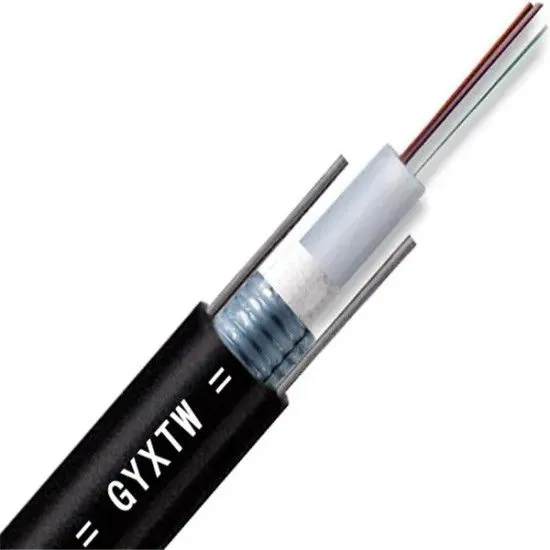

Product Construction:

Fiber:

2-24 fiber

Uni-loose tube gel-filled

Strength Member:

Steel Wire

Armor:

Corrugated steel tape



Outer Jacket:

Black UV Polyethylene(PE)



Technical Specifications:

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~12

8.6

95

1500

600

1000

300

14~24

9.0

110

1500

600

1000

300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for

          more detailed information.



We produce and test cable comply with following standard:

Mechanical Performance

Max Tension Performance

IEC 60794-1-2-E

Max. Operation Tension

IEC 60794-1-2-E1

Crush Test

IEC 6079 -1-2-E3

Impact Test

IEC 60794-1-2-E4

Repeated Bending

IEC 60794-1-2-E6

Torsion Test

IEC 60794-1-2-E7

Cable bend

IEC 60794-1-2-E11A

Attenuation Coefficient

ITU-T G.652

Structural Test

IEC-60793-1-20

Environmental Performance

Temperature Cycling

IEC 60794-1-2-F1

Water Penetration

IEC 60794-1-2-F5B

Filing Compound Flow

IEC 60794-1-E14
