Direct Buried Optical Fiber Cable GYTA53 Stranded Loose Tube Steel Armored

Model NO.	GYTA53
Connection Structure	Fiber Optic Cable
Material Shape	Round Wire
Allowed Lateral Pressure	>1000(N/100mm)
Core	Multicore
Certification	RoHS, ISO9001, Reach
Brand	Tw-Scie/OEM
Sheath Material	LSZH,HDPE,MDPE
Outer Sheath Color	Black
Outer Sheath Material	PE
Filling Gel	Water Blocking Tape or Filling Compound
Metallic Strengthen Member	Steel Wire
Central Member	Mentallic Strength Member
Install Style	Outdoor Direct Buried
Loose Tube Material	PBT with Jelly
Brand Name of Fiber	Corning ,Yofc,Draka, Fujikura.as Your Requiremen
Transport Package	Wooden Drum
Specification	SGS ROHS REACH ISO
Trademark	TW-SCIE or OEM
Origin	China (Mainland) Guangdong Dongguan
HS Code	8544700000
Production Capacity	200km/Day

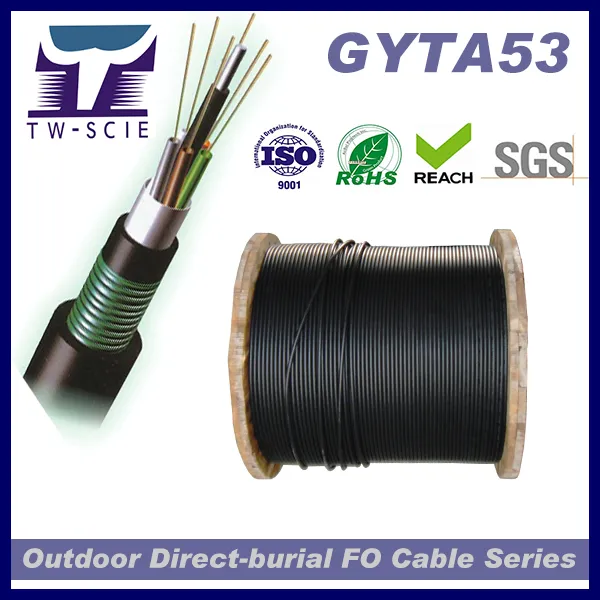

Direct Buried Optical Fiber Cable GYTA53 Stranded Loose Tube Steel Armored

Cable Description:
Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance.

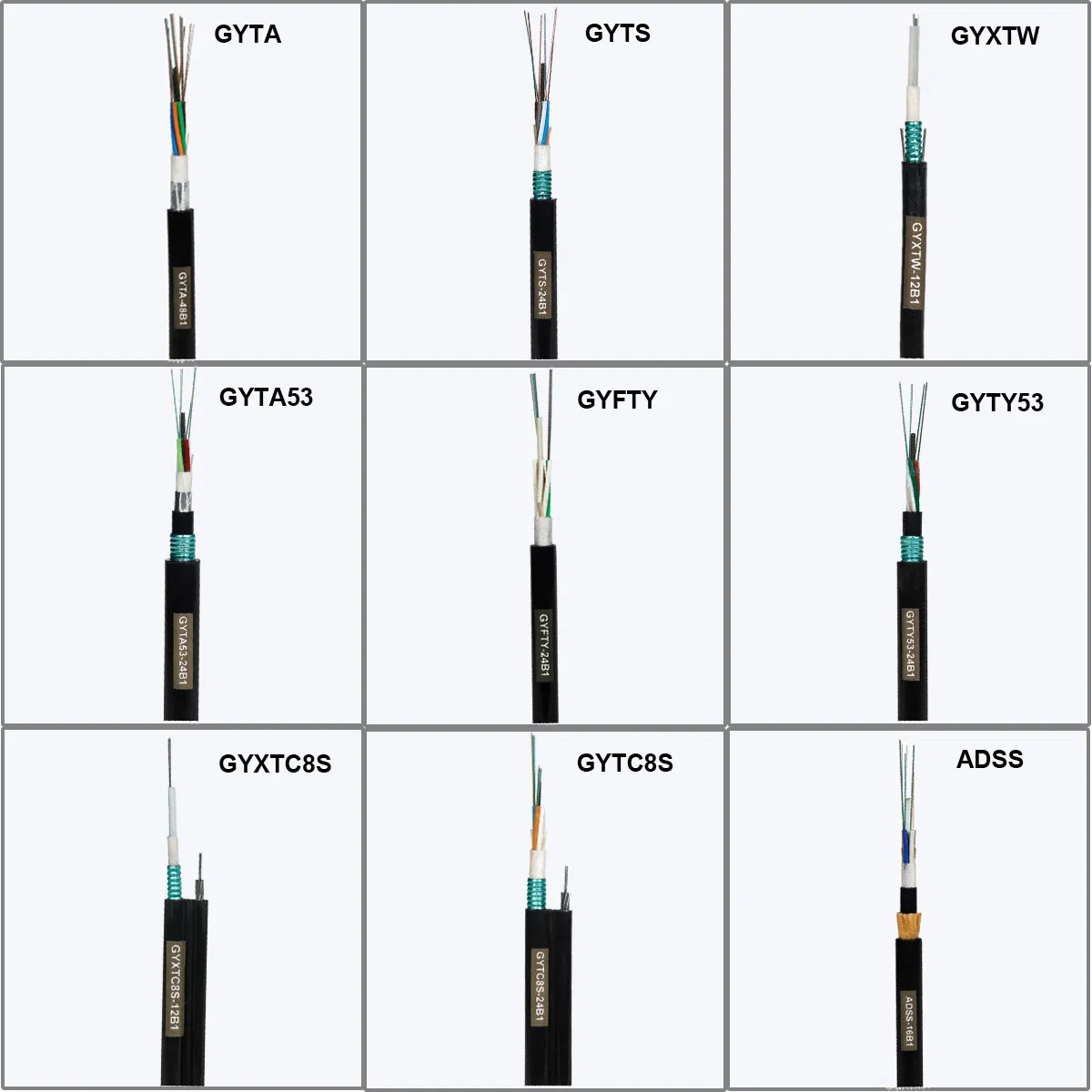

Cable Structure:

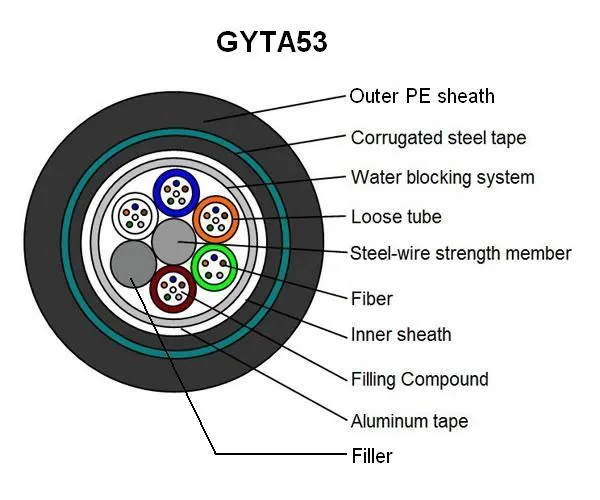

Cable type: GYTA53   For Direct buried installation cable

Dimension and Properties General propertiesUnitNominal value Fiber count (9/125)PC81224 Max. No of loose tube/Fillers PC4/12/34/1 Fiber No. per tubePC866 Central strength membermaterialSteel wire ODmm13mm±0.2 Armour 1materialCorrugated steel tape with plastic Armour 2materialAluminium tape Water blocking materialmaterialWater blocking tape Loose tubeDiametermm1.6±0.2 Material PBT Inner sheathThicknessmm1.0±0.2 Material PE Outer sheathThicknessmm1.8±0.2 Material PE Max. allowable pulling forceN1000/3000 Crush resistanceN/100mm1000/3000



 Working conditions Temperature rangeTransport and storage:- 30ºC to +60ºCMin Bending Radius                   Installation:-30ºC to +60ºCInstallation: 20 x OD Operation:-40ºC to +60ºC Operation: 10 x OD

Note: 1. the nominal outer diameter may vary by ± 5%.            2. The nominal cable weight may vary by ±10%.
G652D Specification:



Category
Description
Specifications
Before cabling
After cabling Optical
Specifications
Attenuation @1310 nm≤0.34 dB/km (max.)≤0.36 dB/km (max.)
Attenuation @1550 nm≤0.20 dB/km (max.)≤0.22 dB/km (max.)
Attenuation @1625 nm≤0.23dB/km≤ 0.25 dB/km
Zero Dispersion Wavelength
1300~1324 nm
Zero Dispersion Slope≤ 0.090 ps/nm2·km PMD Link value (M=20cables Q=0.01% )
maximum PMDQ
0.2 ps/√km
Cable Cutoff Wavelength (λcc)≤1260 nm Macro bending Loss
(1 turn; Ф32 mm) @1550 nm
(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm

≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB
Mode Field Diameter@1310 nm
9.2±0.4μm @1550 nm10.4±0.5μm

Dimensional
Specifications
Cladding Diameter
125 ±0.7μm
Core/clad concentricity error≤0.5μm
Cladding Non-Circularity≤1.0% Mechanical
Specifications
Proof stress
≥0.69Gpa


  G655 Specification:


Category

Description
Specifications
Before cabling
After cabling
Attenuation @1550 nm≤0.20 dB/km (max.)≤0.22 dB/km (max.)
Attenuation @1625 nm≤0.23dB/km≤ 0.24 dB/km
Zero Dispersion Wavelength
≤1520 nm
Zero Dispersion Slope≤ 0.084 ps/nm2·km  PMD Link value (M=20cables Q=0.01% )
maximum PMDQ
≤0.08 ps/√km
Cable Cutoff Wavelength (λcc)≤1450 nm  Macro bending Loss
(1 turn; Ф32 mm) @1550 nm
(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm

≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB  Mode Field Diameter
 @1550 nm9.6±0.5μm

Dimensional
Specifications
Cladding Diameter
124.8 ±0.7μm
Core/clad concentricity error≤0.6μm
Cladding Non-Circularity≤1.0% Mechanical
Specifications
Proof stress   off line≥9.0 N
≥1.0 %
≥100 kpsi

Reference:
The cable which we offered are designed, manufactured and tested according to international standards as follows:

IEC 60794-1-1
Optical fiber cables. Part 1: Generic specification
IEC 60794-1-2
Generic specification- basic optical cable test procedures IEC 60793-3Outer cables- sectional specification

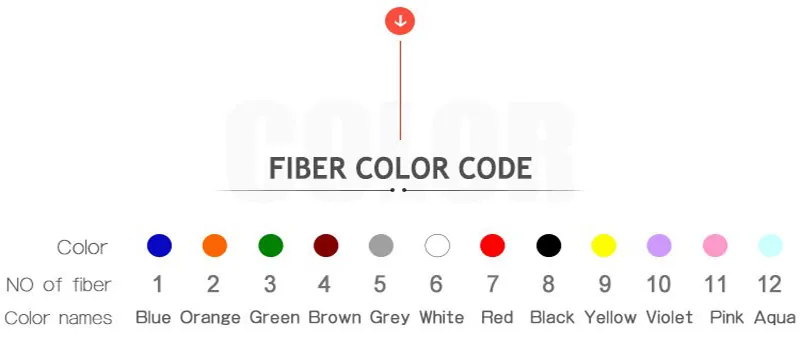

IEC 60794-3-20Outdoor cables- family specification for optical self-supporting aerial telecommunication cables EIA/TIA 598 BColor code of fiber optic cables ITU-T G.650Definition and test methods for the relevant parameters of single-mode fibers ITU-T G.652Characteristics of a single-mode optical fiber cable ITU-T G.655Characteristics of a non-zero dispersion-shifted single-mode optical fiber and cable IEC 60332 Part 1Fire test on single cables IEC 60332 Part 3Fire test on bundled cables IEC 60754 Part 1&2Corrosivity of gases (halogen free) IEC 60331-11/25Circuit integrity with flaming(90 mins flame application time and 15 mins cooling time
  IEC 61034-2Measure to smoke density(>60% transmittance ) ASTM D 2863Limiting oxygen and temperature index (Oxygen index>35 and temperature index>260)

PACKING AND DRUM:

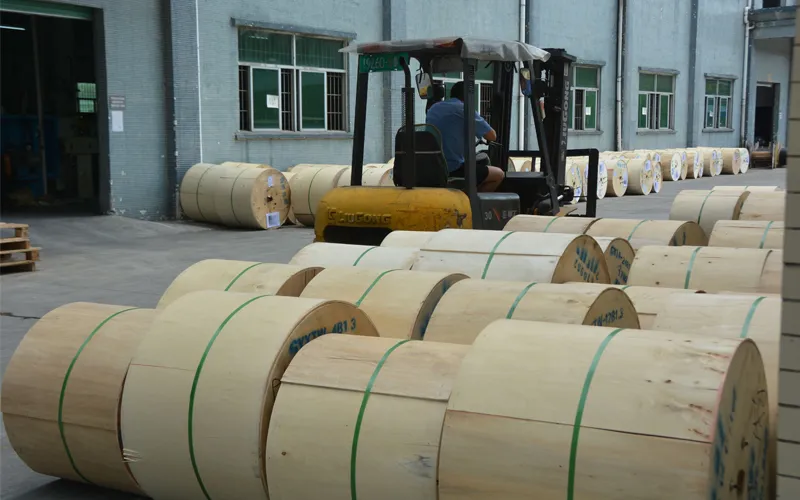

Our cables are packed in carton, coiled on Bakelite & wooden reel. During transportation, right tool should be used to avoid damaging the package, and handle carefully. Cables should be protected from moisture; Cables should be kept away from high temperature condition and spark; Cables should be protected from over bending and crushing; Cables should be protected from mechanical damage.
