Galvanized Corrugated Metal Culvert 3m Round/Oval Section Shape Welding Cutting Bending Punching Ser

Drainage Culvert Long Lifespan Customizable Galvanized Corrugated Culvert Pipe

Product Description

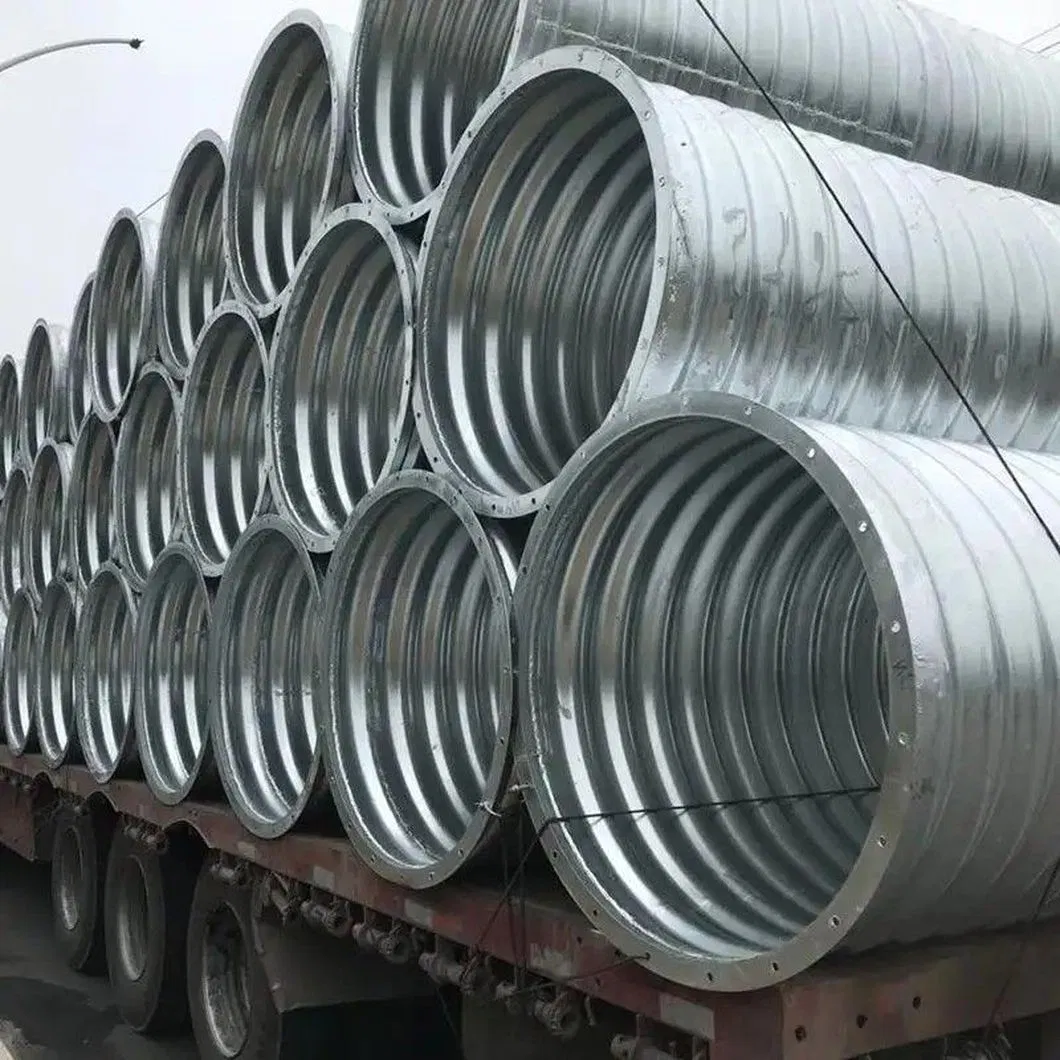

Galvanized Corrugated Steel Culvert Pipe

Galvanized corrugated steel culvert also called corrugated metal culvert pipe, refers to laying buried in the highway, or railway culvert under the screw corrugated pipe, it is made of corrugated metal plate roll or semicircle corrugated steel plate made of makings of circular corrugated pipe, widely used in highways, railways, bridges, tunnels, retaining walls, and a variety of mines and the retaining wall of roadway supporting the engineering of the culvert (tube).

Compared with reinforced concrete culverts, corrugated culvert has the advantages of thin pipe sections, lightweight, easy transportation and storage, simple construction technology, quick assembly, short construction period,d and so on.

When building a corrugated culvert, can be assembled into any length according to the need, when necessary, the pipe section can also be removed, and moved to another place to build, in the lack of sand and stone material area or low foundation-bearing capacity area, the superior of the corrugated culvert is more significant. Convenient construction: bellows culm is the use of a sleeve or flange connection, and can be customized according to the length, even if not skilled workers can also operate, construction with a small amount of manual operation, can be completed in a short time, fast and convenient.

Product Parameters

GALVANIZED CORRUGATED STEEL CULVERT PIPE Product NameGalvanized Corrugated Steel Culvert Pipe KeywordsCorrugated Galvanized Steel Culvert Pipe Material GradeQ195,Q235,Q345,SS400,A36,A53,10#,20#,35#,45#,20g,40cr,20gr,16mn-45mn Length12m, 6m, 6.4m or Customized Thickness2 - 10 mm Customizable Spacing Wave150, 200, 300, 400mm TypeWelding, Punching, Cutting ShapeExtruded, Culvert Pipe Surface TreatmentHot Dip Galvanized, Pre-galvanized Tolerance±5% Diameter500-14000mm or Customized StandardGB,ASTM,API,JIS ApplicationFluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe Payment TermsL/C ; T/T The Table Parameters Are For Reference Only, Please Refer To The Actual Goods Received

High-strength Corrosion Resistance

The corrugated design increases the strength and load-bearing capacity of the pipeline, allowing it to withstand greater pressure and load, and is suitable for various engineering environments. it has good corrosion resistance and can be used for a long time in humid and corrosive environments.

Lightweight

Compared with traditional steel pipes, corrugated steel pipes are lighter in weight, easier to transport and install, and reduce the requirements for supporting structures.

Flexibility

Corrugated steel pipes have a certain degree of flexibility and can adapt to terrain changes, reducing the requirements for foundations, and being suitable for complex terrain and geological conditions.

Inspection Test & Thickness Test

Raw material sampling inspection, tensile strength test.
Compressing waves, curve shape, and slotting are all strictly accorded with standard

Long Service Life

The steel corrugated pipe culvert adopts hot-dip galvanized steel pipe, with a service life of 80-100 years. when used in a particularly corrosive environment, the steel corrugated pipe with asphalt coating on the inner and outer surfaces can be used to extend the original service life by more than 20 years.

Detailed Photos
