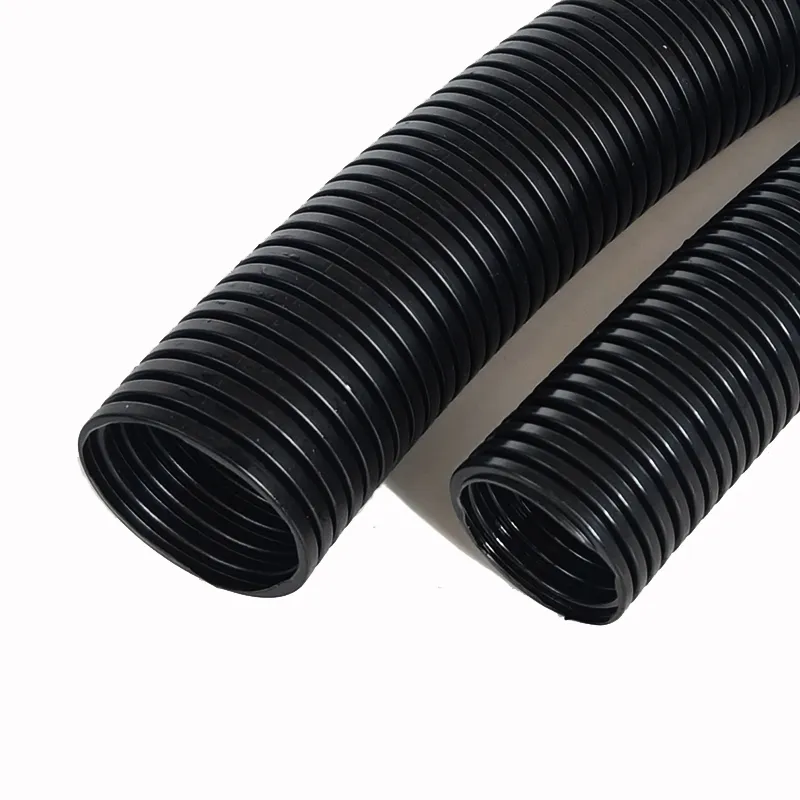

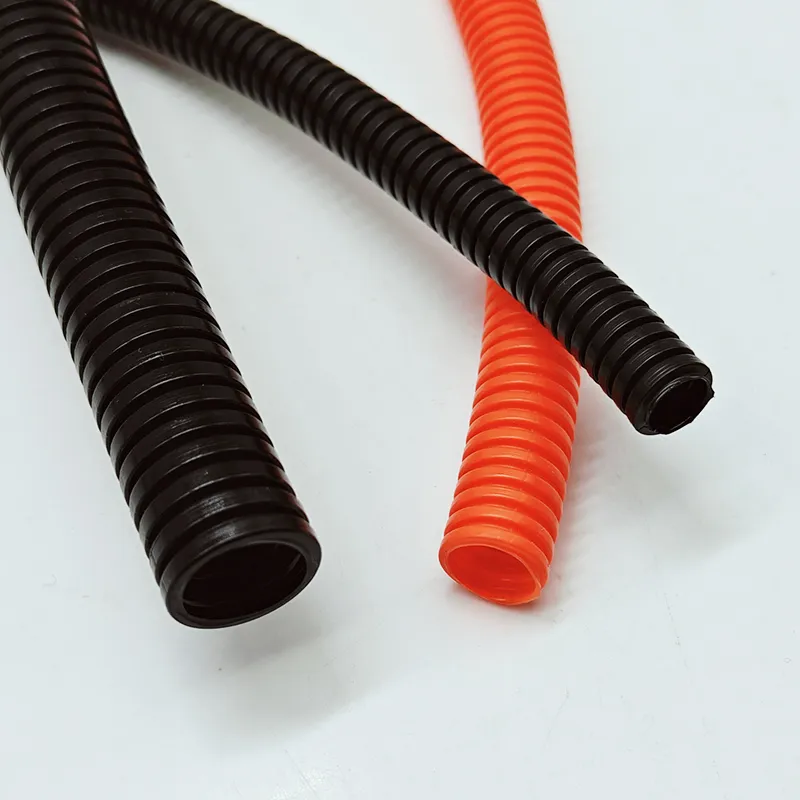

UV Resistance Solar Panel Harness Protection Corrugated Flexible Conduit

UV resistance Solar panel harness protection corrugated flexible conduit

[Product Description]

1.Comply with RoHS

2.UL94 V0 flame retardant, self-extinguishing once leave the open fire within 5s

3.UV resistance, suitable for use indoor or outdoor electrical construction

4.Working temperature range reaches -40ºC to 150ºC.

5.Corrosion resistance, compression resistance, wear resistance

6.High quality with 100% brand new raw materials use in products, never use recycled materials

7.Lighter than metal one, easy to install, save the cost of shipping and installation

8.Custom service available, size and color can be customized, your brand or logo can be printed on the conduits

[Product Parameters]

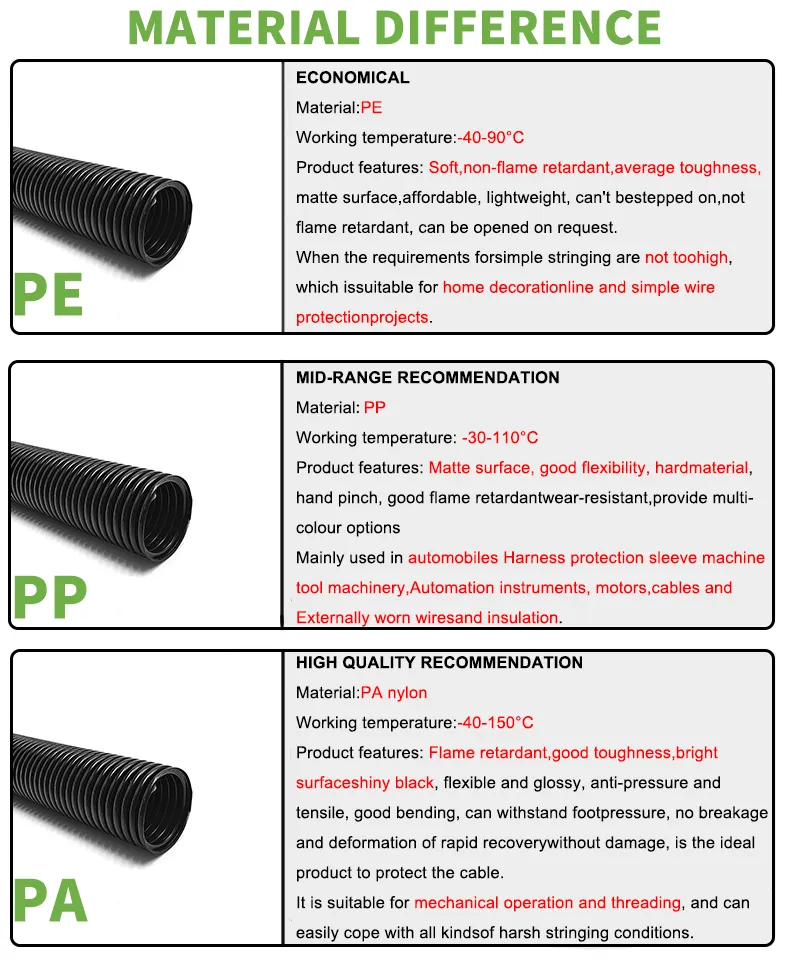

TUBE TYPE INSIDE DIAMETER EXTERNAL DIAMETER MOQ/METER PA/PP/PE-K7B 4.6±0.40 7.0±0.40 500 PA/PP/PE-K7.6 5.2+0.40 7.6±0.40 400 PA/PP/PE-K8.5B 5.5+0.40 8.5+0.40 400 PA/PP/PE-K10B 7.0±0.40 10+0.40 200 PA/PP/PE-K11.5B 8.5+0.40 11.5+0.40 200 PA/PP/PE-K12.7B 9.0±0.40 12.7+0.40 200 PA/PP/PE-K13B 10.0+0.40 13+0.40 200 PA/PP/PE-K14B 11.0+0.40 14+0.40 200 ... ... ... ... PA/PP/PE-K54.5B 48+0.50 54.5+0.50 25 If there is no size you want in the table Please contact us

[Pakaging And Delivery]

-Packing:25m-500m/roll

-Remarks:We can pack corrugated flexible conduit according to your requirment

[Application Scenes]

[Related Product]

[Out Company]
 We are established in 22010 and is located in Humen Town,a famous manufacturing town in China's Pearl River Delta SpecialEconomic Zone. Dongguan Fuyuxuan Electronics Co., Ltd. is a professional manufacturer integrating R&D, production and sales of plastic hoses.

  Mainly produce various plastic corrugated conduit (PA/PP/PE/EVA), corrugated conduit connector, PVC tubes, heat shrink tubes, Cable ties, and disposable hookah hoses.The company's products are widely used in new energy vehicle wiring harnesses, electric power, motors, construction machinery, electronic appliances, lighting, toys, vacuum cleaners, air pumps and other industries.We has won the trust and support of our customers with its high-quality products, reasonable prices and perfect services. In recent years, a complete sales network has beenr formed in China, and stable and friendly cooperative relations have been established with customers in Japan, South America, Western Europe and other countries.

Our main series of products are as follow:

1) Low smoke and halogen free conduit& fittings

2) Solar conduit & fittings

3) Electrical conduit &fittings

4) Corrugated conduit &fittings

5) OEM and ODM availble

[Out Certificates]
[Out Exhibition]
[
