Factory Directly Supply PPR Fitting with Classic Series Diameter 20-32 Made in China

Model NO.	all standard size
Type	Equal
Connection	Welding
Material	PP-R
Shape	Equal Tee
Lateral	90°Tee
Head Code	Round
Wall Thickness	SCH STD
Finish	Hot Galvanized
Technics	Extrusion
Pressure Rating	55
Standard	GB
Certification	ISO, CE
Color	Green/White/Grey
Size	20mm-110mm
Working Temperature	0-95
Thermal Conductivity	0.24W/M.K
Density	0.94G/Cm3
Transport Package	Cartons
Specification	20mm-110mm
Trademark	ASB/OEM
Origin	China
HS Code	39174000
Production Capacity	350 Million PCS/Year

PRODUCT DEscriptION

ASB PP-R PIPE fittings are made of Polypropylene Random, which has comprehensive physical and chemical properties, as well as Hygiene properties. With high-quality materials. ASB PP-R pipe fittings meet the DIN8077/8078 standard. Depending on the pressure, the pipes can be used in temperature up to 70°C with an extrapolated service life of up to 50 years.

ASB PPR PIPE FITTINGS CHARACTERISTICS
1)100% excellent raw materials, safe and hygiene.
2)Drinking water pipeline system.
3)Recyclable, benefit to the environment

BASIC INFORMATION
MOQ: 5 carton boxes/ item
Delivery Port: Ningbo or Shanghai
Payment Term: TT or LC
Standard: DIN8077 DIN8078, ISO15874
Material: imported Raw Material from Korea, SINOPEC from China and Taiwan HYOSUNG
Brand Name: ASB or OEM
Color: White, Green, Grey or produce as request

TECHNICAL REQUIREMENT

CharacteristicRequirementsTest Methods Physical characteristics for PPR pipe Impact resistance of PPR pipe
(0ºC)<10%ISO 9854 Longitudinal reversion of PPR pipe
(135ºC)≤2%EN 743 Thermal stability by hydrostatic pressure testing of PPR pipe
(110ºC, 1.9Mpa)No bursting during the test periodEN921
  Melt Flow Rate of PPR pipe
(2.16Kg,230ºC,10min.)30 % maximum difference compared with compoundISO 1133 Mechanical characteristics for PPR pipe Resistance to internal pressureHydrostatic (hoop) stress 16.0Mpa; Temperature 20ºC; Test time 1 hour
No failure during the test periodEN 921
  Hydrostatic (hoop) stress 5.1Mpa; Temperature 95ºC; Test time 22 hour
No failure during the test period Hydrostatic (hoop) stress 4.2Mpa; Temperature 95ºC; Test time 165 hour
No failure during the test period Hydrostatic (hoop) stress 3.5Mpa; Temperature 95ºC; Test time 1000 hour
No failure during the test period

PRODUCT SPECIFICATION

DescriptionPictureSize PackageWeight Carton Size    pcs/ctngLxWxH 90° ElbowL20650 15.0 54×27×27 L25390 24.0 L32260 39.0 L40120 80.0 L5070 106.0 L6340 236.0 L7530 467.0 L9020 635.0 L11010 1200.0

APPLICATIONS
Residential hot and cold water system
Underground heating system
Conveyor for industrial water and chemical raw materials
Sanitary and purified water pipelines
Hot water circulation system
Compressed air piping
Beverage production and delivery system
Other industrial and agricultural pipelines

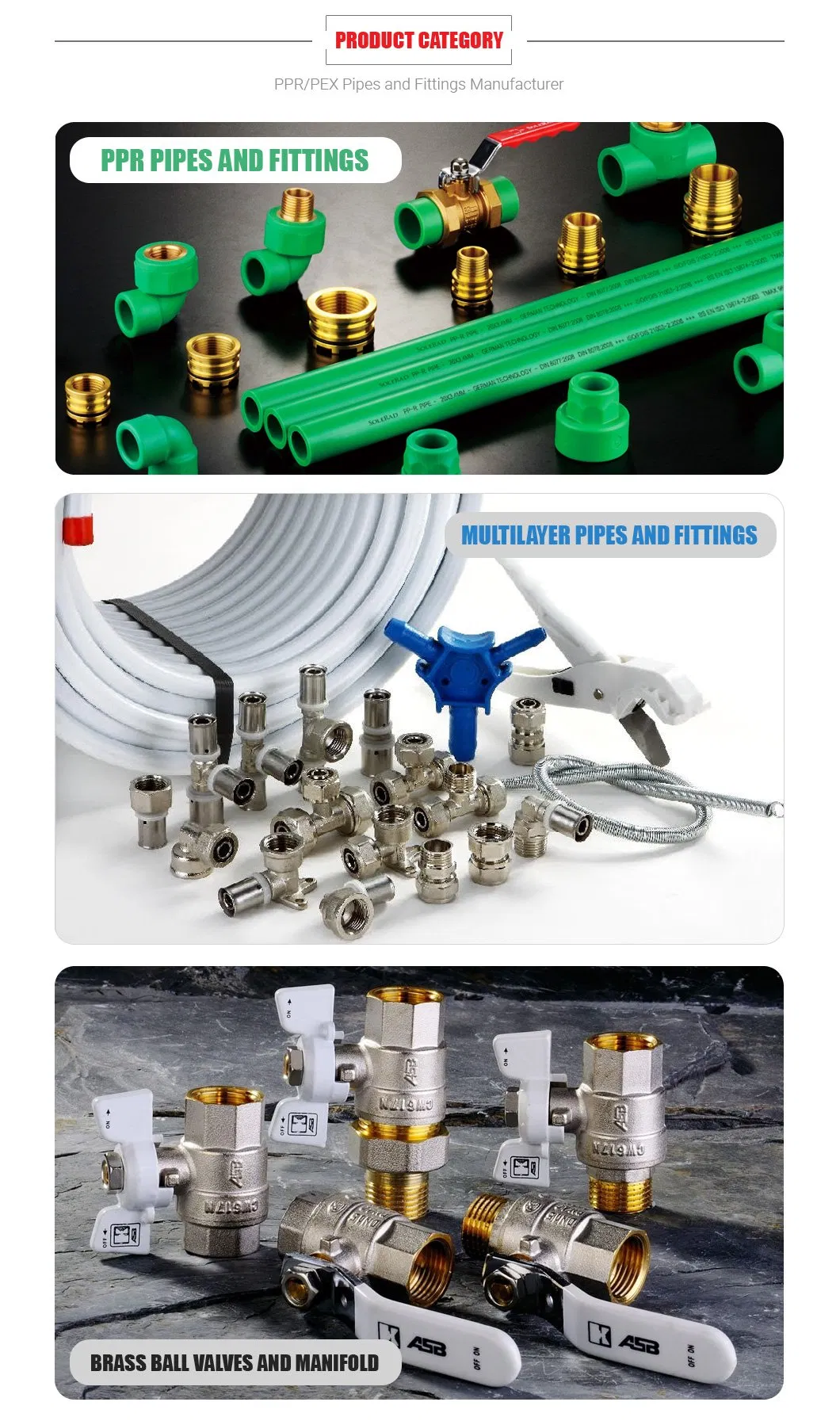

FULL RANGE SIZE ITEMS
