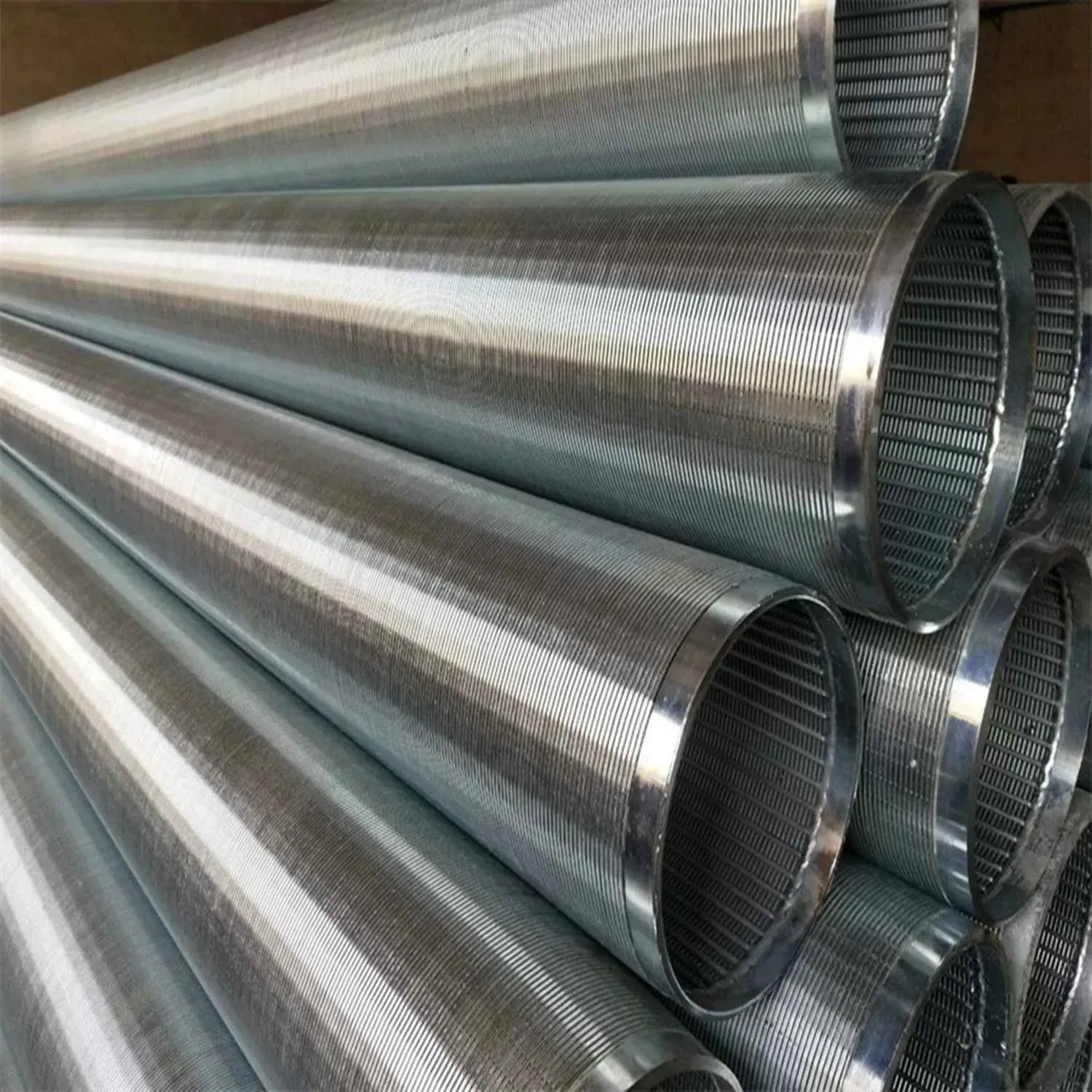

Galvanized Q195 Q135 Wire Wrapped Water Well Screen Pipe
Detailed specification for Galvanized Q195 Q135 Wire Wrapped Water Well Screen Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | XL-1326 |
| Usage | Liquid Filter, Solid Filter |
| Type | Filter Elements |
| Hole Shape | Square |
| Structure | Single Network |
| Length | 10FT, 20FT |
| End Connection | Welded Rings, or Threaded Male & Female Coupling |
| Slot / Gap | 0.010", 0.020", 0.030", 0.040",0.060",0.070",0080" |
| Name | Galvanized Johnson Type Well Screen |
| Transport Package | Wooden Box |
| Specification | Diameter: 1-30inch |
| Trademark | XL |
| Origin | Anping, Hengshui |
| HS Code | 84139100 |
Galvanized Q195 Q135 Wire Wrapped Water Well Screen Pipe
Anping County Xinlu Wire Mesh Products Co., Ltd. offers Water Well Screens manufactured using unique computerised machinery. The 'V' shaped profile wire is fusion welded onto support rods, creating a continuous slot opening. Advantages include increased open area for better access to the aquifer, prevention of clogging, and efficient well development.
Technical Details:
- Slot (mm): Standards - 0.25, 0.50, 0.75, 1.00, 1.50, 2.00, 3.00. Customized slots available.
- Materials of Construction: AISI 304 & 316 grade Stainless Steel, Low Carbon Steel, Galvanized Steel.
- Screen lengths (metres): Standard lengths - 2.90m & 3m or 5.80m & 6m (for others, please contact us).
- Screen end-fittings available.
Screen Size
Inside Diameter
Outside Diameter
OD of Female Threaded End
in
mm
In
mm
in
mm
In
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
131/8
333
14
356
_
_
16
406
15
381
16
406
_
_
20
508
18 3/4
476
20
508
_
_
PROFILE WIRE
SUPPORT ROD
ROUND
Water Well Screen for Dewatering
Water removal on construction sites is essential before excavation can begin. Xinlu's water well screens effectively filter out sand from drainage pipes, improving water removal efficiency.
Features:
- High Open Area: More than 25% open area for efficient water seepage with low flow resistance.
- Non-clogging Performance: Continuous slots minimize sand clogging.
- Excellent Pressure Resistance: Welded wedge wire screen for high-pressure applications.
- Great Sand Barrier: Precisely machined slots prevent sand, silt, and clay from entering the well.
- Easy Installation: Lightweight and safe for convenient installation.
Material:
The screen is available in galvanized, low-carbon steel, or stainless steel (grades 304 and 316) for non-clogging performance.
Custom Well Screens:
Provide your specifications for diameter, slot opening size, length, and open area percentage for customized products.
Main Specs for Water Well Screen:
- Well Screen Material: Stainless steel, galvanized low-carbon steel, or custom materials.
- Slot Opening Size: 0.1mm-15mm.
- Diameter (Inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm.
- Length: 2.9m, 5.85m (maximum length: 6.05m).
- Connection Method: Beveled, circumferential welded, threaded connection.
Technical Specs of Water Well Screen:
For more information, contact Anping County Xinlu Wire Mesh Products Co., Ltd.
Anping County Xinlu Wire Mesh Products Co., Ltd.
Product Description:
Introducing the Feiya group branch factory-Xinlu wedge wire screen, a cutting-edge solution for efficient production wells. This screen is expertly crafted by helically winding a continuous triangular shaped wire around vertical support rods, ensuring precise slot control that meets rigorous quality standards.
Sand control is crucial for well management, and the unique slot design of the wedge wire screen minimizes sand entry, reducing the risk of clogging or abrasions. This design allows for a higher water flow rate, ultimately boosting well productivity. Widely used in well completion, geothermal well construction, and remedial construction work, the wedge wire screen offers a multitude of benefits:
- Maximum Flow Rate: Uniform slot pattern allows water to enter from all directions.
- Excellent Sand Control Performance: Slot openings between 0.5mm and 1.5mm keep sand and abrasive particles out.
- Long Well Life: Anti-corrosion treatments ensure durability and resistance to rust.
- Easy Installation: Lightweight design makes installation hassle-free.
- Standard Length: Each screen is 3.2m long, with options for pup joints.
- Connection Method: Welded, threaded, and flanged connections available.
Applications for the wedge wire screen include vertical wells, deviated wells, directional wells, and any wells requiring sand control. Trust the Feiya group branch factory-Xinlu wedge wire screen for reliable and efficient well management.
Main Specifications:
(mm)
Water Well Screen for Geothermal Air Conditioners
Product Description:
Discover our Water Well Screen for Heat Pump from Anping County Xinlu Wire Mesh Products Co., Ltd. This Well Screen Pipe is made of Low Carbon Galvanized Material, ideal for Sand Control and liquid/solid filtration.
Features:
- High open area (>25%) for easy water flow with minimal resistance
- Vee-wire slot design minimizes clogging
- Welded wedge wire construction for high pressure resistance
- Precise slot control for excellent sand control performance
- Lightweight design for easy installation
Materials:
Utilizes galvanized low carbon steel and stainless steel for maximum flow rate and impurity resistance.
Applications:
Specifically designed for geothermal air conditioners to pump water into and out of the ground.
Custom Solutions:
Provide your specifications for outside diameter, slot size, length, and open area percentage for tailored wedge wire screens to meet your needs.
Order Information:
Introducing high-quality screen materials from Anping County Xinlu Wire Mesh Products Co., Ltd. Choose from stainless steel, galvanized carbon steel, carbon steel with plastic coating, or customize materials to suit your needs.
Key Features:
- Slot size ranging from 0.1mm to 15mm
- Diameter options from 2mm to 1000mm
- Length available in 2.9m and 5.85m, with a maximum length of 6.05m
- Connection methods include beveled, circumferentially welded, or threaded connections
Upgrade your screening solutions with our versatile and durable products. Contact Anping County Xinlu Wire Mesh Products Co., Ltd. today to learn more!
Well Screen Pipe with Low Carbon Galvanized Material
Stay informed! Data in the tale above may change without prior notice.
Company Name: Anping County Xinlu Wire Mesh Products Co., Ltd.
Product Name:
Well Screen Pipe with Low Carbon Galvanized Material
Keywords:
Sand Control Well Screen, Wedge Wire Screen Pipe, Johnson Screen Tube, Water Well Screen, Spiral Screen Pipe, Johnson Wire Screens, Oil Well Screen, Wire Wrapped Screen Pipe, V Wire Screens, V Wire Slot Tube, Wedge Wire Strainer Pipe, Stainless Steel Screens, Vee Wire Filter Tube, Continuous Slot Screen Pipe, Johnson Wire Screen Tube, Johnson Wire Screen Pipe
Attributes:
- Material: Metal
- Layers: Single
- Purpose: Liquid Filter, Solid Filter
Welcome to Anping County Xinlu Wire Mesh Products Co., Ltd.
Located in Anping country, Hebei Province, China, our factory specializes in manufacturing a wide range of high-quality wire mesh products. Our offerings include:
- Stainless steel vee shaped wire / wrap wire
- Johnson screen
- Water well screen
- Rod-based wire wrapped screen
- Wedge wire screen pipe
- Reverse wedge wire screen
- V wire screens
- Johnson filter nozzle
- Screen nozzle
- Water and gas strainer
- Sieve bend screen
- DSM Screen
- Drum screen
- ARC screen
- Header and hub laterals & hub radial laterals
- Pipe base
- Dewatering well screen
- Continuous slot screens
- Stainless steel wire mesh
- Perforated wire mesh
Choose Anping County Xinlu Wire Mesh Products Co., Ltd. for all your wire mesh needs!
