Factory Directly Supply PPR Pipe and Fitting for Hot and Cold Water with CE Certified Made in China

Model NO.	all standard size
Material	PPR
Kind	Thermoplastics Pipes
Water Absorption	0.12%~0.25%
Contraction Percentage	1.0%~2.5%
Tensile Strength	41~50MPa
Standard	DIN8077/8078
Certification	CE, GOST-R, ISO
Size	16mm-160mm
Colour	White/Green/Grey
MOQ	5000meters
Transport Package	Cartons by Sea or Air
Specification	20mm-110mm
Trademark	ASB/OEM
Origin	China
HS Code	39172200
Production Capacity	50 Million Meters/Year

Product Description

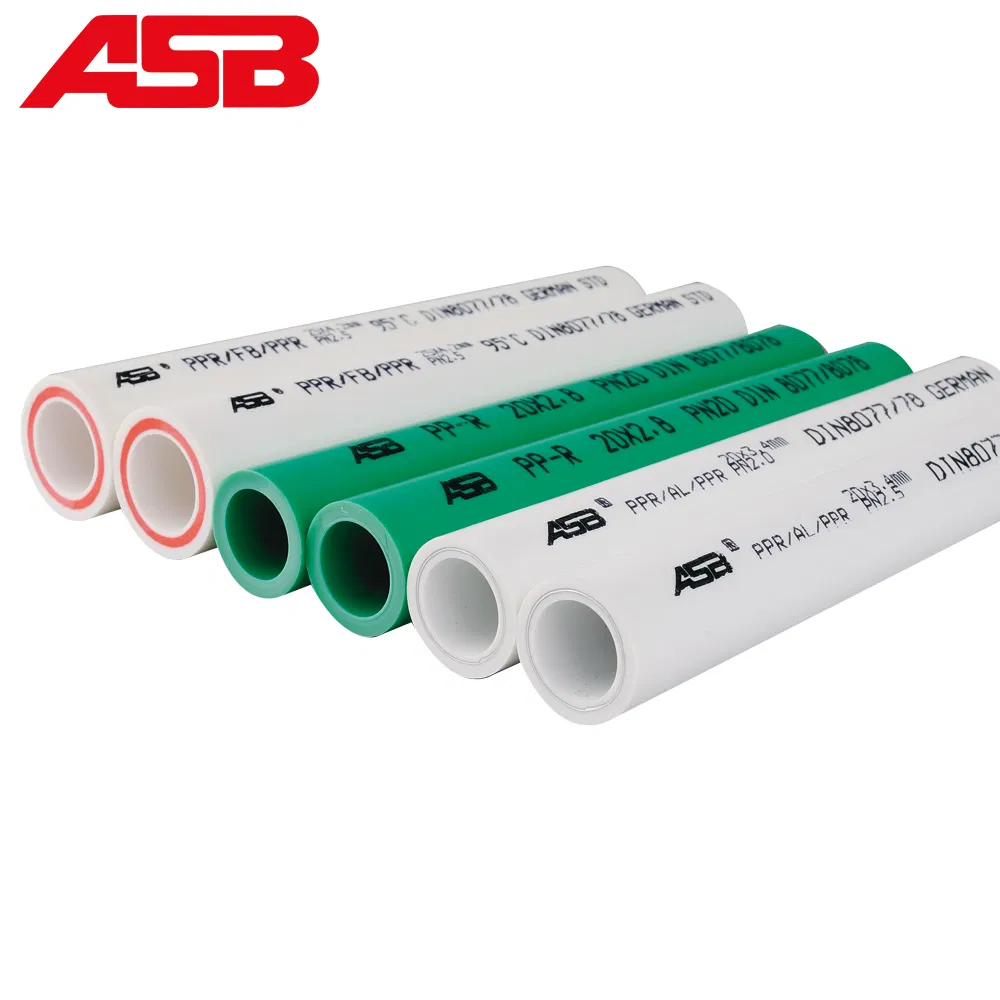

ASB polypropylene plumbing pipe is the full name of PPR plumbing pipe.
ASB has a whole set of PPR plumbing pipe products---PPR pipes and PPR pipe fittings, it has varied sizes from 20mm to 110mm and the pressure resistance from PN12.5 to PN25, which can satisfy different persons' requests.


Product Specification

PPR Pipe (GB/T 18742, DIN 8077/8078, EN ISO 15874) S5
/ PN12.5barsS4
/ PN16barsS3.2
/ PN20barsS2.5
/ PN25bars 20×2.020×2.320×2.820×3.4 25×2.325×2.825×3.525×4.2 32×2.932×3.632×4.432×5.4 40×3.740×4.540×5.540×6.7 50×4.650×5.650×6.950×8.3 63×5.863×7.163×8.663×10.5 75×6.875×8.475×10.375×12.5 90×8.290×10.190×12.390×15.0 110×10.0110×12.3110×15.1110×18.3

 Product Details

Product namePPR pipe Sizes availableDN20-110mm Pressure ratingPN12.5 bars, PN16 bars, PN20 bars, PN25 bars Material usedHigh-quality PPR raw material Colors availableGreen, grey & white, or as per request Standards follow toGB/T 18742, DIN 8077/8078, EN ISO 15874 OEM availableAvailable Samples availableYes, the sample is available for a small quantity. Packing methodPipe in bars with 4m length, each package be wrapped by PP bags, or as per request MOQNegotiable Production lead timeAbout 10-15 days for a 20ft container, 20-25 days for a 40ft container Warranty time15 years for normal using Payment termT/T or LC at sight FOB loading portNingbo or Shanghai China Place of originZhejiang, China

Features & Advantages
1-Good Appearance and Light Weight
The inner and outer walls of the product are smooth, the fluid resistance is small, the color is soft, the shape is beautiful, and the weight is only about 1/8 of the metal tube, which is convenient for transportation and installation.

2-Long Life
High pressure-resistant and high temperature resistant. ASB PP-R Pipe's life can be 50 years under normal conditions.

3-Hygiene
Green building materials, non-toxic, non-polluting, recyclable, not only for hot and cold water pipes but also for potable water systems

4-Good Thermostabilization
The Vicat softening point of the ASB PP-R pipe is 131.5ºC, it can be used for a long time when the working water temperature is 70 ºC, meeting the requirements of the hot water system in a real building.

5-Insulation and Energy Saving
The Thermal Conductivity of the ASB PP-R Pipe is only 0.21w/m.k, just 1/200 of the steel pipe
6-Easy installation
Using a hot-melt connection, a joint connection can be completed in several seconds. The pipe and fittings are made of the same type of raw material and the pipe-fitting joints reach the molecular level fusion, making it a whole system perfectly.Testing Center
ASB PPR water pipes are inspected from the materials to finished products, we testing the MTR, Hardness, Hydrostatic pressure and burst pressure, etc to make sure the quality is at the top level.

Application Areas

1.Residential Apartments

2.Hospital, Hotel, School, Office, Public Places, etc.

3.Hot and Cold Water System, Potable Water System

4.Solar System

5.Rainwater Pipe Network

6.Swimming Pool Pipe Network

7.Agriculture, Garden Pipe Network

8.Industrial Pipe Networks Such As Food, Chemical, Electronics, etc.

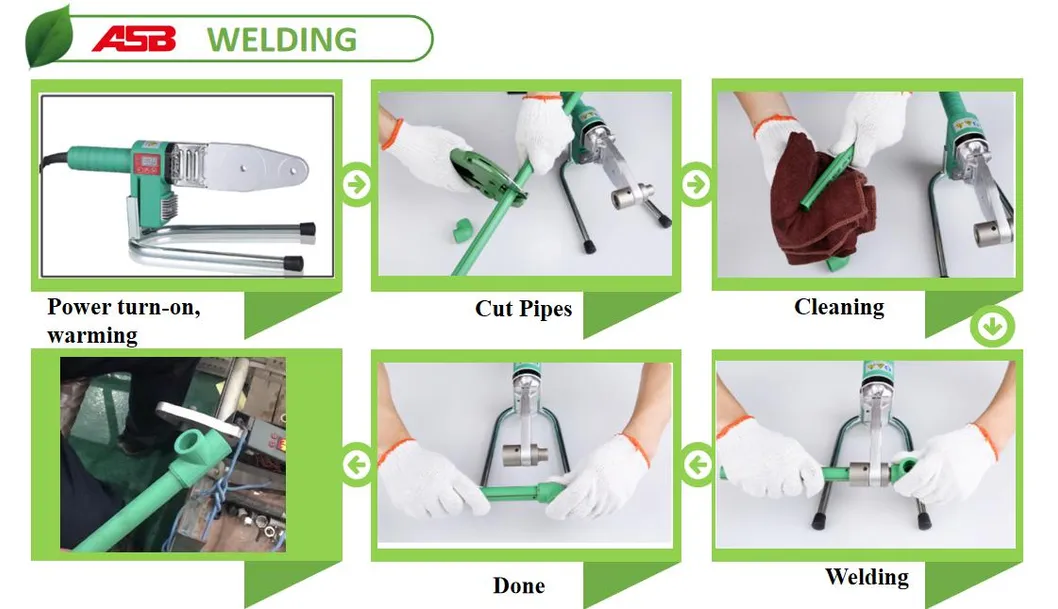

Installation Illustration

About ASB Group

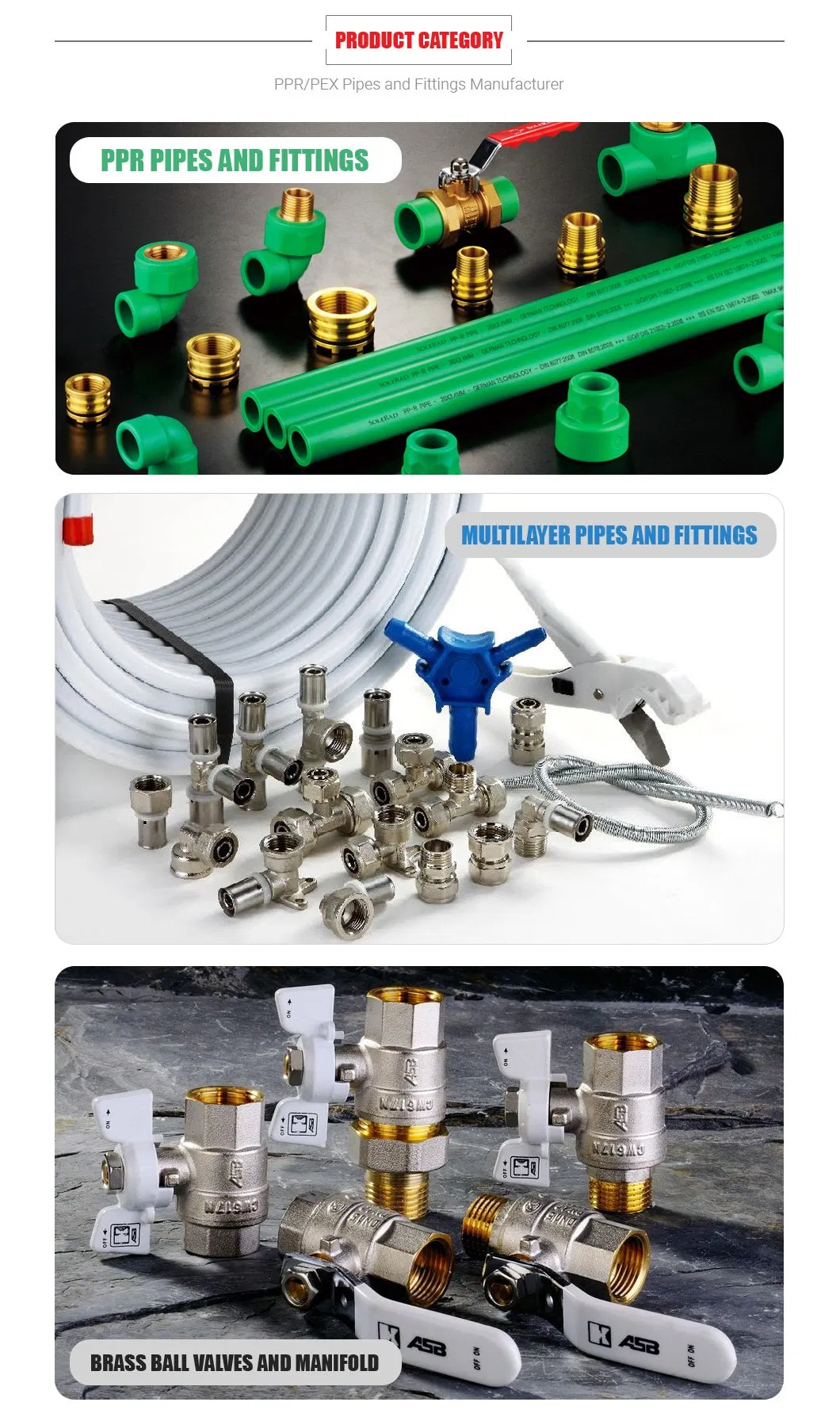

ASB specializes in the production of water supply piping systems and heating systems. The main products include PP-R pipes and fittings, aluminum-plastic PPR pipes, glass fiber PP-R pipes, aluminum-plastic composite pipes and fittings, HDPE pipes and fittings, PEX/PERT floor heating. Pipe, floor heating manifolds, brass ball valve and all kinds of brass parts.

ASB has passed the ISO9001 quality management system and ISO1400 environmental management system in the same industry through standardized management, strict testing and excellent service. At the same time, the company strictly controls the quality, and the products have passed the certifications of EU CE, Germany SKZ and Russia, Ukraine, Poland and other different standards. Products are exported to more than 90 countries and regions around the world including Germany, Britain, Poland, Russia, Mexico, Argentina, the Middle East, Southeastern Asia and Africa.
