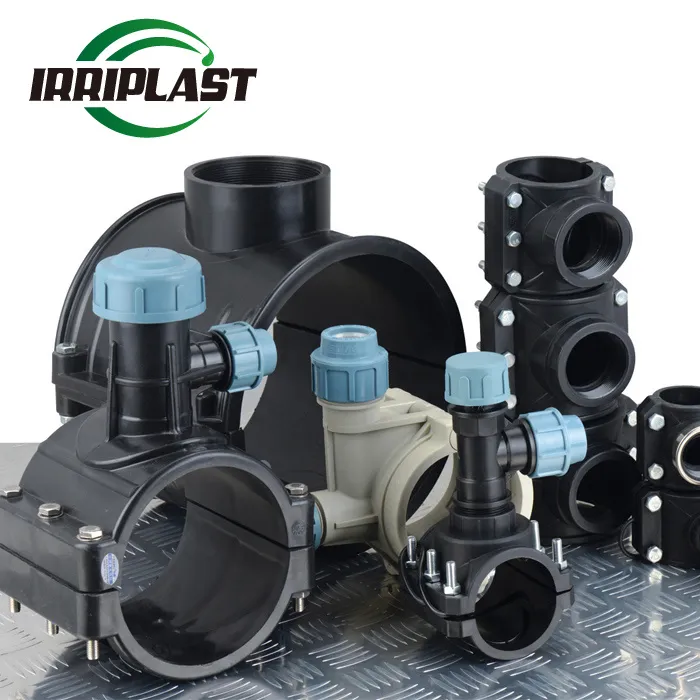

Black Painting CE Approved PPR Fitting Plastic Compression Fittings PP with Factory Price
Detailed specification for Black Painting CE Approved PPR Fitting Plastic Compression Fittings PP with Factory Price
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | 20-315mm |
| Material | Plastic |
| Shape | Equal Tee |
| Lateral | 90°Tee |
| Head Code | Round |
| Wall Thickness | SCH STD |
| Finish | Black Painting |
| Technics | Injection |
| Pressure Rating | Pn16 |
| Standard | ISO17885 |
| Certification | ISO, CE |
| Transport Package | PE Bags+Cartons |
| Specification | 20-160mm |
| Trademark | irriplast |
| Origin | China |
| HS Code | 3917400000 |
| Production Capacity | 800million Dollars/Year |
Black Painting CE Approved ppr fitting Plastic Compression Fittings PP with Factory Price
Product Description
hdpe ball valve from size 20mm to 110mm
Brand: irriplast + kexing
Main material: PP-B/POM
Certification: CE, GOST, Russia Sanitary Registration Certificate
Dimensions and characteristics according to EN 712/713/715/911, ISO 3501/3503/3458/3459
To be installed on PE pipes conforming to ISO 11922, DIN 8072/8074, UNE 53131
Threads (BSP) manufactured according to standard ISO 7, DIN 2999.
Features
1. Fast & reliable connection
2. Perfect sealing under all conditions
3. Approved for use with drinking water
Water distribution, irrigation, swimming pool, and cable conduit
Materials
Dimensions: UNI 9561Working
Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
Working Pressures
IRRIPLAST PP compression fittings allows the maximum working pressure(PN~PFA*) of 10 bar(UNI 9562) for diameters from 16mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature
Part
Material
Body(A)
Heterophasic block polypropylene co-polymer(PP-B) of
exceptional mechanical properties even at high temperature.
Blocking bush(D)
Polypropylene
Nut(B)
Polypropylene with dye master of high stability
to UV rays andsolidity to heat( S grade according to standard DIN54004)
Clinching ring(C)
Polyacetal resin(POM)with high mechanical resistance
And hardness
O Ring gasket(E)
Special elastomeric acrylonitrile rubber(EPDM) for alimentary use
Reinforcing ring
AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1"to 4"
