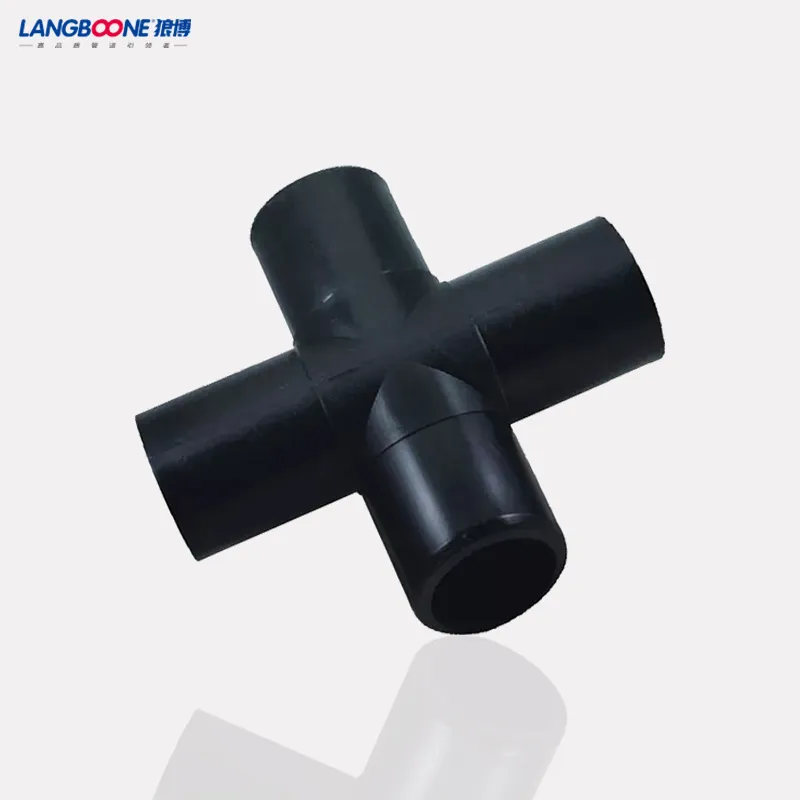

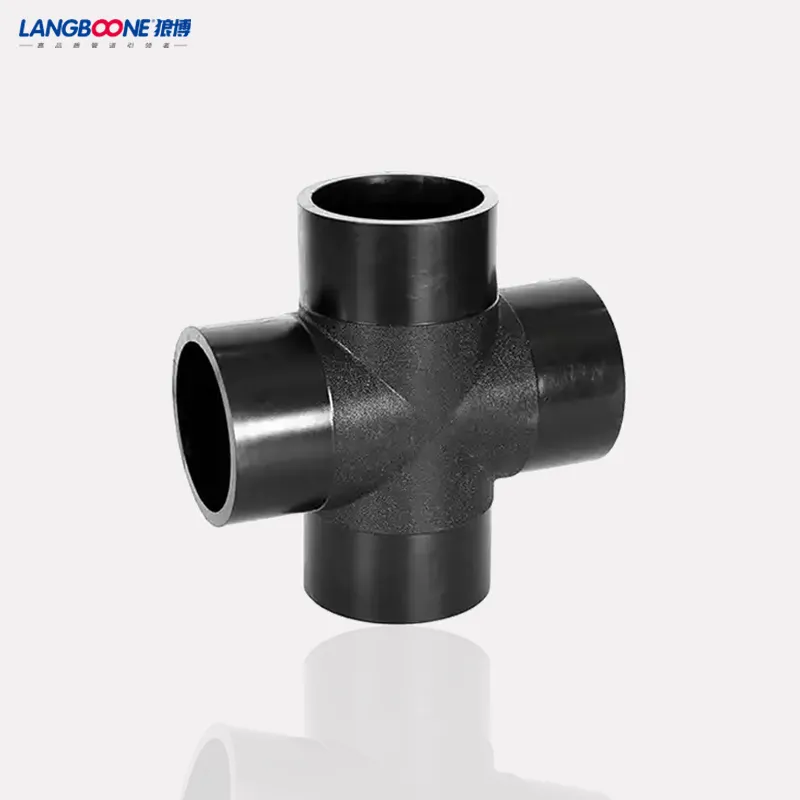

HDPE/PE Butt Fusion Equal Socket Cross Pn16 Reducing Cross Pipe Fitting

Model NO.	HDPE Fitting
Technics	Injection Molding
Material	PE
Certification	ASME, ANSI, DIN, BS, GB
Color	Black
Production Capaction	300, 00t/Year
Tensile Strength	30~40MPa
Certificate	ISO9001, CE, Wras
Production Standard	GB/CE/ISO....
Connection Way	Electrofusion or Butt Welding
Transport Package	Customized
Specification	DN25-DN800
Trademark	LANGBOONE
Origin	China
HS Code	39172100

View more products,you can click the product keywords below..

PIPES HDPE pipe Steel Mesh PE Composite Pipe Steel  Skeleton PE Composite Pipe Dual-sealing PE Composite Pipe HDPE Double Wall Corrugated Pipe Type-B HDPE Drainage Pipe Type-C HDPE Drainage Pipe MPP Cabel Conduits FITTINGS HDPE Electrofusion Fitting HDPE Butt Welding Fitting HDPE Fabricated Fitting PP Compression Fitting Steel Plate Socket ElectrofusionComposite Fitting Dual-sealing Electrofusion Fitting HDPE Drainage Fitting MPP Cable Conduits Fitting

HDPE pipe fittings, also called polyethylene pipe fittings or poly fittings, are used for the connection of HDPE piping systems. Generally, the HDPE pipe fittings are available in most common configurations of couplers, tees, reducers, elbows, stub flanges & saddles.,etc.

The HDPE pipe fittings, which are made by excellent quality material, are the ideal choice for the connection of the HDPE pipe that are made by us. The HDPE pipe fittings can be provided in various ranges, consisting: PP compression fittings, HDPE butt fusion fittings, HDPE electrofusion fittings.

LANGBOONE is integrated provider of HDPE piping systems,and we can provide the HDPE pipe fittings with various items & specifications.

The HDPE butt fusion fittings have become the most common & reliable fittings for HDPE pipe connection.LANGBOONE HDPE butt fusion fittings can be provided in a diameter dn50mm to d800mm in SDR17 & SDR11.

The HDPE butt fusion fittings made by PE100 material can offer a pressure rating of PN16 bars for SDR11 & PN10 bars for SDR17, while PE80 fittings are PN12.5 bars for SDR11 & PN8 bars for SDR17.

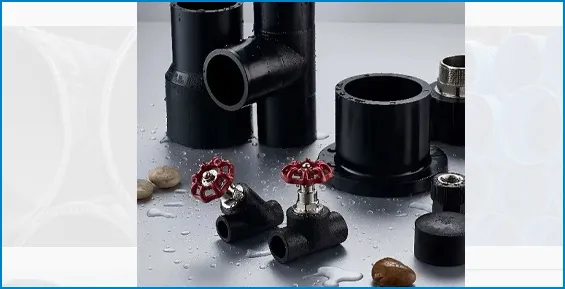

LANGBOONE HDPE butt fusion fittings can be offered in various items of reducer, elbows, tees, flanges...etc.

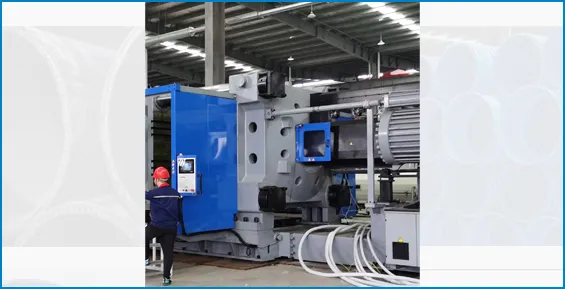

Advanced production equipment, core equipment imported from Germany and Japan, leading production technology and process

PE80/100 Virgin Material

Multitypes fittings with full range diameter,can meet all special request

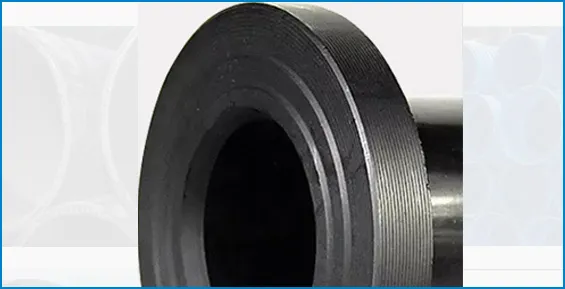

Flange Surface have clearly sealed waterline,working with rubber flat to reach better tightness



Product Name Butt Welding/Thermofusion Fittings  Material PE100(3490LS ) , PE80(ME3440)  Diameter Range DN25-DN1200 Color  Black ,Grey, Orange, Customized  Type Straight, 90° elbow, 45° elbow, flange, end cap, equal tee, reducer straight, reducing tee etc. Working Pressure Pn10, Pn12.5, Pn16, Pn20 Executive standard GB/T 13663.3-2018, ISO 4427, EN 12201 Temperature Range -20°C ~ 40 °C Application Gas Supply, Water Supply, Drainage, Sewerage Treatment, Mine And Slurry Pipelines, Irrigation, etc Package Carton, Polybag, Color Box or Customized OEM Available Features Non-toxic, Green Initiaive, Environment Friendly, Corrosion Resistance, Light weight, Easy To Transport And Install, Lower Maintance Costs Connect Butt Welding/Thermofusion, Flanged Joint Advantage Light weight, Flexibility, Toughness, Chemically Inert, Resistance to Abrasion, Smooth surface, Environmental stress crack resistance, Corrosion resistance, Frost & rodent resistance, Hygienic safety, Easy & quick installation
