Pipeline Product Factory ISO2531/En545/En598 Fbe Coated Dci Ductile Iron Pipe Fitting for PE Pipe
Detailed specification for Pipeline Product Factory ISO2531/En545/En598 Fbe Coated Dci Ductile Iron Pipe Fitting for PE Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | Pipe Fitting for PE |
| Product | Pipe Fitting for PE |
| Technics | Casting |
| Brand Name | Syi |
| Transport Package | Standard Export Package or as Per Your Requirement |
| Specification | EN14525/ANSI/AWWA C 219 |
| Trademark | SYI |
| Origin | China |
| Production Capacity | 5000tons Per Month |
SYI PE Pipes Ductile Iron Compact Fittings For Water Sewerage Pipeline Projects
Description

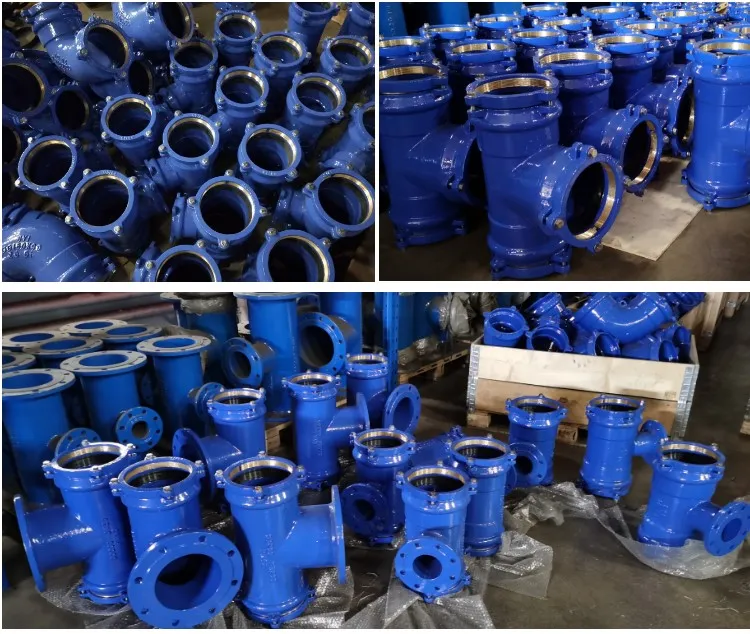

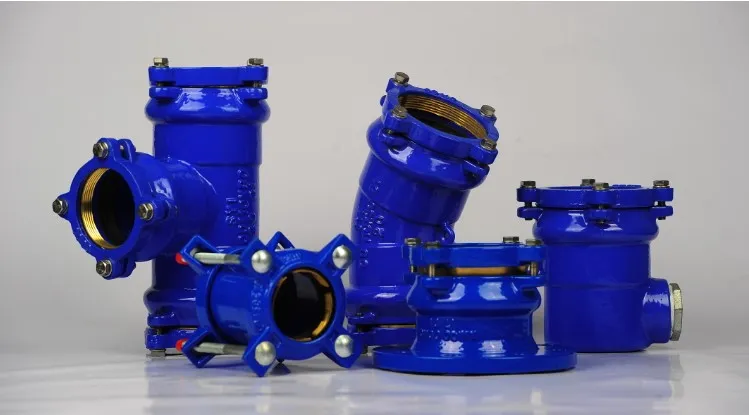

SYI COMPACT Fittings for PE Pipes is the newest design in the market, SYI can supply the ductile iron pipe fittings both for PE and PVC pipes, including Tee, Bend, Taper, Cap, Duckfoot Bend and so on, from DN80 to DN300, with the coating of Zinc and Black Bitumen coating, Red/Blue Epoxy coating, or PU (polyurethane) coating.
Material:
Fitting:Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083.
Gasket:Rubber E.P.D.M./NBR/SBR in accordance with EN 681.1
Working Pressure: 16 Bar or 250 PSI
Fluid Temperature:0°C-50°C, excluding frost
Coating
External coatings
Internal coatings
zinc + bitumen painting
liquid epoxy resin painting
epoxy applied by FBE
according to customers' requirements
cement mortar lining
liquid epoxy resin painting
epoxy applied by FBE
according to customers' requirements
Reference Rules:Dimensions and testing in accordance with ISO 2531 / EN 545 and EN 12842
Feature:
Used for jointing both PVC and PE pipes, sealing is obtained by applying pressure to the gasket by gland. PE pipe fittings permit significant angular deflextion both during and after installation and can accept a light offset of the centreline.
Note:The gaskets, bolts & nuts are supplied with the fittings usually.
1. The structural design was completed in 2014, now they are very mature.
2. Technology upgrades make them with similar advantages of PVC pipe fittings(High quality casting surface; Perfect sealing performance; Reasonable structure).
3. Owing to the copper ring structure, SYI COMPACT PE/PVC Pipe Fittingshave the anti sliping function under pressure.
As they have tee, bend, flange socket and so on, they are more flexible and convenient during the connection.
* The pipe restraining system is seperate from the sealing system.
* By tightening the screws the lock ring presses the grip ring against the pipe and a restraint connection is produced.
* Inserting the pipe end in the sealing chamber is possible without a lot of effort.
* For PE and PVC pipes (DIN 8074, EN 1452-2).
Technical features
Body: GJS-400, epoxy powder-coated
For thin-walled PE pipes up to a wall thickness of 3 mm a support liner must be used
Max. operating pressure: 16 bar
Flange measured and drilled in accordance with EN 1092-2-PN 10 (Standard); EN 1092-2-PN 16 for DN 200 mm please
specify when ordering - other standards on request!
* Most reasonable
* Most light
* Most competitive
* Quality & Efficiency improved
SYI compact fittings for pe pipes pattern list
SYI Series No.
OD
od
DN

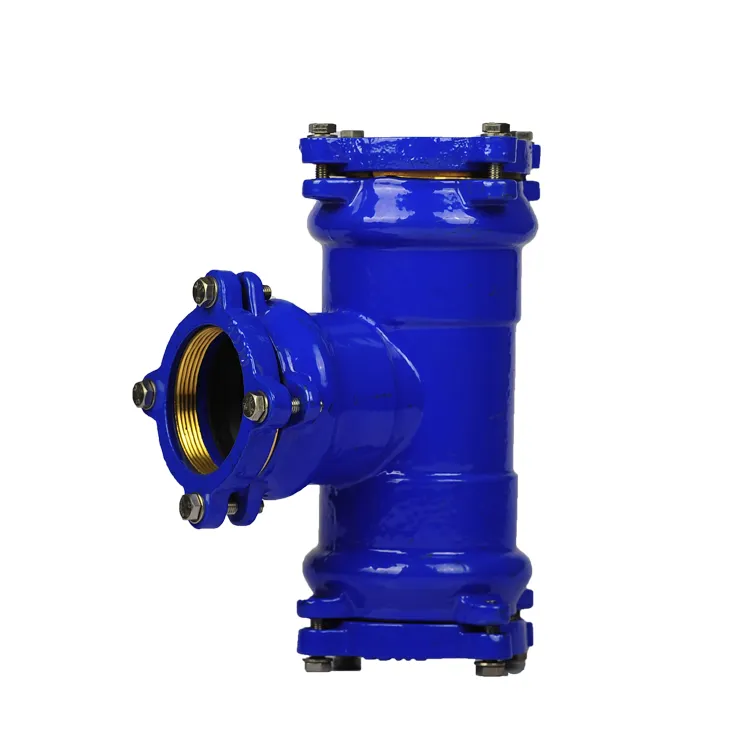

PE Double Socket Tee with Flange Branch
SYI-MMBPE9080
90
80
SYI-MMBPE11080
110
80
SYI-MMBPE110100
110
100
SYI-MMBPE12580
125
80
SYI-MMBPE125100
125
100
SYI-MMBPE16080
160
80
SYI-MMBPE160100
160
100
SYI-MMBPE160150
160
150
SYI-MMBPE20080
200
80
SYI-MMBPE200100
200
100
SYI-MMBPE200150
200
150
SYI-MMBPE200200
200
200
SYI-MMBPE22580
225
80
SYI-MMBPE225100
225
100
SYI-MMBPE25080
250
80
SYI-MMBPE250100
250
100
SYI-MMBPE250150
250
150
SYI-MMBPE250200
250
200
SYI-MMBPE250250
250
250
SYI-MMBPE31580
315
80
SYI-MMBPE315100
315
100
SYI-MMBPE315150
315
150
SYI-MMBPE315200
315
200
SYI-MMBPE315250
315
250
SYI-MMBPE315300
315
300
PE All Socket Tee
SYI-MMAPE9090
90
90
SYI-MMAPE11090
110
90
SYI-MMAPE110110
110
110
SYI-MMAPE12590
125
90
SYI-MMAPE125110
125
110
SYI-MMAPE125125
125
125
SYI-MMAPE16090
160
90
SYI-MMAPE160110
160
110
SYI-MMAPE160125
160
125
SYI-MMAPE160160
160
160
SYI-MMAPE20090
200
90
SYI-MMAPE200110
200
110
SYI-MMAPE200125
200
125
SYI-MMAPE200160
200
160
SYI-MMAPE200200
200
200
SYI-MMAPE22590
225
90
SYI-MMAPE225160
225
160
SYI-MMAPE225225
225
225
SYI-MMAPE25090
250
90
SYI-MMAPE250110
250
110
SYI-MMAPE250160
250
160
SYI-MMAPE250200
250
200
SYI-MMAPE250250
250
250
SYI-MMAPE315110
315
110
SYI-MMAPE315160
315
160
SYI-MMAPE315200
315
200
SYI-MMAPE315250
315
250
SYI-MMAPE315315
315
315

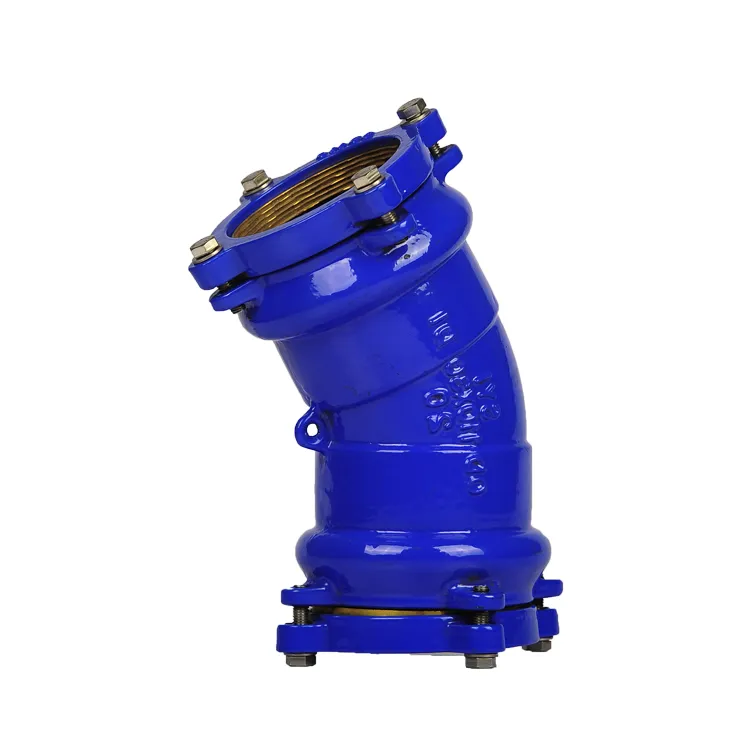

PE Double Socket Bend
SYI-MMK11PE110
90
SYI-MMK11PE160
225
SYI-MMK22PE110
90
SYI-MMK22PE160
160
SYI-MMK22PE225
225
SYI-MMK45PE110
110
SYI-MMK45PE160
160
SYI-MMQPE90
90
SYI-MMQPE110
110
SYI-MMQPE125
125
SYI-MMQPE160
160
SYI-MMQPE200
200
SYI-MMQPE250
250
SYI-MMQPE315
315
PE Double Socket Taper
SYI-MMRPE11090
110
90
SYI-MMRPE16090
160
90
SYI-MMRPE22590
225
90
SYI-MMRPE225160
225
160
PE End Cap
SYI-MCPE090
90
SYI-MCPE110
110
SYI-MCPE125
125
SYI-MCPE160
160
SYI-MCPE200
200
SYI-MCPE250
250
SYI-MCPE315
315
PE Flanged Socket
SYI-EPE9080
90
80
SYI-EPE110100
110
100
SYI-EPE125125
125
125
SYI-EPE160150
160
150
SYI-EPE200200
200
200
SYI-EPE225200
225
200
SYI-EPE250250
250
250
SYI-EPE315300
315
300
PE Flanged-Socket Duck Foot 90 Deg Bend
SYI-NPE9080
90
80
SYI-NPE110100
110
100
Standard
Material Characteristics:
Tensile strength
Mpa
Elongation
%
Brinell hardness
HB
≥420
≥5
<=250
100% hydraulitic pressure test for each piece of SYI pipeline products!
Package

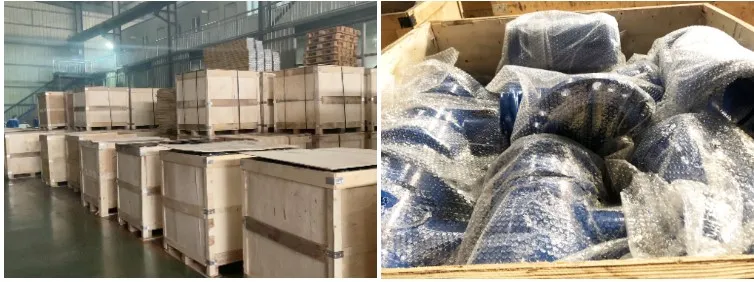

Packing: Different package upon your request,like wood cases&pallets,ply-wood crates&pallets,steel crates&pallets and etc.
Quality Control
SYI Pipeline regards quality as an essential and integral part of our business success.
Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Company Profile
SYI has continually invested in better technology and production facilities. More than 4,000 patterns
are ready. We are capable to finish all the production processes from moulding, shot-blasting, machining, coating to packaging. We have over 100,000 m2 foundry land including:
-10,000 m2 of the pattern, sand mixing, polishing, machining, hydraulic pressure, coating, packaging workshops;
-4,000 m2 of three green sand moulding workshops and one resin sand moulding workshops;
-3,000 m2 of automatic moulding machine line and epoxy coating line
-professional laboratory
-machining shop
-and our own tooling shop

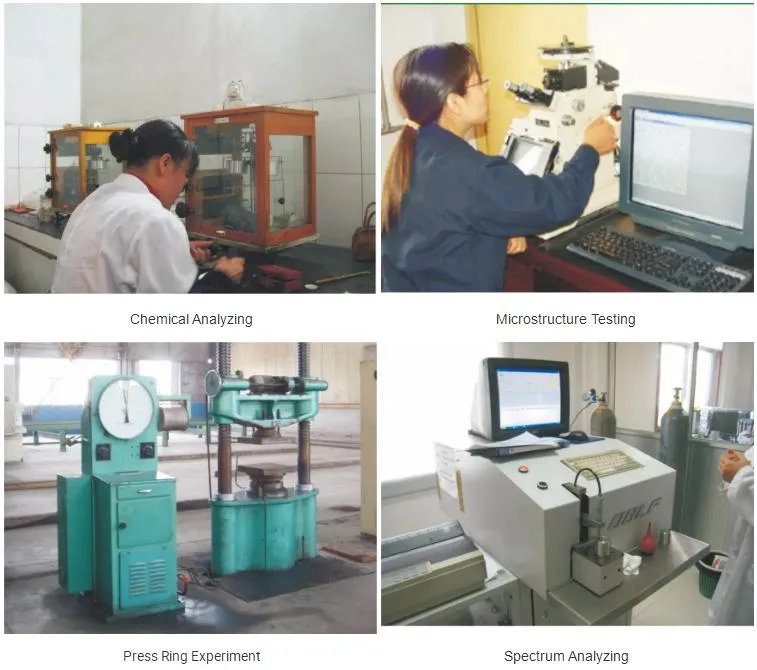

Strict process and operating regulations together with perfect quality assurance system making every production step under control. All the products are subject to tests and inspections including composition analysis, metallographic examination, dimension & surface finish inspection, ring test, tensile test, hardness test, hydrostatic test, lining and coating test to be sure that the products meet the requirements of the standards.
Since 2009, SYI Pipeline has developed from a pipes & fittings seller to a professional project solution provider, including the one stop service and solution from pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, to water meters and accessories.
Welcome to send us an inquiry for more details and price!!!
