Heat Resistant Plastic Plumbing Precision Tee/Elbow Fitting PE-Rt II Pert Electrofusion Pipe Fitting

High Durable Electrofusion Welding Elbow Fittings  PE-RT II Water Pipe Fitting

Product namePE-RT II Electrofusion Fitting  TechnicCasting Customized supportOEM, ODM, OBM UsageConvey Water ConnectionElectrofusion Welding

Product introduction:

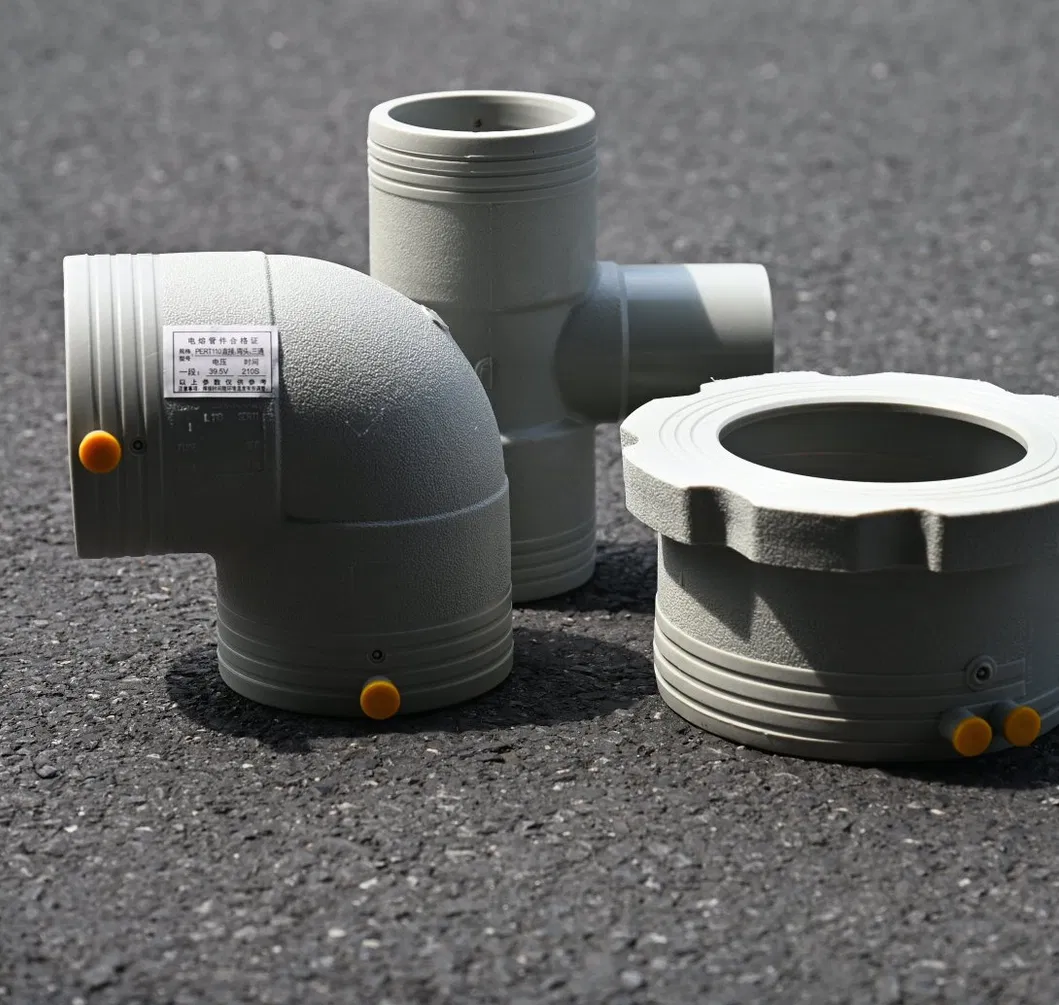

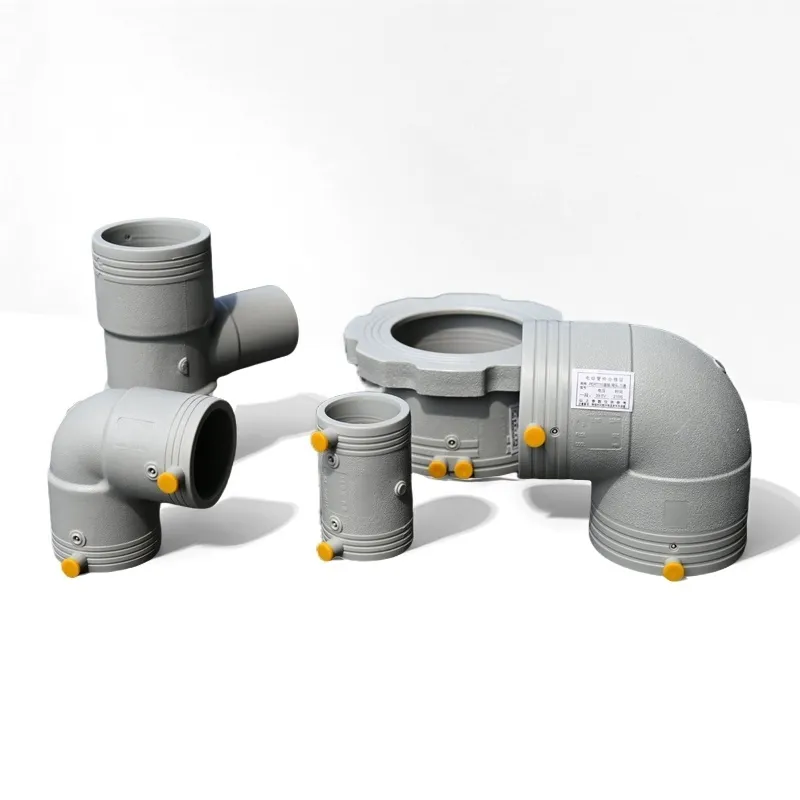

PE-RT II electric fusion pipe fittings are specially designed for PE-RT II heat-resistant polyethylene pipe connectors, through electric fusion welding technology to achieve a solid connection between the pipe and the pipe fittings. PE-RT II pipeline with high temperature resistance, pressure resistance, corrosion resistance and other excellent performance, suitable for central heating, hot water transportation and other high temperature environment

Click Here To View Our PRODUCT CATALOG & Price List√

Product advantage:

High temperature resistance: PE-RT II pipe can be used at 95ºC high temperature for a long time, and the electric melting pipe fitting is matched with it to ensure the high temperature stability of the connection.

Good sealing: The electric fusion connection fuses the pipe with the pipe fitting through heating to form a seamless connection and avoid leakage.

Convenient construction: electric fusion connection operation is simple, without complex equipment, suitable for on-site construction.

Corrosion resistance: PE-RT II material resistant to acid and alkali corrosion, suitable for a variety of media transportation.

Application field:

PE-RT II fuse fittings are widely used in the following fields:
Urban central heating: used for hot water transmission of secondary pipe network, excellent high temperature resistance.

Hot water project: suitable for air energy heat pump, solar hot water system, etc.

Hot spring pipe: used for thermal insulation transportation of hot spring water, corrosion resistance and low heat loss.

Building heating: suitable for floor heating system, high temperature ground source heat pump system, etc

Welding procedure:

Preparation work:
Check pipes and fittings to make sure there is no damage.
Clean the end face of the pipe and the inner wall of the pipe fitting to remove the oxide layer.

Pipe interception:
Ensure that the pipe face is vertical and the error is less than 5mm.

Fusion connection:
Insert the tube into the fuse fitting, making sure the marking line is aligned.
Connect the electric fusion welding machine and input welding parameters (such as voltage, time).
Start welding and wait for heating and cooling to complete.

Quality check:
Check that the joints are secure and that there are no leaks.

Matters needing attention:

Matching: Fuse fittings matching PE-RT II pipes must be used to avoid connection failure due to material differences.

Welding parameters: Set welding parameters strictly in accordance with pipe fitting instructions to avoid overheating or insufficient.

Construction environment: Avoid construction in extreme weather to ensure connection quality.

Regular maintenance: check the tightness and corrosion of the connection, and replace the damaged parts in time.

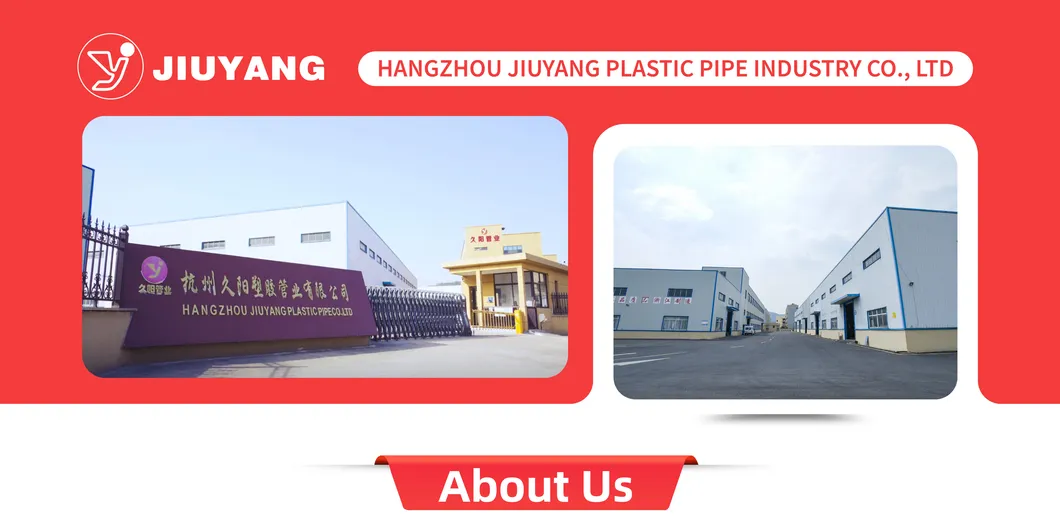

Hangzhou Jiuyang Plastic Pipe Industry Co., Ltd. was founded in 2004, specializing in the production and sales of HDPE water supply pipes and fittings.

Situated in the picturesque city of Hangzhou, our company occupies an area of 60 acres. Over the past two decades, we have amassed invaluable production expertise. Our mission is to offer customers durable, aesthetically pleasing, and cost-effective products.

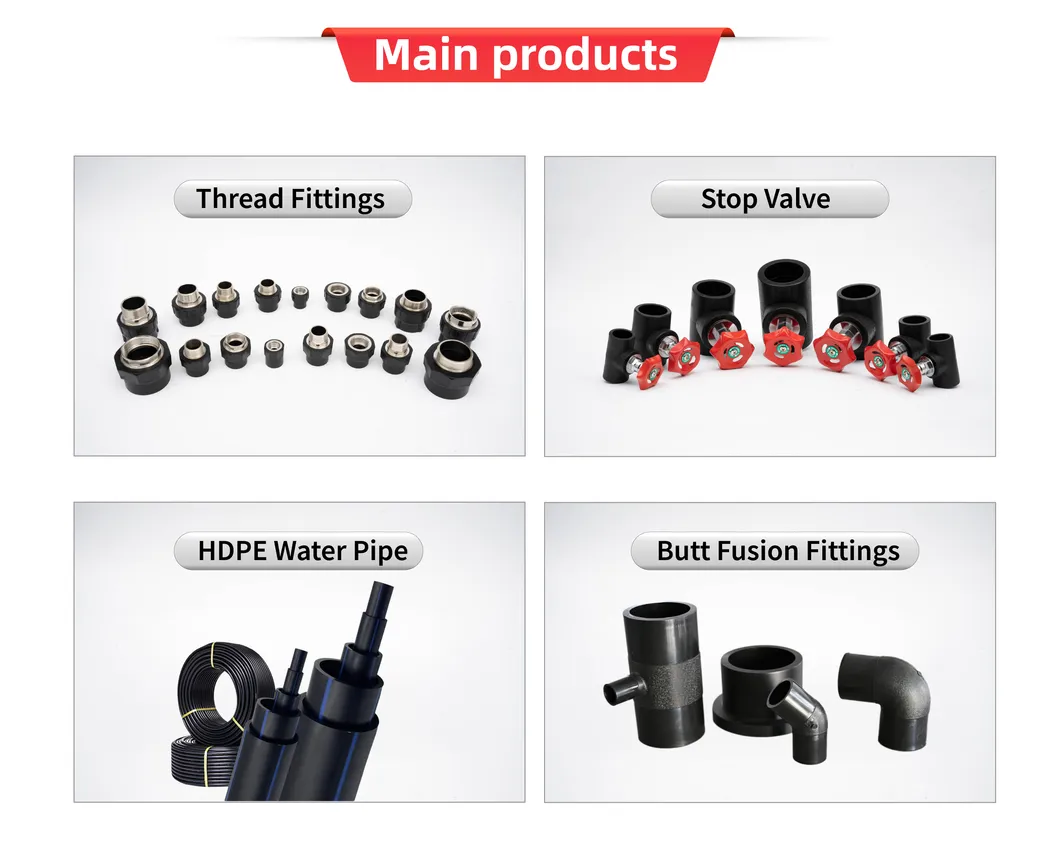

JIUYANG manufactures a comprehensive range of products. These include electrofusion pipe fittings, PE solid wall pipes, socket pipe fittings, butt welding pipe fittings, steel wire mesh skeleton winding pipes, perforated steel strip pipes, and other related items. Additionally, our factory is capable of customizing welded pipe fittings, with a maximum diameter of up to 1.2m, to meet diverse customization requirements.

For raw materials, we exclusively use 100% new PE100 raw materials supplied by Sinopec. However, if you prefer raw materials from other manufacturers, we can accommodate such requests.

Equipped with over 60 production units, our annual raw material reserve exceeds 1000 tons. Thus, for urgent orders, you can rely on us. We will make prompt arrangements.

All our products strictly adhere to industry standards and have obtained relevant quality certifications such as ISO9001 and ISO45001. With guaranteed quality, attentive service, extensive export experience, and a vibrant young team, we are worthy of your anticipation and trust.

Contact us today!



Q1: Can l obtain samples?
A1: Yes.

Q2: Can l use my own logo or design on the product?
A2: Yes, we provide OEM/ODM services; Your logo and design can be applied to the product.

Q3: Do you have a factory?
A3: Yes, we have a factory in Hangzhou, Zhejiang. Welcome to visit our company and factory. We are a professional manufacturer that provides.OEM/ODM services to our customers.

Q4: What is the production capacity of your factory?
A4: Our production capacity is very high, with over 50 production lines producing various types of pipes and fittings. We will meet your shipping requirements as quickly as possible.

Q5: When will the shipment be made?
A5: Most of our products are in stock and will be shipped to nearby ports within 3 days. Unused products and customized products are out of stock, and the specific delivery time will be negotiated and determined.



 FOR ANY QUESTION  CLCIK HERE TO ConTACT US
We will customize a solution for you within 24 hours.
