Model NO.	YY-2116
Material	Plastic
Connection	Butt Fusion
Colour	Black
Working Pressure	0.6MPa ~ 2.0MPa
Temperature Range	- 60 ~ 40degree Celsius
Application	Water Supply, Drainage, Sewerage Treatment
Transport Package	50PCS/CTN
Specification	DN50-160mm
Trademark	YOONYEE
Origin	China
HS Code	39269090
Production Capacity	100000sets/Year



Product Name

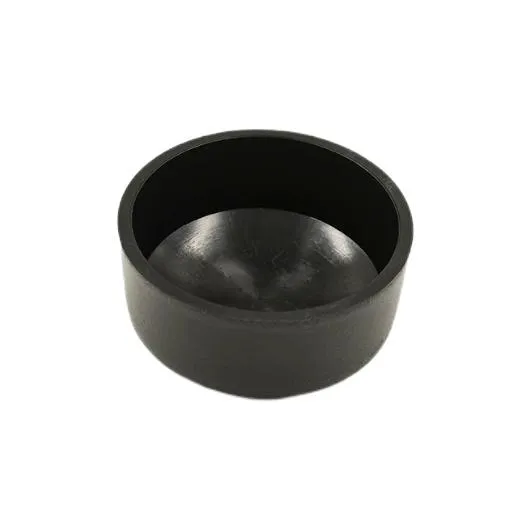

PE End Cap Pipe Fittings Socket Butt Connection for Water Supply

MaterialPE100, PE80 ColorBlack SizeDN50mm-160mm Working Pressure0.6MPa ~ 2.0MPa Executive standardISO 9001, ISO 4427, GB/T13663, EN 12201 Temperature Range’- 60°C ~ 40 °C ApplicationWater Supply, Drainage, Sewerage Treatment, Mine And Slurry Pipelines, Irrigation, etc GuaranteeProduct Life Up To 50 Years PackageStandard Packing Or Customized OEMAvailable FeaturesNon-toxic, Green Initiaive, Environment Friendly, Corrosion Resistance, Light weight, Easy To Transport And Install, Lower Maintance Costs. ConnectSocket Fusion, Butt Fusion Joint, Flanged Joint

Size(mm)  Packaging(PCS/CTN)

PE End Cap Pipe Fittings Socket Butt Connection for Water Supply

50 730 75 680 110 300 160 200

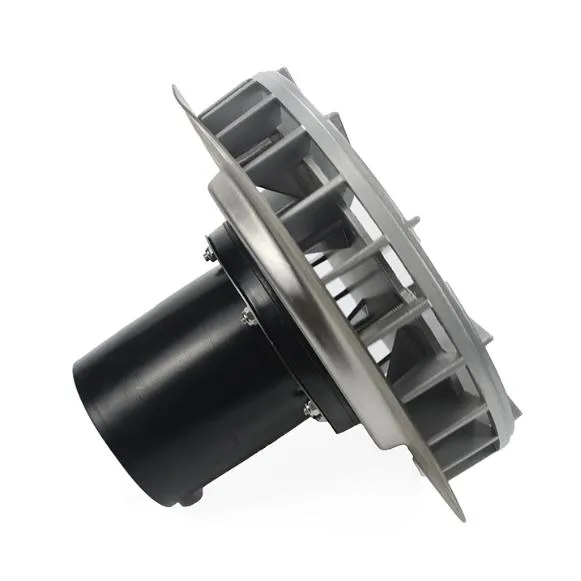

HDPE LAYER SIPHonIC DRAINAGE PIPE FITING MANUFACTURER

WHAT IS SIPHonIC ROOF DRAINAGE AND HOW IT WORKS
Siphonic drainage systems rely on negative pressure to create a vacuum effect and rapidly remove rainwater from rooftops.  In contrast to traditional gravity-based systems, the air does not enter the downpipes, resulting in a higher flow rate, larger volumes of water removed and reduced risks of water accumulation on rooftops.

In addition, siphonic roof drainage systems save space.  Rather than being installed with a slope, the connecting pipes can run parallel to the ceiling, and smaller diameters can be used without sacrificing drainage efficiency.

Siphonic roof drainage systems are the most effective rainwater discharge technology for flat and low-gradient roofs. Compared to gravity systems, siphonic drainage boasts at least twice higher flow rate, offering better protection from leaks and overflows.
