ANSI Butt Welded Carbon Stainless Steel 304 316 Seamless Tee Reducer Cap Tube 45 90 180 Degree Lr Eq

Product Description

Pipe Elbow:A pipe fitting that changes the direction of the pipe
Angle:30°,45°,60°,90°and 180°)
Radius: LR (1.5 D)  SR (1 D)
Pipe Tee:Used for flow splitting, merging, or diameter changing. Features a "T" shape with three nozzles, which can be of the same or different diameters.
Structure: Straight/Equal Tee,Reducing Tee, Lateral Tee
Pipe Reducer: Commonly known as "reducing adapter",sed to reduce fluid velocity, match equipment interfaces, or achieve energy conservation and consumption reduction.
External Shape: Concentric/Eccentric Reducer
Pipe Cap: Used to permanently or temporarily seal pipe ends, preventing foreign objects from entering and media from leaking.
Materials: CS, SS, Alloy Steel
Sizes: DN15-1200, Wall SCH5-SCH160

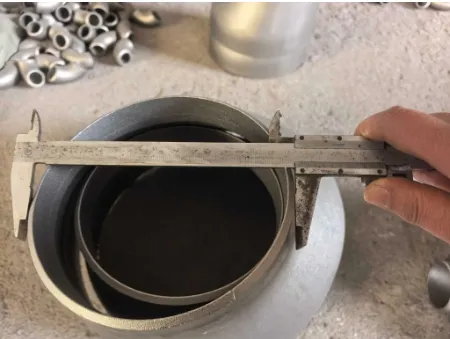

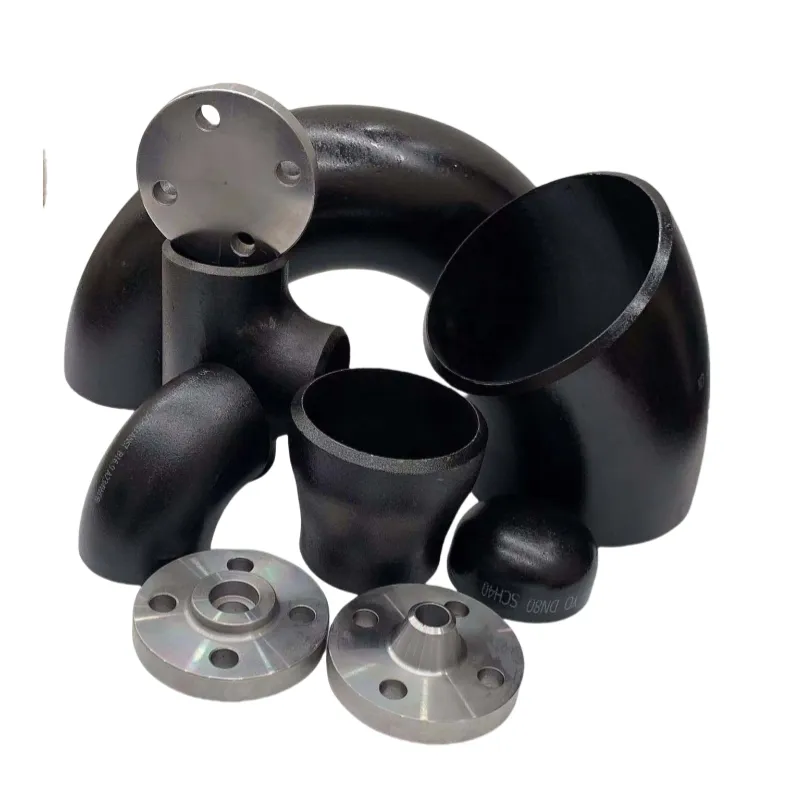

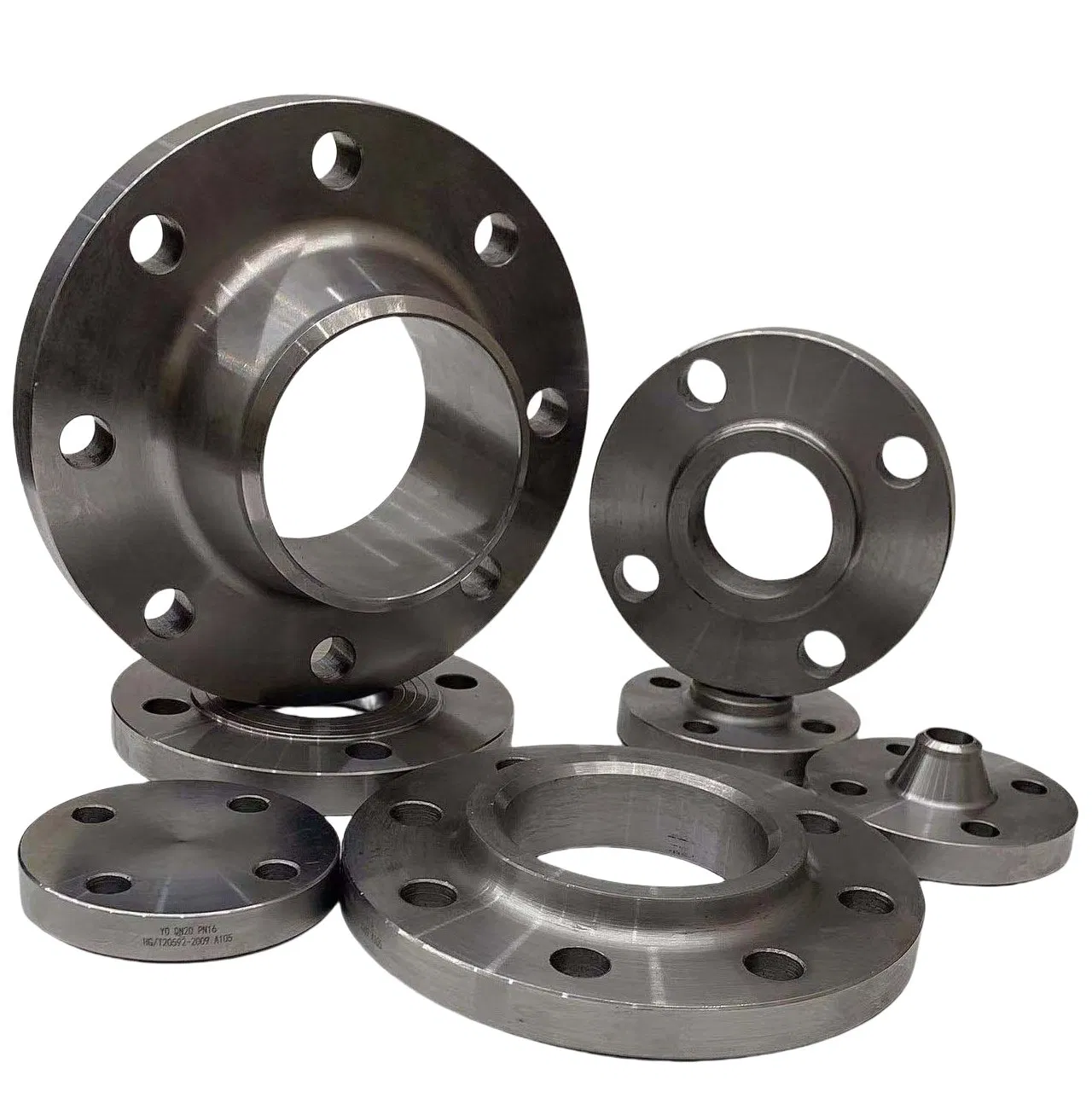

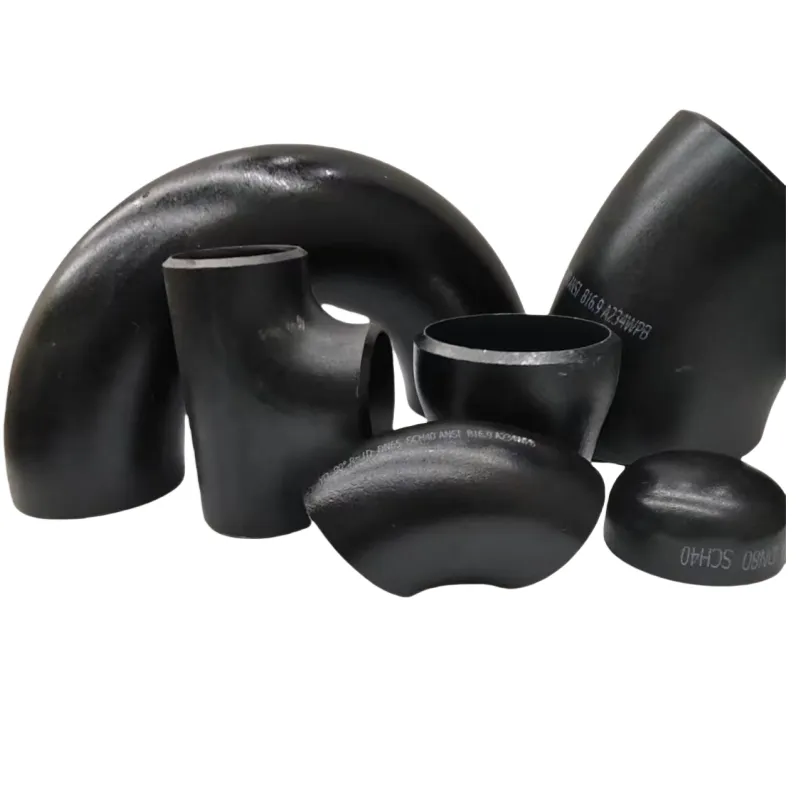

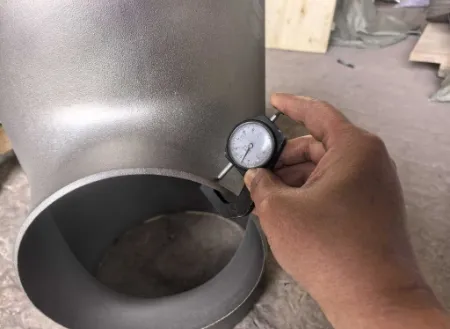

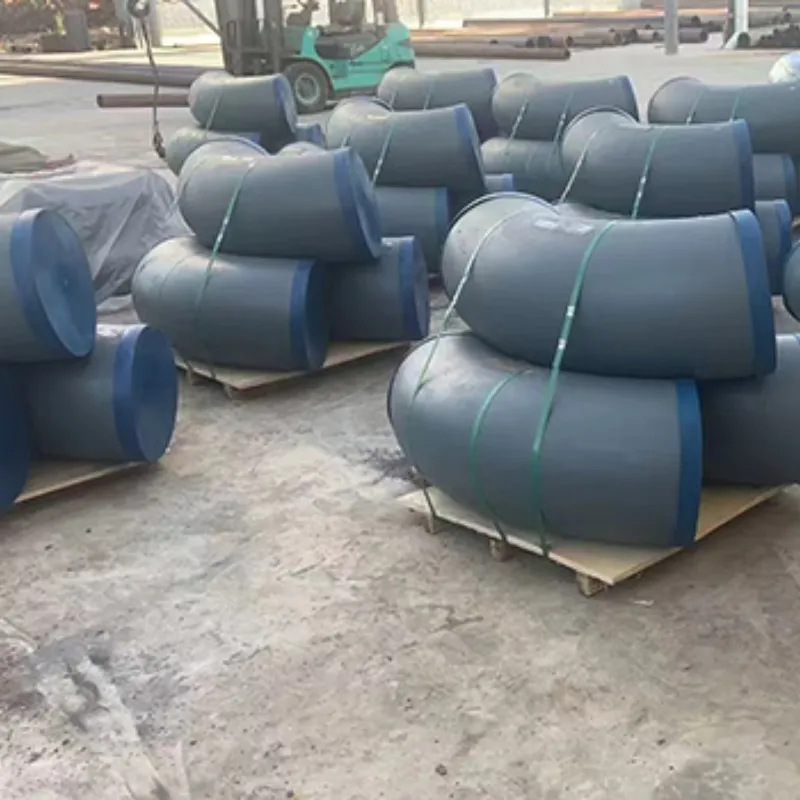

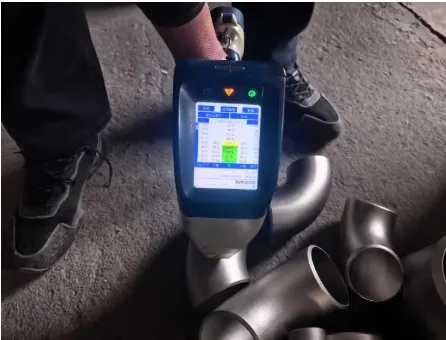

Detailed Photos

Product Parameters

Product Name

 Butt Welded Steel Pipe Fitting

Category

Elbow, Flange, Tee, Reducer, Cap,

Standard

ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313,  etc.

Wall thickness

STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS etc.

Type

30° 45° 60° 90° 180° Elbow , Equal/Reducing/Cross/Y Tee, Eccentric/Concentric Reducer, SO/WN/Blind/Plate Flange, Threadolet etc.

Surface

Nature color, Varnished, Black painting, Anti-rust oil etc.

Material

Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc.

Pipeline steel: ASTM 1860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.

Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 etc.

Application

Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building;  water treatment, Pipeline Connection, etc.

Application

YOPIPELINE supplies high quality elbows, tees, reducers and other pipe fittings for the pipelines of construction of building, ship making,  boiler mills, nuclear power plant, machinery equipment, bridge,  thermal power plant, Oil and gas transportation project, Liquefied petroleum gas project, Water treatment project, and Fire piping system. Because of the market demands, most pipe fittings are without surface treatment and anti-rust treatment. Can be customized according to your requirements.

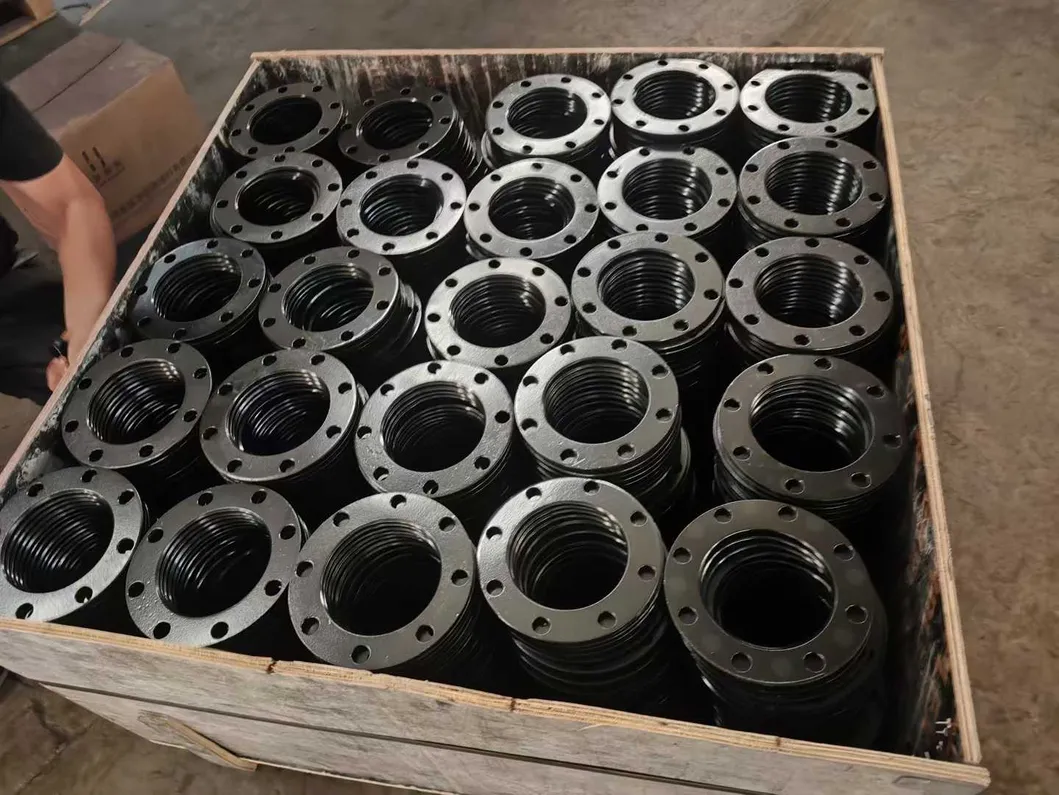

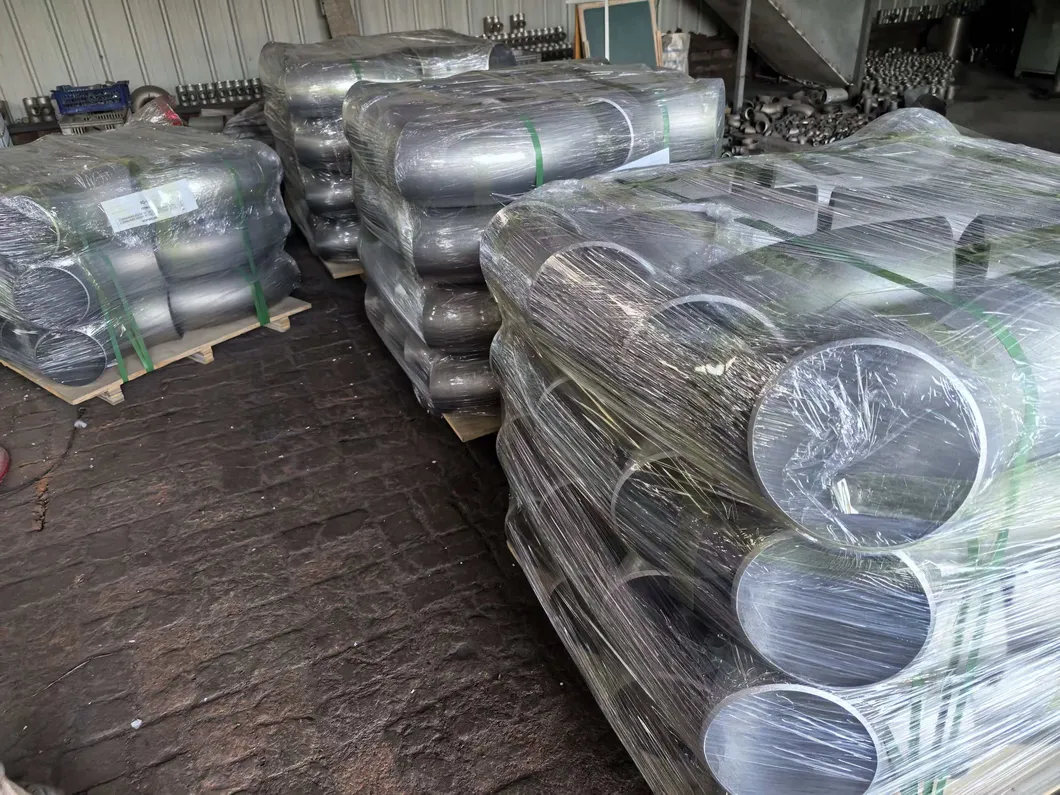

Packaging & Shipping

1. Packed by plywood case or plywood pallet as per ISPM15

2. we will put packing list on each package

3. we will put shipping markings on each package. Markings words are on your request.

4. All  wood package materials are fumigation free
