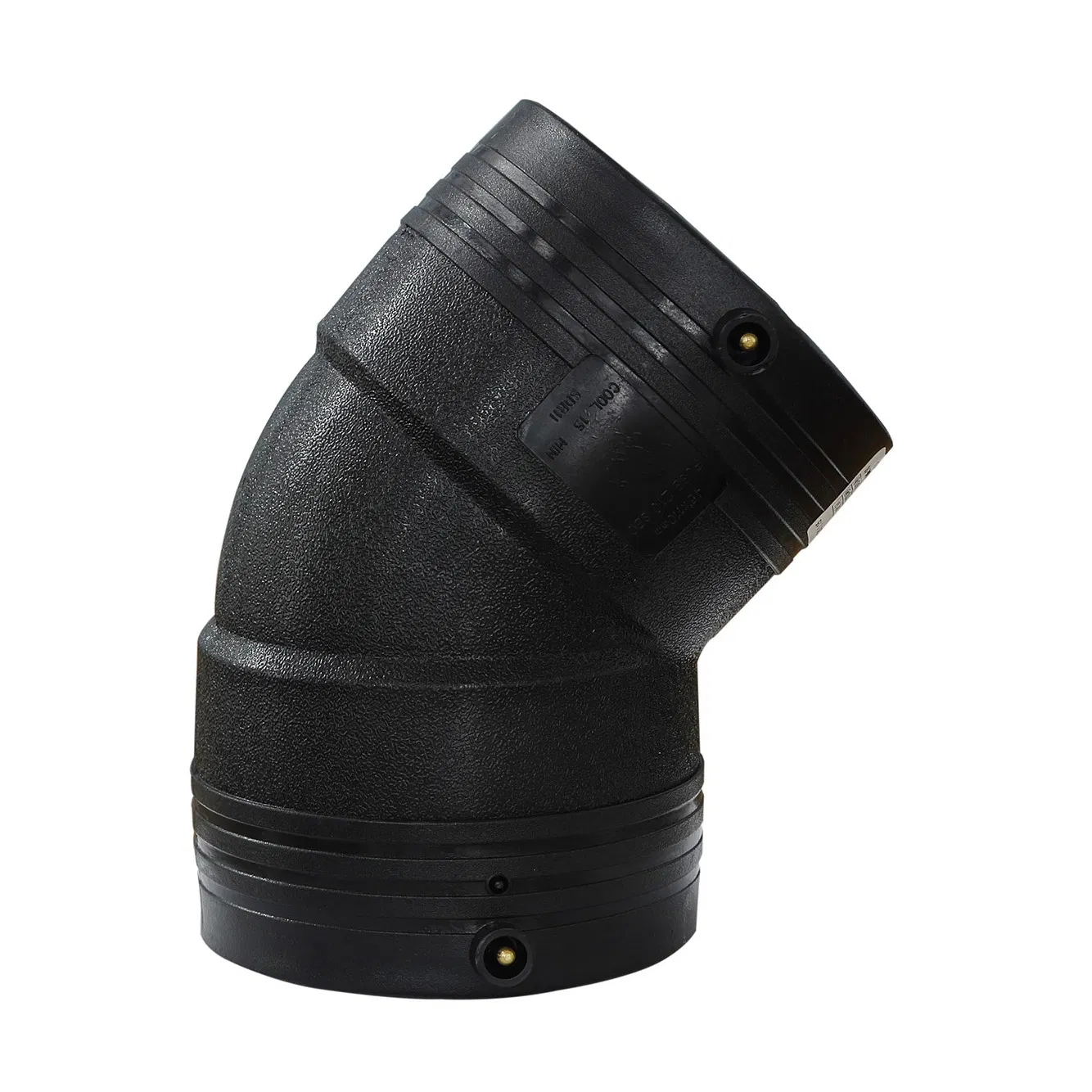

HDPE Electrofusion 45 Degree Elbow Fittings/Black SDR11 Pn16 Fittings/Coupling Pipe Connect Fittings

Model NO.	WP630-E
Connection	Welding
Structure	Coupler
Flexible or Rigid	Flexible
Material	PE100
Standard	Standard
Transport Package	Carton Case
Specification	25mm-1200mm
Trademark	Welping
Origin	China
HS Code	3917400000
Production Capacity	2000000PCS/Year

HDPE Electrofusion 45° Elbow Fittings/Black SDR11 PN16 Fittings/Coupling Pipe Connect Fittings/Electrofusion PE100/Factory Price

45° elbow selection chart

S/NSpecificationPressure ratingRemarks 150/63/75/90/110/125/140/160/200/225/250/315/355/400/450/500/630mmPN16  2315/355/400/500/630mmPN10

Products Description

• Material: Quality PE100
• Sizes: 50mm-630 mm
• Pressure Rating:PN4-PN16
• Colors: black or other colors as per customer' request(quantity required)
• Connection: hot melt fusion joint, butt fusion, electric connection, flange connection.
• Standard: GB, DIN

Products Features

• High resistance to fracture and cracks caused by external pressures
• Impact resistant
• Corrosion and abrasion resistant
• Rust resistant
• High resistance to vibrations caused by earthquake
• Chemical resistant
• Significantly low scum sedimentation due to smoothness of inner and outer walls
• Very low pressure drops due to low friction of internal wall surface
• High flexibility, low cost installation & no special tools required for installing or running the pipelines

HDPE is a durable, flexible plastic. The insoluble material is weather-resistant, shock-resistant, and abrasion-resistant. HDPE is also highly affordable, created from petroleum under high heat. Rather than crack, HDPE is more likely to tear under pressure, reducing overall damage. 100% BPA-free, HDPE is the favored material in the food industry. It is often selected for industrial work as it is 250% thicker than PVC. The material is also recyclable, producing useful if less sturdy plastic. The trickiest factor when working with HDPE is bonding, which requires intense heat and precision.
Like HDPE butt fusion fittings, HDPE electrofusion fittings also adopt a thermofusion process to joint to the HDPE pipe, by using HDPE pipe electrofusion machine, the electric power go through the brass wire that is coiled inside the surface of the both of ends of fittings, melting the outer surface of HDPE pipe & inside surface of the HDPE electrofusion fittings.

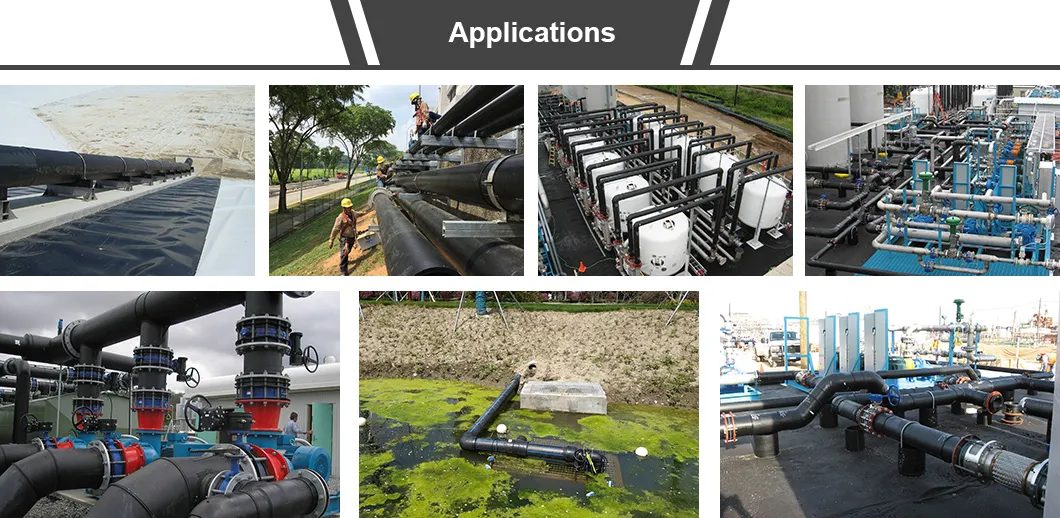

• Potable water pipes
• Municipal water supply
• Sewage treatment
• Chemicals & Commercial food containers
• Gas piping network
• Agricultural irrigation system
