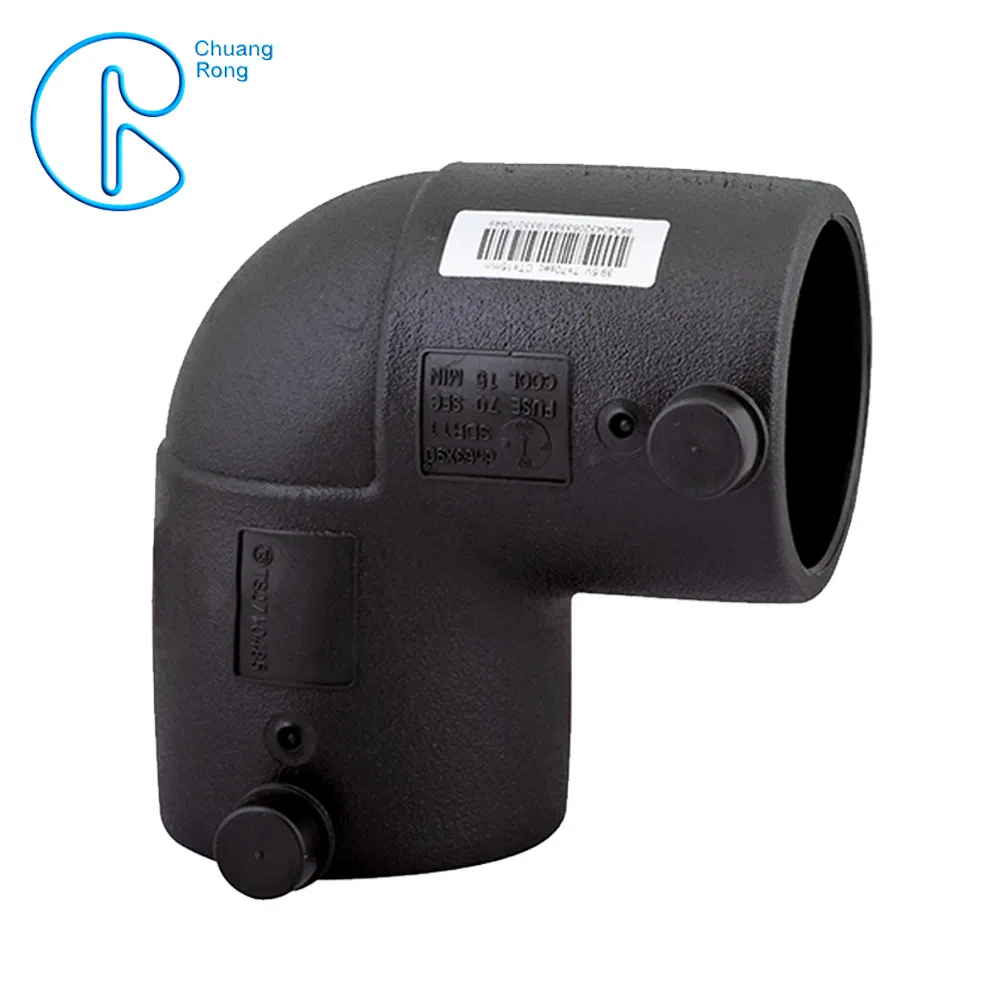

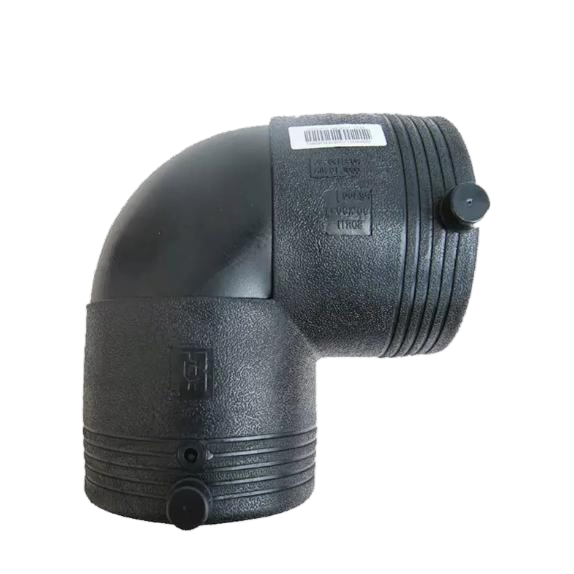

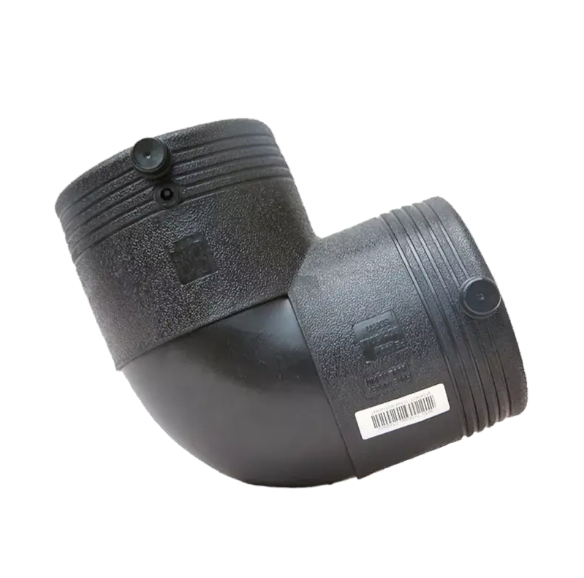

Electrofusion Fittings 25-630mm Elbow 90 Degree PE Pipe Fittings

Model NO.	Dn20-630mm
Connection	Welding
Shape	Equal
Head Code	Round
Angle	90 Degree
Wall Thickness	HDPE
Material	HDPE
Technics	Injection Molding
Certification	ISO4427 , En12201/ ISO4437, En1555 Send Email to
Color	Black Green or Others
Type	Elbow
SDR	SDR11
Norminal Pressure	Pn16
Life Span	50 Years
MOQ	1 Piece
Transport Package	Carton Box
Specification	Dn25-630mm
Trademark	CR
Origin	China (Mainland)
HS Code	3917400000



Product Description

Product Name:OD63 90 Degree Elbow Electrofusion HDPE Fittings For Water Supply PN16 SDR11 PE100Application:Gas,Water,Oil Etc Material:PE100 Virgin Raw MaterialStandard:EN 12201-3:2011,EN 1555-3:2010 Specification:OD63 90 110 160 200 250 400Port:China Main Port

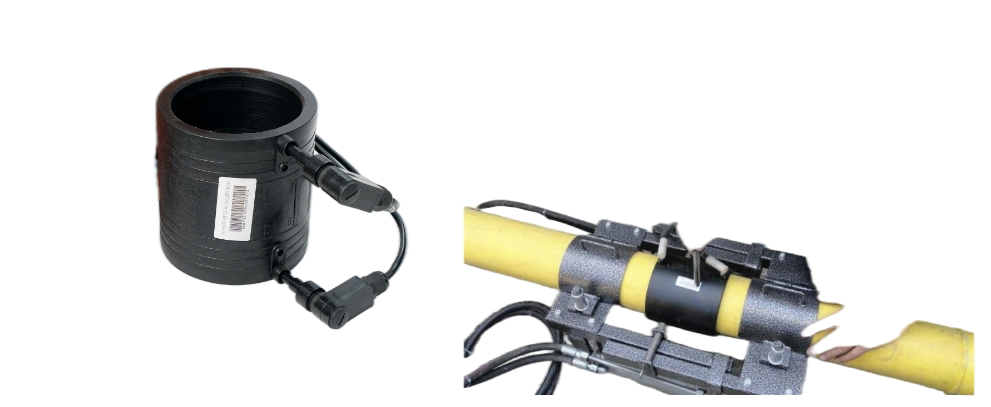

Electrofusion HDPE fittings arewelded by electrofusion machine to connect HDPE pipes together: Afterelectrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

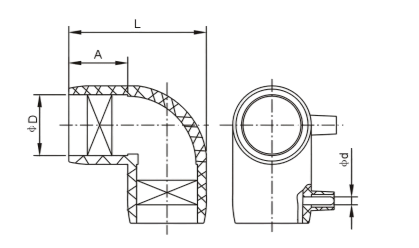

specifications



φD×90°

L



mm

A



mm

Φd



mm

25×90°85454.7 32×90°95454.7 40×90°95504.7 50×90°110504.7 63×90°130554.7 75×90°155604.7 90×90°170644.7 110×90°195704.7 125×90°225804.7 160×90°265804.7 180×90°295854.7 200×90°3301024.7 250×90°3951134.7 315×90°4851294.7 400×90°5901404.7

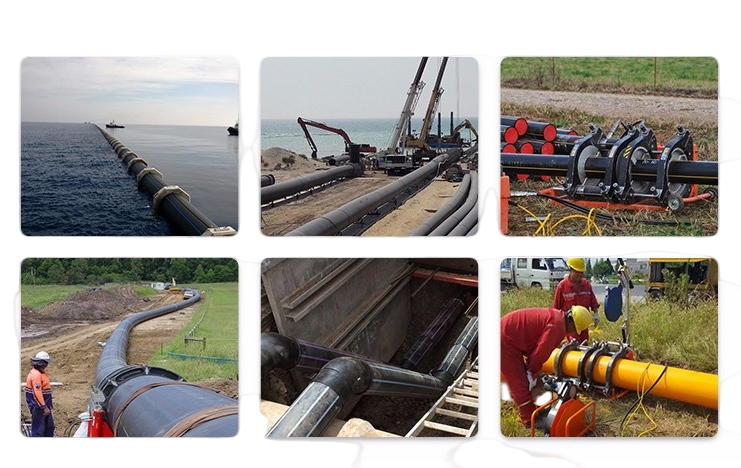

Application

1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
6. Replacement of cement pipes and steel pipes
7. Argillaceous silt, mud transportation
8. Garden green pipe networks

We can supply ISO9001-2008, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
